CR1202 IFM Programmable Human Machine Interface
KKM Solutions is an independent parts distributor, not an authorized IFM dealer — how we source.
IFM CR1202 - Programmable Human Machine Interface - Material: diecast aluminium powder-coated; Display: glass anti-reflective and hardened; Processor: ARM Dual Core 64 Bit 800 MHz.
Overview
Part number CR1202 from IFM, listed in HMIs & Operator Interfaces. Specifications on file: Ambient temperature -30...65; Aspect ratio 8:3; Audio output Stereo Line-Out; Color depth 24 Bit. KKM Solutions quotes this part with pricing and availability confirmed per order.
In our catalog, the CR1202 from IFM is listed under the Programmable Human Machine Interface category. The manufacturer's published data for this part number specifies Material: diecast aluminium powder-coated; Display: glass anti-reflective and hardened and Processor: ARM Dual Core 64 Bit 800 MHz.
IP 65; IP 67; (for inserted connectors with individually sealed cores and inserted M12 connectors or sealing caps: IP 67)
Key manufacturer data on file for this item includes Weight: 2178.5; Storage Temperature: -35...85; Type of mounting: panel/surf.; Ambient temperature: -30...65; Protocol: CANopen; SAE J1939; free protocol; Connector: 1 x AMP; Interface: CAN Interface 2.0 A/B ISO 11898; Dimensions: 160.5 x 339.1 x 47.7; Number of digital inputs: 2; Number of digital outputs: 2; Pollution degree: 2; Product type: Programmable Human Machine Interface. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Ambient temperature | -30...65 |
|---|---|
| Aspect ratio | 8:3 |
| Audio output | Stereo Line-Out |
| Color depth | 24 Bit |
| Communication interface | Ethernet; CAN; USB |
| Connector | 1 x AMP |
| Contrast ratio | 1000:1 |
| Dimensions | 160.5 x 339.1 x 47.7 |
| Display background illumination | LED |
| Display resolution | 1280 x 480 |
| Display size | 12.3" |
| Display type | Color display |
| Housing | rectangular |
| Interface | CAN Interface 2.0 A/B ISO 11898 |
| Key Features | Powerful, robust HMI with modern 64-bit architecture; High-performance USB interface for data logging and support of analog cameras and Ethernet cameras; High-performance CAN and Ethernet interfaces for various communication tasks; Freely programmable to IEC 61131-3 with CODESYS 3.5. and Qt |
| Mass storage | 4 GByte Flash |
| Material | diecast aluminium powder-coated; Display: glass anti-reflective and hardened |
| Max. current load per output | 2500 |
| Max. height above sea level | 3000 |
| Max. relative air humidity | 90; (non condensing) |
| MTTF | 41 |
| Nominal voltage DC | 12 / 24 |
| Number of CAN interfaces | 4 |
| Number of digital inputs | 2 |
| Number of digital outputs | 2 |
| Number of Ethernet interfaces | 1 |
| Number of inputs and outputs | Number of digital inputs: 2; Number of digital outputs: 2 |
| Number of USB interfaces | 1 |
| Number of video inputs | 2; (analog) |
| Number of video interfaces (CVBS) | 2 |
| Operating system | Embedded Linux 4.14 |
| Operating voltage | 8...32 DC |
| Pack quantity | 1 pcs. |
| Parameter setting options | CODESYS 3.5 |
| PLC function to IEC 61131-3 | yes |
| Pollution degree | 2 |
| Power consumption | 29 |
| Processor | ARM Dual Core 64 Bit 800 MHz |
| Product type | Programmable Human Machine Interface |
| Profile | CiA DS 301 Version 4; CiA DS 401 Version 1.4 |
| Protection | IP 65; IP 67; (for inserted connectors with individually sealed cores and inserted M12 connectors or sealing caps: IP 67) |
| Protocol | CANopen; SAE J1939; free protocol |
| Real-time clock | yes; UTC, battery buffered |
| Specification Summary | Process and dialog module; Color display; 12,3"; Display resolution 1280 x 480; Processor ARM Dual Core 64 Bit 800 MHz; Working memory 1 GByte RAM; mass storage 4 GByte Flash; Ethernet; CAN; USB; Dimensions 160.5 x 339.1 x 47.7 mm |
| Storage Temperature | -35...85 |
| Transmission rate | 20 kBit/s... 1 MBit/s |
| Transmission standard | 10Base-T; 100Base-TX |
| Type of mounting | panel/surf. |
| Version | 2.0 |
| Video input | PAL, NTSC |
| Working memory | 1 GByte RAM |
Product details
| Manufacturer | IFM |
|---|---|
| Manufacturer part number | CR1202 |
| Product category | HMIs & Operator Interfaces |
| Published specifications | 51 attributes listed |
| Related part numbers | 5 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for CR1202?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the CR1202?
CR1202 is made by IFM and is listed in our HMIs & Operator Interfaces category. KKM Solutions is an independent distributor, not an authorized IFM dealer: we source the exact IFM part number CR1202, and the quote confirms condition and lead time before you order.
Is the CR1202 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the CR1202, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of CR1202?
No published lifecycle status is on file for CR1202. IFM lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of CR1202?
Key specifications include Ambient temperature: -30...65; Aspect ratio: 8:3; Audio output: Stereo Line-Out; Color depth: 24 Bit. The full specification table on this page lists every published attribute for this part.
What voltage does CR1202 use?
Per the published specification for CR1202: Nominal voltage DC: 12 / 24; Operating voltage: 8...32 DC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is CR1202 made of?
Per the published specification for CR1202: Material: diecast aluminium powder-coated; Display: glass anti-reflective and hardened. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can CR1202 ship?
Lead time for CR1202 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other IFM part numbers in this family:
Frequently Searched IFM Part Numbers
Related Products
IFM Programmable Human Machine Interface - CR1152
IFM Programmable Human Machine Interface - CR1203
IFM Programmable Human Machine Interface - CR1151

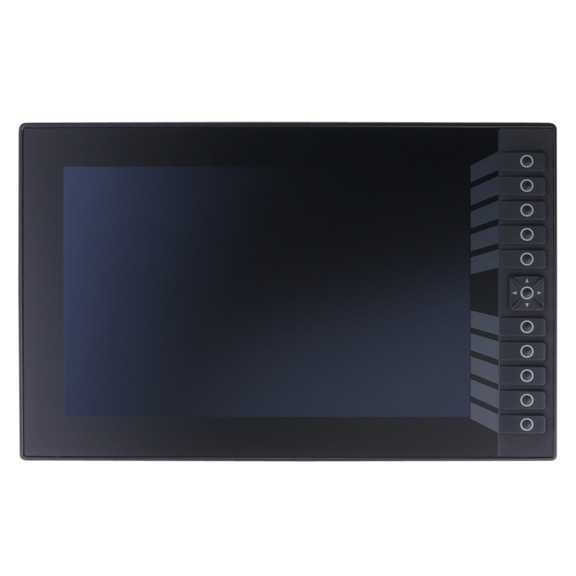

IFM Programmable Human Machine Interface - CR1204
IFM Programmable Human Machine Interface - CR1150

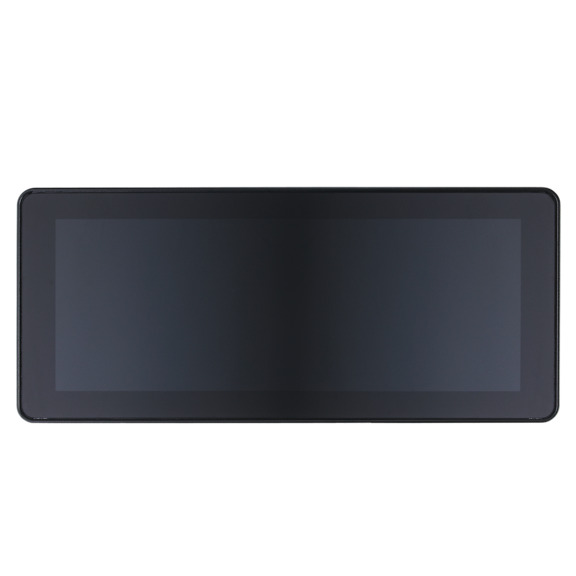

IFM Programmable Human Machine Interface - CR1213
