Programmable Human Machine Interface - CR1151
IFM CR1151 - Programmable Human Machine Interface - Material: diecast aluminium powder-coated; Display: glass anti-reflective and hardened; Processor: ARM Dual Core 64 Bit 800 MHz; Weight: 1054.3.
This listing covers the IFM CR1151, a part number in the Programmable Human Machine Interface category. The manufacturer's published data for this part number specifies Material: diecast aluminium powder-coated; Display: glass anti-reflective and hardened and Processor: ARM Dual Core 64 Bit 800 MHz.
IP 65; IP 67; (for inserted connectors with individually sealed cores and inserted M12 connectors or sealing caps: IP 67)
The specification set recorded for this part number covers Weight: 1054.3; Storage Temperature: -30...85; Type of mounting: panel/surf.; Ambient temperature: -30...65; Protocol: CANopen; SAE J1939; free protocol; Interface: CAN Interface 2.0 A/B ISO 11898; Dimensions: 114.1 x 175.6 x 41; Number of digital inputs: 2; Number of digital outputs: 2; Pollution degree: 2; Product type: Programmable Human Machine Interface; Communication interface: Ethernet; CAN; USB. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -30...65 |
|---|---|
| Aspect ratio | 16:10 |
| Audio output | Stereo Line-Out |
| Brightness | < 1000; (adjustable: 0...100 %; In steps of: 1 %) |
| Color depth | 24 Bit |
| Communication interface | Ethernet; CAN; USB |
| Contrast ratio | 1000:1 |
| Current consumption | < 833; (24 V DC; with switched outputs: < 5833 mA) |
| Dimensions | 114.1 x 175.6 x 41 |
| Display background illumination | LED |
| Display resolution | 800 x 480 |
| Display size | 5" |
| Display type | Color display |
| Housing | rectangular |
| Interface | CAN Interface 2.0 A/B ISO 11898 |
| Key Features | Powerful, robust HMI with modern 64-bit architecture; RGB backlit function keys with tactile feedback.; High-performance USB interface for data logging, support for Ethernet cameras; High-performance CAN and Ethernet interfaces for various communication tasks; Freely programmable to IEC 61131-3 with CODESYS 3.5. and Qt |
| Mass storage | 4 GByte Flash |
| Material | diecast aluminium powder-coated; Display: glass anti-reflective and hardened |
| Max. current load per output | 2500 |
| Max. height above sea level | 3000 |
| Max. relative air humidity | 90; (non condensing) |
| MTTF | 40 |
| Nominal voltage DC | 12 / 24 |
| Number of CAN interfaces | 4 |
| Number of digital inputs | 2 |
| Number of digital outputs | 2 |
| Number of Ethernet interfaces | 1 |
| Number of inputs and outputs | Number of digital inputs: 2; Number of digital outputs: 2 |
| Number of USB interfaces | 1 |
| Number of video inputs | 2; (analog) |
| Number of video interfaces (CVBS) | 2 |
| Operating system | Embedded Linux 4.14 |
| Operating voltage | 8...32 DC |
| Pack quantity | 1 pcs. |
| Parameter setting options | CODESYS 3.5 |
| PLC function to IEC 61131-3 | yes |
| Pollution degree | 2 |
| Power consumption | 20 |
| Processor | ARM Dual Core 64 Bit 800 MHz |
| Product type | Programmable Human Machine Interface |
| Profile | CiA DS 301 Version 4; CiA DS 401 Version 1.4 |
| Protection | IP 65; IP 67; (for inserted connectors with individually sealed cores and inserted M12 connectors or sealing caps: IP 67) |
| Protocol | CANopen; SAE J1939; free protocol |
| Real-time clock | yes; UTC, battery buffered |
| Specification Summary | Process and dialog module; Color display; 5"; Display resolution 800 x 480; Processor ARM Dual Core 64 Bit 800 MHz; Working memory 1 GByte RAM; mass storage 4 GByte Flash; Ethernet; CAN; USB; Dimensions 114.1 x 175.6 x 41 mm |
| Storage Temperature | -30...85 |
| Transmission rate | 20 kBit/s... 1 MBit/s |
| Transmission standard | 10Base-T; 100Base-TX |
| Type of mounting | panel/surf. |
| Version | 2.0 |
| Video input | PAL, NTSC |
| Weight | 1054.3 |
| Working memory | 1 GByte RAM |
Frequently Asked Questions
How do I get pricing for CR1151?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the CR1151?
CR1151 is a IFM part. KKM Solutions sources IFM components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of CR1151?
Key specifications include Ambient temperature: -30...65; Aspect ratio: 16:10; Audio output: Stereo Line-Out; Brightness: < 1000; (adjustable: 0...100 %; In steps of: 1 %). The full specification table on this page lists every published attribute for this part.
How quickly can CR1151 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
IFM Programmable Human Machine Interface - CR1150
IFM Programmable Human Machine Interface - CR1152
IFM Programmable Human Machine Interface - CR1144
IFM Programmable Human Machine Interface - CR1202

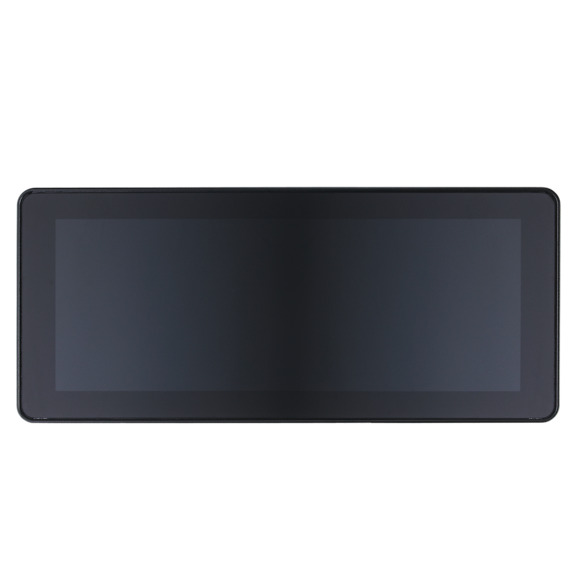

IFM Programmable Human Machine Interface - CR1203
