PMP71 Endress+Hauser Absolute andgauge pressureCerabar
KKM Solutions is an independent parts distributor, not an authorized Endress+Hauser dealer — how we source.
Endress+Hauser PMP71 - Pressure - Ambient temperature: -50°C...85°C (-58°F...185°F); Material housing: Die-cast aluminum, AISI 316L; Options: HistoROM/M-Dat 4-line digital display SS- or Aluminiumhousing Separate housing.
Overview
Part number PMP71 from Endress+Hauser, listed in Pressure Sensors & Transmitters. Specifications on file: Accuracy Standard: 0.05% Platinum: up to 0.025%; Ambient temperature -50°C...85°C (-58°F...185°F); Design approvals EN 10204-3.1 NACE MR0175, MR0103; Drinking water approvals NSF. KKM Solutions quotes this part with pricing and availability confirmed per order.
This listing covers the Endress+Hauser PMP71, a part number in the Pressure category. The manufacturer's published data for this part number specifies Ambient temperature: -50°C...85°C (-58°F...185°F) and Material housing: Die-cast aluminum, AISI 316L.
4...20 mA HART 10,5...45V DC (Non Ex): Ex ia: 10,5...30V DC PROFIBUS PA: 9...32 V DC (Non Ex) FOUNDATION Fieldbus: 9...32 V DC (Non Ex)
Published specifications for this part include Options: HistoROM/M-Dat 4-line digital display SS- or Aluminiumhousing Separate housing; Marine approval: GL/ ABS; Communication: 4...20 mA HART 1- 5V DC Low Power PROFIBUS PA FOUNDATION Fieldbus; Accuracy: Standard: 0.05% Platinum: up to 0.025%; Measuring principle: Absolute and gauge pressure; Process Connection: Threads Flanges (DIN, ASME, ...) with flush membrane; Process temperature: -40°C...125°C (-40°F...257°F); Process pressure / max. overpressure limit: 1050bar (15,750psi); Main wetted parts: Alloy C276 316L Rhodium; Certificates / Approvals: ATEX, FM, CSA, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, EAC; Specialities: diagnostic functionalities different languages in software; Design approvals: EN 10204-3.1 NACE MR0175, MR0103. See the Specifications tab on this page for the full technical table.
Specifications
| Accuracy | Standard: 0.05% Platinum: up to 0.025% |
|---|---|
| Ambient temperature | -50°C...85°C (-58°F...185°F) |
| Application limits | Measuring cell: Metal welded If pressurized, possibly use differential pressure meas-urement with two pressure transmitters (electronic dp). Observe ratio head pressure : hydrostatic pressure |
| Certificates / Approvals | ATEX, FM, CSA, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, EAC |
| Characteristic | Digital transmitter with piezoresistive sensor and welded metallic membrane Modular transmitter Long term stability Enhanced safety via self diagnostic functionsSecondary process barrier |
| Characteristic / Application | Digital transmitter with piezoresistive sensor and welded metallic membrane Modular transmitter Long term stability Enhanced safety via self diagnostic functions Secondary process barrier |
| Communication | 4...20 mA HART 1- 5V DC Low Power PROFIBUS PA FOUNDATION Fieldbus |
| Design approvals | EN 10204-3.1 NACE MR0175, MR0103 |
| Drinking water approvals | NSF |
| Fill fluid | Silicone oil, Inert oil |
| Long term stability | 0,05% of URL/year |
| Main wetted parts | Alloy C276 316L Rhodium |
| Marine approval | GL/ ABS |
| Marine approvals | GL/ABS |
| Material gasket | None, measuring cell welded |
| Material housing | Die-cast aluminum, AISI 316L |
| Material process membrane | 316L, AlloyC, Rhodium> Gold |
| Max. measurement distance | 7000m (22.966ft) H2O |
| Max. overpressure limit | 1050 bar (15.750 psi) |
| Max. Turn down | 100:1 |
| Measuring cell | 400 mbar...700 bar (5.8 psi...10.500 psi) relative/ absolute |
| Measuring principle | Absolute and gauge pressure |
| Options | HistoROM/M-Dat 4-line digital display SS- or Aluminiumhousing Separate housing |
| Pressure measuring range | 400 mbar...700 bar (5.8 psi...10.500 psi) |
| Process Connection | Threads Flanges (DIN, ASME, ...) with flush membrane |
| Process pressure / max. overpressure limit | 1050bar (15,750psi) |
| Process temperature | -40°C...125°C (-40°F...257°F) |
| Reference Accuracy | Standard: 0.05% Platinum: up to 0.025% |
| Safety approvals | SIL |
| Smallest calibratable span | 5 mbar (0.075 psi) |
| Specialities | diagnostic functionalities different languages in software |
| Successor | PMP71B |
| Supply / Communication | 4...20mA HART: 10,5...45V DC Ex ia: 10,5...30V DC PROFIBUS PA / FOUNDATION Fieldbus: 9...32V DC |
| Supply voltage | 4...20 mA HART 10,5...45V DC (Non Ex): Ex ia: 10,5...30V DC PROFIBUS PA: 9...32 V DC (Non Ex) FOUNDATION Fieldbus: 9...32 V DC (Non Ex) |
| Vacuum resistance | 10 mbar (0.15 psi) |
Product details
| Manufacturer | Endress+Hauser |
|---|---|
| Manufacturer part number | PMP71 |
| Product category | Pressure Sensors & Transmitters |
| Published specifications | 35 attributes listed |
| Related part numbers | 2 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for PMP71?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the PMP71?
PMP71 is made by Endress+Hauser and is listed in our Pressure Sensors & Transmitters category. KKM Solutions is an independent distributor, not an authorized Endress+Hauser dealer: we source the exact Endress+Hauser part number PMP71, and the quote confirms condition and lead time before you order.
Is the PMP71 new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is surplus, new-old-stock, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the PMP71, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of PMP71?
No published lifecycle status is on file for PMP71. Endress+Hauser lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of PMP71?
Key specifications include Accuracy: Standard: 0.05% Platinum: up to 0.025%; Ambient temperature: -50°C...85°C (-58°F...185°F); Application limits: Measuring cell: Metal welded If pressurized, possibly use differential pressure meas-urement with two pressure transmitters (electronic dp). Observe ratio head pressure : hydrostatic pressure; Certificates / Approvals: ATEX, FM, CSA, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, EAC. The full specification table on this page lists every published attribute for this part.
What voltage does PMP71 use?
Per the published specification for PMP71: Supply voltage: 4...20 mA HART 10,5...45V DC (Non Ex): Ex ia: 10,5...30V DC PROFIBUS PA: 9...32 V DC (Non Ex) FOUNDATION Fieldbus: 9...32 V DC (Non Ex). Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can PMP71 ship?
Lead time for PMP71 is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other Endress+Hauser part numbers in this family:
Related Products
Endress+Hauser Endress+Hauser Cerabar PMP63B – digital pressure transmitter

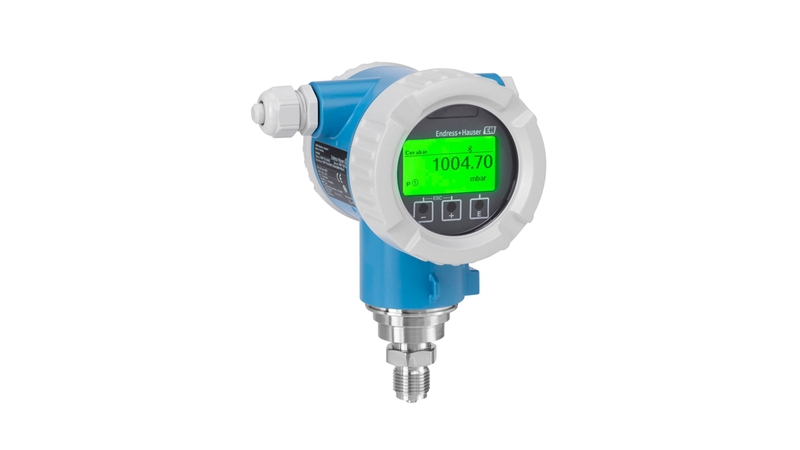

Endress+Hauser Endress+Hauser Cerabar PMP71B - pressure transmitter
