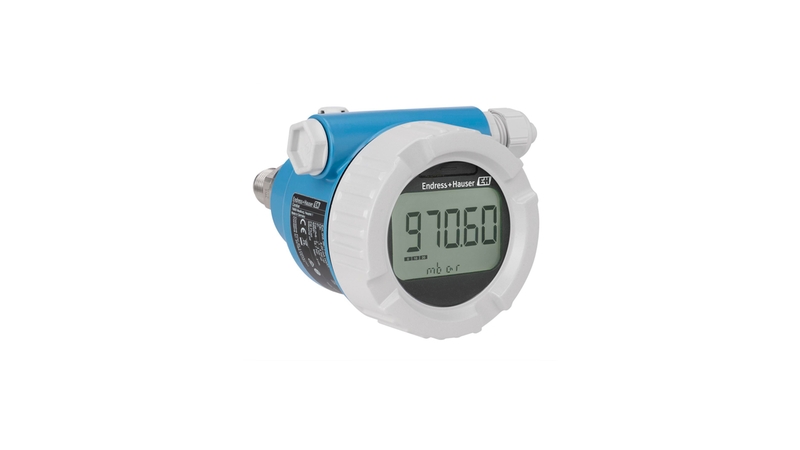

Endress+Hauser Cerabar PMP51B - pressure transmitter
| Accuracy | Standard: up to 0.075 % Platinum up to 0.055 % |
|---|---|
| Ambient temperature | -40°C...+85°C (-40°F...+185°F) |
| Application limits | Measuring cell: Metal welded If pressurized, possibly use differential pressure measurement with two pressure transmitters (electronic dp). Observe ratio head pressure: hydrostatic pressure |
| Certificates / Approvals | ATEX, IEC Ex, CSA C/US, NEPSI |
| Characteristic | Pressure transmitter with metal membrane for accurate measurement in liquids or gases. Available with diaphragm seals. Intuitive and clear wizard for commissioning |
| Characteristic / Application | Pressure transmitter with metal membrane for accurate measurement in liquids or gases. Available with diaphragm seals. Intuitive and clear wizard for commissioning |
| Communication | 4...20 mA, 4...20 mA HART PROFINET with Ethernet-APL Bluetooth® wireless technology and app (optional) |
| Design approvals | EN 10204-3.1 NACE MR0175, NACE MR0103, AD2000 |
| Drinking water approvals | NSF |
| Fill fluid | Silicone oil, Inert oil, Vegetable oil, High/ low temperature oil |
| Hygienic approvals | Hygienic approvals |
| Long term stability | 0.1 % of URL/ year 0.2 % of URL/ 5 years 0.25 % of URL/ 10 years |
| Main wetted parts | 316L, AlloyC, Tantal, Monel, PTFE |
| Marine approval | Marine approval |
| Marine approvals | Marine approvals |
| Material gasket | PTFE |
| Material housing | Aluminium |
| Material process membrane | 316L, AlloyC, Tantal, Monel, PTFE |
| Max. measurement distance | 4000 m (13,123 ft) H2O |
| Max. overpressure limit | 600 bar (9,000 psi) |
| Max. Turn down | 100:1 |
| Measuring cell | 400 mbar...400 bar (6psi...6,000psi) |
| Measuring principle | Absolute and gauge pressure |
| Options | Diaphragm seal |
| Pressure measuring range | 400 mbar... 400 bar (6psi...6,000psi) |
| Process Connection | Thread: G1/2...G2, R1/2, MNPT3/4...MNPT2, FNPT1/2 Flange: DN25...DN80, NPS 1"...3" |
| Process connection hygienic | Process connection hygienic |
| Process pressure / max. overpressure limit | 700 bar (10,500 psi) |
| Process temperature | Standard: -40°C…+125°C (-40°F…+257°F) Diaphragm seal: -40°C...+400°C (-40°F...+752°F) |
| Reference Accuracy | Standard: up to 0.075 % Platinum: up to 0.055 % |
| Safety approvals | SIL |
| Smallest calibratable span | 20 mbar (0.3 psi) |
| Specialities | Bluetooth® Operation and maintenance SmartBlue App, RFID TAG for easy identification, Plug and play functionalities |
| Supply / Communication | Ex d, Ex e, non-Ex: 10.5...35V DC Ex i: 10.5...30V DC |
| Supply voltage | Ex d, Ex e, non-Ex: 10.5...35V DC Ex i: 10.5...30V DC |
| Vacuum resistance | Standard:10 mbar (0.145 psi) Diaphragm seal: 50 mbar (0.725 psi) |
Frequently Asked Questions
How do I get pricing for PMP51B?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the PMP51B?
PMP51B is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of PMP51B?
Key specifications include Accuracy: Standard: up to 0.075 % Platinum up to 0.055 %; Ambient temperature: -40°C...+85°C (-40°F...+185°F); Application limits: Measuring cell: Metal welded If pressurized, possibly use differential pressure measurement with two pressure transmitters (electronic dp). Observe ratio head pressure: hydrostatic pressure; Certificates / Approvals: ATEX, IEC Ex, CSA C/US, NEPSI. The full specification table on this page lists every published attribute for this part.
How quickly can PMP51B ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

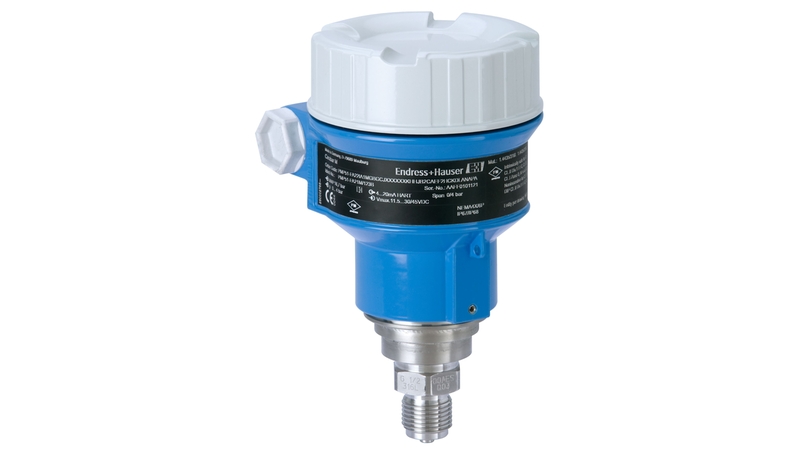

Endress+Hauser Endress+Hauser Absolute andgauge pressureCerabar PMP51

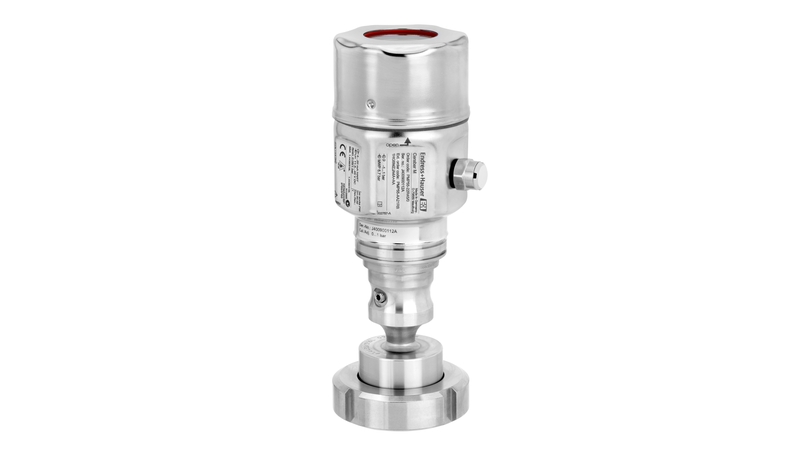

Endress+Hauser Endress+Hauser Absolute andgauge pressureCerabar PMP55

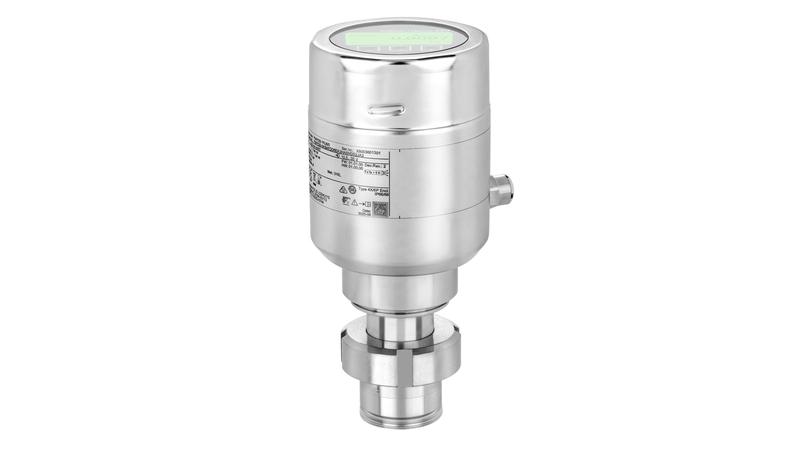

Endress+Hauser Endress+Hauser Cerabar PMP63B – digital pressure transmitter

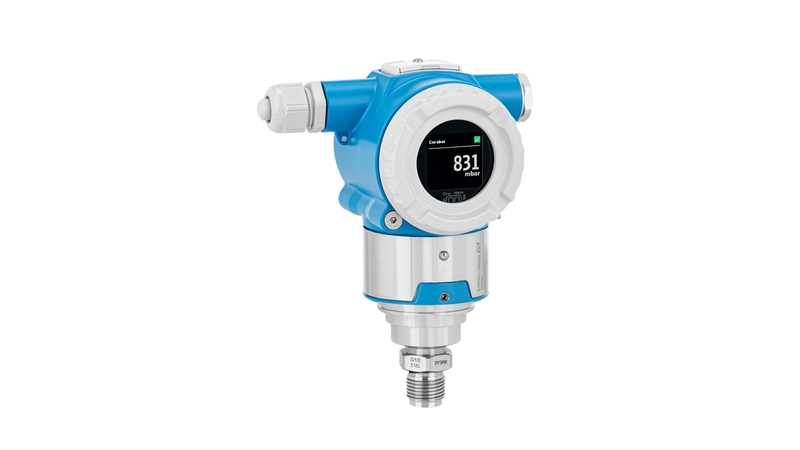

Endress+Hauser Endress+Hauser Cerabar PMP50 – pressure transmitter

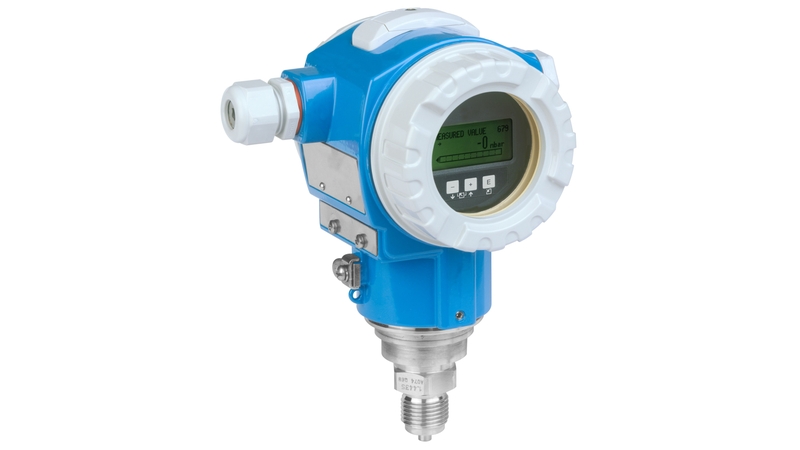

Endress+Hauser Endress+Hauser Absolute andgauge pressureCerabar PMP71
