BNI006A Balluff EtherNet/IP IO-Link master, (8) IO-Link capable I/O points, up to (16) discrete I/O points
KKM Solutions is an independent parts distributor, not an authorized Balluff dealer — how we source.
Balluff EtherNet/IP IO-Link master, (8) IO-Link capable I/O points, up to (16) discrete I/O points, IO-Link v1.1.3, 9A, 2A/port, die-cast zinc nickel-plated housing, IP67, -5 to 70 deg C, multi-line LCD display.
Overview
Part number BNI006A from Balluff, listed in I/O Modules & Remote I/O. Specifications on file: Current rating 9 A; Degree of protection (IP) IP67. KKM Solutions quotes this part with pricing and availability confirmed per order.
Balluff EtherNet/IP IO-Link master, (8) IO-Link capable I/O points, up to (16) discrete I/O points, IO-Link v1.1.3, 9A, 2A/port, die-cast zinc nickel-plated housing, IP67, -5 to 70 deg C, multi-line LCD display. Specifications: Number of IO-Link Capable I/O Points: 8; Number of Discrete I/O Points: Up to (16); Discrete I/O Port Type(s): 5-pin M12 A-coded; Nominal Input Voltage: 24 VDC; Discrete Input Type: Sinking; Number of Non-Isolated Discrete Input Commons: 1; Number of Points per Discrete Input Common: 16; Nominal Output Voltage: 24 VDC; Discrete Output Type: Sourcing; Number of Non-Isolated Discrete Output Commons: 1; Number of Points per Discrete Output Common: 16; Communication Port and Connection Type(s): 4-pin M12 D-coded, 5-pin M12 A-coded (IO-Link); Port Protocol(s): EtherNet/IP, MQTT Client, webserver (secure HTTPs), IO-Link Class A Master; Port Speed(s): 10/100 Mbps, IO-Link COM1, IO-Link COM2, IO-Link COM3; IO-Link Version: IO-Link v1.1.3; Line Side Port(s): 7/8in - 16 UN2 thread nut 4-pin male axial; Load Side Port(s): 7/8in - 16 UN2 thread nut 4-pin female axial; External Power Requirement: 24 VDC; Amperage Rating: 9A; Load Current: 2A/port; Display Type:.
Specifications
| Current rating | 9 A |
|---|---|
| Degree of protection (IP) | IP67 |
Product details
| Manufacturer | Balluff |
|---|---|
| Manufacturer part number | BNI006A |
| Product category | I/O Modules & Remote I/O |
| Published specifications | 2 attributes listed |
| Related part numbers | 16 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for BNI006A?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BNI006A?
BNI006A is made by Balluff and is listed in our I/O Modules & Remote I/O category. KKM Solutions is an independent distributor, not an authorized Balluff dealer: we source the exact Balluff part number BNI006A, and the quote confirms condition and lead time before you order.
Is the BNI006A new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the BNI006A, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of BNI006A?
No published lifecycle status is on file for BNI006A. Balluff lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of BNI006A?
Key specifications include Current rating: 9 A; Degree of protection (IP): IP67. The full specification table on this page lists every published attribute for this part.
How quickly can BNI006A ship?
Lead time for BNI006A is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other Balluff part numbers in this family:
Related Products
Balluff Balluff EtherNet/IP IO-Link master - BNI008M

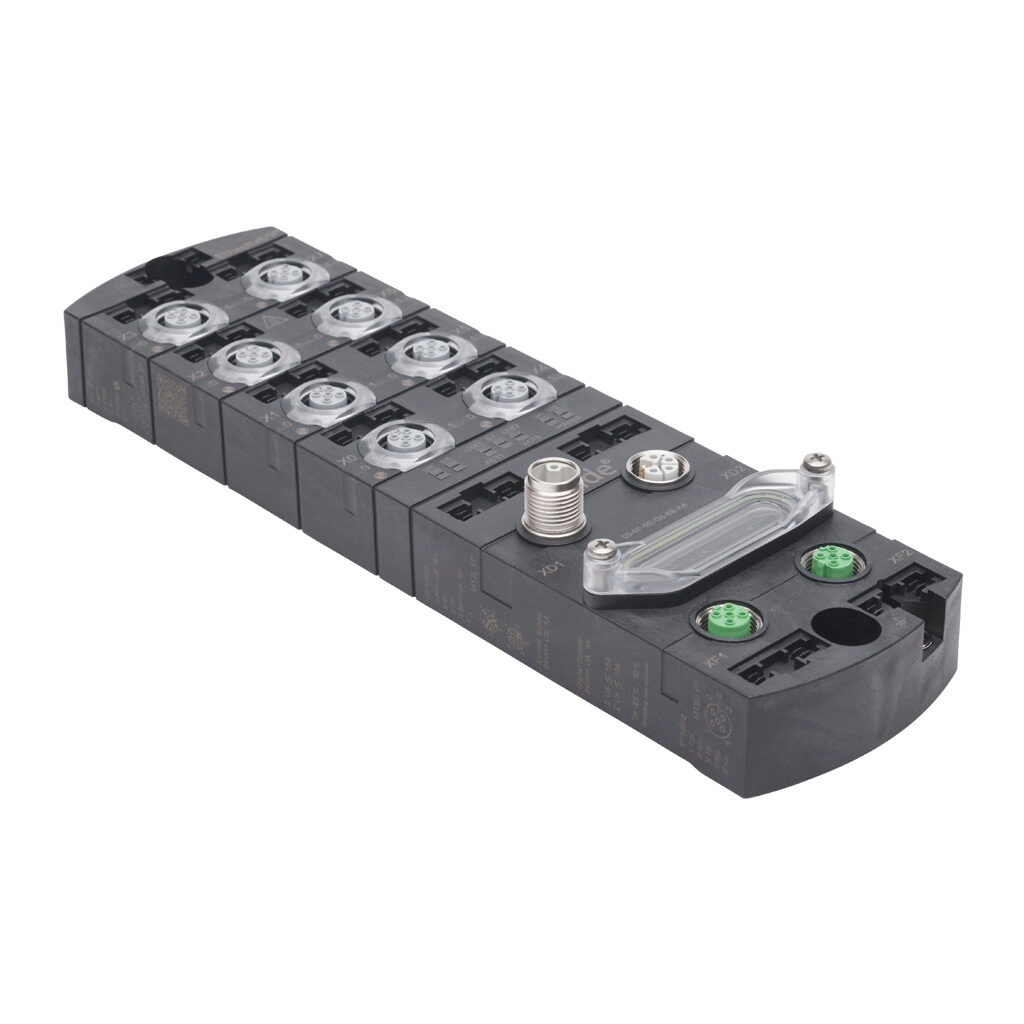

STRIDE STRIDE Basic EtherNet/IP IO-Link master - SIOL-EI8B
Murrelektronik Murrelektronik Premium EtherNet/IP IO-Link master - 54631
Balluff Balluff EtherNet/IP IO-Link master - BNI00HM

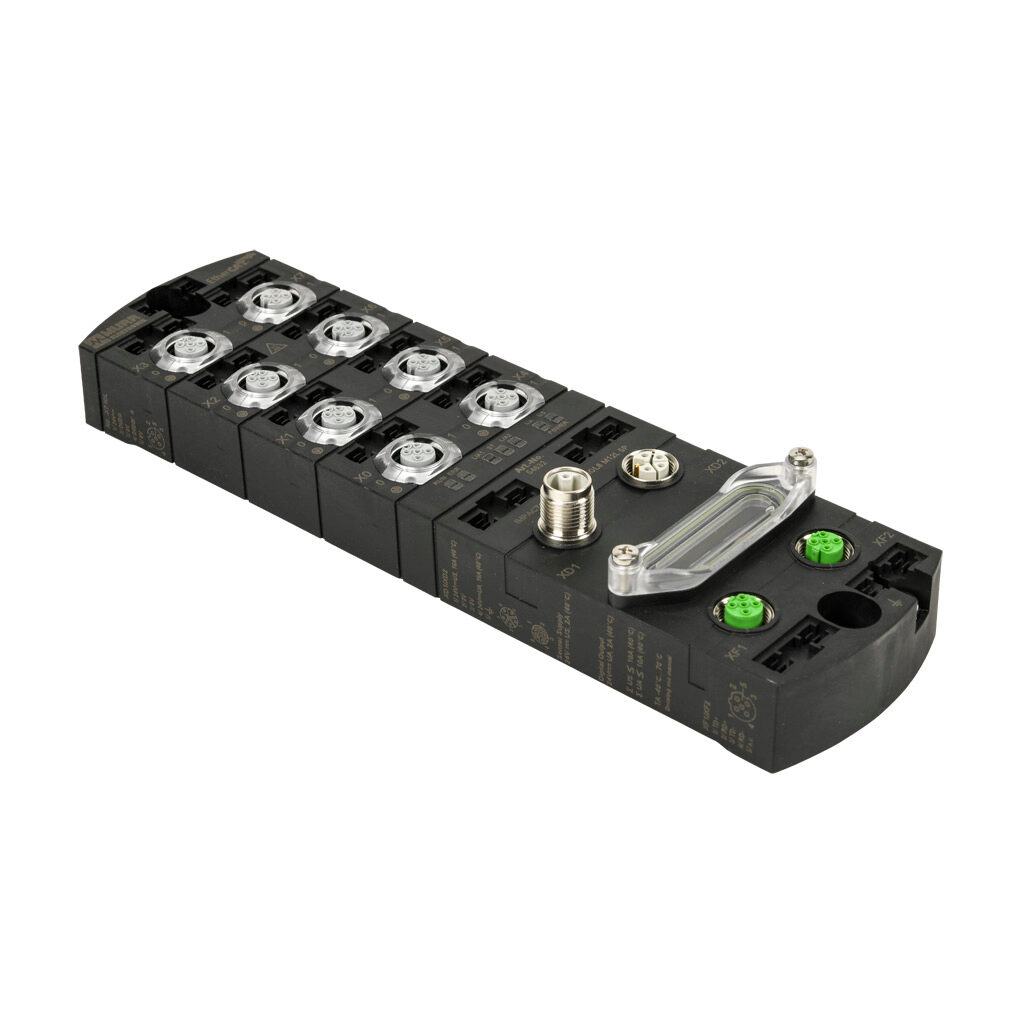

Murrelektronik Murrelektronik Premium EtherCAT IO-Link master - 54632
