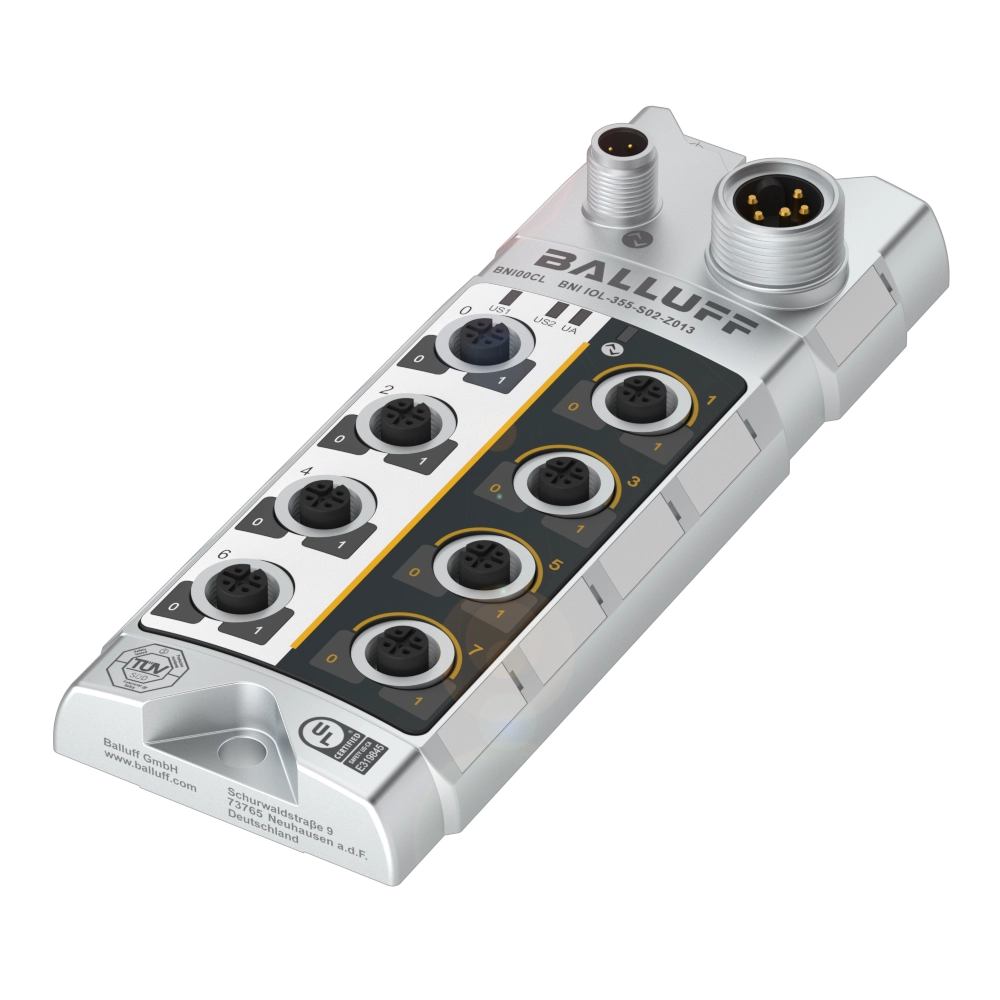

BNI00CL — Balluff BNI IOL-355-S02-Z013
KKM Solutions is an independent parts distributor, not an authorized Balluff dealer — how we source.
Overview
Part number BNI00CL from Balluff, listed in IO-Link Devices. Specifications on file: Ambient temperature -5...55 °C; Configurable inputs/outputs no; Connection (COM 1) M12x1-Male, 4-pin, A-coded; Connection (supply voltage IN) 7/8"-Male, 5-pin. KKM Solutions quotes this part with pricing and availability confirmed per order.
BNI00CL (BNI IOL-355-S02-Z013) - IO-Link sensor/actuator hubs - List price USA: 658.32 USD - Interface: IO-Link 1.1, Operating voltage Ub: 18...30.2 VDC, Connection (COM 1): M12x1-Male, 4-pin, A-coded, Connection (supply voltage IN): 7/8"-Male, 5-pin, Connection slots: 8x M12x1-Female, 5-pin, A-coded, Digital inputs: 8x PNP, Type 3, Digital outputs: 8x PNP, Configurable inputs/outputs: no, Single-channel monitoring: yes, Current sum US, sensor: 1.2 A, Switching current: 8x 2 A, Current sum UA, actuator: 9 A, Housing material: Zinc, Die casting, nickel-plated, Dimension: 68 x 32.4 x 181.5 mm, Ambient temperature: -5...55 °C, IP rating: IP67, when threaded in, Transfer rate: COM3 (230.4 kBaud), Process data IN: 1 byte Input, Process data OUT: 3 bytes - BALLUFF USA
Specifications
| Ambient temperature | -5...55 °C |
|---|---|
| Configurable inputs/outputs | no |
| Connection (COM 1) | M12x1-Male, 4-pin, A-coded |
| Connection (supply voltage IN) | 7/8"-Male, 5-pin |
| Connection slots | 8x M12x1-Female, 5-pin, A-coded |
| Current sum UA, actuator | 9 A |
| Current sum US, sensor | 1.2 A |
| Digital inputs | 8x PNP, Type 3 |
| Digital outputs | 8x PNP |
| Dimension | 68 x 32.4 x 181.5 mm |
| Housing material | Zinc, Die casting, nickel-plated |
| Interface | IO-Link 1.1 |
| IP Rating | IP67, when threaded in |
| Operating voltage Ub | 18...30.2 VDC |
| Process data IN | 1 byte Input |
| Process data OUT | 3 bytes |
| Single-channel monitoring | yes |
| Switching current | 8x 2 A |
| Transfer rate | COM3 (230.4 kBaud) |
Product details
| Manufacturer | Balluff |
|---|---|
| Manufacturer part number | BNI00CL |
| Product category | IO-Link Devices |
| Published specifications | 19 attributes listed |
| Related part numbers | 16 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for BNI00CL?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BNI00CL?
BNI00CL is made by Balluff and is listed in our IO-Link Devices category. KKM Solutions is an independent distributor, not an authorized Balluff dealer: we source the exact Balluff part number BNI00CL, and the quote confirms condition and lead time before you order.
Is the BNI00CL new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the BNI00CL, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of BNI00CL?
No published lifecycle status is on file for BNI00CL. Balluff lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of BNI00CL?
Key specifications include Ambient temperature: -5...55 °C; Configurable inputs/outputs: no; Connection (COM 1): M12x1-Male, 4-pin, A-coded; Connection (supply voltage IN): 7/8"-Male, 5-pin. The full specification table on this page lists every published attribute for this part.
What voltage does BNI00CL use?
Per the published specification for BNI00CL: Operating voltage Ub: 18...30.2 VDC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the IP rating of BNI00CL?
Per the published specification for BNI00CL: IP Rating: IP67, when threaded in. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is BNI00CL made of?
Per the published specification for BNI00CL: Housing material: Zinc, Die casting, nickel-plated. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can BNI00CL ship?
Lead time for BNI00CL is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
