BTL2HFL — Balluff BTL7-A501-M0562-P-SA442-S32
KKM Solutions is an independent parts distributor, not an authorized Balluff dealer — how we source.
Overview
Part number BTL2HFL from Balluff, listed in Safety Signs & Tags. Specifications on file: Ambient temperature -40...85 °C; Approval/Conformity CE, UKCA, cULus, WEEE; Connection Connector, M16x0.75, 8-pin; Housing material Aluminum, Anodized. KKM Solutions quotes this part with pricing and availability confirmed per order.
BTL2HFL (BTL7-A501-M0562-P-SA442-S32) - Magnetostrictive linear position sensors in profile design - List price USA: 1,352.44 USD - Style: Profile series, Mounting part: Mounting clamps, Housing material: Aluminum, Anodized, Magnets, number max.: 2, Connection: Connector, M16x0.75, 8-pin, Analog output: Analog, voltage 0…10 V, Analog, voltage 10…0 V, Measuring range: 562 mm, Sampling frequency max.: 2000 Hz, Non-linearity max.: ±0.01 % FS, Repeat accuracy: ± 10 µm, Operating voltage Ub: 10...30 VDC, Ambient temperature: -40...85 °C, IP rating: IP67, Approval/Conformity: CE, UKCA, cULus, WEEE - BALLUFF USA
Specifications
| Ambient temperature | -40...85 °C |
|---|---|
| Analog output | Analog, voltage 0…10 V, Analog, voltage 10…0 V |
| Approval/Conformity | CE, UKCA, cULus, WEEE |
| Connection | Connector, M16x0.75, 8-pin |
| Housing material | Aluminum, Anodized |
| IP Rating | IP67 |
| Magnets, number max. | 2 |
| Measuring range | 562 mm |
| Mounting part | Mounting clamps |
| Non-linearity max. | ±0.01 % FS |
| Operating voltage Ub | 10...30 VDC |
| Repeat accuracy | ± 10 µm |
| Sampling frequency max. | 2000 Hz |
| Style | Profile series |
Product details
| Manufacturer | Balluff |
|---|---|
| Manufacturer part number | BTL2HFL |
| Product category | Safety Signs & Tags |
| Published specifications | 14 attributes listed |
| Related part numbers | 3 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for BTL2HFL?
This part is quoted on request, so no price is listed for it here. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BTL2HFL?
BTL2HFL is made by Balluff and is listed in our Safety Signs & Tags category. KKM Solutions is an independent distributor, not an authorized Balluff dealer: we source the exact Balluff part number BTL2HFL, and the quote confirms condition and lead time before you order.
Is the BTL2HFL new and genuine?
Parts we supply are new and genuine unless the quote expressly states otherwise. Where a part is new-old-stock, from excess inventory, refurbished or open-box, the quote says so before you approve it.
What warranty comes with the BTL2HFL, and can I return it?
Parts we supply are warranted against manufacturing defects for 1 year from the date of delivery; where the manufacturer's own warranty is longer, the manufacturer's warranty applies. The warranty covers repair, replacement, or credit of the defective part and does not cover normal wear items, misapplication, improper installation, or consequential damages. Contact us within 30 days of delivery before returning anything — all returns need a return authorization from the order desk.
What is the lifecycle status of BTL2HFL?
No published lifecycle status is on file for BTL2HFL. Balluff lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of BTL2HFL?
Key specifications include Ambient temperature: -40...85 °C; Analog output: Analog, voltage 0…10 V, Analog, voltage 10…0 V; Approval/Conformity: CE, UKCA, cULus, WEEE; Connection: Connector, M16x0.75, 8-pin. The full specification table on this page lists every published attribute for this part.
What voltage does BTL2HFL use?
Per the published specification for BTL2HFL: Operating voltage Ub: 10...30 VDC. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What is the IP rating of BTL2HFL?
Per the published specification for BTL2HFL: IP Rating: IP67. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
What material is BTL2HFL made of?
Per the published specification for BTL2HFL: Housing material: Aluminum, Anodized. Confirm against the full specification table on this page, or ask our order desk to verify it with the manufacturer at quote time.
How quickly can BTL2HFL ship?
Lead time for BTL2HFL is quoted per order and confirmed on your quote, which our order desk sends within 1 business day. For a line-down emergency, call the 24/7 order desk at (825) 454-5367.
Variants & Related Part Numbers
Other Balluff part numbers in this family:
Frequently Searched Balluff Part Numbers
Related Products
Balluff Balluff BTL7-E500-M3048-Z-SA359-S32

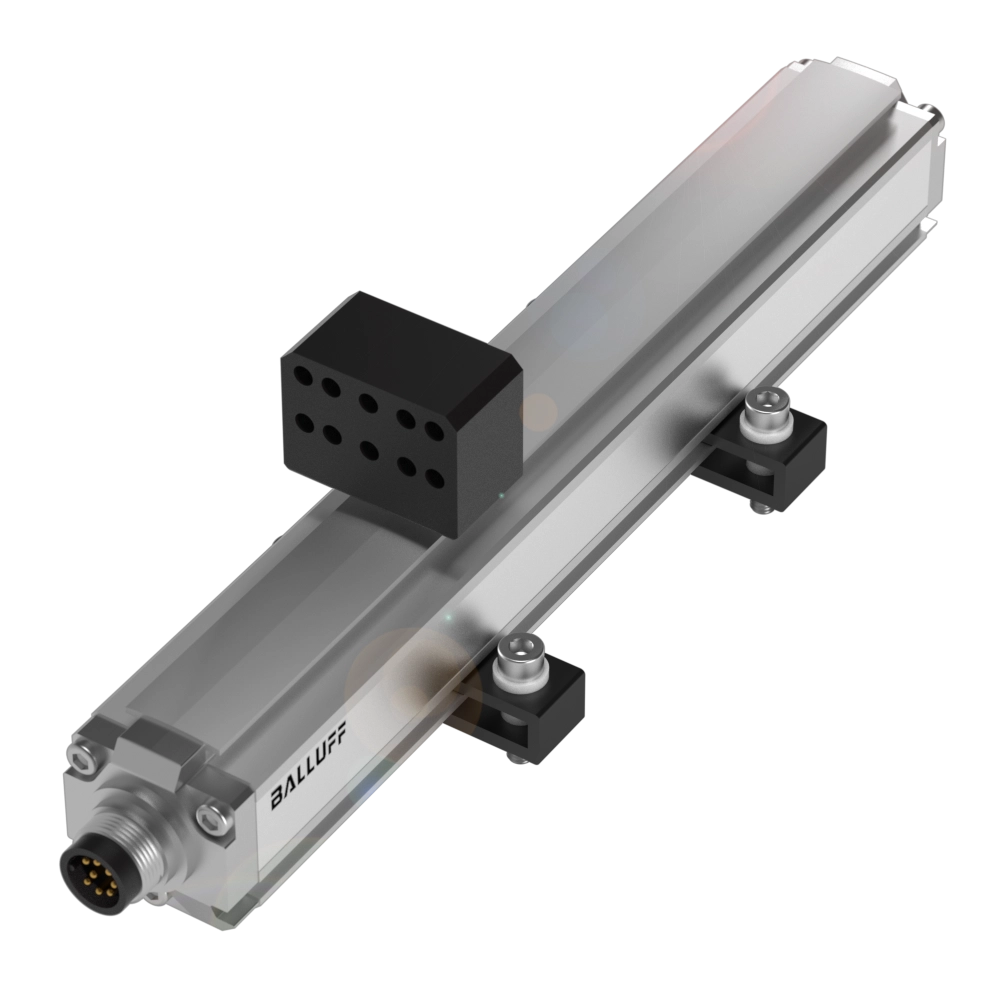

Balluff Balluff BTL6-A110-M0660-P-S115
