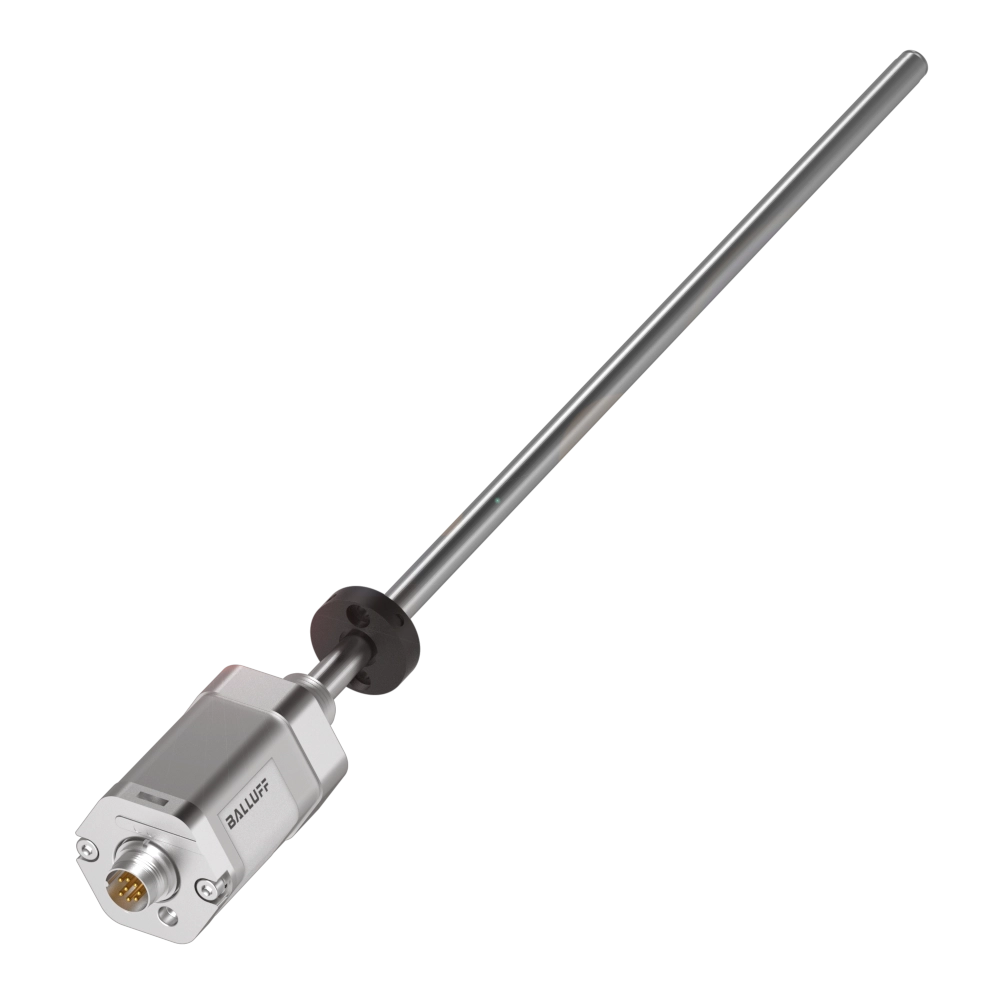

Balluff BTL7-E500-M3048-Z-SA359-S32
BTL2HL5 (BTL7-E500-M3048-Z-SA359-S32) - Magnetostrictive linear position sensors in rod design - Style: Rod series, Mounting part: Threaded flange 3/4-16UNF, Housing material: Aluminum, Anodized, Magnets, number max.: 1, Connection: Connector, M12x1, 8-pin, Analog output: Analog, current 4…20 mA, Measuring range: 3048 mm, Sampling frequency max.: 250 Hz, Non-linearity max.: ±0.01 % FS, Repeat accuracy: ± 5 µm, Operating voltage Ub: 10...30 VDC, Ambient temperature: -40...85 °C, IP rating: IP67, Approval/Conformity: CE, UKCA, cULus, WEEE - BALLUFF USA
| Ambient temperature | -40...85 °C |
|---|---|
| Analog output | Analog, current 4…20 mA |
| Approval/Conformity | CE, UKCA, cULus, WEEE |
| Connection | Connector, M12x1, 8-pin |
| Housing material | Aluminum, Anodized |
| IP Rating | IP67 |
| Magnets, number max. | 1 |
| Measuring range | 3048 mm |
| Mounting part | Threaded flange 3/4-16UNF |
| Non-linearity max. | ±0.01 % FS |
| Operating voltage Ub | 10...30 VDC |
| Repeat accuracy | ± 5 µm |
| Sampling frequency max. | 250 Hz |
| Style | Rod series |
Frequently Asked Questions
How do I get pricing for BTL2HL5?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BTL2HL5?
BTL2HL5 is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of BTL2HL5?
Key specifications include Ambient temperature: -40...85 °C; Analog output: Analog, current 4…20 mA; Approval/Conformity: CE, UKCA, cULus, WEEE; Connection: Connector, M12x1, 8-pin. The full specification table on this page lists every published attribute for this part.
How quickly can BTL2HL5 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
