BOS0237 (BOS 18E-XT-IS20-S4) - Through-beam sensors - Special characteristics: Washdown, Series: 18E, Dimension: Ø 18 x 75 mm, Input function: Test (Emitter off), Principle of operation: Photoelectric sensor, Principle of optical operation: Through-beam sensor (Emitter), Beam characteristic: Divergent, Light type: Infrared, Range: 0...50 m, Connection: Connector, M12x1-Male, 4-pin, Housing material: 1.4404 stainless steel, Material sensing surface: Glass, Operating voltage Ub: 10...30 VDC, Approval/Conformity: CE, cULus, Ecolab, EAC, WEEE - BALLUFF USA
| Approval/Conformity | CE, cULus, Ecolab, EAC, WEEE |
|---|---|
| Beam characteristic | Divergent |
| Connection | Connector, M12x1-Male, 4-pin |
| Dimension | Ø 18 x 75 mm |
| Housing material | 1.4404 stainless steel |
| Input function | Test (Emitter off) |
| Light type | Infrared |
| Material sensing surface | Glass |
| Operating voltage Ub | 10...30 VDC |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Through-beam sensor (Emitter) |
| Range | 0...50 m |
| Series | 18E |
| Special characteristics | Washdown |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for BOS0237?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BOS0237?
BOS0237 is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is BOS0237 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for BOS0237 — check Balluff's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of BOS0237?
Key specifications include Approval/Conformity: CE, cULus, Ecolab, EAC, WEEE; Beam characteristic: Divergent; Connection: Connector, M12x1-Male, 4-pin; Dimension: Ø 18 x 75 mm. The full specification table on this page lists every published attribute for this part.
How quickly can BOS0237 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Balluff part numbers in this family:
- BOS021W — Balluff BOS R01E-PS-KF20-02
- BOS0221 — Balluff BOS R01E-NS-KD20-02
- BOS022N — Balluff BOS R01E-PS-KF21-02
- BOS022Z — Balluff BOS 12M-NA-RF11-S4
- BOS0230 — Balluff BOS 12M-NA-RH12-S4
- BOS0236 — Balluff BOS 18E-X-IS20-S4
- BOS0239 — Balluff BOS 18E-PA-ID20-S4
- BOS023A — Balluff BOS 18E-PA-IE20-S4
- BOS023E — Balluff BOS 18E-PI-RD30-S4
- BOS023F — Balluff BOS 18E-PI-PR30-S4
- BOS023H — Balluff BOS 18E-PI-RE30-S4
- BOS023J — Balluff BOS 18E-XI-RS30-S4
Related Products

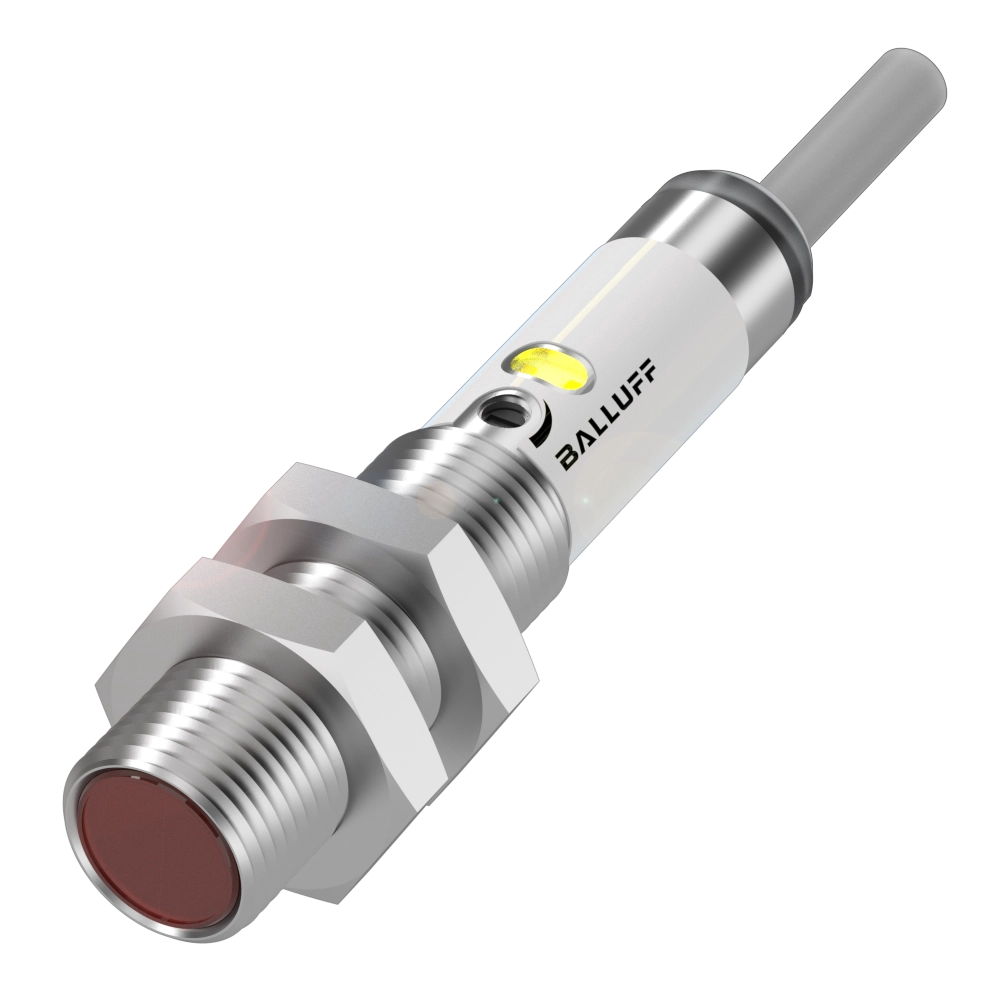

Balluff Balluff BOS 12M-PO-RE10-02
