Balluff BOS 12M-NA-RF11-S4
BOS022Z (BOS 12M-NA-RF11-S4) - Diffuse sensors - Series: 12M, Dimension: Ø 12 x 60 mm, Interface: NPN Normally open (NO), NPN Normally closed (NC), Principle of operation: Photoelectric sensor, Principle of optical operation: Diffuse sensor, Triangulation, Special optical feature: Fixed background suppression, Beam characteristic: Divergent, Light type: LED Red light, Light spot size: Ø 4 mm at 50 mm, Range: 0...50 mm, Connection: Connector, M12x1-Male, 4-pin, Housing material: Brass, nickel-plated, Material sensing surface: PMMA, Operating voltage Ub: 10...30 VDC, Approval/Conformity: CE, WEEE - BALLUFF USA
| Approval/Conformity | CE, WEEE |
|---|---|
| Beam characteristic | Divergent |
| Connection | Connector, M12x1-Male, 4-pin |
| Dimension | Ø 12 x 60 mm |
| Housing material | Brass, nickel-plated |
| Interface | NPN Normally open (NO), NPN Normally closed (NC) |
| Light spot size | Ø 4 mm at 50 mm |
| Light type | LED Red light |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, Triangulation |
| Range | 0...50 mm |
| Series | 12M |
| Special optical feature | Fixed background suppression |
Frequently Asked Questions
How do I get pricing for BOS022Z?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BOS022Z?
BOS022Z is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is BOS022Z discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for BOS022Z — check Balluff's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of BOS022Z?
Key specifications include Approval/Conformity: CE, WEEE; Beam characteristic: Divergent; Connection: Connector, M12x1-Male, 4-pin; Dimension: Ø 12 x 60 mm. The full specification table on this page lists every published attribute for this part.
How quickly can BOS022Z ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

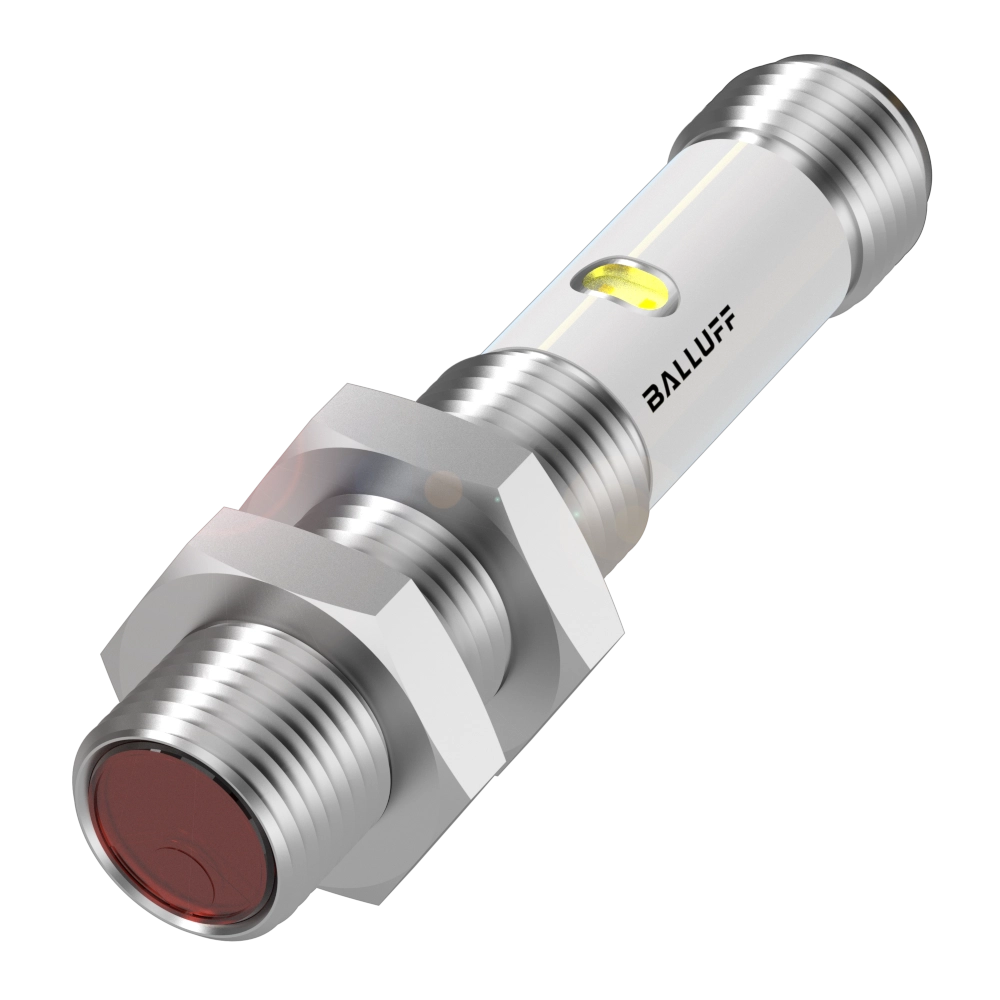

Balluff Balluff BOS 12M-PSV-RF11-S4
Balluff Balluff BOS 12M-NA-RH12-S4
Balluff Balluff BOS 18E-PA-ID20-S4

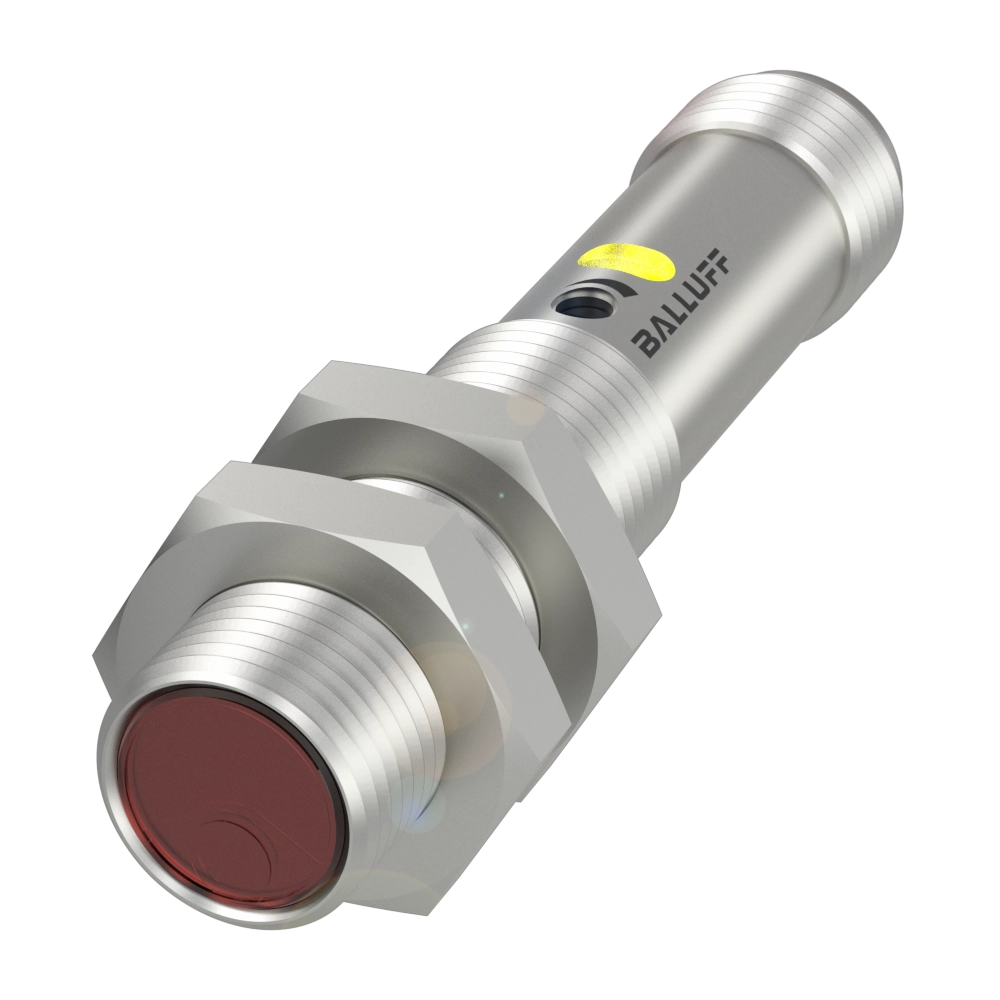

Balluff Balluff BOS 12M-PA-RH12-S4
