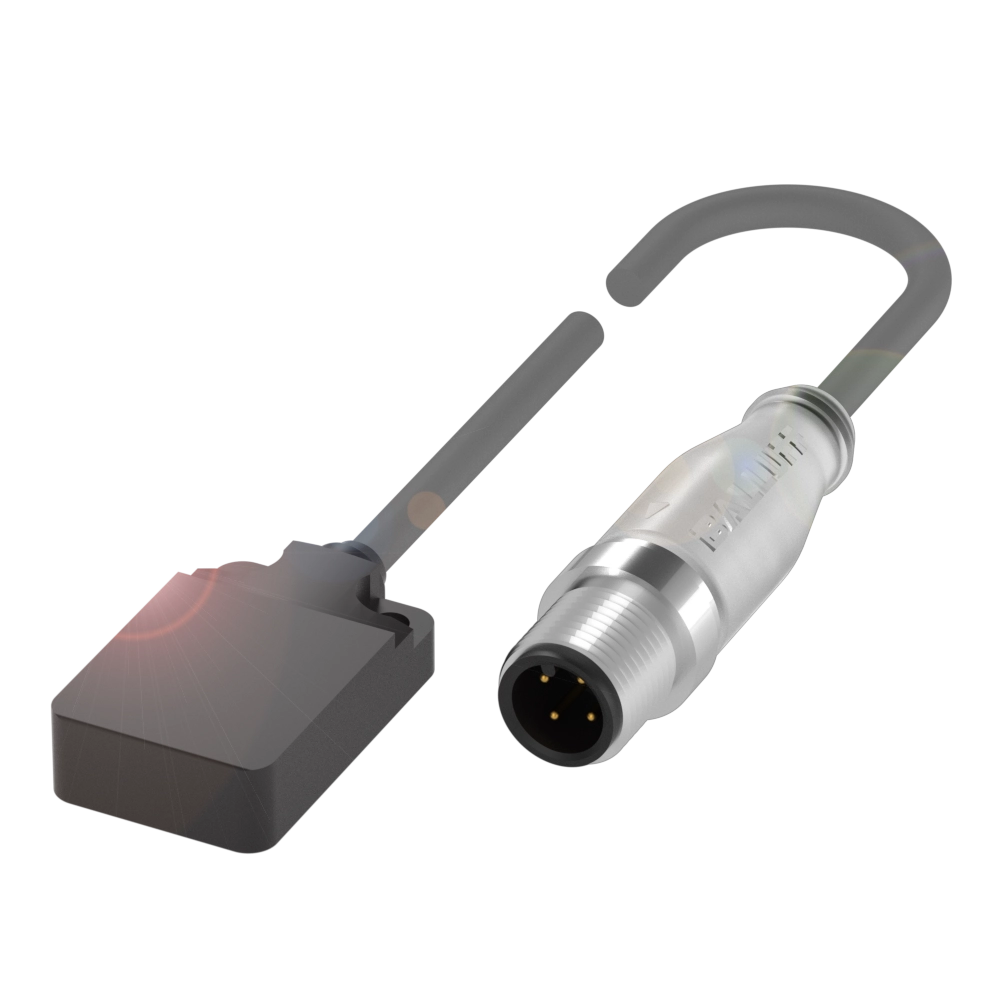

Balluff BES R01EC-PSC50A-BS00,3-GS04-W51
BES04RE (BES R01EC-PSC50A-BS00,3-GS04-W51) - Inductive factor 1 sensors - List price USA: 490.42 USD - Dimension: 32 x 20 x 8 mm, Style Housing: 32x20x8, Installation: for flush mounting, Range: 5 mm, Switching output: PNP Normally open (NO), Switching frequency: 20 Hz, Housing material: Stainless steel, PTFE coated, Material sensing surface: Stainless steel, W51 ceramic coating, Connection: Cable with connector, M12x1-Male, 4-pin, 0.30 m, Silicone, Operating voltage Ub: 10...30 VDC, Ambient temperature: -25...70 °C, Magnetic field immune: magnetic field immune (AC/DC), IP rating: IP67, Approval/Conformity: CE, UKCA, cULus, WEEE, Additional features: Factor 1, Housing resistant to weld spatter, Weld immune - BALLUFF USA
| Ambient temperature | -25...70 °C |
|---|---|
| Connection | Cable with connector, M12x1-Male, 4-pin, 0.30 m, Silicone |
| Dimension | 32 x 20 x 8 mm |
| Housing material | Stainless steel, PTFE coated |
| Installation | for flush mounting |
| IP Rating | IP67 |
| Magnetic field immune | magnetic field immune (AC/DC) |
| Material sensing surface | Stainless steel, W51 ceramic coating |
| Operating voltage Ub | 10...30 VDC |
| Range | 5 mm |
| Style Housing | 32x20x8 |
| Switching frequency | 20 Hz |
| Switching output | PNP Normally open (NO) |
Frequently Asked Questions
How do I get pricing for BES04RE?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BES04RE?
BES04RE is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of BES04RE?
Key specifications include Ambient temperature: -25...70 °C; Connection: Cable with connector, M12x1-Male, 4-pin, 0.30 m, Silicone; Dimension: 32 x 20 x 8 mm; Housing material: Stainless steel, PTFE coated. The full specification table on this page lists every published attribute for this part.
How quickly can BES04RE ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

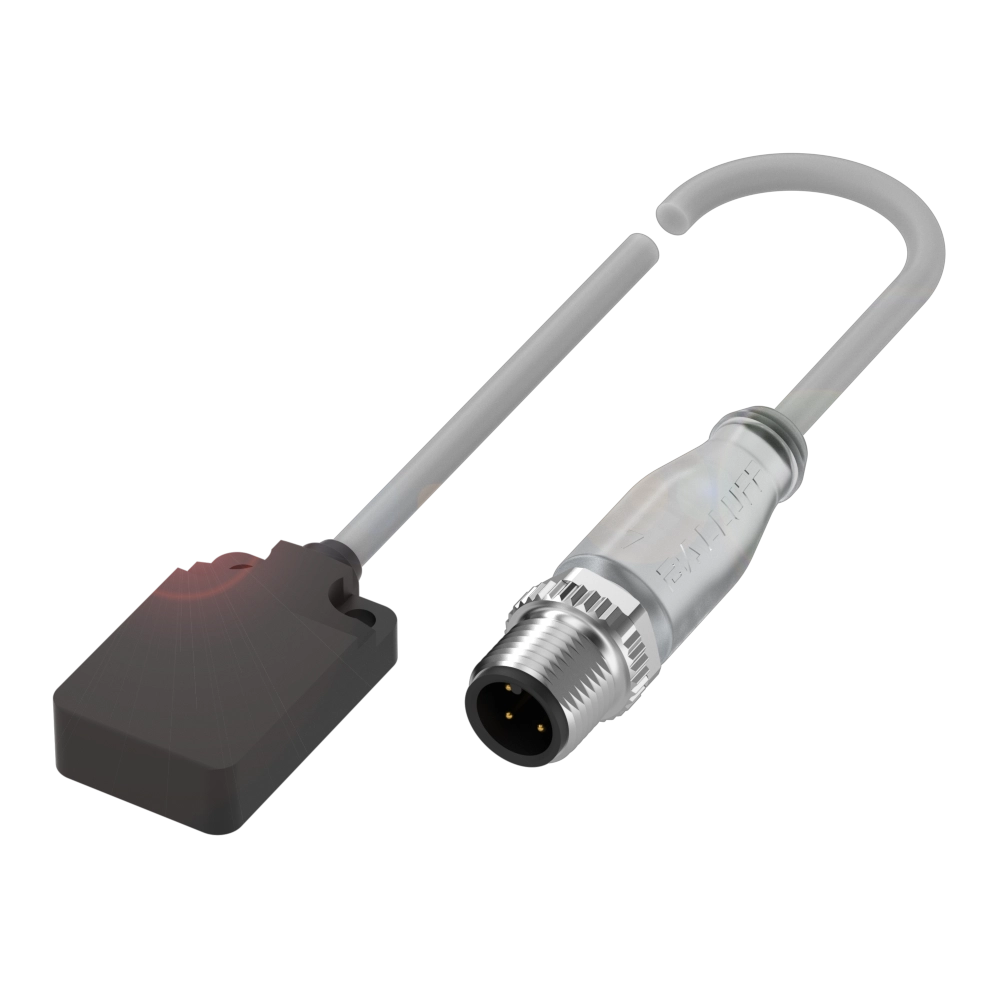

Balluff Balluff BES R01EC-PSC50A-BZ00,3-GS04-W51

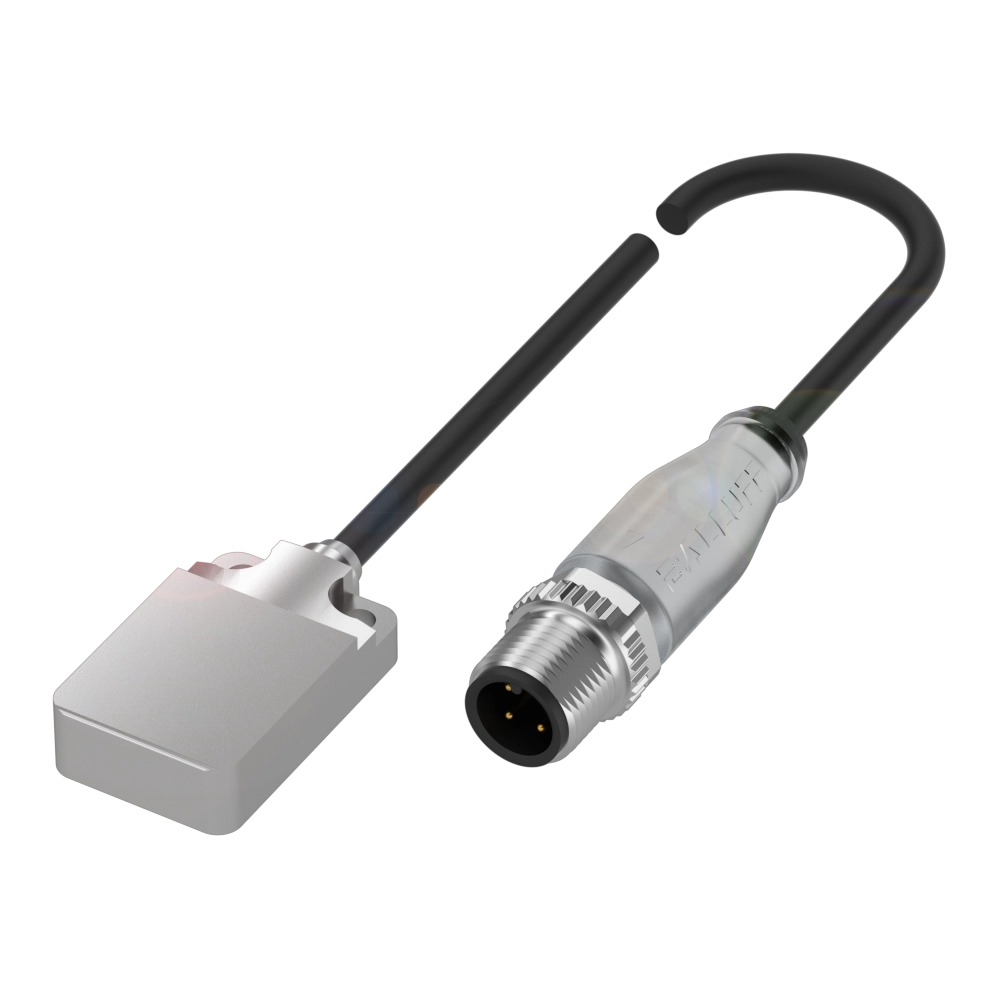

Balluff Balluff BES R01EC-PSC50A-BP00,3-GS04-W50

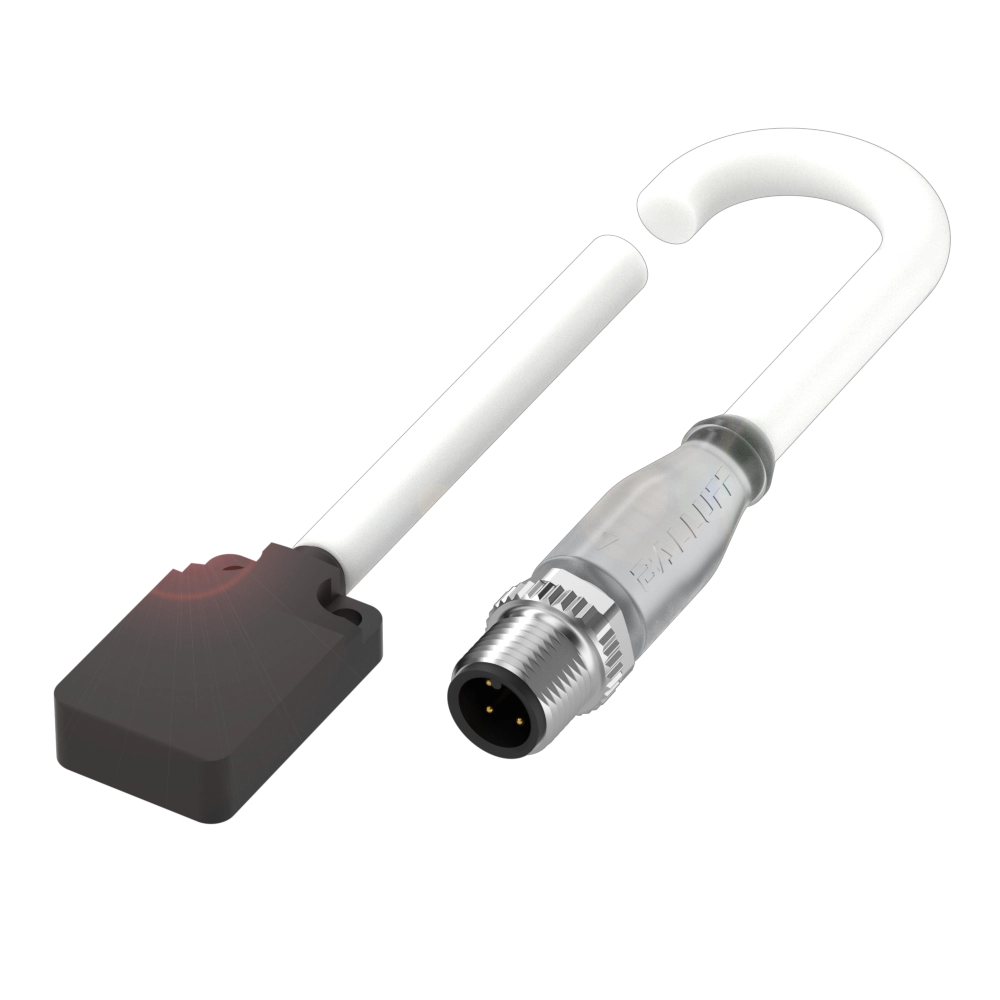

Balluff Balluff BES R01EC-PSC50A-BP00,3-GS04-W51

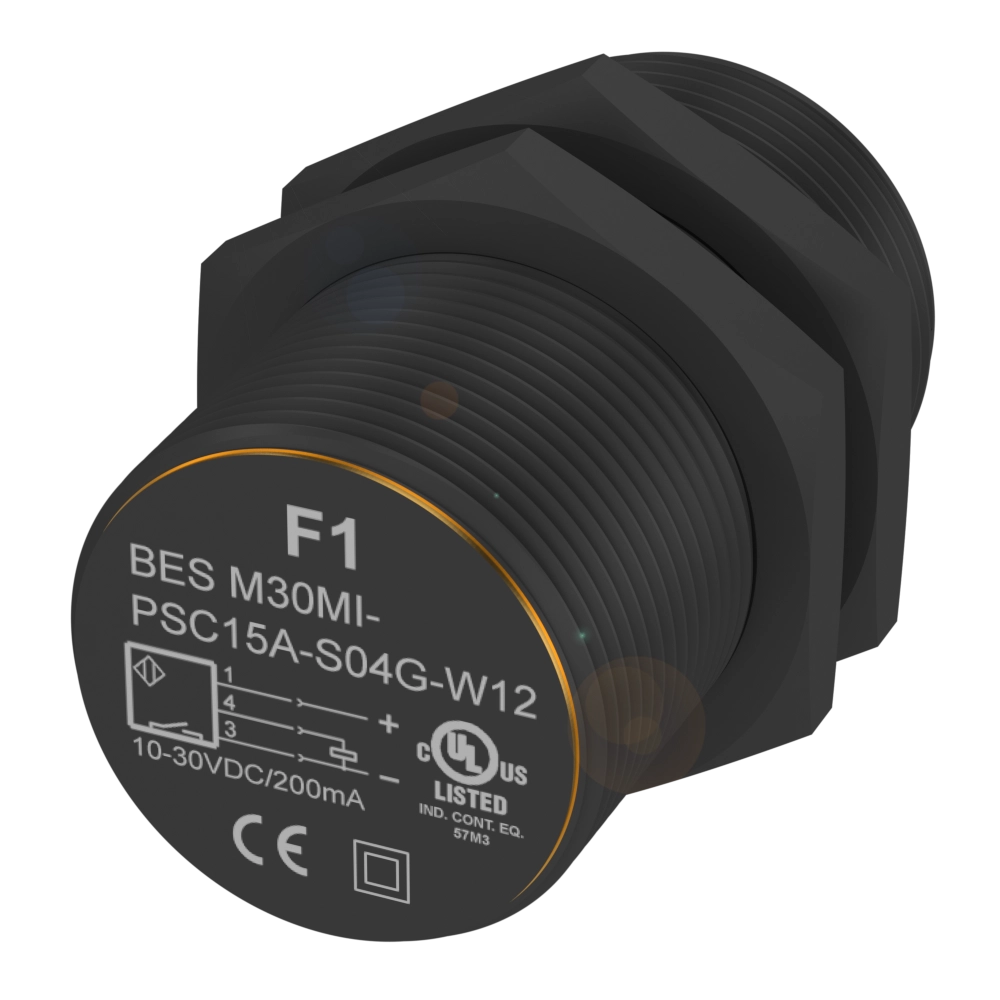

Balluff Balluff BES M30MI-PSC15A-S04G-W12

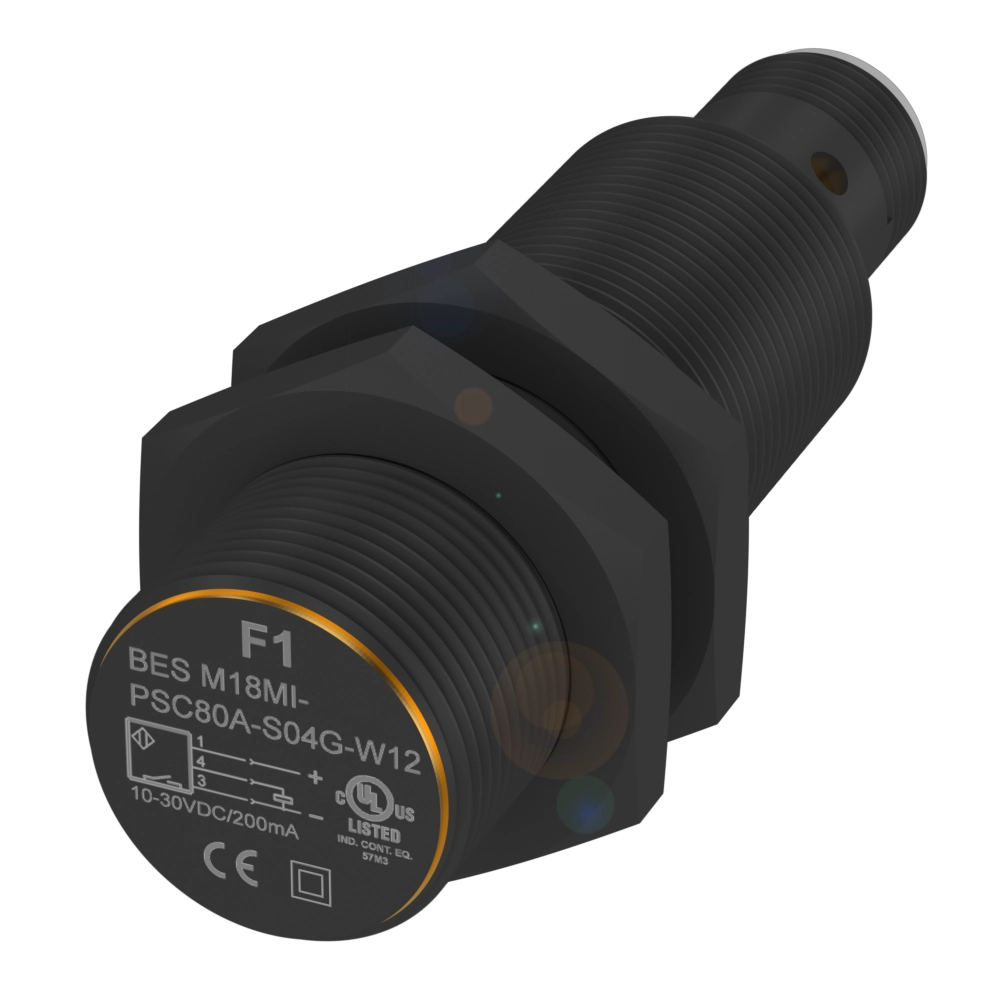

Balluff Balluff BES M18MI-PSC80A-S04G-W12
