EM3550 Baldor 1.5HP Electric Motor
KKM Solutions is an independent parts distributor, not an authorized Baldor dealer — how we source.
EM3550 BALDOR 1.5HP Electric Motor is designed for pumps, fans, compressors, blowers, machine tools, conveyors and many other applications.
Overview
Part number EM3550 from Baldor, listed in General Purpose AC Motors. Specifications on file: Duty Continuous; Enclosure Type TEFC; Frame 56; Frame Material Rolled Steel. KKM Solutions quotes this part with pricing and availability confirmed per order.
EM3550 BALDOR 1.5HP Electric Motor is designed for pumps, fans, compressors, blowers, machine tools, conveyors and many other applications. Baldor-Reliance catalog number EM3550 (1.5HP, 3500RPM, 3PH, 60HZ, 56, 3520M, TEFC, F1). Catalog specifications: Product Family: General Purpose; Enclosure: TEFC; Frame: 56; Output @ Frequency: 1.500 HP @ 60 HZ; Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ; Speed: 3500 rpm; Phase: 3; Frequency: 60.00 Hz; Voltage @ Frequency: 460.0 V @ 60 HZ / 230.0 V @ 60 HZ; Current @ Voltage: 1.900 A @ 460.0 V / 3.800 A @ 230.0 V; Insulation Class: F; Service Factor: 1.15; Efficiency @ 100% Load: 84.0 %; Number of Poles: 2; Duty Rating: CONT; Design Code: B; Mounting Arrangement: F1; Shaft Diameter: 0.625 IN; Ambient Temperature: 40 °C; Motor Type: 3520M; Overall Length: 12.23 IN; Motor Standards: NEMA. Ship weight: 35.000 LB.
Specifications
| Duty | Continuous |
|---|---|
| Enclosure Type | TEFC |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 3.8/1.9 |
| Horsepower | 1 1/2 HP |
| Mounting | Rigid |
| Phase | 3 |
| Power | 1.5 HP |
| Product Line | Totally Enclosed, Foot Mounted, Three Phase, General purpose, three phase, totally enclosed, foot mounted |
| Speed | 3500 RPM |
Product details
| Manufacturer | Baldor |
|---|---|
| Manufacturer part number | EM3550 |
| Product category | General Purpose AC Motors |
| Published specifications | 12 attributes listed |
| Related part numbers | 17 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does EM3550 cost?
EM3550 is listed at CA$1,552.13 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email orderdesk@kkmsolutions.com for a volume quote.
Who manufactures the EM3550?
EM3550 is a Baldor part, sourced to the exact manufacturer specification.
What is the lifecycle status of EM3550?
No published lifecycle status is on file for EM3550. Baldor lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of EM3550?
Key specifications include Duty: Continuous; Enclosure Type: TEFC; Frame: 56; Frame Material: Rolled Steel. The full specification table on this page lists every published attribute for this part.
How quickly can EM3550 ship?
Lead time is quoted per part and confirmed on your quote.
Variants & Related Part Numbers
Other Baldor part numbers in this family:
Related Products
Baldor Baldor EM3546T 1HP Electric Motor
Photo on request
Baldor EM3550T-57 1.5HP Three Phase Motor
Photo on request
Baldor EM3546T-57 1HP Three Phase Motor

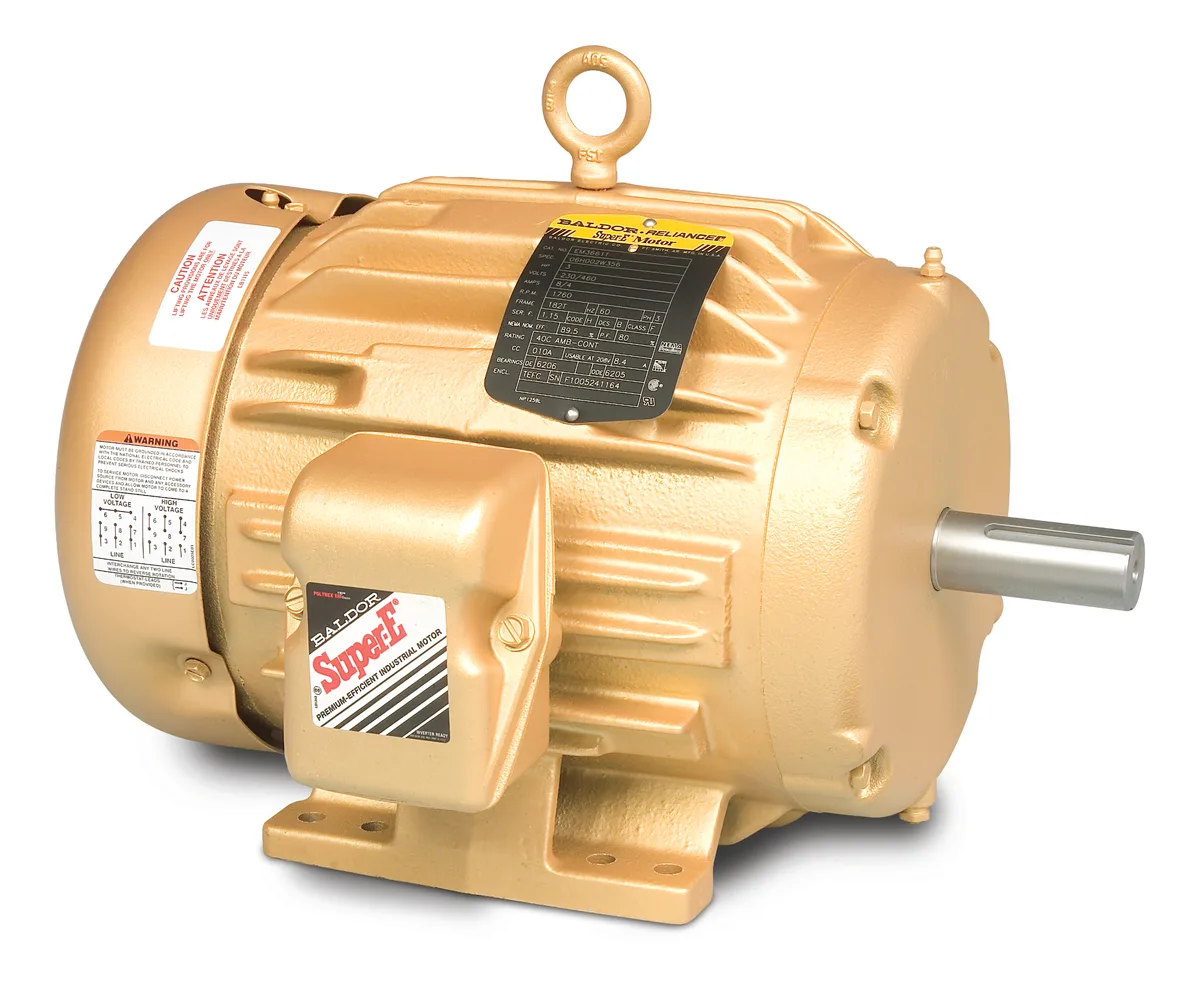

Baldor Baldor EM3550T-G 1.5HP Three Phase AEGIS HVAC Electric Motor

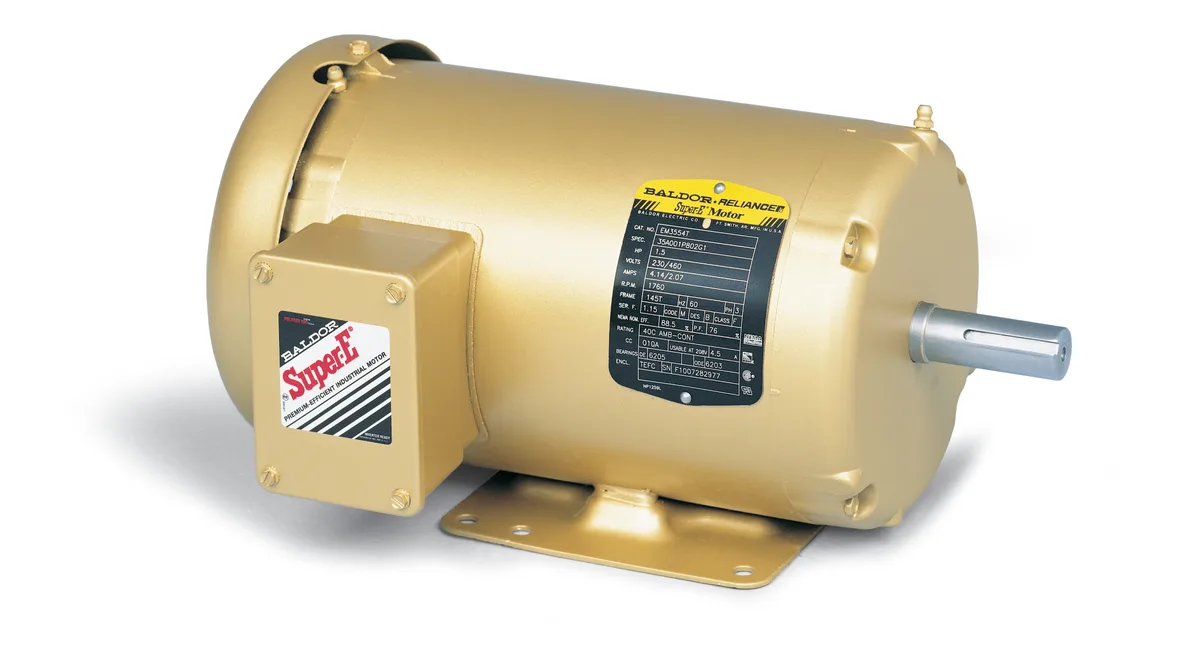

Baldor Baldor EM3545 1HP Electric Motor
