EJMM3116T Baldor 1HP Close Coupled Motor
KKM Solutions is an independent parts distributor, not an authorized Baldor dealer — how we source.
EJMM3116T BALDOR 1HP Close Coupled Motor Designed for operations where continuous or frequent duty is required.
Overview
Part number EJMM3116T from Baldor, listed in Electric Motors. Specifications on file: Duty Continuous; Enclosure Type ODP; Frame 143JM; Frame Material Rolled Steel. KKM Solutions quotes this part with pricing and availability confirmed per order.
EJMM3116T BALDOR 1HP Close Coupled Motor Designed for operations where continuous or frequent duty is required. Baldor-Reliance catalog number EJMM3116T (1HP, 1770RPM, 3PH, 60HZ, 143JM, 3520M, OPSB, F1). Catalog specifications: Product Family: General Purpose; Enclosure: ODP; Frame: 143JM; Output @ Frequency: 1.000 HP @ 60 HZ; Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ; Speed: 1770 rpm; Phase: 3; Frequency: 60.00 Hz; Voltage @ Frequency: 460.0 V @ 60 HZ / 230.0 V @ 60 HZ; Current @ Voltage: 3.200 A @ 208.0 V / 3.200 A @ 230.0 V / 1.600 A @ 460.0 V; Insulation Class: F; Service Factor: 1.15; Efficiency @ 100% Load: 85.5 %; Number of Poles: 4; Duty Rating: CONT; Design Code: B; Mounting Arrangement: F1; Shaft Diameter: 0.875 IN; Ambient Temperature: 40 °C; Motor Type: 3520M; Overall Length: 13.75 IN; Motor Standards: NEMA. Ship weight: 38.000 LB.
Specifications
| Duty | Continuous |
|---|---|
| Enclosure Type | ODP |
| Frame | 143JM |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 3/1.5 |
| Horsepower | 1 HP |
| Mounting | Rigid |
| Phase | 3 |
| Power | 1 HP |
| Product Line | Close Coupled, three phase ODP, Close-coupled pump, three phase, ODP, foot mounted |
| Speed | 1760 RPM |
Product details
| Manufacturer | Baldor |
|---|---|
| Manufacturer part number | EJMM3116T |
| Product category | Electric Motors |
| Published specifications | 12 attributes listed |
| Related part numbers | 10 other part numbers in this family |
Request a quote for this part
Email orderdesk@kkmsolutions.com or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does EJMM3116T cost?
EJMM3116T is listed at CA$1,513.38 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email orderdesk@kkmsolutions.com for a volume quote.
Who manufactures the EJMM3116T?
EJMM3116T is a Baldor part, sourced to the exact manufacturer specification.
What is the lifecycle status of EJMM3116T?
No published lifecycle status is on file for EJMM3116T. Baldor lists whether a catalog number is current, superseded or end-of-life on its own product page, and our order desk confirms the status with the manufacturer at quote time, before you commit. Send the part number through the quote form on this page.
What are the key specifications of EJMM3116T?
Key specifications include Duty: Continuous; Enclosure Type: ODP; Frame: 143JM; Frame Material: Rolled Steel. The full specification table on this page lists every published attribute for this part.
How quickly can EJMM3116T ship?
Lead time is quoted per part and confirmed on your quote.
Variants & Related Part Numbers
Other Baldor part numbers in this family:
Related Products

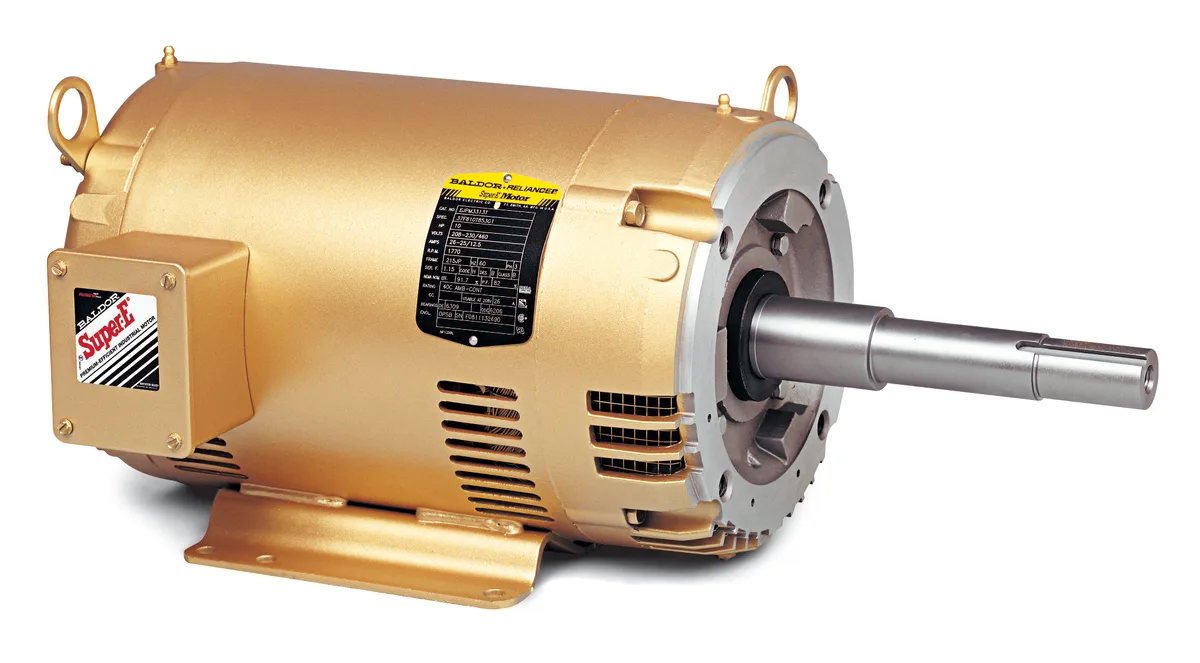

Baldor Baldor EJMM3154T 1.5HP Close Coupled Motor
Baldor Baldor EJMM3158T-G 3HP Close-Coupled AEGIS Grounded Pump Motor
Baldor Baldor EJMM3211T-8 3HP Close Coupled Motor

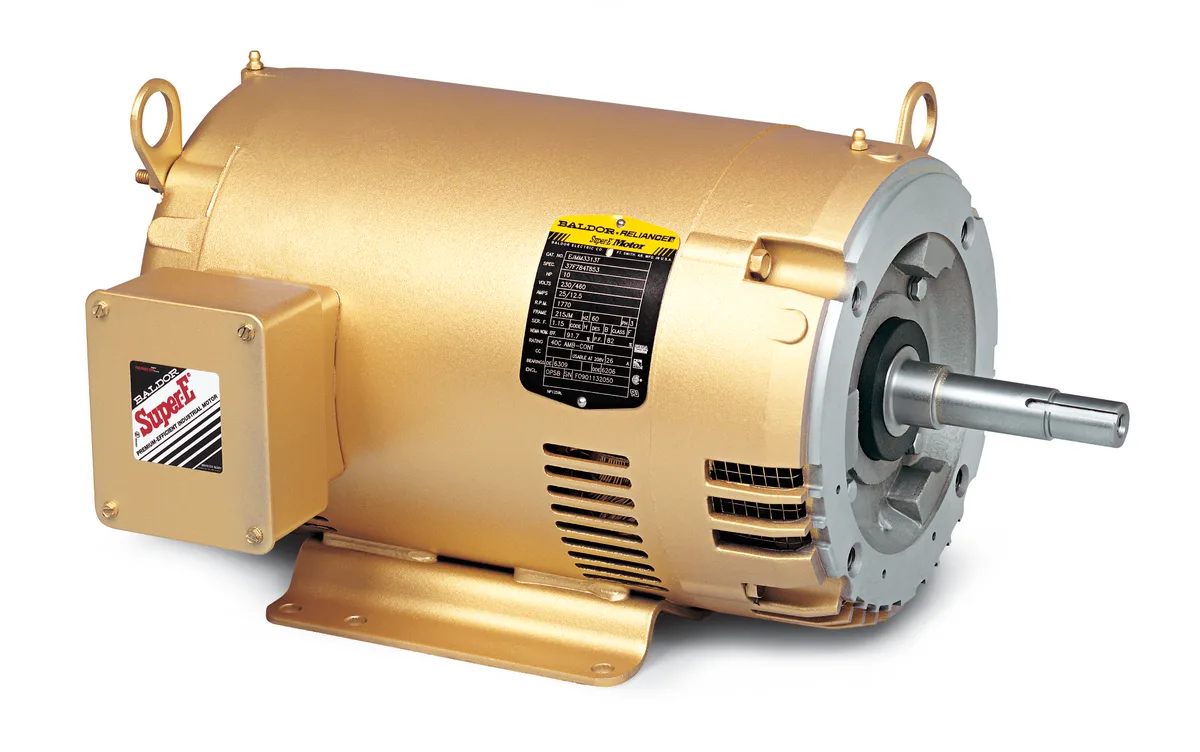

Baldor Baldor EJMM3211T-G 3HP Close-Coupled AEGIS Grounded Pump Motor
