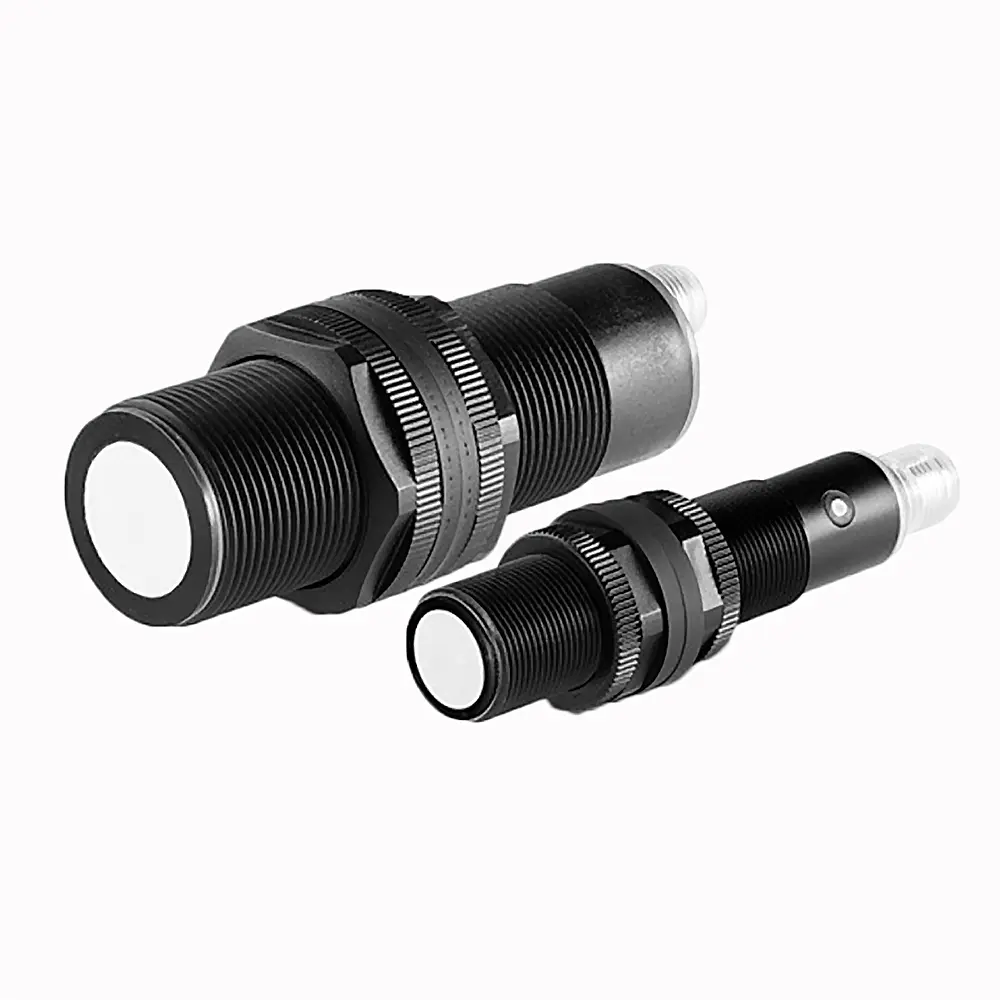

873P-D18AV-900-D5 Allen-Bradley 873P 900mm Ultrasonic Sensor
Allen-Bradley 873P-D18AV-900-D5 - industrial components - Length: Approx 91.6 mm ft; Ambient temperature: -20 °C; Lifecycle Status: Active.
Overview
In our catalog, the 873P-D18AV-900-D5 from Allen-Bradley is listed under the industrial components category. The manufacturer's published data for this part number specifies Length: Approx 91.6 mm ft and Ambient temperature: -20 °C.
P1 Model: PNP or IO-link, P2 Model: dual PNP or IO-link, AI Model: analog current or IO-link, AV Model: analog voltage or IO-link, AIP2 Model: dual PNP and analog current or IO-link, AVP2 Model: dual PNP and analog voltage or IO-link
Key manufacturer data on file for this item includes Lifecycle Status: Active; Degree of protection (IP): IP67; Material housing: Plastic; Connection type: Micro QD; Switching frequency: 3 Hz; Protection type: Short circuit, Reverse polarity, Transient noise, Overload; Accuracy: 0.5 %; Type of electric connection: Connector M12; Number Of Pins: 5-pin; Response time: Analog output: 400 ms; Supply voltage: 10 V; Current consumption: <50 mA. The complete technical table is shown in the Specifications tab on this page.
Specifications
| Accuracy | 0.5 % |
|---|---|
| Ambient temperature | -20 °C |
| Beam angle | 14°±2° |
| Blind zone | 0 mm |
| Connection type | Micro QD |
| Construction type housing | Cylinder, screw-thread |
| Degree of protection (IP) | IP67 |
| Diameter sensor | 18 mm |
| Leakage Current | ≤10 µA |
| Length | Approx 91.6 mm |
| Lifecycle Status | Active |
| Linearity | 1% |
| Material active area of sensor | Glass |
| Material housing | Plastic |
| Max. output current | 100 mA |
| Number Of Pins | 5-pin |
| Output | P1 Model: PNP or IO-link, P2 Model: dual PNP or IO-link, AI Model: analog current or IO-link, AV Model: analog voltage or IO-link, AIP2 Model: dual PNP and analog current or IO-link, AVP2 Model: dual PNP and analog voltage or IO-link |
| Output voltage drop, max | 2.2 V |
| Protection type | Short circuit, Reverse polarity, Transient noise, Overload |
| Rated sensing distance | 100...900 mm (metallic target 200 x 200 mm) |
| Resolution | SIO: 2 mm, IO-link: 1 mm |
| Response time | Analog output: 400 ms |
| Ripple | 5 % |
| Sensitivity adjustment | Push button |
| Setting procedure | Teach-In |
| Standard for interfaces | Analogue |
| Supply voltage | 10 V |
| Switching frequency | 3 Hz |
| Synchronization possible | true |
| Teachable sensing range | 100 mm |
| Temperature Compensation | true |
| Temperature drift | ±2% |
| Time delay | Before availability digital output: 600 ms, Before availability analog output: 650 ms |
| Transducer frequency | 300 khz |
| Type of analogy output | 0 V ... 10 V |
| Type of electric connection | Connector M12 |
| Type of switch function | Progmable/configurable |
| Type of switching output | PNP |
| Voltage type | DC |
Product details
| Manufacturer | Allen-Bradley |
|---|---|
| Manufacturer part number | 873P-D18AV-900-D5 |
| Product category | Ultrasonic Sensors |
| Manufacturer lifecycle status | Active |
| Published specifications | 39 attributes listed |
| Related part numbers | 2 other part numbers in this family |
