Allen-Bradley 873P 400mm Ultrasonic Sensor 873P-D18AI-400-D5
Allen-Bradley 873P-D18AI-400-D5 - industrial components - Length: Approx 91.6 mm ft; Ambient temperature: -20 °C; Lifecycle Status: Active.
The 873P-D18AI-400-D5 from Allen-Bradley is listed under industrial components in our catalog. The manufacturer's published data for this part number specifies Length: Approx 91.6 mm ft and Ambient temperature: -20 °C.
P1 Model: PNP or IO-link, P2 Model: dual PNP or IO-link, AI Model: analog current or IO-link, AV Model: analog voltage or IO-link, AIP2 Model: dual PNP and analog current or IO-link, AVP2 Model: dual PNP and analog voltage or IO-link
Key manufacturer data on file for this item includes Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Degree of protection (IP): IP67; Material housing: Plastic; Connection type: Micro QD; Switching frequency: 10 Hz; Protection type: Short circuit, Reverse polarity, Transient noise, Overload; Accuracy: 0.5 %; Type of electric connection: Connector M12; Number Of Pins: 5-pin; Response time: Analog output: 400 ms. See the Specifications tab on this page for the full technical table.
| Accuracy | 0.5 % |
|---|---|
| Ambient temperature | -20 °C |
| Beam angle | 15°±2° |
| Blind zone | 0 mm |
| Build America, Buy America | No |
| Connection type | Micro QD |
| Construction type housing | Cylinder, screw-thread |
| Current consumption | <50 mA |
| Degree of protection (IP) | IP67 |
| Diameter sensor | 18 mm |
| Hysteresis | <1% |
| Leakage Current | ≤10 µA |
| Length | Approx 91.6 mm ft |
| Lifecycle Status | Active |
| Linearity | 1% |
| Material active area of sensor | Glass |
| Material housing | Plastic |
| Max. output current | 100 mA |
| Number Of Pins | 5-pin |
| Output | P1 Model: PNP or IO-link, P2 Model: dual PNP or IO-link, AI Model: analog current or IO-link, AV Model: analog voltage or IO-link, AIP2 Model: dual PNP and analog current or IO-link, AVP2 Model: dual PNP and analog voltage or IO-link |
| Output voltage drop, max | 2.2 V |
| Protection type | Short circuit, Reverse polarity, Transient noise, Overload |
| Rated sensing distance | 50...400 mm (metallic target 200 x 200 mm) |
| Repair Options Available | No |
| Resolution | SIO: 1 mm, IO-link: 1 mm |
| Response time | Analog output: 400 ms |
| Ripple | 5 % |
| Sensitivity adjustment | Push button |
| Setting procedure | Teach-In |
| Standard for interfaces | Analogue |
| Supply voltage | 10 V |
| Switching frequency | 10 Hz |
| Synchronization possible | true |
| Teachable sensing range | 50 mm |
| Temperature Compensation | true |
| Temperature drift | ±2% |
| Time delay | Before availability digital output: 600 ms, Before availability analog output: 650 ms |
| Transducer frequency | 300 khz |
| Type of analogy output | 4 mA ... 20 mA |
| Type of electric connection | Connector M12 |
| Type of switch function | Progmable/configurable |
| Type of switching output | PNP |
| Voltage type | DC |
Frequently Asked Questions
How do I get pricing for 873P-D18AI-400-D5?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 873P-D18AI-400-D5?
873P-D18AI-400-D5 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 873P-D18AI-400-D5?
Key specifications include Accuracy: 0.5 %; Ambient temperature: -20 °C; Beam angle: 15°±2°; Blind zone: 0 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 873P-D18AI-400-D5 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 873P 400mm Ultrasonic Sensor 873P-D18AI-400-D4
Allen-Bradley Allen-Bradley 873P 400mm Ultrasonic Sensor 873P-D18AV-400-D4

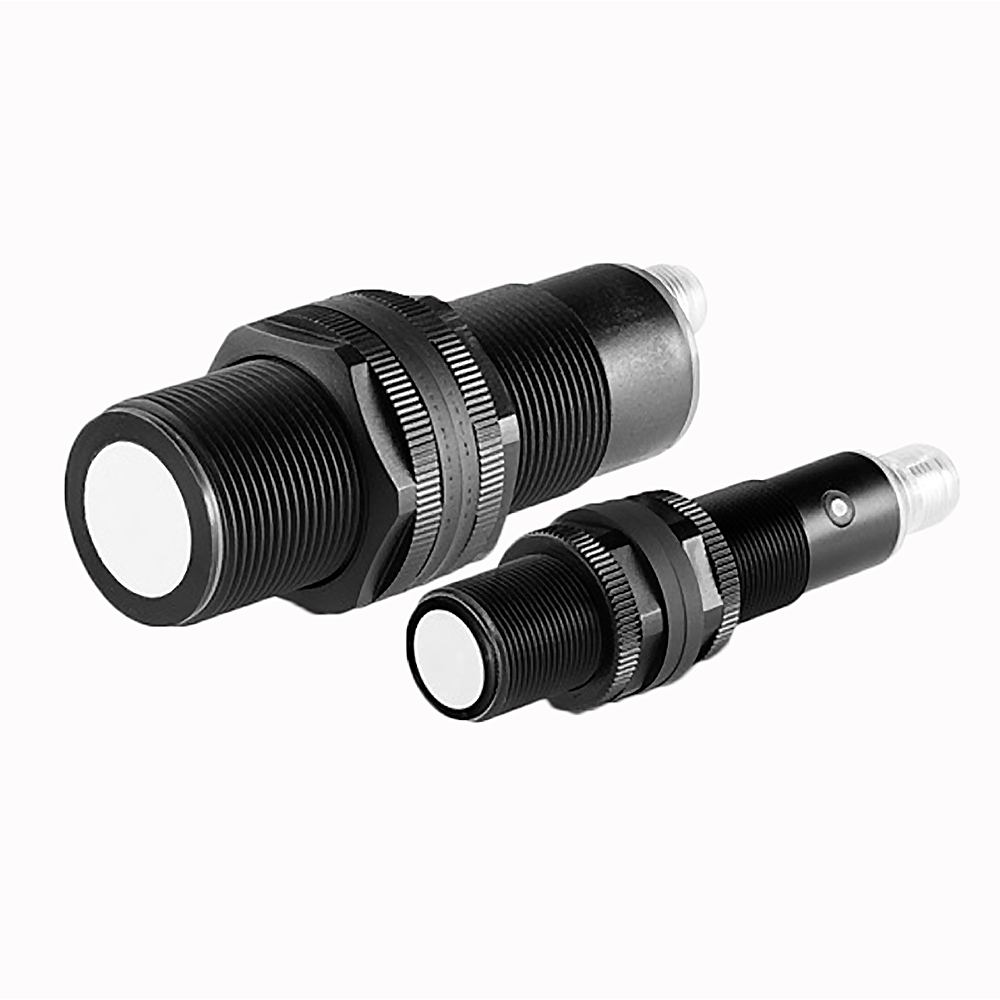

Allen-Bradley Allen-Bradley 873P 2200mm Ultrasonic Sensor 873P-D18AI-2200-D4
Allen-Bradley Allen-Bradley 873P 400mm Ultrasonic Sensor 873P-D18AV-400-D5

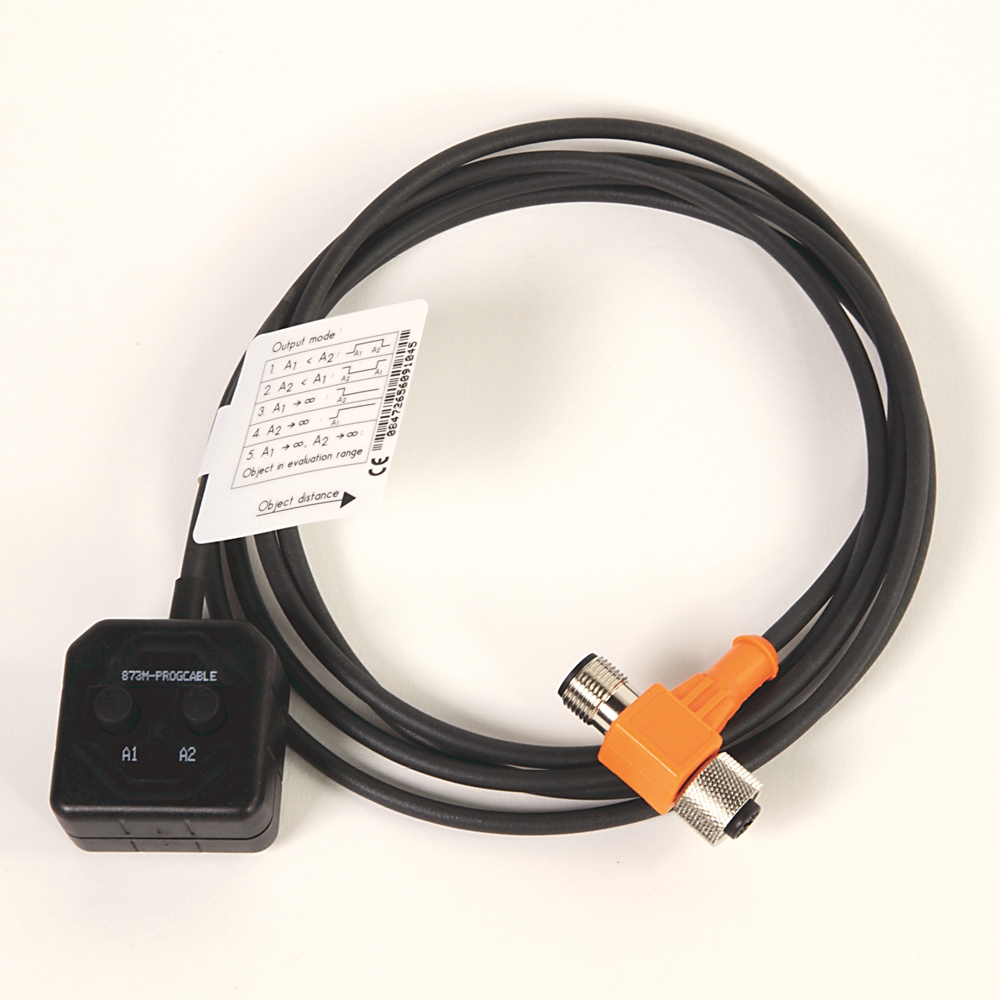

Allen-Bradley Allen-Bradley 873M Ultrasonic Sensor Accessory 873M-PROGCABLE
