Allen-Bradley 30mm Push-Pull Device 800T PB 800T-FXMP16RA7
Allen-Bradley 800T-FXMP16RA7 - Pushbuttons & Pilot Devices - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Type: 30mm Push-Pull Device.
In our catalog, the 800T-FXMP16RA7 from Allen-Bradley is listed under the Pushbuttons & Pilot Devices category. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
Key manufacturer data on file for this item includes Type: 30mm Push-Pull Device; Lifecycle Status: Active; Shock: 25 G (contact fragility)/100 G (no damage); Vibration: 10 G maximum; Humidity: 50 %; Type of electric connection: Screw connection; Operator Type: Push-Pull Unit; Contact block configuration: 1 NCLB, 1 NC, standard contact block (800T-XA7); Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 600V AC @ 600V DC; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m; Contact block termination wire range: 14 - 18 AWG (x2). See the Specifications tab on this page for the full technical table.
| Contact block configuration | 1 NCLB, 1 NC, standard contact block (800T-XA7) |
|---|---|
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Contact block operational voltage, max | 600V AC @ 600V DC |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Hazardous location rating | false |
| Hole diameter | 30.5 mm |
| Humidity | 50 % |
| Illumination lamp type | Incandescent |
| Illumination module input voltage | 120V AC @ 50/60Hz |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Illumination module termination wire range | 14 - 18 AWG (x2) |
| Illumination module type | Transformer |
| Lifecycle Status | Active |
| Operating Temperature | -25 °C |
| Operator cap color | Red |
| Operator cap text/symbol | N/A |
| Operator cap type | Mushroom Head |
| Operator cap/button material | Plastic with Aluminum spinover |
| Operator cap/button shape | Round |
| Operator cap/button size | 40 mm |
| Operator construction/material | Metal |
| Operator function | 3-Position |
| Operator mechanical design life (cycles, min.) | 250000 |
| Operator special function | Momentary-out, maintained-center, maintained-in |
| Operator Type | Push-Pull Unit |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Storage Temperature | -40 °C |
| Suitable for illumination | true |
| Terminations with finger safe covers | false |
| Type | 30mm Push-Pull Device |
| Type of electric connection | Screw connection |
| Vibration | 10 G maximum |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 800T-FXMP16RA7?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800T-FXMP16RA7?
800T-FXMP16RA7 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 800T-FXMP16RA7 discontinued, and can I still get one?
Our product data lists 800T-FXMP16RA7 with a manufacturer lifecycle status of "Active", so it is not recorded as discontinued — confirm against Allen-Bradley's own product page before a long-lead order, as feed data can lag an announcement. Either way it does not change what we can do: KKM Solutions sources current-production, superseded and long-obsolete parts the same way. Send 800T-FXMP16RA7 through the quote form on this page for pricing and availability.
What are the key specifications of 800T-FXMP16RA7?
Key specifications include Contact block configuration: 1 NCLB, 1 NC, standard contact block (800T-XA7); Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 600V AC @ 600V DC; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m. The full specification table on this page lists every published attribute for this part.
How quickly can 800T-FXMP16RA7 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
- 800T-FXMP16G — Allen-Bradley 30mm Push-Pull Device 800T PB 800T-FXMP16G
- 800T-FXMP16GA — Allen-Bradley 30mm Push-Pull Device 800T PB 800T-FXMP16GA
- 800T-FXMP16GCC — Allen-Bradley 30mm Push-Pull Device 800T PB 800T-FXMP16GCC
- 800T-FXMP16GG1 — Allen-Bradley 30mm Push-Pull Device 800T PB 800T-FXMP16GG1
- 800T-FXMP16RA — Allen-Bradley 30mm Push-Pull Device 800T PB 800T-FXMP16RA
- 800T-FXMP16WA7 — Allen-Bradley 30mm Push-Pull Device 800T PB 800T-FXMP16WA7
- 800T-FXMP16XA1 — Allen-Bradley 30mm Push-Pull Device 800T PB 800T-FXMP16XA1
- 800T-FXMP46XA7 — Allen-Bradley 30mm Push-Pull Device 800T PB 800T-FXMP46XA7
- 800T-FXMPH16AA7 — Allen-Bradley 30mm Push-Pull Device 800T PB 800T-FXMPH16AA7
- 800T-FXMPH16G — Allen-Bradley 800T-FXMPH16G 800T PB,30mm Push Pull Device,No Twist Release,120V AC 50/60 Hz,3…
- 800T-FXMPH16GA1 — Allen-Bradley 30mm Push-Pull Device 800T PB 800T-FXMPH16GA1
- 800T-FXMPH16GA7 — Allen-Bradley 30mm Push-Pull Device 800T PB 800T-FXMPH16GA7
- 800T-FXMPH16RA1 — Allen-Bradley 30mm Push-Pull Device 800T PB 800T-FXMPH16RA1
Related Products
Allen-Bradley Allen-Bradley 30mm Push-Pull Device 800T PB 800T-FX6D4

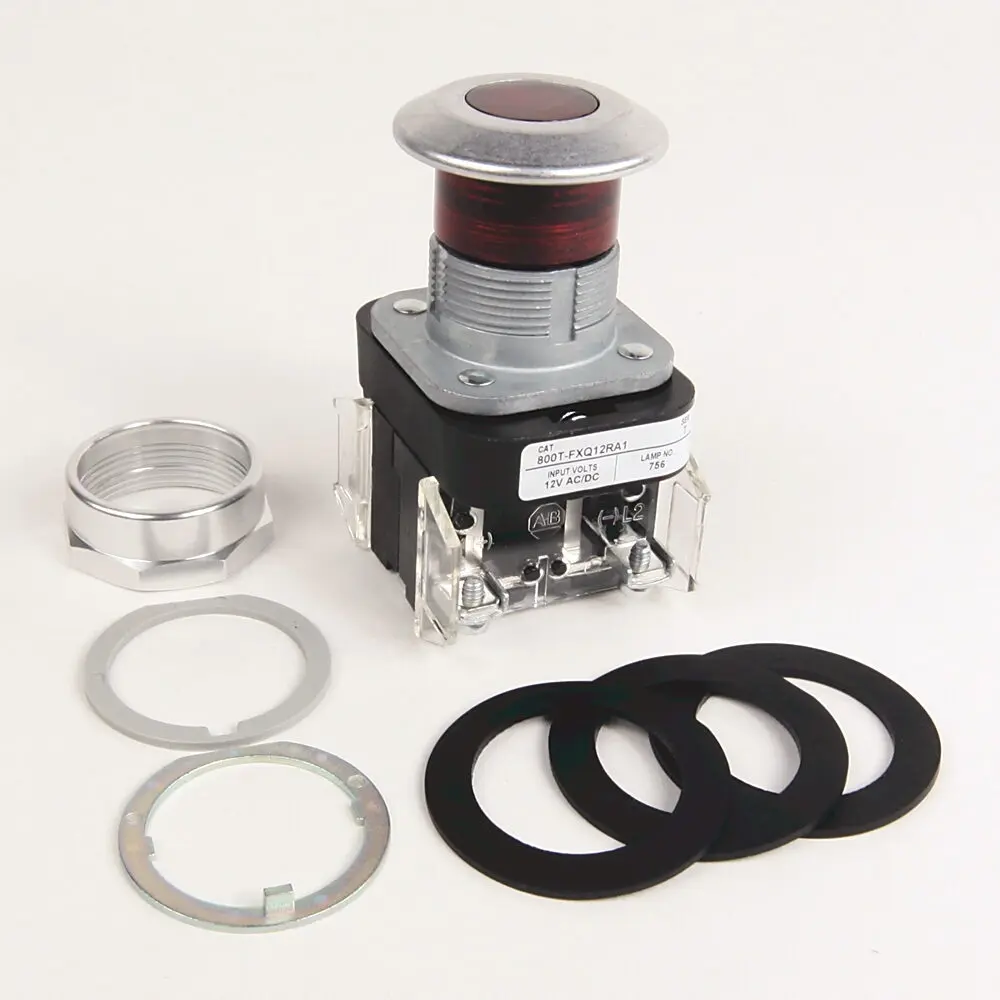

Allen-Bradley Allen-Bradley 30mm Push-Pull Device 800T PB 800T-FXQ24RA1
