Allen-Bradley 30mm Push-Pull Device 800T PB 800T-FXMPH16RA1
Allen-Bradley 800T-FXMPH16RA1 - Pushbuttons & Pilot Devices - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Type: 30mm Push-Pull Device.
This listing covers the Allen-Bradley 800T-FXMPH16RA1, a part number in the Pushbuttons & Pilot Devices category. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
Key manufacturer data on file for this item includes Type: 30mm Push-Pull Device; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Shock: 25 G (contact fragility)/100 G (no damage); Vibration: 10 G maximum; Humidity: 50 %; Type of electric connection: Screw connection; Operator Type: Push-Pull Unit; Contact block configuration: 1 NCLB, 1 NO, standard contact block (800T-XA1); Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 600V AC @ 600V DC. See the Specifications tab on this page for the full technical table.
| Build America, Buy America | No |
|---|---|
| Contact block configuration | 1 NCLB, 1 NO, standard contact block (800T-XA1) |
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Contact block operational voltage, max | 600V AC @ 600V DC |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Hazardous location rating | false |
| Hole diameter | 30.5 mm |
| Humidity | 50 % |
| Illumination lamp type | LED |
| Illumination module input voltage | 120V AC @ 50/60Hz |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Illumination module termination wire range | 14 - 18 AWG (x2) |
| Illumination module type | Transformer |
| Lifecycle Status | Active |
| Operating Temperature | -25 °C |
| Operator cap color | Red |
| Operator cap text/symbol | N/A |
| Operator cap type | Mushroom Head |
| Operator cap/button material | Plastic with Aluminum spinover |
| Operator cap/button shape | Round |
| Operator cap/button size | 40 mm |
| Operator construction/material | Metal |
| Operator function | 3-Position |
| Operator mechanical design life (cycles, min.) | 250000 |
| Operator special function | Momentary-out, maintained-center, maintained-in |
| Operator Type | Push-Pull Unit |
| Repair Options Available | No |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Storage Temperature | -40 °C |
| Suitable for illumination | true |
| Terminations with finger safe covers | false |
| Type | 30mm Push-Pull Device |
| Type of electric connection | Screw connection |
| Vibration | 10 G maximum |
Frequently Asked Questions
How do I get pricing for 800T-FXMPH16RA1?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800T-FXMPH16RA1?
800T-FXMPH16RA1 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800T-FXMPH16RA1?
Key specifications include Build America, Buy America: No; Contact block configuration: 1 NCLB, 1 NO, standard contact block (800T-XA1); Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 600V AC @ 600V DC. The full specification table on this page lists every published attribute for this part.
How quickly can 800T-FXMPH16RA1 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

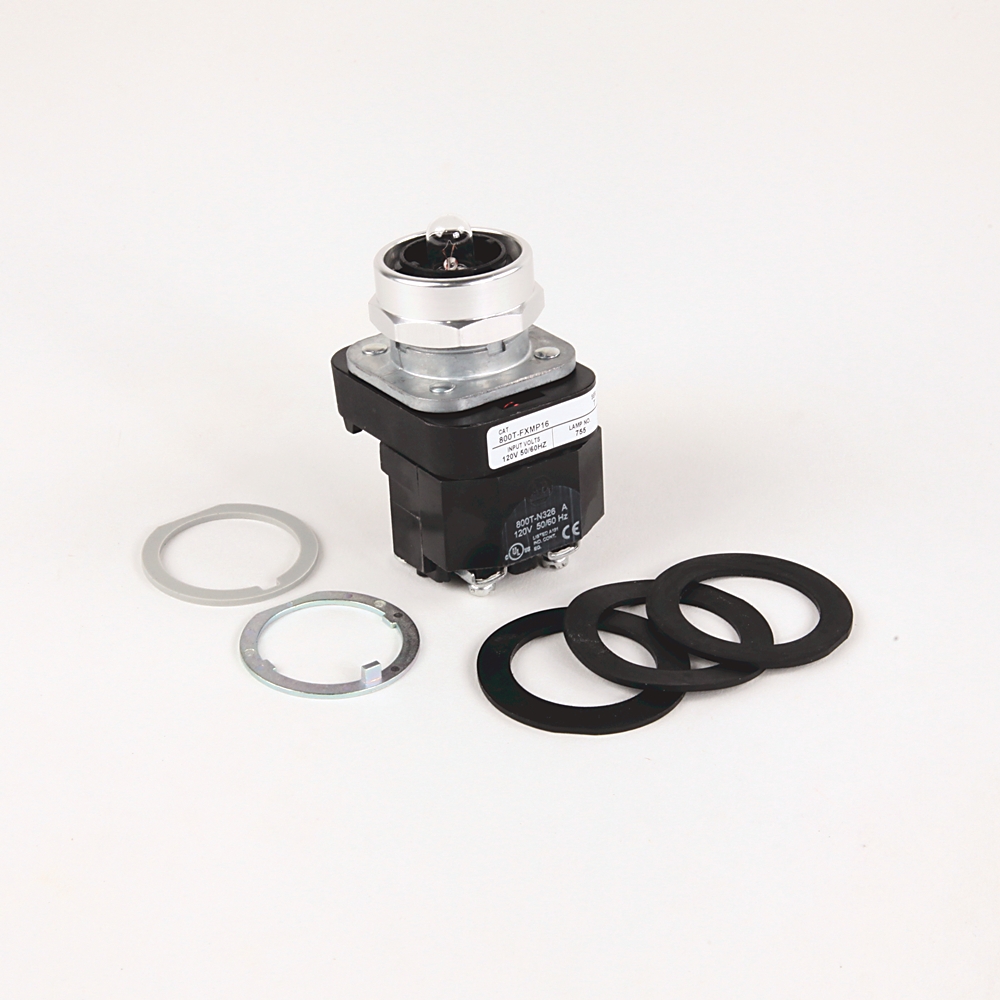

Allen-Bradley Allen-Bradley 30mm Push-Pull Device 800T PB 800T-FXMPH16R
