800FM-SM32 Allen-Bradley 22mm Selector Switch 800F PB
Allen-Bradley 800FM-SM32 - Selector Switches - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Type: 22mm Selector Switch.
Overview
In our catalog, the 800FM-SM32 from Allen-Bradley is listed under the Selector Switches category. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
Key manufacturer data on file for this item includes Type: 22mm Selector Switch; Lifecycle Status: Active; Type of control element: Short thumb-grip; Colour control element: Black; Shock: 100 g; Vibration: 10 g; Humidity: ≤95% RH from 25...60 °C (77...140 °F); Operator Type: Selector switch - standard knob; Hazardous location rating: false; Hole diameter: 22.5 mm; Operator cap/button material: Metal; Operator cap color: Black. See the Specifications tab on this page for the full technical table.
Specifications
| Colour control element | Black |
|---|---|
| Enclosure compatibility | IP66, Type 4/13 (round metal operator) |
| Hazardous location rating | false |
| Hole diameter | 22.5 mm |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Latch material | Metal |
| Lifecycle Status | Active |
| Material front ring | Metal |
| Number of switch positions | 3 |
| Operating Temperature | -25 °C |
| Operator cap color | Black |
| Operator cap/button material | Metal |
| Operator construction/material | Metal |
| Operator function | Maintained, 3 position |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Operator Type | Selector switch - standard knob |
| Packaging | Standard pack (1 per package) |
| Shock | 100 g |
| Spring-return | false |
| Storage Temperature | -40 °C |
| Suitable for illumination | false |
| Switch orientation | Standard |
| Switching function latching | true |
| Type | 22mm Selector Switch |
| Type of control element | Short thumb-grip |
| Vibration | 10 g |
| With front ring | true |
Product details
| Manufacturer | Allen-Bradley |
|---|---|
| Manufacturer part number | 800FM-SM32 |
| Product category | Vision, Measurement & Identification |
| Manufacturer lifecycle status | Active |
| Published specifications | 27 attributes listed |
| Related part numbers | 18 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 800FM-SM32?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800FM-SM32?
800FM-SM32 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What is the lifecycle status of 800FM-SM32?
Manufacturer lifecycle status on file for 800FM-SM32: "Active" — not recorded as discontinued. That is the value published in the product data we hold; confirm against Allen-Bradley's own product page before a long-lead order, as feed data can lag an announcement. It does not change what we can do: KKM Solutions sources current-production, superseded and long-obsolete parts the same way. Send 800FM-SM32 through the quote form on this page for pricing and availability.
What are the key specifications of 800FM-SM32?
Key specifications include Colour control element: Black; Enclosure compatibility: IP66, Type 4/13 (round metal operator); Hazardous location rating: false; Hole diameter: 22.5 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 800FM-SM32 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
Related Products

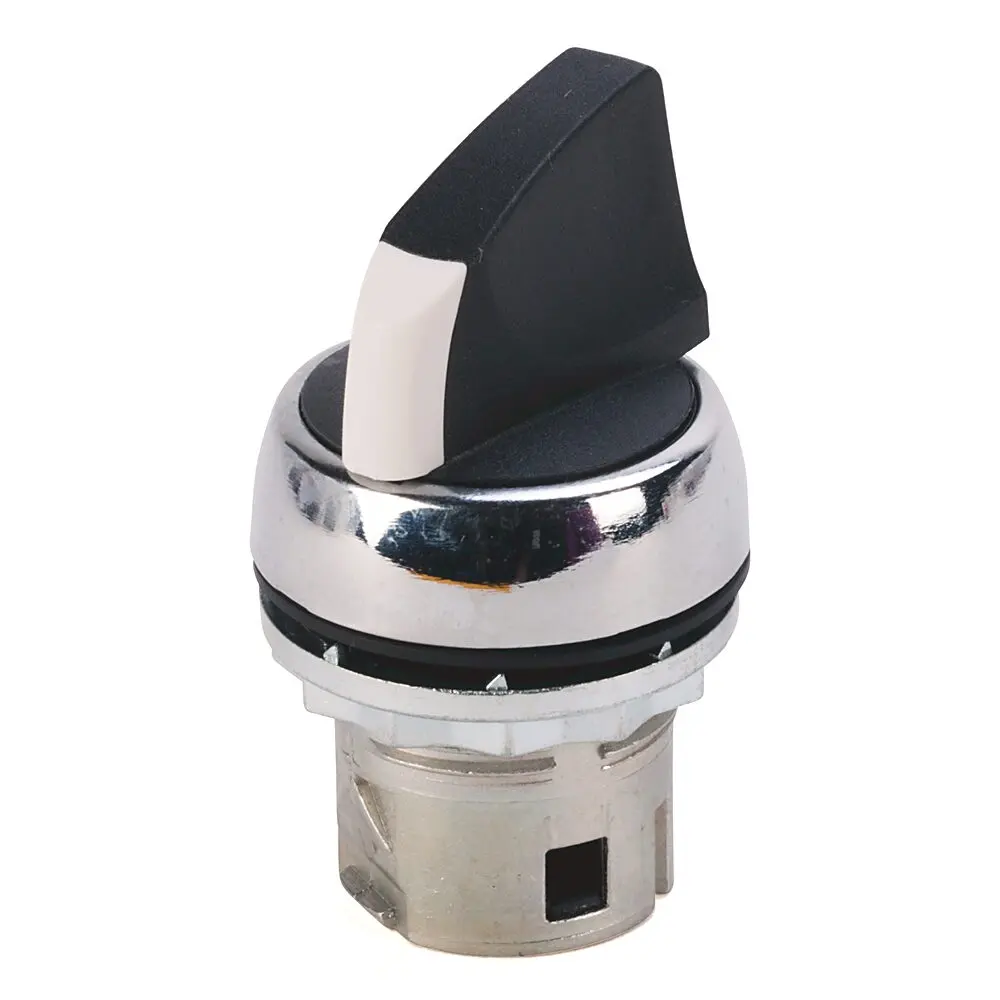

Allen-Bradley Allen-Bradley 800F Selector Switch, Metal 800FM-SM32-BP
