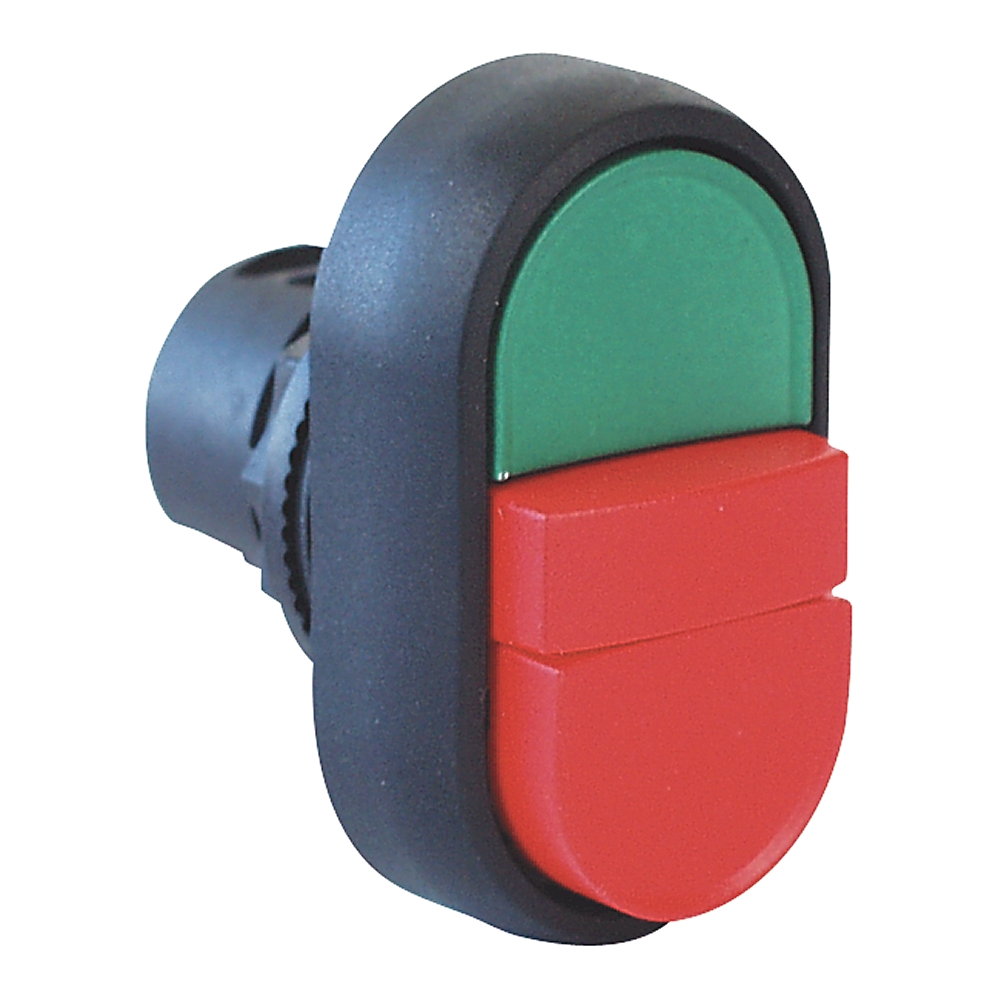

800FM-U3X Allen-Bradley 22mm Multi-Operator 800F PB
Allen-Bradley 800FM-U3X - industrial components - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Type: 22mm Multi-Operator.
Overview
In our catalog, the 800FM-U3X from Allen-Bradley is listed under the industrial components category. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
The specification set recorded for this part number covers Type: 22mm Multi-Operator; Lifecycle Status: Active; Shock: 100 g; Vibration: 10 g; Humidity: ≤95% RH from 25...60 °C (77...140 °F); Operator Type: Push button; Hole diameter: 22.5 mm; Operator construction/material: Metal; Operator function: 3 position multi-operator; Operator mechanical design life (cycles, min.): 1000000; Suitable for illumination: false; Operator cap text/symbol: Avaliable. See the Specifications tab on this page for the full technical table.
Specifications
| Enclosure compatibility | IP66, Type 4 (round metal operator) |
|---|---|
| Hole diameter | 22.5 mm |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Lifecycle Status | Active |
| Operating Temperature | -25 °C |
| Operator cap A type | No caps all poositions |
| Operator cap B color | Multi-function, 2-position, illuminated or non-illuminated |
| Operator cap text/symbol | Avaliable |
| Operator construction/material | Metal |
| Operator function | 3 position multi-operator |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Operator Type | Push button |
| Shock | 100 g |
| Storage Temperature | -40 °C |
| Suitable for illumination | false |
| Type | 22mm Multi-Operator |
| Vibration | 10 g |
Product details
| Manufacturer | Allen-Bradley |
|---|---|
| Manufacturer part number | 800FM-U3X |
| Manufacturer lifecycle status | Active |
| Published specifications | 17 attributes listed |
| Related part numbers | 17 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How do I get pricing for 800FM-U3X?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email [email protected], and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800FM-U3X?
800FM-U3X is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What is the lifecycle status of 800FM-U3X?
Manufacturer lifecycle status on file for 800FM-U3X: "Active" — not recorded as discontinued. That is the value published in the product data we hold; confirm against Allen-Bradley's own product page before a long-lead order, as feed data can lag an announcement. It does not change what we can do: KKM Solutions sources current-production, superseded and long-obsolete parts the same way. Send 800FM-U3X through the quote form on this page for pricing and availability.
What are the key specifications of 800FM-U3X?
Key specifications include Enclosure compatibility: IP66, Type 4 (round metal operator); Hole diameter: 22.5 mm; Humidity: ≤95% RH from 25...60 °C (77...140 °F); Lifecycle Status: Active. The full specification table on this page lists every published attribute for this part.
How quickly can 800FM-U3X ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other Allen-Bradley part numbers in this family:
Related Products

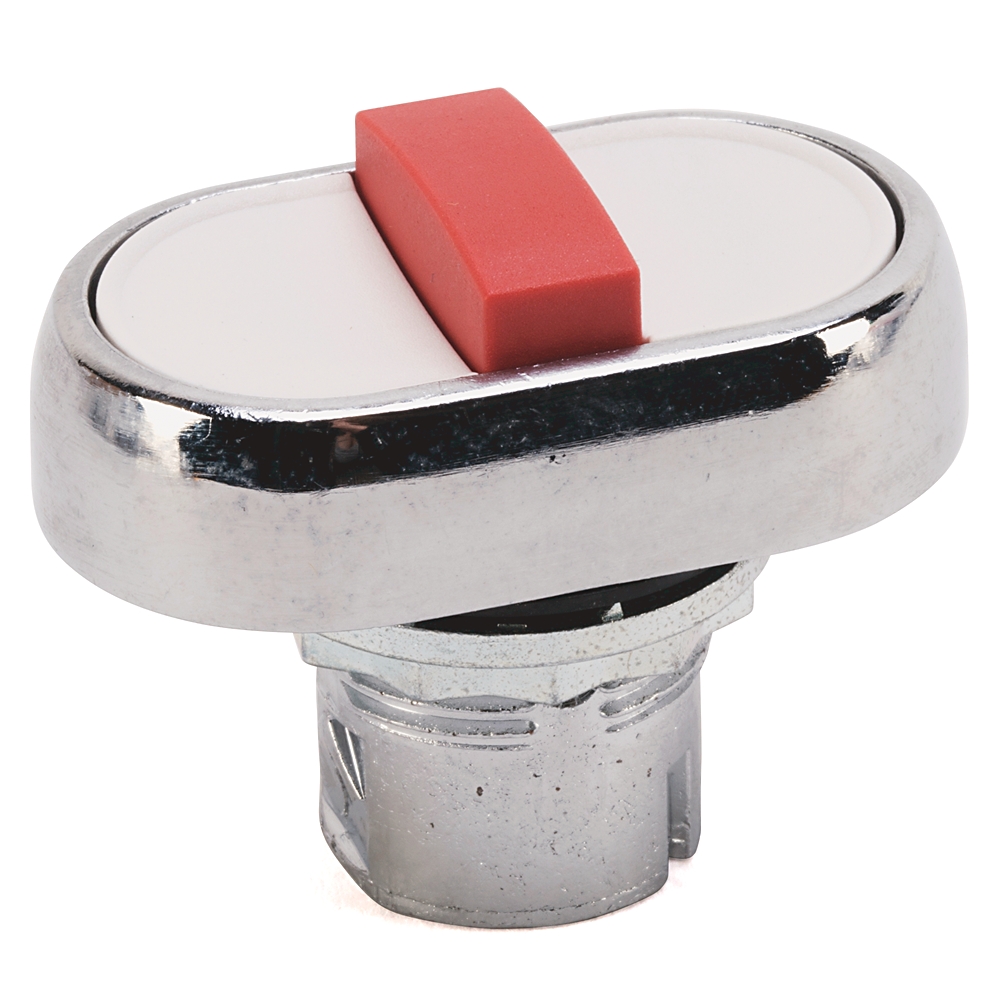

Allen-Bradley Allen-Bradley 22mm Multi-Operator 800F PB 800FM-U3F1FAB
Allen-Bradley Allen-Bradley 22mm Momentary Push Button 800F PB 800FP-E108PX10
Allen-Bradley Allen-Bradley 22mm Multi-Operator 800F PB 800FM-U2F5F5

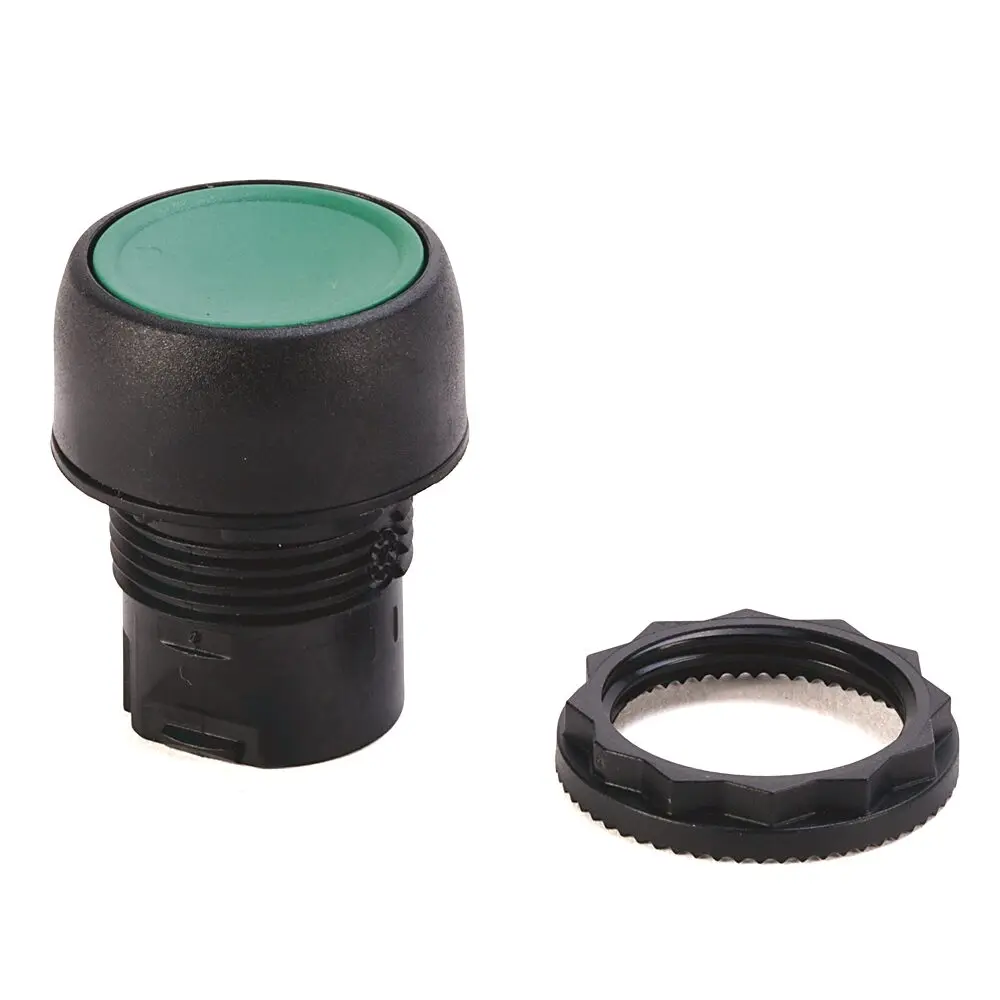

Allen-Bradley Allen-Bradley 22mm Alternate Action Operator 800F PB 800FP-FA4PQ01

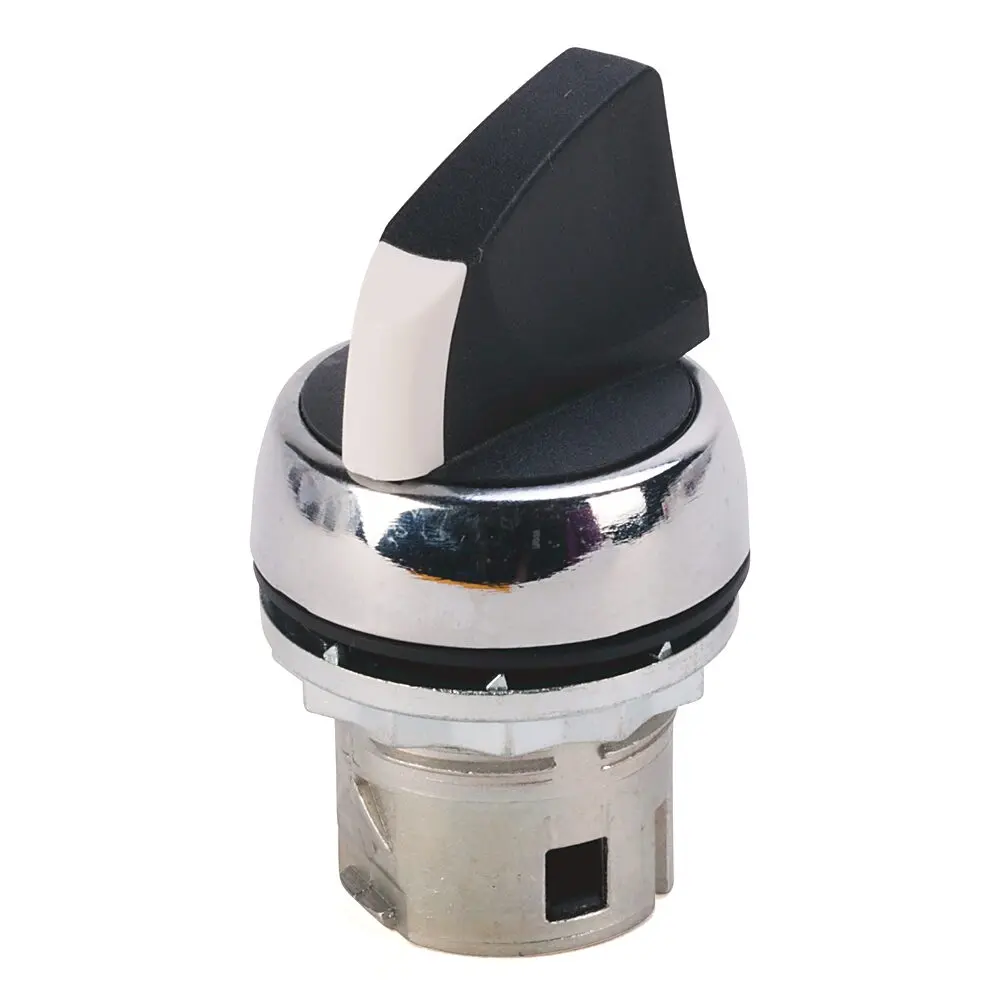

Allen-Bradley Allen-Bradley 22mm Selector Switch 800F PB 800FM-SM22PX10
