Allen-Bradley 1426-M5E-CNT

Name: Allen-Bradley 1426-M5E-CNT
Brand: Allen-Bradley
SKU: 1426-M5E-CNT

Brand: Allen-Bradley SKU: 1426-M5E-CNT Mfr Part #: 1426-M5E-CNT

Ships Same Day* Worldwide Shipping

Allen-Bradley 1426-M5E-CNT - Drives & Motors category.

Allen-Bradley 1426-M5E-CNT is a Drives & Motors catalog item from Allen-Bradley.

Specification data for this part number is available on request from our order desk.

Accuracy	0.20%
Alarm	True
Alarm log	True
Altitude	2000 m, max
Ampere meter	True
Apparent energy (kVAh)	True
Apparent power (kVA)	True
Apparent power demand (kVA)	True
Application	Power Management/Quality m
Blind power meter	True
Break values	(Inductive load) 3A @ 120V AC, 50/60 Hz, RMS, maximum
CIP energy object	True
Communications	ControlNet and EtherNet/IP
Configurable via webpage	True
Configuration lock switch	When enabled, this switch helps prevent changes in configuration that can affect revenue accuracy.
Control power	12VA @ 24V DC
Control power and ground wiring terminals	• 120...240V AC @ 50/60Hz, or 120...240V DC • 24V DC
Control relay	ANSI C37.90 trip duty: 2005
Control Voltage	22.8...25.2V DC @ 24V DC
Control voltage (L1, L2)	85...264V AC, 47…63 Hz Or 106…275V DC
ControlNet	True
Crest factor	V-V, V-N, and I, per phase: Yes
Current consumption	True
Current per phase and total	True
Current sense inputs: I1, I2, I3	Accuracy: ±0.1% @ 25°C 50/60 Hz unity power factor
Current sense inputs: I1, I2, I3, I4	Starting current : 5 mA
Current sensing wiring terminals	Nominal input current 5 A, Use current transformers (CTs) to connect to power system
Current unbalance	True
Data log	True
Demand functions	• ANSI C12.20 -2010 class 0.2 clause 5.5.4 • EN 62053-22 -2003 class 0.2 accuracy clause 8
Demand power factor	True
Demand, amps	True
Depth	178 mm
Description	PowerMonitor 5000 M5 unit with native ethernet and optional controlnet network communication
Device status indicators	• Device status - OFF: No control power - Flashing GREEN/RED: Self-test - Flashing GREEN: Power monitor has not been configured - GREEN: Power monitor is running - Flashing RED: Power monitor has detected a recoverable minor fault - RED: Power monitor has detected a non-recoverable major fault
Dielectric withstand	UL61010, EN61010
Displacement power factor per phase and total	True
Effective power measurement device	True
Energy functions	• ANSI C12.20 -2010 class 0.2 clause 5.5.4 • EN 62053-22 -2003 class 0.2 accuracy clause 8
Energy log	True
Estimated Lead Time	5 days
EtherNet/IP	True
Event log	True
Frequency	Nominal: 60 Hz
Frequency meter	True
Frequency Rating	40-75Hz
Height	132 mm mm
Humidity	5...95% noncondensing
IC rating class	UL 508, CSA 22.2 @ DC: Q300
IEEE 1588 precision time protocol	True
Installation location	Indoor use only
Interface	Webpage
K-Factor	True
KYZ output	Solid-state KYZ: 80mA @ 240V AC/V DC
Load factor log	True
Load switching	100mA @ 5V AC, 50/60 Hz, RMS, minimum
Make values	(Inductive load) 30A @ 120V AC, 50/60 Hz, RMS, maximum
Metering update rates	One update per line cycle, 1024 sAles per cycle per channel
Metering Voltage	600VLL AC
Minimum/maximum log	True
Motor load switching	1/3HP @ 125V AC, 50/60 Hz, RMS, maximum
Network demand synchronization	True
Network status indicators	• Network status (Native Ethernet port) - OFF: No control power - Flashing GREEN/RED: Self-test - Flashing GREEN: No CIP connection - Solid GREEN: CIP connection established - Flashing RED: CIP connection timed out - Solid RED: Duplicate IP address detected
Network time synchronization	True
Operating Temperature	-20 to 70 °C
Output	4 Digital Relays
Power	•Power status - OFF: no control power - GREEN: control power is present
Power functions	• ANSI C12.20 -2010 class 0.2 clause 5.5.4 • EN 62053-22 -2003 class 0.2 accuracy clause 8
Projected amps demand	True
Projected kVA demand	True
Projected kVAR demand	True
Projected kW demand	True
Pulse (digital) output (relay and KYZ)	True
Pulse counter	True
Reactive energy (kVARh)	True
Reactive power (kVAR)	True
Reactive power demand (kVAR)	True
Real energy (kWh)	True
Real power (kW)	True
Real power demand (kW)	True
Resistive load switching	10A @ 24V DC, maximum
Revenue accuracy	True
Sag and swell detection	True
Security	True
Setpoint log	True
Setpoint programming	True
Shock	50 G, nonoperating
Standard Warranty Duration	1 year
Status input, KYZ output, and control relay wiring terminals	• Four internally powered (24V DC) status inputs • Status input 2 can be used for demand period synchronization • KYZ DPDT solid-state relay for signaling use • Three DPDT control relays
Status inputs	True
Storage Temperature	-40 to 85 °C
Symmetrical component analysis	True
Time of use log	True
Total harmonic distortion (THD)	True
True power factor per phase and total	True
UPC	612598886234
USB device port	The USB device port is a USB Mini-B receptacle that accepts standard USB Mini-B plugs, for connection to a host device, such as a notebook computer.
USB host port	USB standard A receptacle. Not used in this model.
VG	Connect to power system earth ground only, This connection is a functional ground.
Vibration	2 G
Virtual wiring correction	True
Virtual wiring correction indicator	Indicates that a virtual wiring correction command has been applied to resolve wiring errors without rewiring
Voltage sense inputs: V1, V2, V3, VN	Input impedance: 5M Ω minimum
Voltage sensing wiring terminals	• Direct connect to up to 690V AC 3-phase line to line • Maximum nominal line to ground voltage 690 • Use potential transformers (PTs) for higher voltages • Neutral voltage and ground voltage connections
Voltage unbalance	True
Voltage, L-L and L-N	True
Voltmeter	True
Web page	True
Width	185 mm mm
Wiring diagnostics	True

Frequently Asked Questions

How much does 1426-M5E-CNT cost?

The estimated price shown on this page (CA$2,897.72 CAD) is a reference figure only and can change. Send the quote form on this page with your quantity, or email [email protected], for current pricing and stock availability.

Who manufactures the 1426-M5E-CNT?

1426-M5E-CNT is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.

What are the key specifications of 1426-M5E-CNT?

Key specifications include Accuracy: 0.20%; Alarm: True; Alarm log: True; Altitude: 2000 m, max. The full specification table on this page lists every published attribute for this part.

How quickly can 1426-M5E-CNT ship?

In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.

Allen-Bradley 1426-M5E-CNT

Frequently Asked Questions

Related Products

Allen-Bradley 1426-DM

Allen-Bradley 1426-M6E

Allen-Bradley 1420V2PENT

Allen-Bradley 1440-SDM02-01RA

Allen-Bradley 1420-V1A-ENT

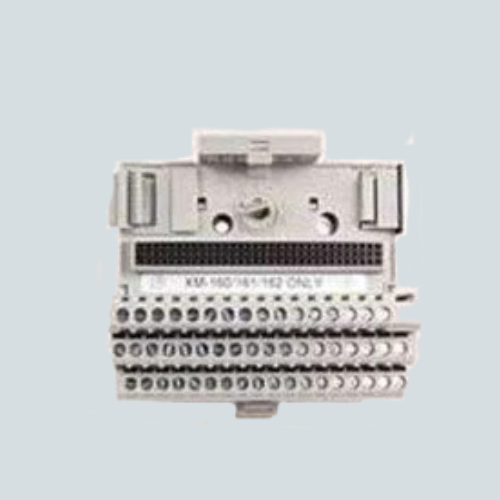

Allen-Bradley 1440-TB-A
