140M-C2E-B10 | Allen-Bradley | US

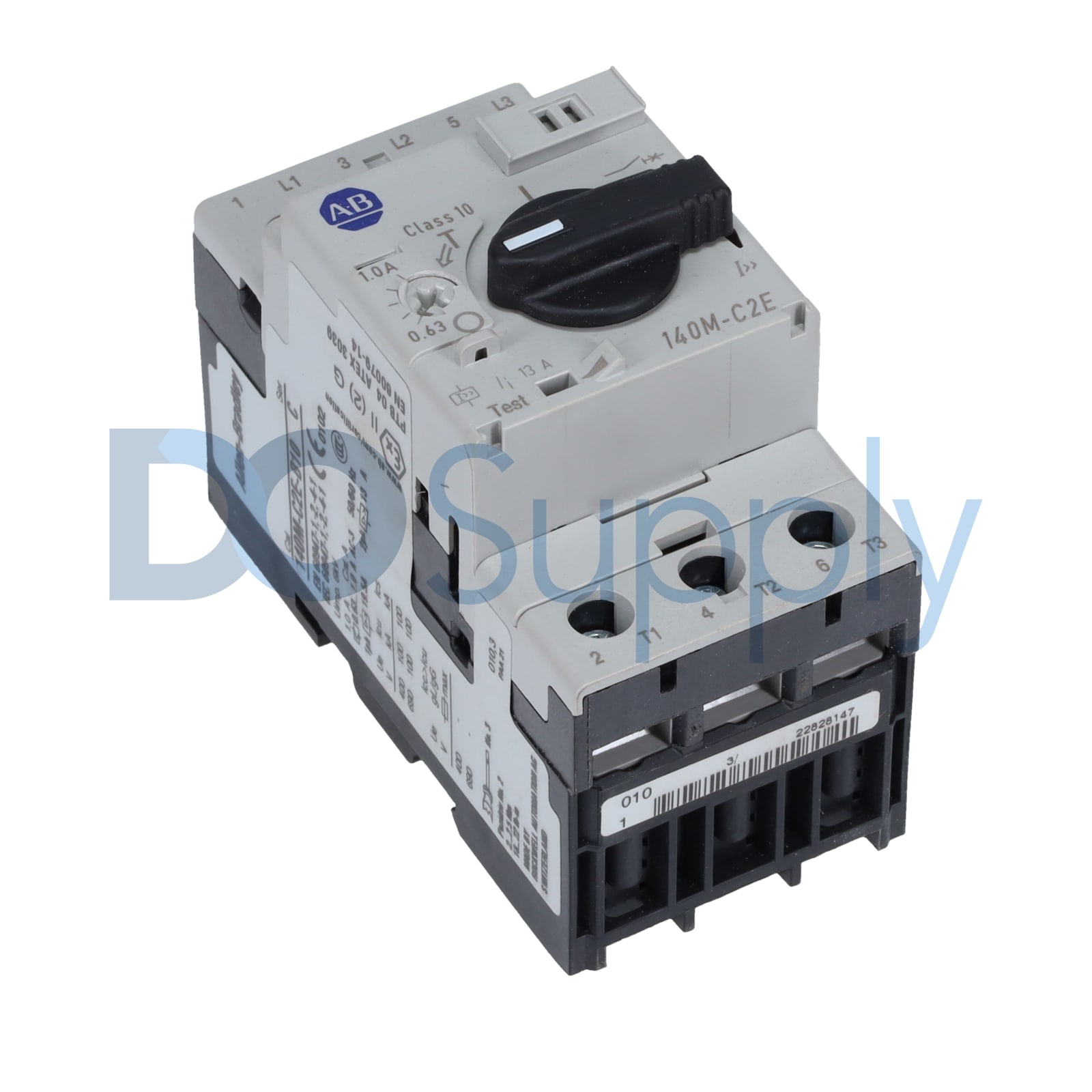

Allen-Bradley 140M-C2E-B10 - Manual Motor Protectors - Width: 45 mm mm; Height: 90 mm mm; Weight: 317 lb.
The Allen-Bradley 140M-C2E-B10 is part of the Manual Motor Protectors range in our industrial catalog. The manufacturer's published data for this part number specifies Width: 45 mm mm and Height: 90 mm mm.
Fixed setting 13...14 x Ie max. Ie max. = maximum values of setting ranges, (±20 %)
Published specifications for this part include Weight: 317 lb; Degree of protection (IP): IP2X; Depth: 74.5 mm; Overload release current setting: 0.63 A; Type of electrical connection of main circuit: Screw connection; Device construction: Built-in device fixed built-in technique; Electrical life cycle: (Ie max.) 100000 ops; Mechanical life operations: 100000 /h; Number of poles: 3; Switching frequency, max: 25 ops/h; Type of control element: Turn button; Fuse or circuit breaker per NEC, max: 450 A, UL 508-manual motor controller. The complete technical table is shown in the Specifications tab on this page.
| Ambient operating temperature | -25 °C |
|---|---|
| Ambient storage temperature | -40 °C |
| Ambient temperature compensation | -20 °C |
| Amperage Rating | 0.63 - 1A,MxRtg MCPs(no OvPrt)is 1200.0A |
| Auxiliary circuits/overvoltage category-inv | 6kV/III @ rated impulse withstand voltage (Uimp) |
| Back up fuse (gG, gL) current rating (if Icc ≥ Icu ) per IEC | No back-up fuse required @ 690V |
| Breaking capacity | Standard breaking capacity |
| Contactor size (Type 2 coordination), min-inv | 100-C09 @ 600V |
| Contactor size, min-inv | 100-K05: UL-508-Type F combination motor controller |
| Current Range | 0.6...31 A |
| Degree of protection (IP) | IP2X |
| Dependence on temperature | No current reduction @ 60 °C-inv |
| Depth | 74.5 mm |
| Device construction | Built-in device fixed built-in technique |
| Dry heat | 100 °C, relative humidity < 50 %, 7 d (60086-2-2)-inv |
| Electrical life cycle | (Ie max.) 100000 ops |
| Factory option | No circuit-breaker auxiliary or trip contacts |
| Frame Size | Frame size C, 32 A |
| Fuse or circuit breaker per NEC, max | 450 A, UL 508-manual motor controller |
| Fuse or circuit breaker rating per NEC, max | 450 A, UL 508-manual motor controller with 100-C contactor |
| Fuse or circuit breaker rating with 100-K contactor per NEC, max | 450 A, UL 508-manual motor controller |
| Height | 90 mm mm |
| Hp rating, max | 0.75Hp @ 575V, 3-phase |
| KW rating, max | 0.55 kW @ 690V (AC-3), 3-phase |
| Magnetic release current | Fixed setting 13...14 x Ie max. Ie max. = maximum values of setting ranges, (±20 %) |
| Magnetic release current per IEC | 13 A |
| Magnetic trip current | 13 A |
| Main circuits/overvoltage category | 6kV/III @ rated impulse withstand voltage (Uimp) |
| Mechanical life operations | 100000 /h |
| Moisture change climate | 23 °C/83 % relative humidity and 40 °C/92 % relative humidity, 56 cycles (600068-2-30)-inv |
| Moisture heat | 40 °C, relative humidity 93 %, 56 d (60068-2-3)-inv |
| Number of poles | 3 |
| Overload release current setting | 0.63 A |
| Phase failure sensitive | True |
| Phase loss protection | Differential release |
| Pollution degree | 3 |
| Protection type | Adjustable thermal/fixed magnetic (13 x In) |
| Rated frequency | 50/60 Hz |
| Rated operating voltage | 230 A |
| Rated operating voltage, max | 690V per IEC, SEV, VDE0660 |
| Rated operation power at AC-3, 230 V | 0.18 kw |
| Rated operation power at AC-3, 400 V | 0.25 kw |
| Rated operational current (Ie) per IEC | 1 A |
| Rated service short circuit breaking capacity (Ics) per IEC | 100kA @ 690V |
| Rated short-circuit breaking capacity lcu at 400 V, AC | 100 kA |
| Rated supply current | 0.1 A |
| Rated thermal current | 0.1...32A @ 60°C ambient temperature (Ith)-inv |
| Shock resistance | Transport (60068-2-27): 30 G, 11 ms, all axes |
| Short circuit current (Type 2 coordination), max-inv | 65kA @ 480V |
| Short circuit current for combination motor controller, max | 65kA @ 480V/277V per UL 508-self-protected (Type E) |
| Short circuit current for group motor installation, max | 65kA @ 480V, UL 508-manual motor controller |
| Short circuit current for motor disconnect, max | 65kA @ 480V, UL 508-manual motor controller |
| Short circuit current for tap conductor protection, max | 65 kA @ 480Y/277V per UL 508-manual motor controller |
| Site altitude | To 2000 N.N.(m) |
| Standard Warranty Duration | 1 year |
| Switch off technique | Thermomagnetic |
| Switching frequency, max | 25 ops/h |
| Switching of standard motors per IEC | 0.55 kW @ 690V, 3-phase |
| Terminal Type | Screw connection |
| Trip Class | 10 |
| Type of control element | Turn button |
| Type of electrical connection of main circuit | Screw connection |
| Ultimate short circuit breaking capacity (Icu) per IEC | 100kA @ 690V |
| UPC | 662468964319 |
| Vibration resistance | Ops (60068-2-6): 5 G |
| Weight | 317 lb |
| Width | 45 mm mm |
| With integrated auxiliary switch | False |
| With integrated under voltage release | False |
| With thermal protection | True |
