Weidmuller MK 6/5/E
Weidmuller 7906250000 - Feed-through and PE terminal Blocks - Width: 62.5 mm mm; Height: 23 mm mm; Storage Temperature: -25 °C...55 °C.
Weidmuller 7906250000 is a Feed-through and PE terminal Blocks catalog item from Weidmuller. The manufacturer's published data for this part number specifies Width: 62.5 mm mm and Height: 23 mm mm.
Single- and multi-pole terminal strip, Screw connection, medium yellow, 6 mm², 41 A, 690 V, Number of connections: 10, Number of levels: 1
Published specifications for this part include Storage Temperature: -25 °C...55 °C; Nominal current: 41 A; Type of mounting: Direct mounting; Ambient temperature: -60 °C…85 °C; Type: MK 6/5/E; Depth: 22 mm; Number of poles: 5; Net weight: 47.08 g; Colour: medium yellow; Rated voltage: 690 V; Stripping length: 9 mm; Blade Size: 4.0 x 0.8 mm. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -60 °C…85 °C |
|---|---|
| Basic material | KrG |
| Blade Size | 4.0 x 0.8 mm |
| Certificate No. (ATEX) | TUEV18ATEX8209U |
| Certificate No. (IECEX) | IECEXTUR18.0019U |
| Certificate No. (UR) | E60693 |
| Clamping range, max. | 6 mm² |
| Clamping range, min. | 0.33 mm² |
| Clamping screw | M 4 |
| Colour | medium yellow |
| Conductor size Factory wiring max. (UR) | 10 AWG |
| Conductor size Factory wiring min. (UR) | 22 AWG |
| Conductor size Field wiring max. (UR) | 10 AWG |
| Conductor size Field wiring min. (UR) | 22 AWG |
| Connection cross-section, stranded, max. | 6 mm² |
| Connection cross-section, stranded, min. | 0.33 mm² |
| Connection direction | on side |
| Connection type, additional connection | Screw connection |
| Continuous operating temp., max. | 130 °C |
| Continuous operating temp., min. | -60 °C |
| Current (ATEX) | 36 A |
| Current (IECEX) | 36 A |
| Current at maximum wires | 41 A |
| Current size B (UR) | 30 A |
| Current size C (UR) | 30 A |
| Delivery status | This article will no longer be available in the future. |
| Depth | 22 mm |
| Depth (inches) | 0.866 inch |
| ECLASS 14.0 | 27-14-11-06 |
| ECLASS 15.0 | 27-14-11-06 |
| End cover plate required | No |
| ETIM 10.0 | EC001284 |
| ETIM 8.0 | EC001284 |
| ETIM 9.0 | EC001284 |
| Ex 2014/34/EU label | II 2 G D |
| Explosion-tested version | No |
| Fixing dimension | 13 mm |
| Gauge to IEC 60947-1 | A3 |
| GTIN (EAN) | 4008190576455 |
| Height | 23 mm mm |
| Height (inches) | 0.906 inch |
| Installation advice | Direct mounting |
| Marking EN 60079-7 | Ex eb II C Gb |
| Max. voltage (ATEX) | 440 V |
| Max. voltage (IECEX) | 440 V |
| Mounting rail | Mounting plate |
| Net weight | 47.08 g |
| Nominal current | 41 A |
| Number of connections | 10 |
| Number of levels | 1 |
| Number of poles | 5 |
| Number of potentials | 1 |
| Order No. | 7906250000 |
| Pollution severity | 3 |
| Power loss in accordance with IEC 60947-7-x | 1.31 W |
| Qty. | 20 items |
| Rated cross-section | 6 mm² |
| Rated DC voltage | 690 V |
| Rated impulse withstand voltage | 8 kV |
| Rated voltage | 690 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Standards | IEC 60947-7-1 |
| Storage Temperature | -25 °C...55 °C |
| Stripping length | 9 mm |
| Tightening torque (max) | 1.2 Nm Nm |
| Tightening torque, min. | 1.2 Nm |
| Torque level with DMS electric screwdriver | 4 |
| Type | MK 6/5/E |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| Type of mounting | Direct mounting |
| UL 94 flammability rating | 5VA |
| Version | Single- and multi-pole terminal strip, Screw connection, medium yellow, 6 mm², 41 A, 690 V, Number of connections: 10, Number of levels: 1 |
| Voltage size B (UR) | 300 V |
| Voltage size C (UR) | 300 V |
| Volume resistance according to IEC 60947-7-x | 0.78 mΩ |
| Width | 62.5 mm mm |
| Width (inches) | 2.461 inch |
| Wire connection cross section AWG, max. | AWG 10 |
| Wire connection cross section AWG, min. | AWG 22 |
| Wire connection cross section, finely stranded, max. | 6 mm² |
| Wire connection cross section, finely stranded, min. | 0.33 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.33 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.33 mm² |
| Wire connection cross-section, solid core, max. | 6 mm² |
| Wire connection cross-section, solid core, min. | 0.33 mm² |
| Wire cross section max. (ATEX) | 6 mm² |
| Wire cross section max. (IECEX) | 6 mm² |
Frequently Asked Questions
How do I get pricing for 7906250000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 7906250000?
7906250000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 7906250000?
Key specifications include Ambient temperature: -60 °C…85 °C; Basic material: KrG; Blade Size: 4.0 x 0.8 mm; Certificate No. (ATEX): TUEV18ATEX8209U. The full specification table on this page lists every published attribute for this part.
How quickly can 7906250000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Weidmuller Weidmuller MK 6/4/E
Weidmuller Weidmuller MK 6/6/E

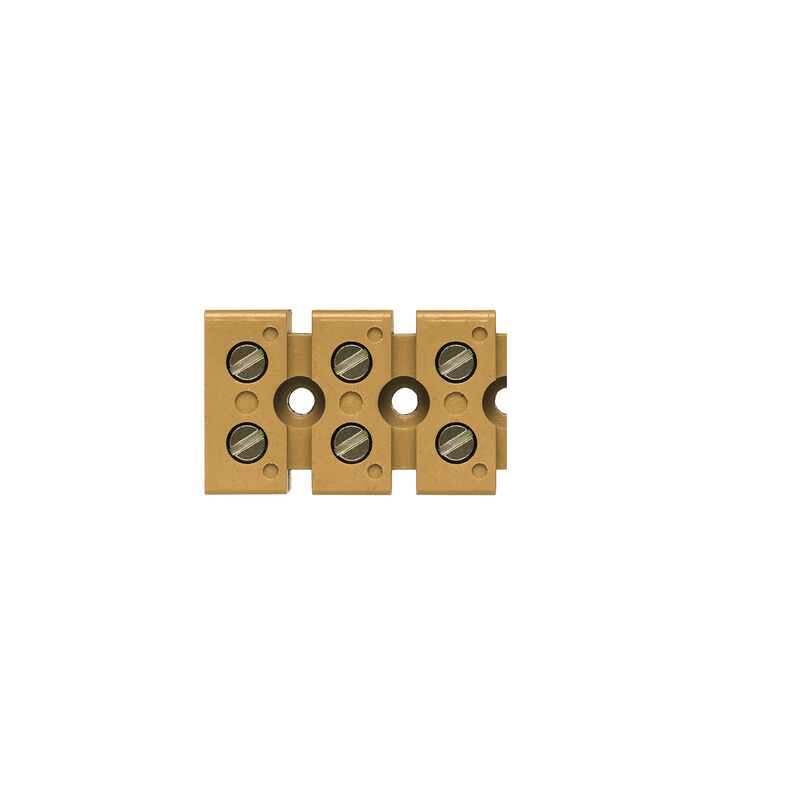

Weidmuller Weidmuller MK 6/3/E
