Weidmuller MK 3/4/E
Weidmuller 7906130000 - Feed-through and PE terminal Blocks - Width: 35.75 mm mm; Height: 15 mm mm; Storage Temperature: -25 °C...55 °C.
Weidmuller 7906130000 is a Feed-through and PE terminal Blocks catalog item from Weidmuller. The manufacturer's published data for this part number specifies Width: 35.75 mm mm and Height: 15 mm mm.
Single- and multi-pole terminal strip, Screw connection, medium yellow, 2.5 mm², 24 A, 400 V, Number of connections: 8, Number of levels: 1
The specification set recorded for this part number covers Storage Temperature: -25 °C...55 °C; Nominal current: 24 A; Type of mounting: Direct mounting; Ambient temperature: -60 °C…85 °C; Type: MK 3/4/E; Depth: 16.1 mm; Number of poles: 4; Net weight: 12.989 g; Colour: medium yellow; Rated voltage: 400 V; Stripping length: 5 mm; Blade Size: 0.6 x 3.5 mm. See the Specifications tab on this page for the full technical table.
| Ambient temperature | -60 °C…85 °C |
|---|---|
| Basic material | KrG |
| Blade Size | 0.6 x 3.5 mm |
| Certificate No. (ATEX) | TUEV18ATEX8209U |
| Certificate No. (CSA) | 12400-149 |
| Certificate No. (IECEX) | IECEXTUR18.0019U |
| Certificate No. (UR) | E60693 |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.33 mm² |
| Clamping screw | M 2.5 |
| Colour | medium yellow |
| Conductor size Factory wiring max. (UR) | 12 AWG |
| Conductor size Factory wiring min. (UR) | 22 AWG |
| Conductor size Field wiring max. (UR) | 12 AWG |
| Conductor size Field wiring min. (UR) | 22 AWG |
| Connection cross-section, stranded, max. | 2.5 mm² |
| Connection cross-section, stranded, min. | 0.33 mm² |
| Connection direction | on side |
| Connection type, additional connection | Screw connection |
| Continuous operating temp., max. | 130 °C |
| Continuous operating temp., min. | -60 °C |
| Current (ATEX) | 24 A |
| Current (IECEX) | 24 A |
| Current at maximum wires | 24 A |
| Current size B (UR) | 20 A |
| Current size C (CSA) | 25 A |
| Current size D (UR) | 5 A |
| Depth | 16.1 mm |
| Depth (inches) | 0.634 inch |
| ECLASS 14.0 | 27-14-11-06 |
| ECLASS 15.0 | 27-14-11-06 |
| End cover plate required | No |
| ETIM 10.0 | EC001284 |
| ETIM 8.0 | EC001284 |
| ETIM 9.0 | EC001284 |
| Ex 2014/34/EU label | II 2 G D |
| Explosion-tested version | No |
| Fixing dimension | 18.5 mm |
| Gauge to IEC 60947-1 | A2 |
| GTIN (EAN) | 4008190576332 |
| Height | 15 mm mm |
| Height (inches) | 0.591 inch |
| Installation advice | Direct mounting |
| Marking EN 60079-7 | Ex eb II C Gb |
| Max. voltage (ATEX) | 275 V |
| Max. voltage (IECEX) | 275 V |
| Mounting rail | Mounting plate |
| Net weight | 12.989 g |
| Nominal current | 24 A |
| Number of connections | 8 |
| Number of levels | 1 |
| Number of poles | 4 |
| Number of potentials | 1 |
| Order No. | 7906130000 |
| Pollution severity | 3 |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Qty. | 50 items |
| Rated cross-section | 2.5 mm² |
| Rated DC voltage | 400 V |
| Rated impulse withstand voltage | 6 kV |
| Rated voltage | 400 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Standards | IEC 60947-7-1 |
| Storage Temperature | -25 °C...55 °C |
| Stripping length | 5 mm |
| Tightening torque (max) | 0.45 Nm Nm |
| Tightening torque, min. | 0.4 Nm |
| Torque level with DMS electric screwdriver | 1 |
| Type | MK 3/4/E |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| Type of mounting | Direct mounting |
| UL 94 flammability rating | 5VA |
| Version | Single- and multi-pole terminal strip, Screw connection, medium yellow, 2.5 mm², 24 A, 400 V, Number of connections: 8, Number of levels: 1 |
| Voltage size B (UR) | 300 V |
| Voltage size C (CSA) | 300 V |
| Voltage size D (UR) | 600 V |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Width | 35.75 mm mm |
| Width (inches) | 1.407 inch |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 22 |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire connection cross section, finely stranded, min. | 0.33 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.33 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.33 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0.33 mm² |
| Wire cross section max. (ATEX) | 4 mm² |
| Wire cross section max. (CSA) | 12 AWG |
| Wire cross section max. (IECEX) | 4 mm² |
| Wire cross section min. (CSA) | 22 AWG |
Frequently Asked Questions
How do I get pricing for 7906130000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 7906130000?
7906130000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 7906130000?
Key specifications include Ambient temperature: -60 °C…85 °C; Basic material: KrG; Blade Size: 0.6 x 3.5 mm; Certificate No. (ATEX): TUEV18ATEX8209U. The full specification table on this page lists every published attribute for this part.
How quickly can 7906130000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

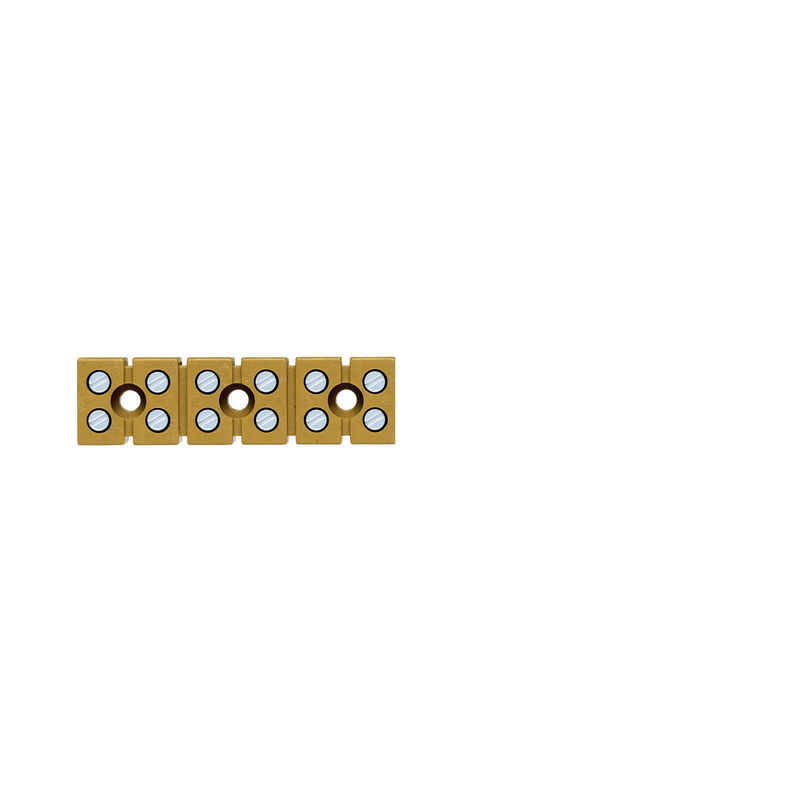

Weidmuller Weidmuller MK 3/3/E
Weidmuller Weidmuller MK 3/6/E
Weidmuller Weidmuller MK 3/2/E

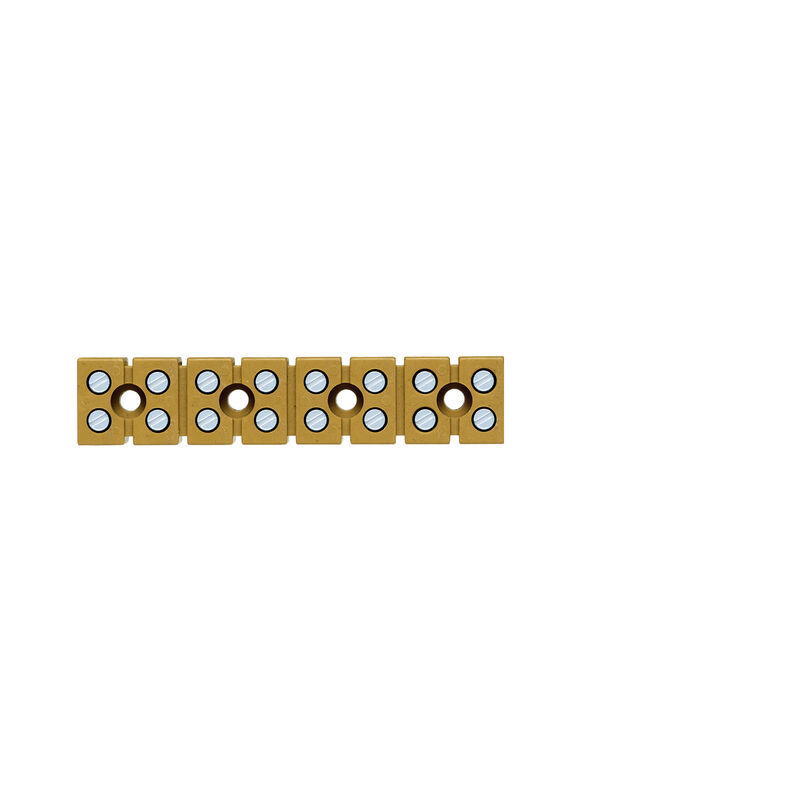

Weidmuller Weidmuller MK 3/8/E

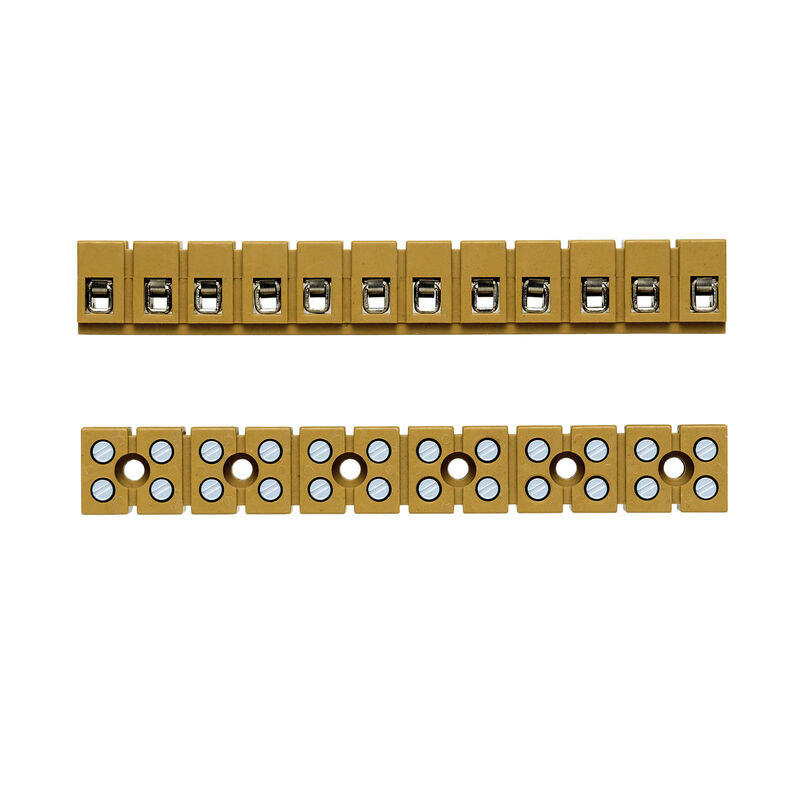

Weidmuller Weidmuller MK 3/12/E
