Weidmuller WDU 10 BR
Weidmuller 2821630000 - Feed-through and PE terminal Blocks - Width: 9.9 mm mm; Height: 60 mm mm; Storage Temperature: -25 °C...55 °C.
The Weidmuller 2821630000 is part of the Feed-through and PE terminal Blocks range in our industrial catalog. The manufacturer's published data for this part number specifies Width: 9.9 mm mm and Height: 60 mm mm.
Feed-through terminal block, Screw / solder connection, brown, 10 mm², 57 A, 1000 V, Number of connections: 2
Key manufacturer data on file for this item includes Storage Temperature: -25 °C...55 °C; Nominal current: 57 A; Type of mounting: Snap-on; Ambient temperature: -60 °C…85 °C; Type: WDU 10 BR; Depth: 46.5 mm; Net weight: 17.6 g; Colour: brown; Rated voltage: 1,000 V; Stripping length: 12 mm; Blade Size: 1.0 x 5.5 mm; ROHS: Conform. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -60 °C…85 °C |
|---|---|
| Basic material | Wemid |
| Blade Size | 1.0 x 5.5 mm |
| Clamping range, max. | 16 mm² |
| Clamping range, min. | 1.31 mm² |
| Colour | brown |
| Connection cross-section, finely stranded, min. | 1.31 mm² |
| Connection cross-section, stranded, max. | 10 mm² |
| Connection cross-section, stranded, min. | 1.31 mm² |
| Connection direction | on side |
| Connection type, additional connection | Screw connection |
| Continuous operating temp., max. | 130 °C |
| Continuous operating temp., min. | -60 °C |
| Current at maximum wires | 76 A |
| Depth | 46.5 mm |
| Depth (inches) | 1.831 inch |
| ECLASS 14.0 | 27-25-01-01 |
| ECLASS 15.0 | 27-25-01-01 |
| End cover plate required | Yes |
| ETIM 10.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| Explosion-tested version | Yes |
| Gauge to IEC 60947-1 | B6 |
| GTIN (EAN) | 4064675359357 |
| Height | 60 mm mm |
| Height (inches) | 2.362 inch |
| Levels cross-connected internally | No |
| Mounting rail | TS 35 |
| N-function | No |
| Net weight | 17.6 g |
| Nominal current | 57 A |
| Number of clamping points per level | 2 |
| Number of connections | 2 |
| Number of levels | 1 |
| Number of potentials | 1 |
| Number of potentials per tier | 1 |
| Open sides | right |
| Order No. | 2821630000 |
| PE function | No |
| PEN function | No |
| Pollution severity | 3 |
| Qty. | 50 items |
| Rated cross-section | 10 mm² |
| Rated DC voltage | 1,000 V |
| Rated impulse withstand voltage | 8 kV |
| Rated voltage | 1,000 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Standards | IEC 60947-7-1 |
| Storage Temperature | -25 °C...55 °C |
| Stripping length | 12 mm |
| Twin wire-end ferrules, max. | 6 mm² |
| Twin wire-end ferrules, min. | 1.5 mm² |
| Type | WDU 10 BR |
| Type of connection | Screw / solder connection |
| Type of mounting | Snap-on |
| UL 94 flammability rating | V-0 |
| Version | Feed-through terminal block, Screw / solder connection, brown, 10 mm², 57 A, 1000 V, Number of connections: 2 |
| Volume resistance according to IEC 60947-7-x | 0.56 mΩ |
| Width | 9.9 mm mm |
| Width (inches) | 0.39 inch |
| Wire connection cross section AWG, max. | AWG 6 |
| Wire connection cross section AWG, min. | AWG 16 |
| Wire connection cross section, finely stranded, max. | 16 mm² |
| Wire connection cross section, finely stranded, min. | 1.31 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 1.31 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 1.31 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Wire connection cross-section, solid core, min. | 1.31 mm² |
Frequently Asked Questions
How do I get pricing for 2821630000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 2821630000?
2821630000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 2821630000?
Key specifications include Ambient temperature: -60 °C…85 °C; Basic material: Wemid; Blade Size: 1.0 x 5.5 mm; Clamping range, max.: 16 mm². The full specification table on this page lists every published attribute for this part.
How quickly can 2821630000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Weidmuller Weidmuller AL2C 2.5 DBL
Weidmuller Weidmuller A3C 10 YL
Weidmuller Weidmuller AL2C 2.5 RD

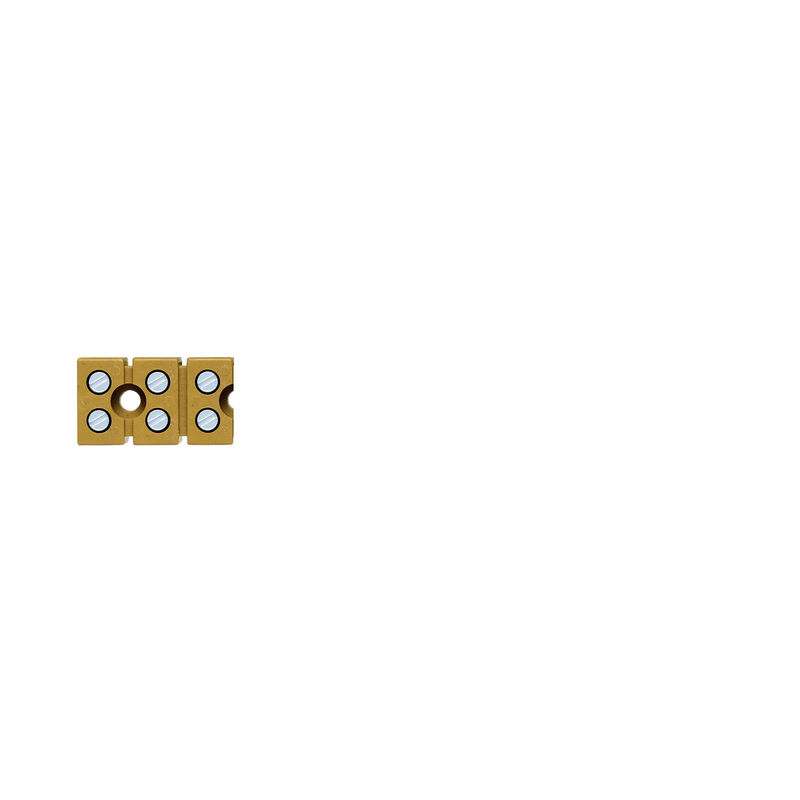

Weidmuller Weidmuller MK 3/3/E B +-PE
