Weidmuller ZDK 2.5-2/4AN BL
Weidmuller 1480270000 - Feed-through and PE terminal Blocks - Width: 5.1 mm mm; Height: 104 mm mm; Operating Temperature: -50 °C...120 °C.
Weidmuller 1480270000 is a Feed-through and PE terminal Blocks catalog item from Weidmuller. The manufacturer's published data for this part number specifies Width: 5.1 mm mm and Height: 104 mm mm.
The specification set recorded for this part number covers Operating Temperature: -50 °C...120 °C; Storage Temperature: -25 °C...55 °C; Nominal current: 22 A; Type of mounting: Snap-on; Ambient temperature: -50 °C…75 °C; Type: ZDK 2.5-2/4AN BL; Depth: 62 mm; Net weight: 17.876 g; Colour: blue; Rated voltage: 800 V; Stripping length: 10 mm; Version: Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 22 A, blue. See the Specifications tab on this page for the full technical table.
| Ambient temperature | -50 °C…75 °C |
|---|---|
| Basic material | Wemid |
| Blade Size | 0.6 x 3.5 mm |
| Certificate No. (ATEX) | DEMKO16ATEX1808U |
| Certificate No. (CSA) | 200039-1842498 |
| Certificate No. (cURus) | E60693 |
| Certificate No. (IECEX) | IECEXULD16.0036U |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.05 mm² |
| Colour | blue |
| Conductor size Factory wiring max. (cURus) | 12 AWG |
| Conductor size Factory wiring min. (cURus) | 30 AWG |
| Conductor size Field wiring max. (cURus) | 12 AWG |
| Conductor size Field wiring min. (cURus) | 30 AWG |
| Connection cross-section, finely stranded, min. | 0.05 mm² |
| Connection cross-section, stranded, max. | 2.5 mm² |
| Connection cross-section, stranded, min. | 0.05 mm² |
| Connection direction | Inclined / angled |
| Connection type, additional connection | Tension-clamp connection |
| Continuous operating temp., max. | 120 °C |
| Continuous operating temp., min. | -50 °C |
| Current (ATEX) | 19 A |
| Current (IECEX) | 19 A |
| Current at maximum wires | 26 A |
| Current size B (CSA) | 20 A |
| Current size B (cURus) | 20 A |
| Current size C (CSA) | 20 A |
| Current size C (cURus) | 20 A |
| Current size D (CSA) | 5 A |
| Current size D (cURus) | 5 A |
| Depth | 62 mm |
| Depth (inches) | 2.441 inch |
| ECLASS 14.0 | 27-25-01-02 |
| ECLASS 15.0 | 27-25-01-02 |
| End cover plate required | Yes |
| ETIM 10.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| Ex 2014/34/EU label | II 2 G D |
| Explosion-tested version | Yes |
| Gauge to IEC 60947-1 | A2 |
| GTIN (EAN) | 4050118288636 |
| Height | 104 mm mm |
| Height (inches) | 4.094 inch |
| Levels cross-connected internally | No |
| Marking EN 60079-7 | Ex eb II C Gb |
| Max. voltage (ATEX) | 550 V |
| Max. voltage (IECEX) | 550 V |
| Mounting rail | TS 35 |
| Net weight | 17.876 g |
| Nominal current | 22 A |
| Number of clamping points per level | 4 |
| Number of connections | 8 |
| Number of levels | 2 |
| Number of potentials | 2 |
| Operating Temperature | -50 °C...120 °C |
| Order No. | 1480270000 |
| PE connection | No |
| Pollution severity | 3 |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Qty. | 50 items |
| Rated cross-section | 2.5 mm² |
| Rated DC voltage | 800 V |
| Rated impulse withstand voltage | 8 kV |
| Rated voltage | 800 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Standards | IEC 60947-7-1 |
| Storage Temperature | -25 °C...55 °C |
| Stripping length | 10 mm |
| Type | ZDK 2.5-2/4AN BL |
| Type of connection | Tension-clamp connection |
| Type of connection 2 | Tension-clamp connection |
| Type of mounting | Snap-on |
| UL 94 flammability rating | V-0 |
| Version | Feed-through terminal, Tension-clamp connection, 2.5 mm², 800 V, 22 A, blue |
| Voltage size B (CSA) | 600 V |
| Voltage size B (cURus) | 600 V |
| Voltage size C (CSA) | 600 V |
| Voltage size C (cURus) | 600 V |
| Voltage size D (CSA) | 600 V |
| Voltage size D (cURus) | 600 V |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Width | 5.1 mm mm |
| Width (inches) | 0.201 inch |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 30 |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire connection cross section, finely stranded, min. | 0.05 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.05 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.05 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0.05 mm² |
| Wire cross section max. (ATEX) | 4 mm² |
| Wire cross section max. (CSA) | 12 AWG |
| Wire cross section max. (IECEX) | 4 mm² |
| Wire cross section min. (CSA) | 30 AWG |
Frequently Asked Questions
How do I get pricing for 1480270000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1480270000?
1480270000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1480270000?
Key specifications include Ambient temperature: -50 °C…75 °C; Basic material: Wemid; Blade Size: 0.6 x 3.5 mm; Certificate No. (ATEX): DEMKO16ATEX1808U. The full specification table on this page lists every published attribute for this part.
How quickly can 1480270000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Weidmuller Weidmuller WDK 10 SET BCD
Weidmuller Weidmuller A4C 2.5 RD
Weidmuller Weidmuller WDK 10 SET LS
Weidmuller Weidmuller A4C 2.5 OR

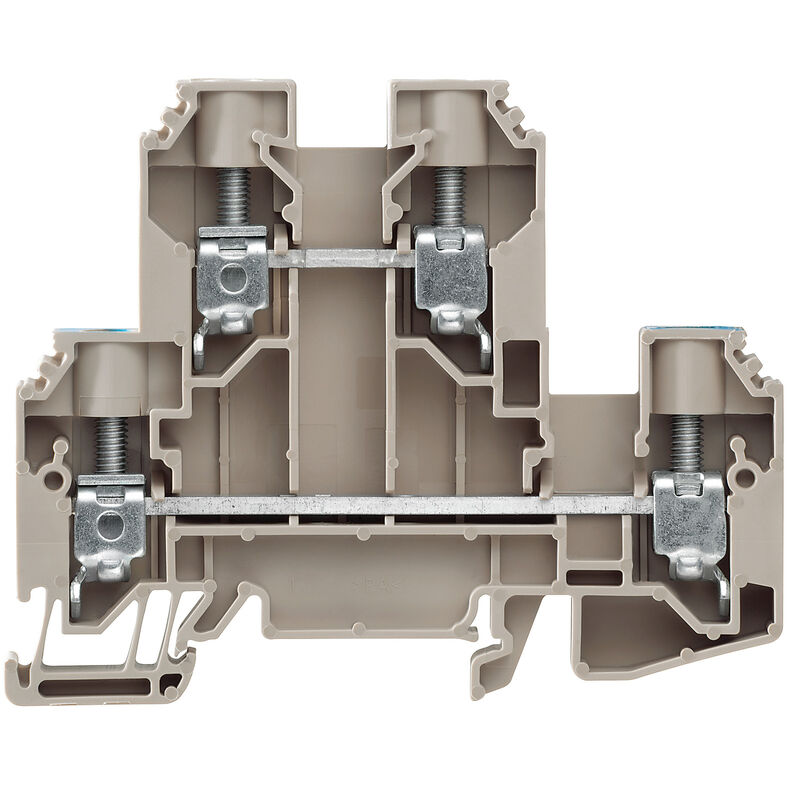

Weidmuller Weidmuller WDK 10 DU-N
