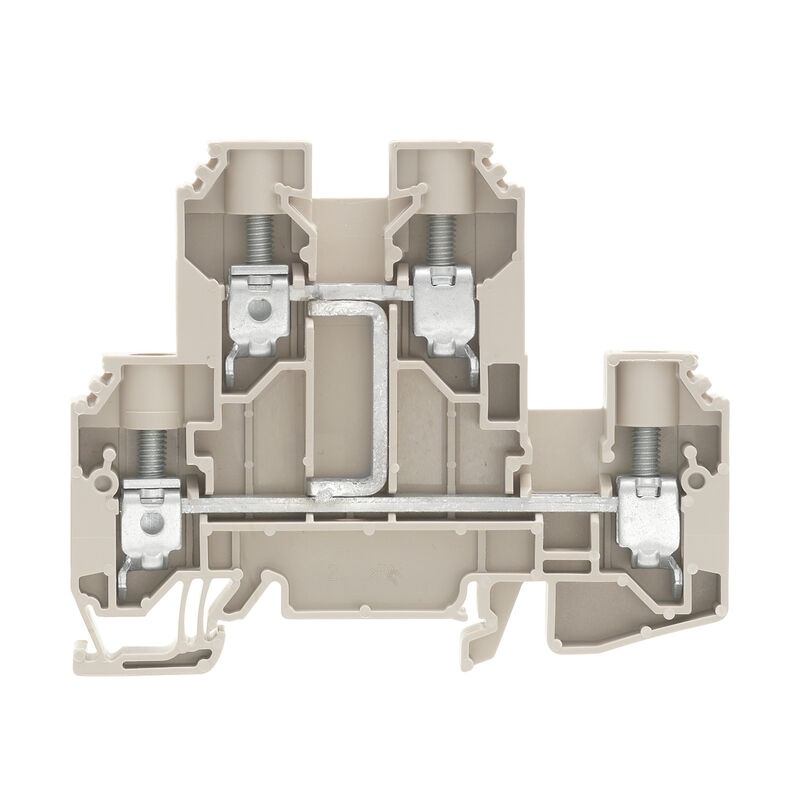

Weidmuller WDK 2.5 GR
Weidmuller 1255280000 - Feed-through and PE terminal Blocks - Width: 5.1 mm mm; Height: 69.5 mm mm; Storage Temperature: -25 °C...55 °C.
The Weidmuller 1255280000 is part of the Feed-through and PE terminal Blocks range in our industrial catalog. The manufacturer's published data for this part number specifies Width: 5.1 mm mm and Height: 69.5 mm mm.
Multi-tier modular terminal, Screw connection, grey, 2.5 mm², 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0
Key manufacturer data on file for this item includes Storage Temperature: -25 °C...55 °C; Nominal current: 24 A; Type of mounting: Snap-on; Ambient temperature: -60 °C…85 °C; Type: WDK 2.5 GR; Depth: 63 mm; Net weight: 12.03 g; Colour: grey; Rated voltage: 400 V; Stripping length: 10 mm; ROHS: Conform; Certificate No. (UR): E60693. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -60 °C…85 °C |
|---|---|
| Basic material | Wemid |
| Certificate No. (ATEX) | DEMKO15ATEX1346U |
| Certificate No. (IECEX) | IECEXULD15.0003U |
| Certificate No. (UR) | E60693 |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.05 mm² |
| Clamping screw | M 2.5 |
| Colour | grey |
| Conductor size Factory wiring max. (UR) | 12 AWG |
| Conductor size Factory wiring min. (UR) | 22 AWG |
| Conductor size Field wiring max. (UR) | 12 AWG |
| Conductor size Field wiring min. (UR) | 22 AWG |
| Connection cross-section, finely stranded, min. | 0.05 mm² |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection cross-section, stranded, min. | 0.05 mm² |
| Connection direction | on side |
| Connection type, additional connection | Screw connection |
| Continuous operating temp., max. | 130 °C |
| Continuous operating temp., min. | -60 °C |
| Current (ATEX) | 21 A |
| Current (IECEX) | 21 A |
| Current at maximum wires | 24 A |
| Current size B (UR) | 20 A |
| Current size C (UR) | 20 A |
| Depth | 63 mm |
| Depth (inches) | 2.48 inch |
| Depth including DIN rail | 63 mm |
| ECLASS 14.0 | 27-25-01-02 |
| ECLASS 15.0 | 27-25-01-02 |
| End cover plate required | Yes |
| ETIM 10.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| Explosion-tested version | Yes |
| GTIN (EAN) | 4050118048124 |
| Height | 69.5 mm mm |
| Height (inches) | 2.736 inch |
| Levels cross-connected internally | No |
| Max. voltage (ATEX) | 275 V |
| Max. voltage (IECEX) | 275 V |
| Mounting rail | TS 35 |
| N-function | No |
| Net weight | 12.03 g |
| Nominal current | 24 A |
| Number of clamping points per level | 2 |
| Number of connections | 4 |
| Number of levels | 2 |
| Number of potentials | 2 |
| Number of potentials per tier | 1 |
| Order No. | 1255280000 |
| PE connection | No |
| PE function | No |
| PEN function | No |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Qty. | 100 items |
| Rated cross-section | 2.5 mm² |
| Rated DC voltage | 400 V |
| Rated voltage | 400 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Standards | IEC 60947-7-1 |
| Storage Temperature | -25 °C...55 °C |
| Stripping length | 10 mm |
| Tightening torque (max) | 0.6 Nm Nm |
| Tightening torque, min. | 0.4 Nm |
| Type | WDK 2.5 GR |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| Type of mounting | Snap-on |
| UL 94 flammability rating | V-0 |
| Version | Multi-tier modular terminal, Screw connection, grey, 2.5 mm², 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0 |
| Voltage size B (UR) | 300 V |
| Voltage size C (UR) | 300 V |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Width | 5.1 mm mm |
| Width (inches) | 0.201 inch |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 30 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0.05 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.05 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.05 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0.05 mm² |
| Wire cross section max. (ATEX) | 4 mm² |
| Wire cross section max. (IECEX) | 4 mm² |
