Weidmuller WDK 2.5 ZQV BR
Weidmuller 1067950000 - Feed-through and PE terminal Blocks - Width: 5.1 mm mm; Height: 69 mm mm; Storage Temperature: -25 °C...55 °C.
The 1067950000 from Weidmuller is listed under Feed-through and PE terminal Blocks in our catalog. The manufacturer's published data for this part number specifies Width: 5.1 mm mm and Height: 69 mm mm.
Multi-tier modular terminal, Screw connection, brown, 2.5 mm², 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0
The specification set recorded for this part number covers Storage Temperature: -25 °C...55 °C; Nominal current: 24 A; Type of mounting: Snap-on; Ambient temperature: -60 °C…85 °C; Type: WDK 2.5 ZQV BR; Depth: 63 mm; Net weight: 10.965 g; Colour: brown; Rated voltage: 400 V; Stripping length: 10 mm; Blade Size: 0.6 x 3.5 mm; ROHS: Conform. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -60 °C…85 °C |
|---|---|
| Basic material | Wemid |
| Blade Size | 0.6 x 3.5 mm |
| Certificate No. (ATEX) | DEMKO15ATEX1346U |
| Certificate No. (CSA) | 12400-391 |
| Certificate No. (IECEX) | IECEXULD15.0003U |
| Certificate No. (UR) | E60693 |
| Clamping range, max. | 4 mm² |
| Clamping range, min. | 0.05 mm² |
| Clamping screw | M 2.5 |
| Colour | brown |
| Conductor size Factory wiring max. (UR) | 12 AWG |
| Conductor size Factory wiring min. (UR) | 22 AWG |
| Conductor size Field wiring max. (UR) | 12 AWG |
| Conductor size Field wiring min. (UR) | 22 AWG |
| Connection cross-section, finely stranded, min. | 0.05 mm² |
| Connection cross-section, stranded, max. | 4 mm² |
| Connection cross-section, stranded, min. | 0.05 mm² |
| Connection direction | on side |
| Connection type, additional connection | Screw connection |
| Continuous operating temp., max. | 130 °C |
| Continuous operating temp., min. | -60 °C |
| Current (ATEX) | 21 A |
| Current (IECEX) | 21 A |
| Current at maximum wires | 32 A |
| Current size B (UR) | 20 A |
| Current size C (CSA) | 25 A |
| Current size C (UR) | 20 A |
| Depth | 63 mm |
| Depth (inches) | 2.48 inch |
| Depth including DIN rail | 63 mm |
| ECLASS 14.0 | 27-25-01-02 |
| ECLASS 15.0 | 27-25-01-02 |
| End cover plate required | Yes |
| ETIM 10.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| Ex 2014/34/EU label | II 2 G D |
| Explosion-tested version | Yes |
| Gauge to IEC 60947-1 | A3 |
| GTIN (EAN) | 4032248822133 |
| Height | 69 mm mm |
| Height (inches) | 2.717 inch |
| Levels cross-connected internally | No |
| Marking EN 60079-7 | Ex eb II C Gb |
| Max. voltage (ATEX) | 275 V |
| Max. voltage (IECEX) | 275 V |
| Mounting rail | TS 35 |
| N-function | No |
| Net weight | 10.965 g |
| Nominal current | 24 A |
| Number of clamping points per level | 2 |
| Number of connections | 4 |
| Number of levels | 2 |
| Number of potentials | 2 |
| Number of potentials per tier | 1 |
| Number of similar terminals | 1 |
| Open sides | right |
| Order No. | 1067950000 |
| PE connection | No |
| PE function | No |
| PEN function | No |
| Pollution severity | 3 |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Qty. | 100 items |
| Rated cross-section | 2.5 mm² |
| Rated DC voltage | 400 V |
| Rated impulse withstand voltage | 6 kV |
| Rated voltage | 400 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Standards | IEC 60947-7-1 |
| Storage Temperature | -25 °C...55 °C |
| Stripping length | 10 mm |
| Tightening torque (max) | 0.6 Nm Nm |
| Tightening torque, min. | 0.4 Nm |
| Torque level with DMS electric screwdriver | 1 |
| TS 35 offset | 35.5 mm |
| Type | WDK 2.5 ZQV BR |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| Type of mounting | Snap-on |
| UL 94 flammability rating | V-0 |
| Version | Multi-tier modular terminal, Screw connection, brown, 2.5 mm², 400 V, Number of connections: 4, Number of levels: 2, TS 35, V-0 |
| Voltage size B (UR) | 300 V |
| Voltage size C (CSA) | 300 V |
| Voltage size C (UR) | 300 V |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Width | 5.1 mm mm |
| Width (inches) | 0.201 inch |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 30 |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max. | 1.5 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min. | 0.5 mm² |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Wire connection cross section, finely stranded, min. | 0.05 mm² |
| Wire connection cross section, finely stranded, two clampable wires, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.05 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.05 mm² |
| Wire connection cross-section, solid core, max. | 4 mm² |
| Wire connection cross-section, solid core, min. | 0.05 mm² |
| Wire cross section max. (ATEX) | 4 mm² |
| Wire cross section max. (CSA) | 12 AWG |
| Wire cross section max. (IECEX) | 4 mm² |
| Wire cross section min. (CSA) | 26 AWG |
| Wire cross-section, finely stranded, two clampable wires, max. | 1.5 mm² |
Frequently Asked Questions
How do I get pricing for 1067950000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1067950000?
1067950000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1067950000?
Key specifications include Ambient temperature: -60 °C…85 °C; Basic material: Wemid; Blade Size: 0.6 x 3.5 mm; Certificate No. (ATEX): DEMKO15ATEX1346U. The full specification table on this page lists every published attribute for this part.
How quickly can 1067950000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Weidmuller Weidmuller WDK 2.5 ZQV SW

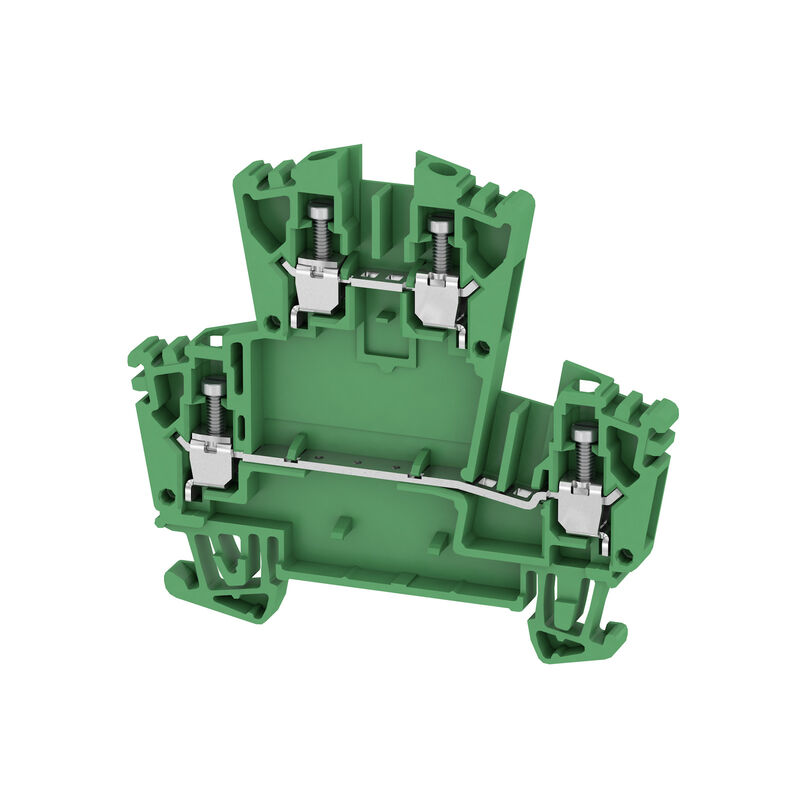

Weidmuller Weidmuller WDK 2.5 ZQV GN
Weidmuller Weidmuller ZDK 2.5 SW

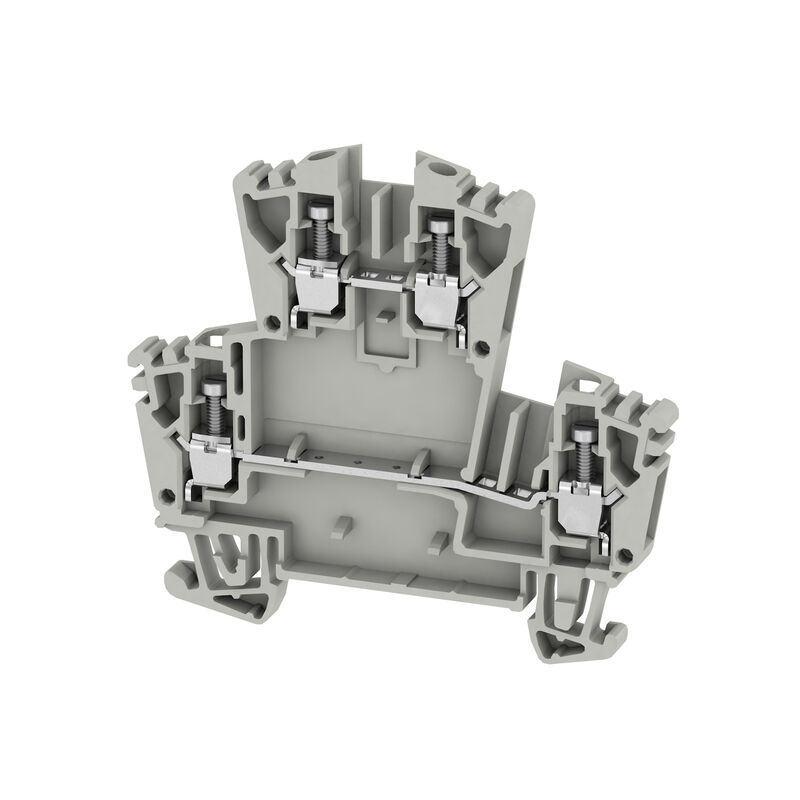

Weidmuller Weidmuller WDK 2.5 ZQV GR
