Weidmuller WPE 16N
Weidmuller 1019100000 - Feed-through and PE terminal Blocks - Width: 12 mm mm; Height: 56 mm mm; Storage Temperature: -25 °C...55 °C.
This listing covers the Weidmuller 1019100000, a part number in the Feed-through and PE terminal Blocks category. The manufacturer's published data for this part number specifies Width: 12 mm mm and Height: 56 mm mm.
PE terminal, Screw connection, Green/yellow, 16 mm², 690 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid
The specification set recorded for this part number covers Storage Temperature: -25 °C...55 °C; Type of mounting: when screwed in; Ambient temperature: -50 °C…85 °C; Type: WPE 16N; Depth: 46.5 mm; Net weight: 33.98 g; Colour: Green/yellow; Stripping length: 12 mm; Blade Size: 1.0 x 5.5 mm; ROHS: Conform; Certificate No. (UR): E60693; Order No.: 1019100000. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -50 °C…85 °C |
|---|---|
| Basic material | Wemid |
| Blade Size | 1.0 x 5.5 mm |
| Certificate No. (CSA) | 200039-1057876 |
| Certificate No. (UR) | E60693 |
| Clamping range, max. | 25 mm² |
| Clamping range, min. | 1.5 mm² |
| Clamping screw | M 4 |
| Colour | Green/yellow |
| Conductor size Factory wiring max. (UR) | 6 AWG |
| Conductor size Factory wiring min. (UR) | 14 AWG |
| Conductor size Field wiring max. (UR) | 6 AWG |
| Conductor size Field wiring min. (UR) | 14 AWG |
| Connection cross-section, finely stranded, min. | 1.5 mm² |
| Connection cross-section, stranded, max. | 25 mm² |
| Connection cross-section, stranded, min. | 1.5 mm² |
| Connection direction | on side |
| Connection type, additional connection | Screw connection |
| Continuous operating temp., max. | 130 °C |
| Continuous operating temp., min. | -50 °C |
| Depth | 46.5 mm |
| Depth (inches) | 1.831 inch |
| Depth including DIN rail | 47 mm |
| ECLASS 14.0 | 27-25-01-03 |
| ECLASS 15.0 | 27-25-01-03 |
| End cover plate required | No |
| ETIM 10.0 | EC000901 |
| ETIM 8.0 | EC000901 |
| ETIM 9.0 | EC000901 |
| Explosion-tested version | No |
| Gauge to IEC 60947-1 | B7 |
| GTIN (EAN) | 4008190273248 |
| Height | 56 mm mm |
| Height (inches) | 2.205 inch |
| Installation advice | when screwed in |
| Levels cross-connected internally | No |
| Locking | for screw fixing |
| Mounting rail | TS 35 |
| N-function | No |
| Net weight | 33.98 g |
| Number of clamping points per level | 2 |
| Number of connections | 2 |
| Number of levels | 1 |
| Number of potentials | 1 |
| Number of potentials per tier | 1 |
| Number of similar terminals | 1 |
| Open sides | closed |
| Order No. | 1019100000 |
| PE connection | Yes |
| PE function | Yes |
| PEN function | Yes |
| Pollution severity | 3 |
| Power loss in accordance with IEC 60947-7-x | 2.43 W |
| Qty. | 50 items |
| Rated cross-section | 16 mm² |
| Rated DC voltage | 690 V |
| Rated impulse withstand voltage to adjacent terminal | 6 kV |
| Rated voltage to adjoining terminal | 690 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Standards | IEC 60947-7-2 |
| Storage Temperature | -25 °C...55 °C |
| Stripping length | 12 mm |
| Tightening torque (max) | 2.4 Nm Nm |
| Tightening torque, min. | 1.2 Nm |
| TS 35 offset | 32 mm |
| Type | WPE 16N |
| Type of connection | Screw connection |
| Type of mounting | when screwed in |
| UL 94 flammability rating | V-0 |
| Version | PE terminal, Screw connection, Green/yellow, 16 mm², 690 V, Number of connections: 2, Number of levels: 1, TS 35, V-0, Wemid |
| Volume resistance according to IEC 60947-7-x | 0.42 mΩ |
| Width | 12 mm mm |
| Width (inches) | 0.472 inch |
| Wire connection cross section AWG, max. | AWG 6 |
| Wire connection cross section AWG, min. | AWG 14 |
| Wire connection cross section, finely stranded, max. | 16 mm² |
| Wire connection cross section, finely stranded, min. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 1.5 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Wire connection cross-section, solid core, min. | 1.5 mm² |
| Wire cross section max. (CSA) | 6 AWG |
| Wire cross section min. (CSA) | 14 AWG |
Frequently Asked Questions
How do I get pricing for 1019100000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1019100000?
1019100000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1019100000?
Key specifications include Ambient temperature: -50 °C…85 °C; Basic material: Wemid; Blade Size: 1.0 x 5.5 mm; Certificate No. (CSA): 200039-1057876. The full specification table on this page lists every published attribute for this part.
How quickly can 1019100000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

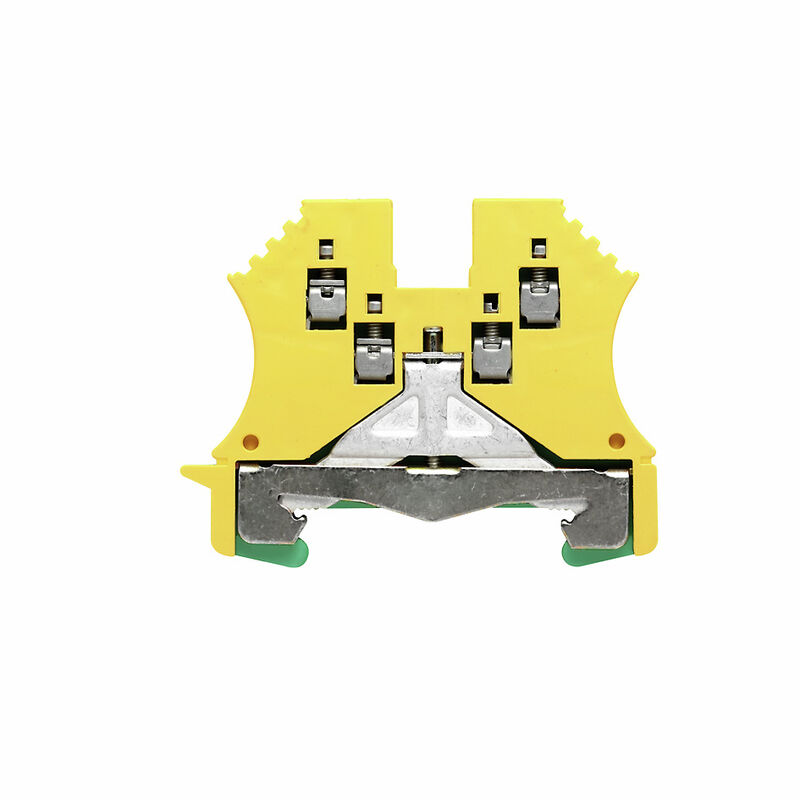

Weidmuller Weidmuller WPE 1.5/ZZ

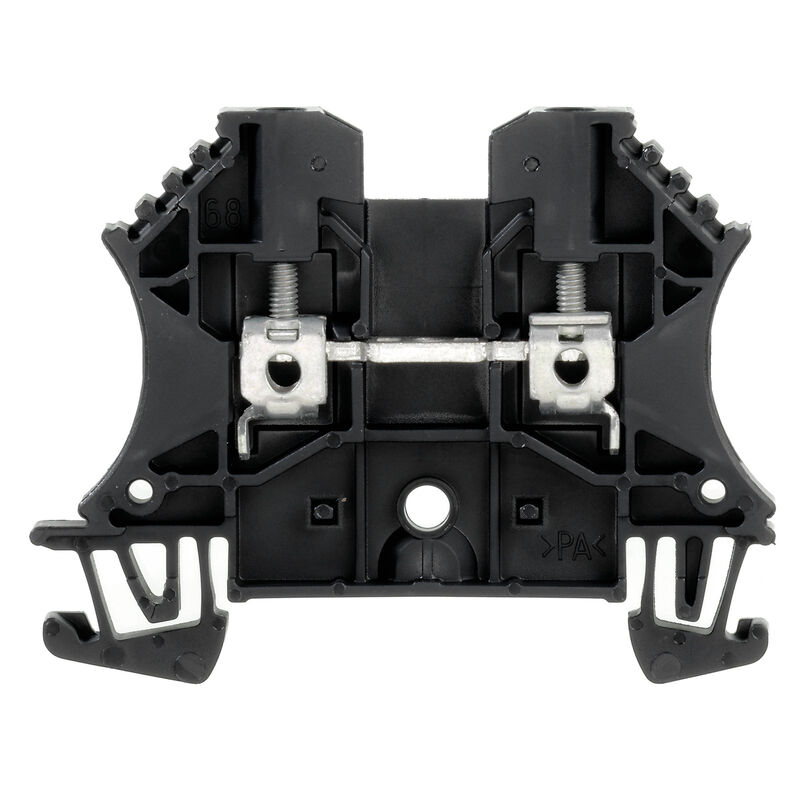

Weidmuller Weidmuller WDU 2.5 SW
Weidmuller Weidmuller WPE 2.5/1.5/ZR

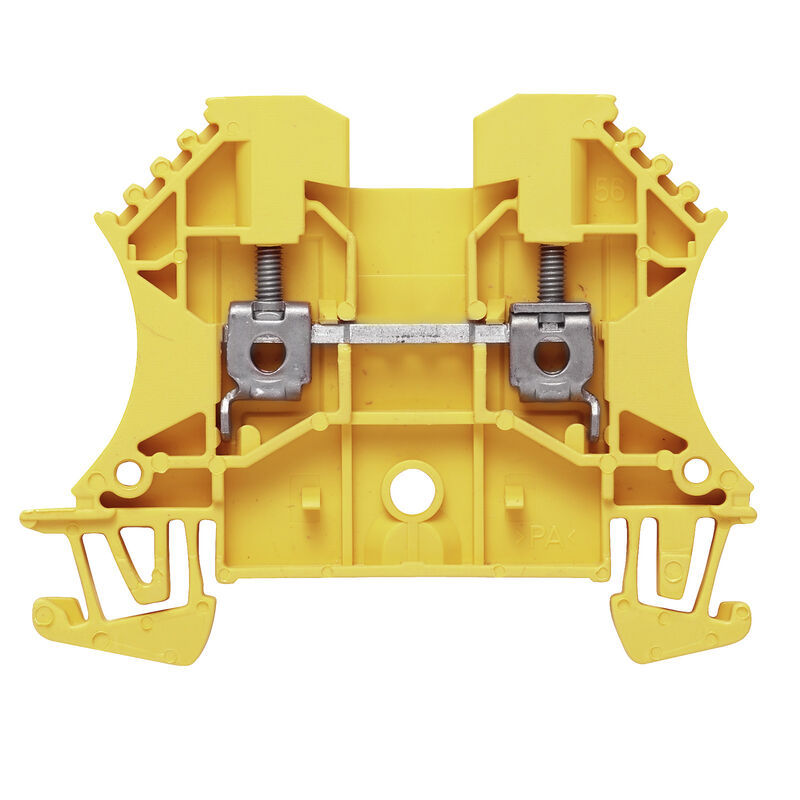

Weidmuller Weidmuller WDU 2.5 GE
