Weidmuller AST 1/35 6.3/2.8
Weidmuller 0699660000 - Feed-through and PE terminal Blocks - Width: 6.5 mm mm; Height: 40 mm mm; Storage Temperature: -25 °C...55 °C.
This listing covers the Weidmuller 0699660000, a part number in the Feed-through and PE terminal Blocks category. The manufacturer's published data for this part number specifies Width: 6.5 mm mm and Height: 40 mm mm.
Feed-through terminal block, Flat-blade connection, beige / yellow, 2.5 mm², 20 A, 500 V, Number of connections: 4
Key manufacturer data on file for this item includes Storage Temperature: -25 °C...55 °C; Nominal current: 20 A; Type of mounting: Snap-on; Ambient temperature: -50 °C…55 °C; Type: AST 1/35 6.3/2.8; Depth: 46 mm; Net weight: 10.52 g; Colour: beige / yellow; Rated voltage: 500 V; ROHS: Conform; Certificate No. (UR): E60693; Order No.: 0699660000. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -50 °C…55 °C |
|---|---|
| Basic material | PA 66 |
| Certificate No. (CSA) | 12400-142 |
| Certificate No. (UR) | E60693 |
| Clamping range, max. | 2.5 mm² |
| Clamping range, min. | 0.5 mm² |
| Colour | beige / yellow |
| Connection cross-section, finely stranded, min. | 0.5 mm² |
| Connection cross-section, stranded, max. | 2.5 mm² |
| Connection cross-section, stranded, min. | 0.5 mm² |
| Connection direction | top |
| Connection type, additional connection | Flat-blade connection |
| Continuous operating temp., max. | 100 °C |
| Continuous operating temp., min. | -50 °C |
| Current at maximum wires | 20 A |
| Current size C (CSA) | 16 A |
| Current size C (UR) | 13 A |
| Depth | 46 mm |
| Depth (inches) | 1.811 inch |
| ECLASS 14.0 | 27-25-01-01 |
| ECLASS 15.0 | 27-25-01-01 |
| End cover plate required | Yes |
| ETIM 10.0 | EC000897 |
| ETIM 8.0 | EC000897 |
| ETIM 9.0 | EC000897 |
| Explosion-tested version | No |
| GTIN (EAN) | 4008190041861 |
| Height | 40 mm mm |
| Height (inches) | 1.575 inch |
| Installation advice | Direct mounting |
| Levels cross-connected internally | No |
| Mounting rail | TS 35 |
| N-function | No |
| Net weight | 10.52 g |
| Nominal current | 20 A |
| Number of clamping points per level | 4 |
| Number of connections | 4 |
| Number of levels | 1 |
| Number of potentials | 1 |
| Number of potentials per tier | 1 |
| Number of similar terminals | 1 |
| Open sides | right |
| Order No. | 0699660000 |
| PE connection | No |
| PE function | No |
| PEN function | No |
| Pollution severity | 3 |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Qty. | 50 items |
| Rated cross-section | 2.5 mm² |
| Rated DC voltage | 500 V |
| Rated impulse withstand voltage | 6 kV |
| Rated voltage | 500 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Storage Temperature | -25 °C...55 °C |
| Type | AST 1/35 6.3/2.8 |
| Type of connection | Flat-blade connection |
| Type of mounting | Snap-on |
| UL 94 flammability rating | V-2 |
| Version | Feed-through terminal block, Flat-blade connection, beige / yellow, 2.5 mm², 20 A, 500 V, Number of connections: 4 |
| Voltage size C (CSA) | 300 V |
| Voltage size C (UR) | 300 V |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Width | 6.5 mm mm |
| Width (inches) | 0.256 inch |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section AWG, min. | AWG 24 |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 2.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
Frequently Asked Questions
How do I get pricing for 0699660000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 0699660000?
0699660000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 0699660000?
Key specifications include Ambient temperature: -50 °C…55 °C; Basic material: PA 66; Certificate No. (CSA): 12400-142; Certificate No. (UR): E60693. The full specification table on this page lists every published attribute for this part.
How quickly can 0699660000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Weidmuller Weidmuller AST 5/35 SF 6.3/2.8

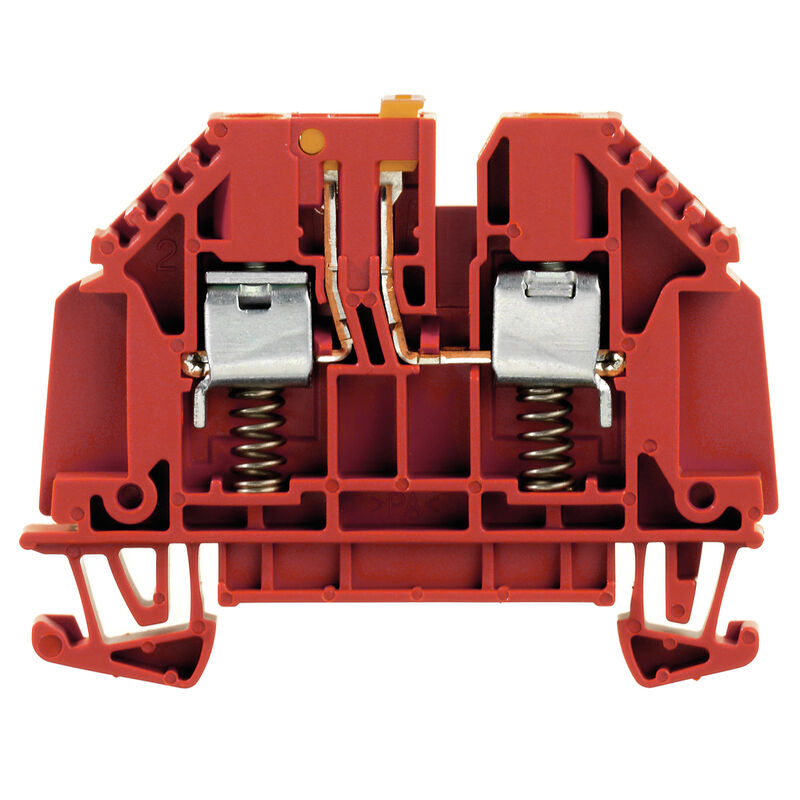

Weidmuller Weidmuller WTR 4 SL RT

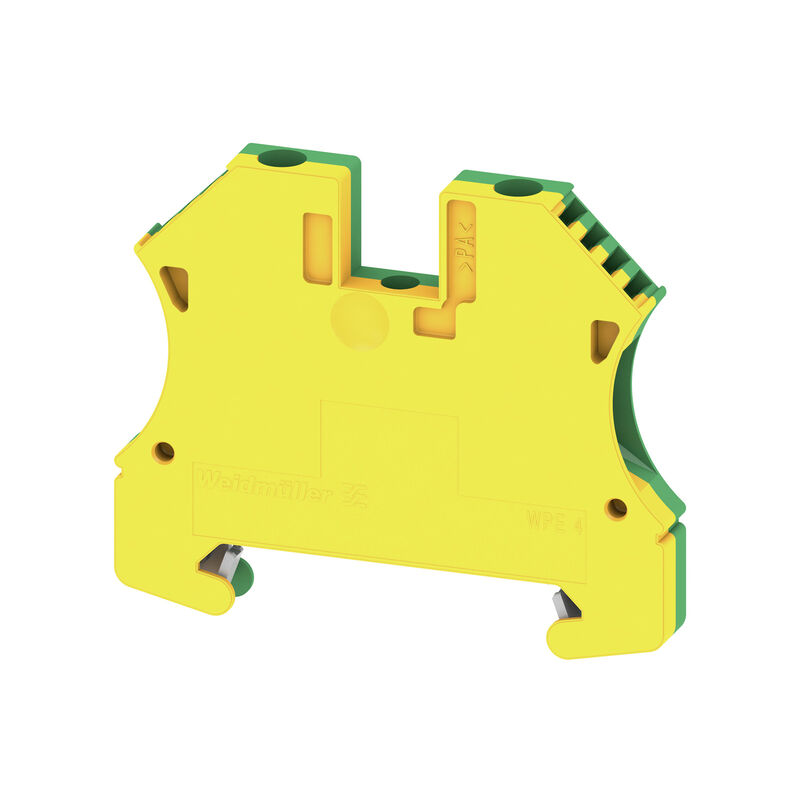

Weidmuller Weidmuller WPE 4
Weidmuller Weidmuller BK 12 CRN

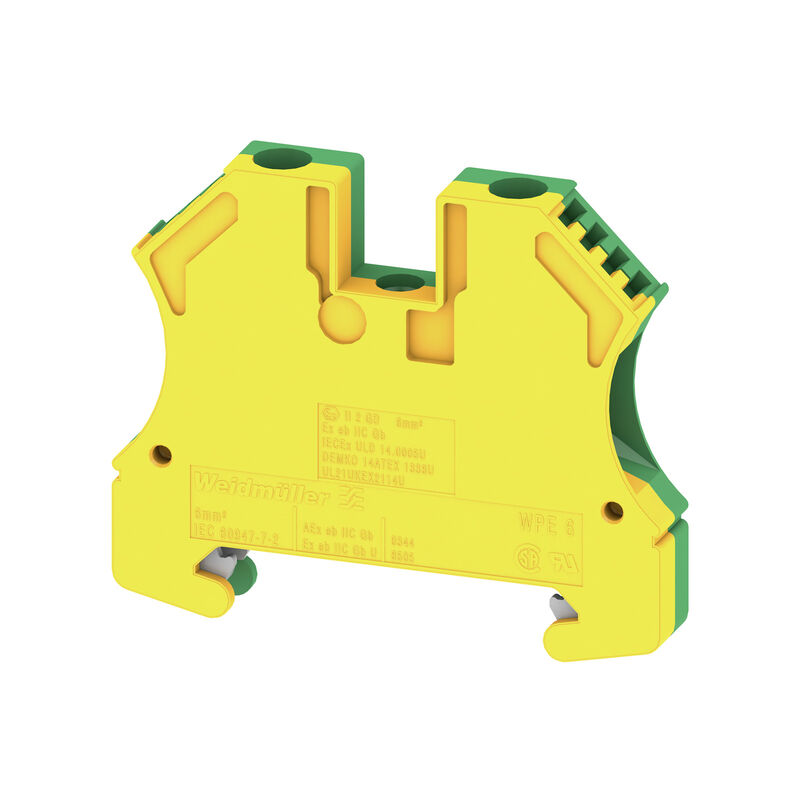

Weidmuller Weidmuller WPE 6
