Weidmuller RSF 2
Weidmuller 0623320000 - Feed-through and PE terminal Blocks - Width: 11 mm mm; Height: 77 mm mm; Storage Temperature: -25 °C...55 °C.
The 0623320000 from Weidmuller is listed under Feed-through and PE terminal Blocks in our catalog. The manufacturer's published data for this part number specifies Width: 11 mm mm and Height: 77 mm mm.
Test-disconnect terminal, Screw connection, medium yellow, 6 mm², 41 A, 500 V, Number of connections: 2, Number of levels: 1
Key manufacturer data on file for this item includes Storage Temperature: -25 °C...55 °C; Nominal current: 41 A; Type of mounting: Snap-on; Ambient temperature: -60 °C…85 °C; Type: RSF 2; Depth: 57.5 mm; Net weight: 58.75 g; Colour: medium yellow; Rated voltage: 500 V; Stripping length: 12 mm; Blade Size: 1.0 x 5.5 mm; ROHS: Conform. See the Specifications tab on this page for the full technical table.
| Ambient temperature | -60 °C…85 °C |
|---|---|
| Basic material | KrG |
| Blade Size | 1.0 x 5.5 mm |
| Certificate No. (CSA) | 12000-351 |
| Certificate No. (UR) | E60693 |
| Clamping range, max. | 16 mm² |
| Clamping range, min. | 0.75 mm² |
| Clamping screw | M 4 |
| Colour | medium yellow |
| Conductor size Factory wiring max. (UR) | 8 AWG |
| Conductor size Factory wiring min. (UR) | 14 AWG |
| Conductor size Field wiring max. (UR) | 8 AWG |
| Conductor size Field wiring min. (UR) | 14 AWG |
| Connection cross-section, finely stranded, min. | 0.75 mm² |
| Connection cross-section, stranded, max. | 10 mm² |
| Connection cross-section, stranded, min. | 0.75 mm² |
| Connection direction | on side |
| Connection type, additional connection | Screw connection |
| Continuous operating temp., max. | 130 °C |
| Continuous operating temp., min. | -60 °C |
| Current at maximum wires | 41 A |
| Current size B (CSA) | 30 A |
| Current size B (UR) | 25 A |
| Current size C (CSA) | 30 A |
| Current size C (UR) | 25 A |
| Current size D (CSA) | 5 A |
| Depth | 57.5 mm |
| Depth (inches) | 2.264 inch |
| ECLASS 14.0 | 27-25-01-09 |
| ECLASS 15.0 | 27-25-01-09 |
| End cover plate required | Yes |
| ETIM 10.0 | EC000902 |
| ETIM 8.0 | EC000902 |
| ETIM 9.0 | EC000902 |
| Explosion-tested version | No |
| GTIN (EAN) | 4008190524692 |
| Height | 77 mm mm |
| Height (inches) | 3.031 inch |
| Installation advice | Direct mounting |
| Levels cross-connected internally | No |
| Mounting rail | TS 32 |
| N-function | No |
| Net weight | 58.75 g |
| Nominal current | 41 A |
| Number of clamping points per level | 2 |
| Number of connections | 2 |
| Number of levels | 1 |
| Number of potentials | 1 |
| Number of potentials per tier | 1 |
| Number of similar terminals | 1 |
| Open sides | right |
| Order No. | 0623320000 |
| PE connection | No |
| PE function | No |
| PEN function | No |
| Pollution severity | 3 |
| Power loss in accordance with IEC 60947-7-x | 1.31 W |
| Qty. | 20 items |
| Rated cross-section | 6 mm² |
| Rated DC voltage | 500 V |
| Rated impulse withstand voltage | 6 kV |
| Rated voltage | 500 V |
| REACH SVHC | Lead 7439-92-1 |
| ROHS | Conform |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| SCIP | e1c310ef-6b67-4efa-80a6-d307472f4de9 |
| Standards | IEC 60947-7-1 |
| Storage Temperature | -25 °C...55 °C |
| Stripping length | 12 mm |
| Tightening torque (max) | 2.4 Nm Nm |
| Tightening torque, min. | 1.2 Nm |
| Torque level with DMS electric screwdriver | 4 |
| Type | RSF 2 |
| Type of connection | Screw connection |
| Type of connection 2 | Screw connection |
| Type of mounting | Snap-on |
| Version | Test-disconnect terminal, Screw connection, medium yellow, 6 mm², 41 A, 500 V, Number of connections: 2, Number of levels: 1 |
| Voltage size B (CSA) | 300 V |
| Voltage size B (UR) | 600 V |
| Voltage size C (CSA) | 300 V |
| Voltage size C (UR) | 600 V |
| Voltage size D (CSA) | 600 V |
| Volume resistance according to IEC 60947-7-x | 0.78 mΩ |
| Width | 11 mm mm |
| Width (inches) | 0.433 inch |
| Wire connection cross section AWG, max. | AWG 6 |
| Wire connection cross section AWG, min. | AWG 18 |
| Wire connection cross section, finely stranded, max. | 10 mm² |
| Wire connection cross section, finely stranded, min. | 0.75 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.75 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.75 mm² |
| Wire connection cross-section, solid core, max. | 16 mm² |
| Wire connection cross-section, solid core, min. | 0.75 mm² |
| Wire cross section max. (CSA) | 8 AWG |
| Wire cross section min. (CSA) | 14 AWG |
Frequently Asked Questions
How do I get pricing for 0623320000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 0623320000?
0623320000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 0623320000?
Key specifications include Ambient temperature: -60 °C…85 °C; Basic material: KrG; Blade Size: 1.0 x 5.5 mm; Certificate No. (CSA): 12000-351. The full specification table on this page lists every published attribute for this part.
How quickly can 0623320000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

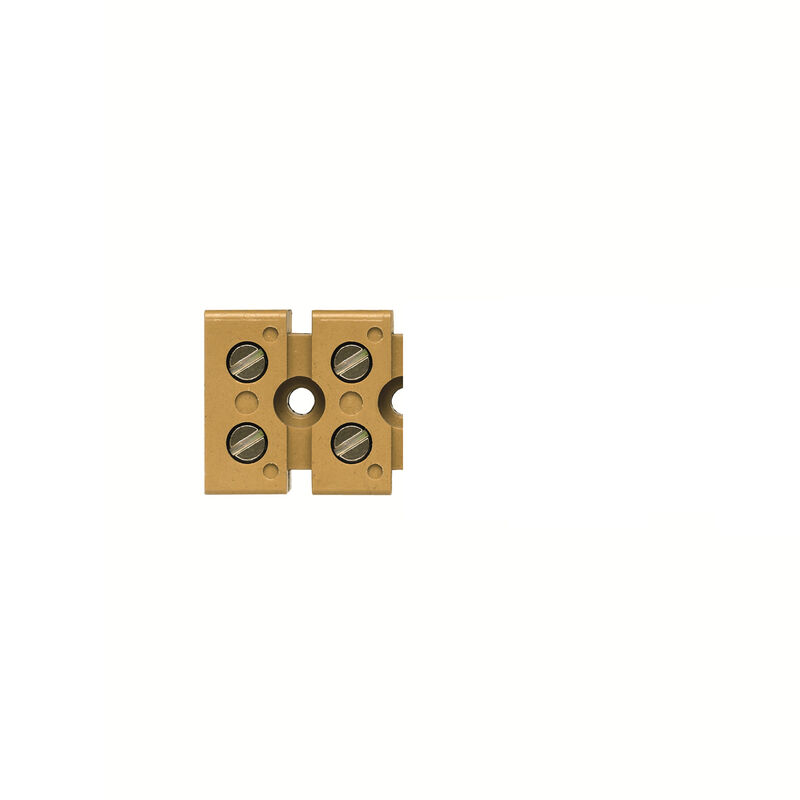

Weidmuller Weidmuller MK 6/2
Weidmuller Weidmuller BK 3 CRN

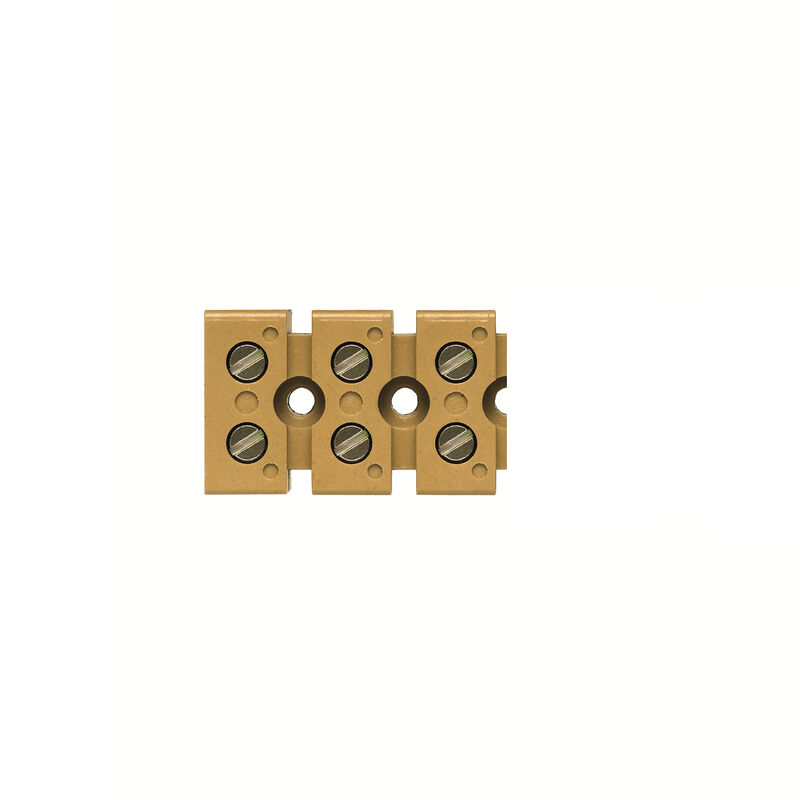

Weidmuller Weidmuller MK 6/3
