Weidmuller MF 1/12 4X6.3/2.8
Weidmuller 0480220000 - Feed-through and PE terminal Blocks - Width: 113 mm mm; Height: 6,800 mm mm; Storage Temperature: -25 °C...55 °C.
This listing covers the Weidmuller 0480220000, a part number in the Feed-through and PE terminal Blocks category. The manufacturer's published data for this part number specifies Width: 113 mm mm and Height: 6,800 mm mm.
Single- and multi-pole terminal strip, Flat-blade connection, medium yellow, 2.5 mm², 12 A, 400 V, Number of connections: 8, Number of levels: 1
The specification set recorded for this part number covers Storage Temperature: -25 °C...55 °C; Nominal current: 12 A; Type of mounting: Direct mounting; Ambient temperature: -60 °C…85 °C; Type: MF 1/12 4X6.3/2.8; Depth: 12.5 mm; Number of poles: 12; Net weight: 52.6 g; Colour: medium yellow; Rated voltage: 400 V; ROHS: Conform; Certificate No. (UR): E60693. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature | -60 °C…85 °C |
|---|---|
| Basic material | KrG |
| Certificate No. (CSA) | 12400-221 |
| Certificate No. (UR) | E60693 |
| Clamping range, max. | 2.5 mm² |
| Clamping range, min. | 0.5 mm² |
| Colour | medium yellow |
| Connection cross-section, stranded, max. | 2.5 mm² |
| Connection cross-section, stranded, min. | 0.5 mm² |
| Connection direction | on side |
| Connection type, additional connection | Flat-blade connection |
| Continuous operating temp., max. | 130 °C |
| Continuous operating temp., min. | -60 °C |
| Current size B (CSA) | 20 A |
| Current size B (UR) | 10 A |
| Current size D (CSA) | 10 A |
| Current size D (UR) | 10 A |
| Delivery status | This article will no longer be available in the future. |
| Depth | 12.5 mm |
| Depth (inches) | 0.492 inch |
| ECLASS 14.0 | 27-14-11-06 |
| ECLASS 15.0 | 27-14-11-06 |
| End cover plate required | No |
| ETIM 10.0 | EC001284 |
| ETIM 8.0 | EC001284 |
| ETIM 9.0 | EC001284 |
| Explosion-tested version | No |
| Fixing dimension | 102 mm |
| GTIN (EAN) | 4008190087104 |
| Height | 6,800 mm mm |
| Height (inches) | 267.716 inch |
| Installation advice | Direct mounting |
| Mounting rail | Mounting plate |
| Net weight | 52.6 g |
| Nominal current | 12 A |
| Number of connections | 8 |
| Number of levels | 1 |
| Number of poles | 12 |
| Number of potentials | 1 |
| Order No. | 0480220000 |
| Pollution severity | 3 |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Qty. | 50 items |
| Rated cross-section | 2.5 mm² |
| Rated DC voltage | 400 V |
| Rated impulse withstand voltage | 6 kV |
| Rated voltage | 400 V |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Standards | IEC 60947-7-1 |
| Storage Temperature | -25 °C...55 °C |
| Type | MF 1/12 4X6.3/2.8 |
| Type of connection | Flat-blade connection |
| Type of connection 2 | Solder connection |
| Type of mounting | Direct mounting |
| Version | Single- and multi-pole terminal strip, Flat-blade connection, medium yellow, 2.5 mm², 12 A, 400 V, Number of connections: 8, Number of levels: 1 |
| Voltage size B (CSA) | 150 V |
| Voltage size B (UR) | 300 V |
| Voltage size D (CSA) | 300 V |
| Voltage size D (UR) | 300 V |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Width | 113 mm mm |
| Width (inches) | 4.449 inch |
| Wire connection cross section AWG, max. | AWG 14 |
| Wire connection cross section AWG, min. | AWG 20 |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire connection cross section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 2.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
Frequently Asked Questions
How do I get pricing for 0480220000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 0480220000?
0480220000 is a Weidmuller part. KKM Solutions sources Weidmuller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 0480220000?
Key specifications include Ambient temperature: -60 °C…85 °C; Basic material: KrG; Certificate No. (CSA): 12400-221; Certificate No. (UR): E60693. The full specification table on this page lists every published attribute for this part.
How quickly can 0480220000 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Weidmuller Weidmuller MF 1/8 4X6.3/2.8

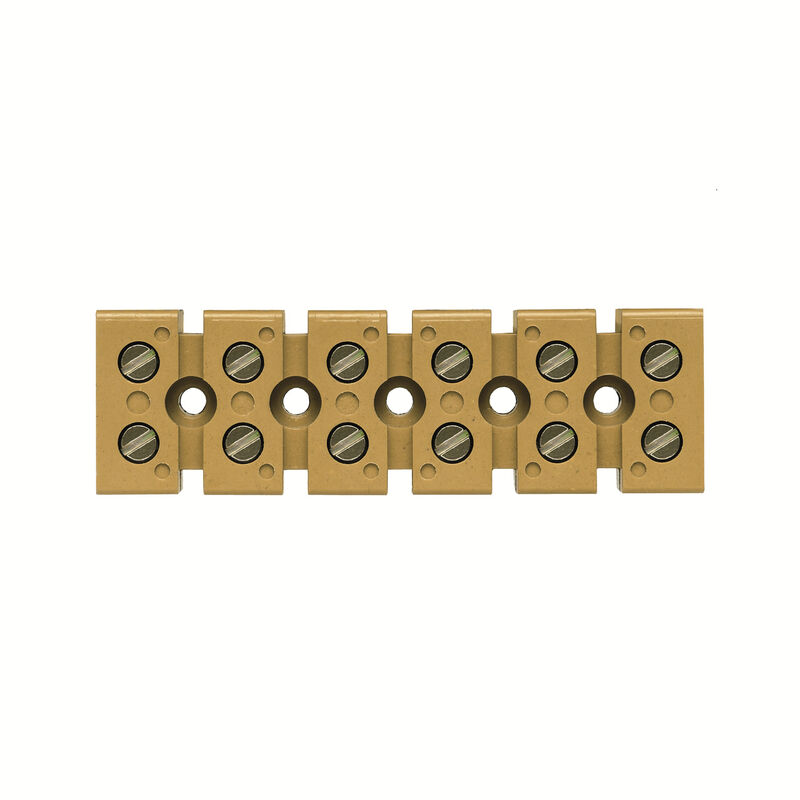

Weidmuller Weidmuller MK 6/6
