WEG E25018ET3YAX315LF3-W — Motor
Weg Electric E25018ET3YAX315LF3-W, 340 Hp, 315L Frame, 1500 RPM, 380-415/660//440-460 Vac, TEFC, 3 PH, Foot-mounted, W22Xec IE3.
Overview
E25018ET3YAX315LF3-W, 340 Hp, 315L Frame, 1500 RPM, 380-415/660//440-460 Vac, TEFC, 3 PH, Foot-mounted, W22Xec IE3. Engineering Data The W22Xec motor offer safety and reliability for operation in a great variety of applications that require a non-incendive motor (Zone 2). It provides safety and complies with efficiency level specified by IEC 60034-30-1. It meets the requirements of installations where the flammable mixture is not often present, but may present risks. Product features Standard IEC 60034-1 Frequency 50 Hz Voltage 380-415/660//440-460 V Number of poles 4 Degree of Protection IP55 Synchronous speed 1500 rpm Output rating 250 kW Mounting Foot-mounted Flange Without Mounting B3T Terminal box¹ Top Enclosure IC411 - TEFC Frame 315L Output 250 kW (340 HP) Number of Poles 4 Frequency 50 Hz Rated speed 1488 rpm Slip 0.80 % Rated voltage 400/690 V Rated current 436/253 A L. R. Amperes 3183/1845 A LRC 7.3 No load current 138/80.0 A Rated torque 1180 ft.lb Locked rotor torque 290 % Breakdown torque 270 % Locked rotor time 34s (cold) 19s (hot) Moment of inertia (J) 136 sq.ft.lb Design N Insulation Class F Service factor 1.00 Temperature rise 80 K Duty Cycle S1 Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP55 Enclosure IC411 - TEFC Mounting B3T Rotation¹ Both (CW and CCW) Noise level² 75.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 3215.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | E25018ET3YAX315LF3-W |
| KKM catalog reference | WEG-E25018ET3YAX315LF3-W |
| Product category | Motor |
| Published specifications | 2 attributes listed |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does E25018ET3YAX315LF3-W cost?
E25018ET3YAX315LF3-W is listed at CA$100,301.84 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the E25018ET3YAX315LF3-W?
E25018ET3YAX315LF3-W is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is E25018ET3YAX315LF3-W discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for E25018ET3YAX315LF3-W — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of E25018ET3YAX315LF3-W?
Key specifications include Tag: WEG Electric; Weight: 3215.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can E25018ET3YAX315LF3-W ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
WEG Weg Electric E25018EP3YAX315LF3-W, 340 Hp, 315L Frame, 1500 RPM,…
WEG Weg Electric E25018XP3YAX355MLF3W, 340 Hp, 355M/L Frame, 1500 RPM,…
WEG Weg Electric E25012EP3YAX355MLF3W, 340 Hp, 355M/L Frame, 1000 RPM,…

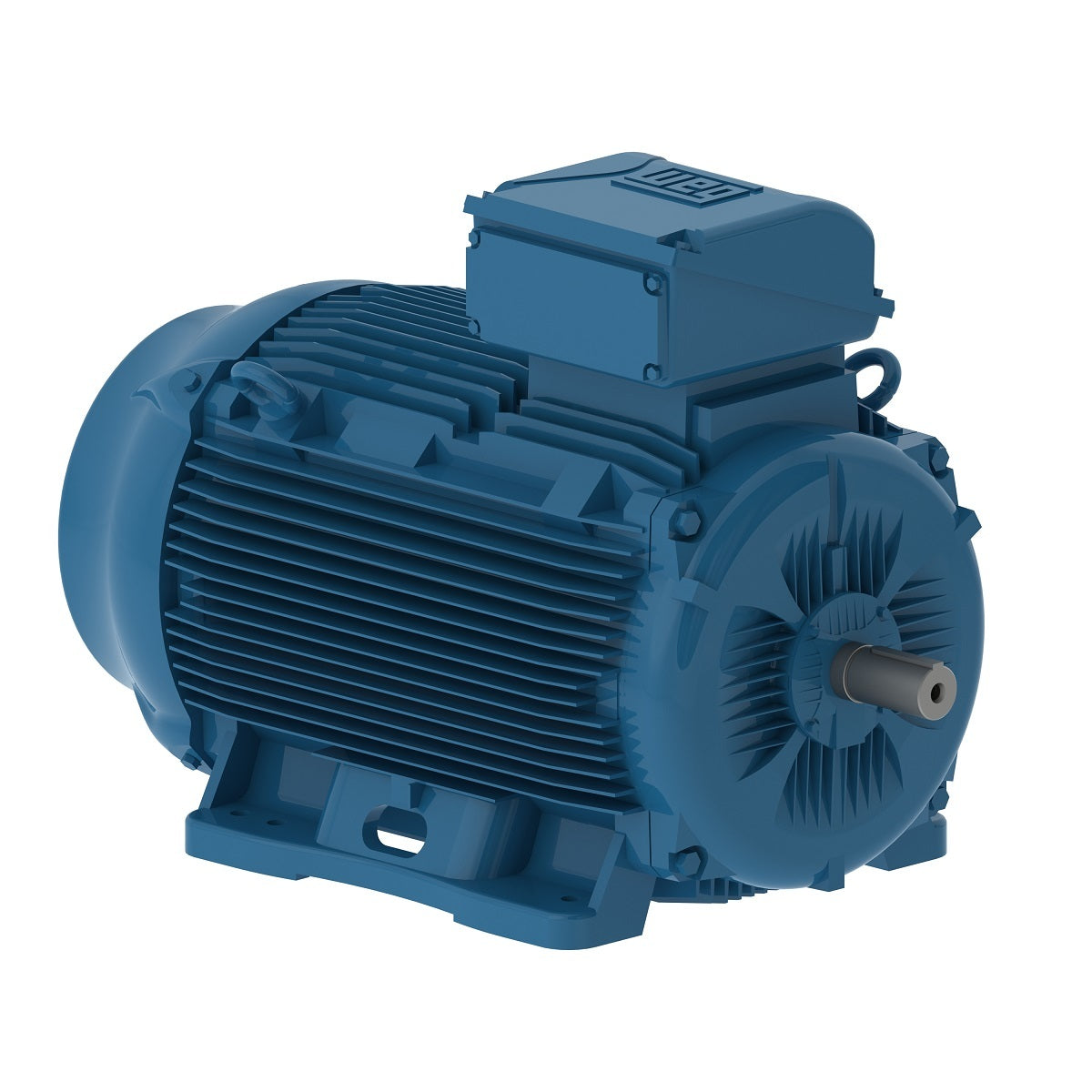

WEG Weg Electric E25036EP3YAX315LF3-W, 340 Hp, 315L Frame, 3000 RPM,…
