WEG E02236EP3YAX180MF3-W — ATEX Motors

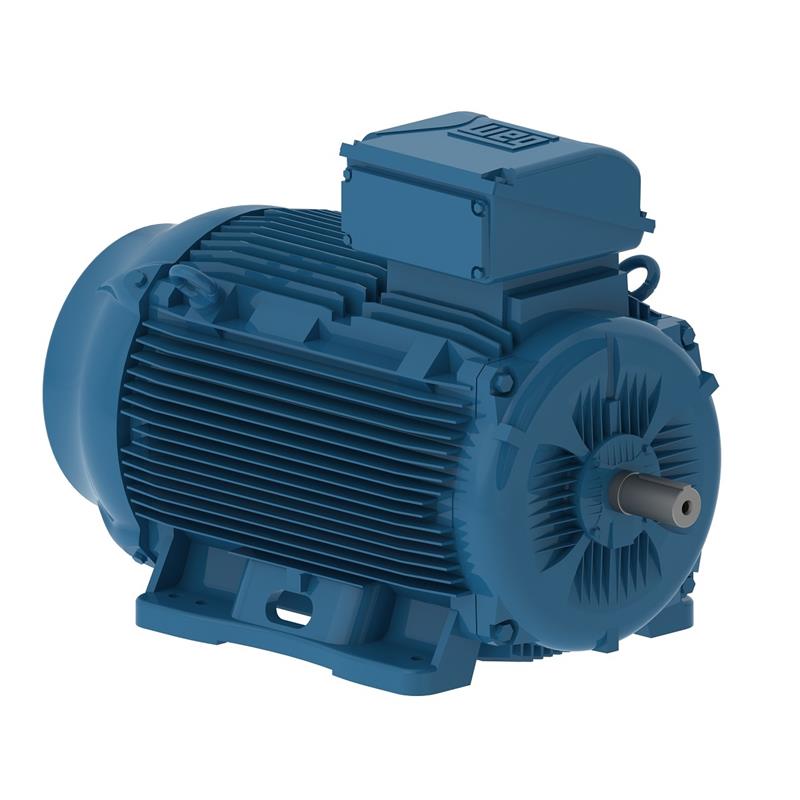

WEG E02236EP3YAX180MF3-W WEG Motor (30 HP, 3000 RPM, 3 Phase, 180M Frame, TEFC Enclosure, 380-415/660-690//440-460 Voltage)
Overview
WEG E02236EP3YAX180MF3-W, 30 HP, 22 KW, 3000 RPM, 3 Phase, 180M Frame, TEFC Enclosure, 380-415/660-690//440-460 Voltage Applications This line is designed and built according to European IEC34 and IEC79 standards. Features 60 Hz (1.15 service factor) and 50 Hz (1.0 service factor) Class F insulation (Impregnation Resin and Magnet wire are class H) F2 mounted as standard (F1 convertible) Stainless Steel Nameplate - Laser etched with High contrast background Regreasable ball bearings (Frames 160 and up) Gasketed conduit box Suitable for WYE/Delta Start (W and Y voltage code motors) Specifications Brand WEG Catalog Number E02236EP3YAX180MF3-W Type IEC Tru-Metric Motor HP 30 KW 22 RPM 3000 Phase 3 C Dimension 26.142 Service Factor 1 Frame 180M Enclosure TEFC Full Load Amps 38.1 Mount Foot Mount Voltage 380-415/660-690//440-460 Warranty 1 Year Support Documents (pdf) Features
Specifications
| Tag | WEG Motors |
|---|---|
| Weight | 394.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | E02236EP3YAX180MF3-W |
| KKM catalog reference | WEG-E02236EP3YAX180MF3-W |
| Product category | ATEX Motors |
| Published specifications | 2 attributes listed |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does E02236EP3YAX180MF3-W cost?
E02236EP3YAX180MF3-W is listed at CA$6,734.84 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the E02236EP3YAX180MF3-W?
E02236EP3YAX180MF3-W is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is E02236EP3YAX180MF3-W discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for E02236EP3YAX180MF3-W — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of E02236EP3YAX180MF3-W?
Key specifications include Tag: WEG Motors; Weight: 394.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can E02236EP3YAX180MF3-W ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
