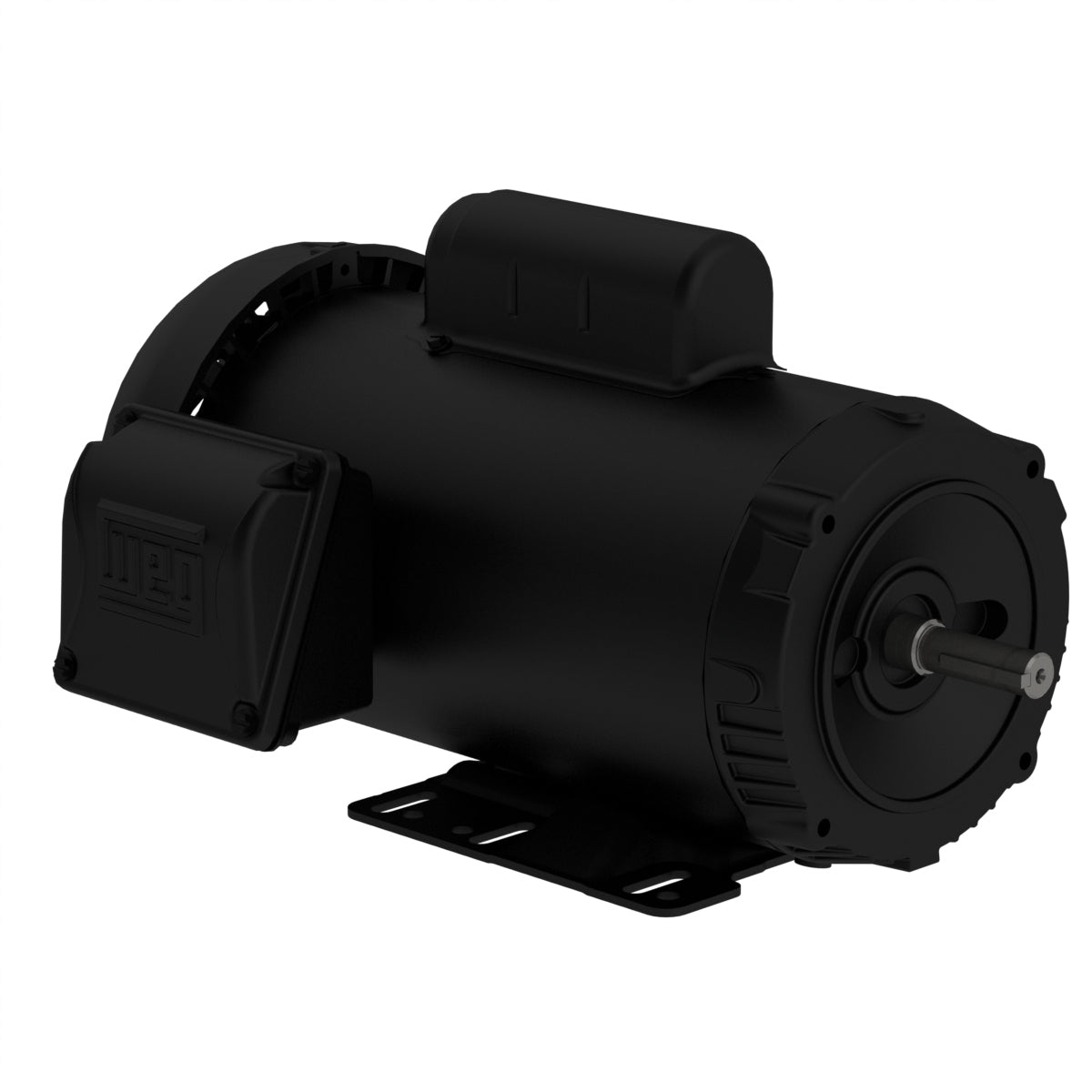

WEG .5036ES1BB56C — Motor
Weg Electric .5036ES1BB56C, 1/2 Hp, 3600 Rpm, W56C Frame, 115/208-230 Vac, ODP, 1 PH, Foot- mounted, Rolled Steel.
Overview
.5036ES1BB56C, 1/2 Hp, 3600 Rpm, W56C Frame, 115/208-230 Vac, ODP, 1 PH, Foot- mounted, Rolled Steel. Engineering Data The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads. Product features Standard NEMA MG-1 Frequency 60 Hz Voltage 115/208-230 V Number of poles 2 Degree of Protection IP55 Synchronous speed 3600 rpm Output rating 0.5 HP Mounting Foot-mounted Flange C Mounting F-1 Terminal box¹ Left position Enclosure IC411 - TEFC Frame W56C Output 0.5 HP (0.37 kW) Number of Poles 2 Frequency 60 Hz Rated speed 3500 rpm Slip 2.78 % Rated voltage 115/208-230 V Rated current 7.00/3.87-3.50 A L. R. Amperes 56.0/31.0-28.0 A LRC 8.0x(Code P) No load current 4.80/2.07-2.40 A Rated torque 0.750 ft.lb Locked rotor torque 290 % Breakdown torque 300 % Locked rotor time 12s (cold) 7s (hot) Moment of inertia (J) 0.0233 sq.ft.lb Design N Insulation Class F Temperature rise 80 K Service factor 1.15 (1.00 @ 208V) Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP55 Enclosure IC411 - TEFC Mounting F-1 Rotation¹ Both (CW and CCW) Noise level² 66.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 23.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | .5036ES1BB56C |
| KKM catalog reference | WEG-.5036ES1BB56C |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 12 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does .5036ES1BB56C cost?
.5036ES1BB56C is listed at CA$460.80 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the .5036ES1BB56C?
.5036ES1BB56C is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is .5036ES1BB56C discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for .5036ES1BB56C — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of .5036ES1BB56C?
Key specifications include Tag: WEG Electric; Weight: 23.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can .5036ES1BB56C ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- .5036ES1BB56 — Weg .5036ES1BB56 standard efficiency TEFC single-phase motor, 0.5HP, 3600RPM, 56 frame, 115/208-230V,…
- .5036ES1BJPRW56C-S — WEG .5036ES1BJPRW56C-S 1/2HP Single Phase Jet Pump Motor has the torque and…
- .5036ES1BJPRW56J-S — WEG .5036ES1BJPRW56J-S 1/2HP Single Phase Jet Pump Motor has the torque and…
- .5036ES1BJPW56C-S — WEG .5036ES1BJPW56C-S 1/2HP Single Phase Jet Pump Motor has the torque and…
- .5036ES1BJPW56J-S — WEG .5036ES1BJPW56J-S 1/2HP Single Phase Jet Pump Motor has the torque and…
- .5036ES1BOLW56-S — WEG .5036ES1BOLW56-S 1/2HP Single Phase TEFC motor is the perfect option for…
- .5036ES1BW56-S — WEG .5036ES1BW56-S 1/2HP Single Phase TEFC motor is the perfect option for…
- .5036ES1BW56C-S — WEG .5036ES1BW56C-S 1/2HP Single Phase TEFC motor is the perfect option for…
- .5036ES1BW56CFL-S — WEG .5036ES1BW56CFL-S 1/2HP Single Phase TEFC motor is the perfect option for…
- .5036ES1E143JM — Weg .5036ES1E143JM standard efficiency TEFC single-phase motor, 0.5 HP, 3600 RPM, 208-230/460V,…
- .5036ES1E143JM-W22 — WEG .5036ES1E143JM-W22 WEG Motor, Close Coupled Pump Motor (0.5 HP, 143JM FRAME,…
- .5036ES1E143JP-W22 — WEG .5036ES1E143JP-W22 1/2HP 1-Phase JP Close-Coupled Pump Motor
Related Products
WEG Weg Electric, .5018OS1BCDW56-S, 0.5 Hp, 1800 Rpm, 115/208-230 Vac,…
WEG Weg Electric .7512ES3H56-S, 3/4 Hp, 1200 Rpm, 56H, 575…
WEG Weg Electric, .5018NT3HHW56-S, 0.5 HP, 56 FR, 3Ph, 575…

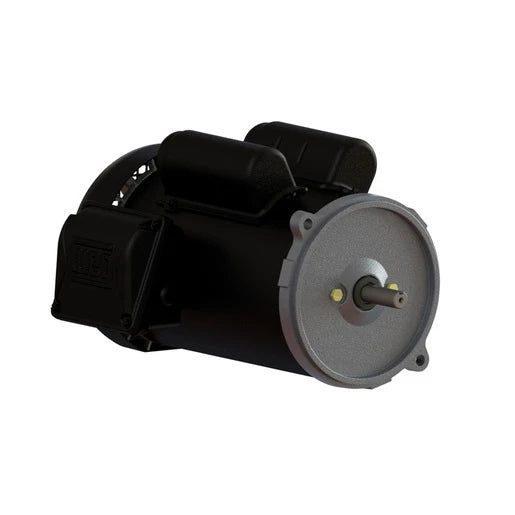

WEG Weg Electric .7518ES1RAD56N-S, 0.75 Hp, 1800 Rpm, 115/208-230 Vac,…
