WEG .5018ES1RFDW56C-S — Motor
Weg Electric .5018ES1RFDW56C-S, 0.5 HP, W56C FR, 1Ph, 115\230 V, 60 Hz, 1800 RPM, TEFC, Foot-mounted, ROLLED STEEL High Efficiency, 18645655
Overview
Weg Electric .5018ES1RFDW56C-S, 0.5 HP, W56C FR, 1Ph, 115\230 V, 60 Hz, 1800 RPM, TEFC, Foot-mounted, ROLLED STEEL High Efficiency, 18645655 SPECIFICATIONS Frame W56C Output 0.5 HP (0.37 kW) Number of Poles 4 Frequency 60 Hz Rated speed 1730 rpm Slip 3.89 % Rated voltage 115/230 V Rated current 8.00/4.00 A L. R. Amperes 45.6/22.8 A LRC 5.7x(Code M) No load current 6.60/3.30 A Rated torque 1.52 ft.lb Locked rotor torque 320 % Breakdown torque 270 % Locked rotor time 18s (cold) 10s (hot) Moment of inertia (J) 0.0479 sq.ft.lb Design N Insulation Class F Service factor 1.15 Temperature rise 80 K Starting Method Direct On Line Duty Cycle Cont.(S1) Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP55 Enclosure IC411 - TEFC Mounting F-1 Rotation¹ Both (CW and CCW) Noise level² 52.0 dB(A) Approx. weight³ 21.7 lb
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 21.7 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | .5018ES1RFDW56C-S |
| KKM catalog reference | WEG-.5018ES1RFDW56C-S |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 2 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does .5018ES1RFDW56C-S cost?
.5018ES1RFDW56C-S is listed at CA$463.84 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the .5018ES1RFDW56C-S?
.5018ES1RFDW56C-S is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is .5018ES1RFDW56C-S discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for .5018ES1RFDW56C-S — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of .5018ES1RFDW56C-S?
Key specifications include Tag: WEG Electric; Weight: 21.7 lb. The full specification table on this page lists every published attribute for this part.
How quickly can .5018ES1RFDW56C-S ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- .5018ES1RFDW56-S — WEG .5018ES1RFDW56-S 1/2HP Single Phase TEFC motor is the perfect option for…

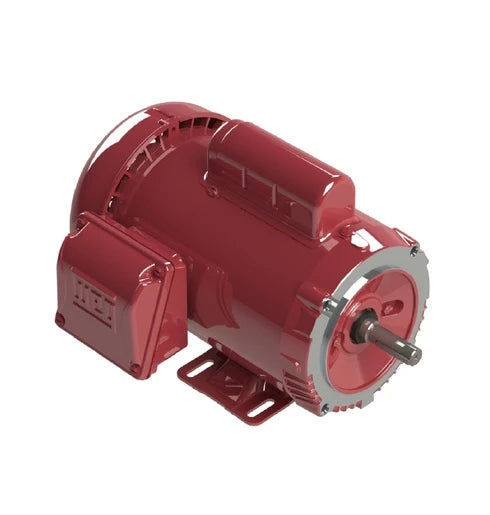

- .5018ES1RFDW56CFL-S — Weg Electric .5018ES1RFDW56CFL-S, 0.5 HP, W56C FR, 1Ph, 115\230 V, 60 Hz,…
Related Products
WEG Weg Electric .5018ES1RAD56NZ, 1/2 Hp, 1800 Rpm, B56B FR,…
WEG Weg Electric .5018ES1RFDW56CFL-S, 0.5 HP, W56C FR, 1Ph, 115\230…
WEG Weg Electric .5009AS1RPFRBPC56Z-S, 0.5 Hp, 900 Rpm, 56HZ FR,…

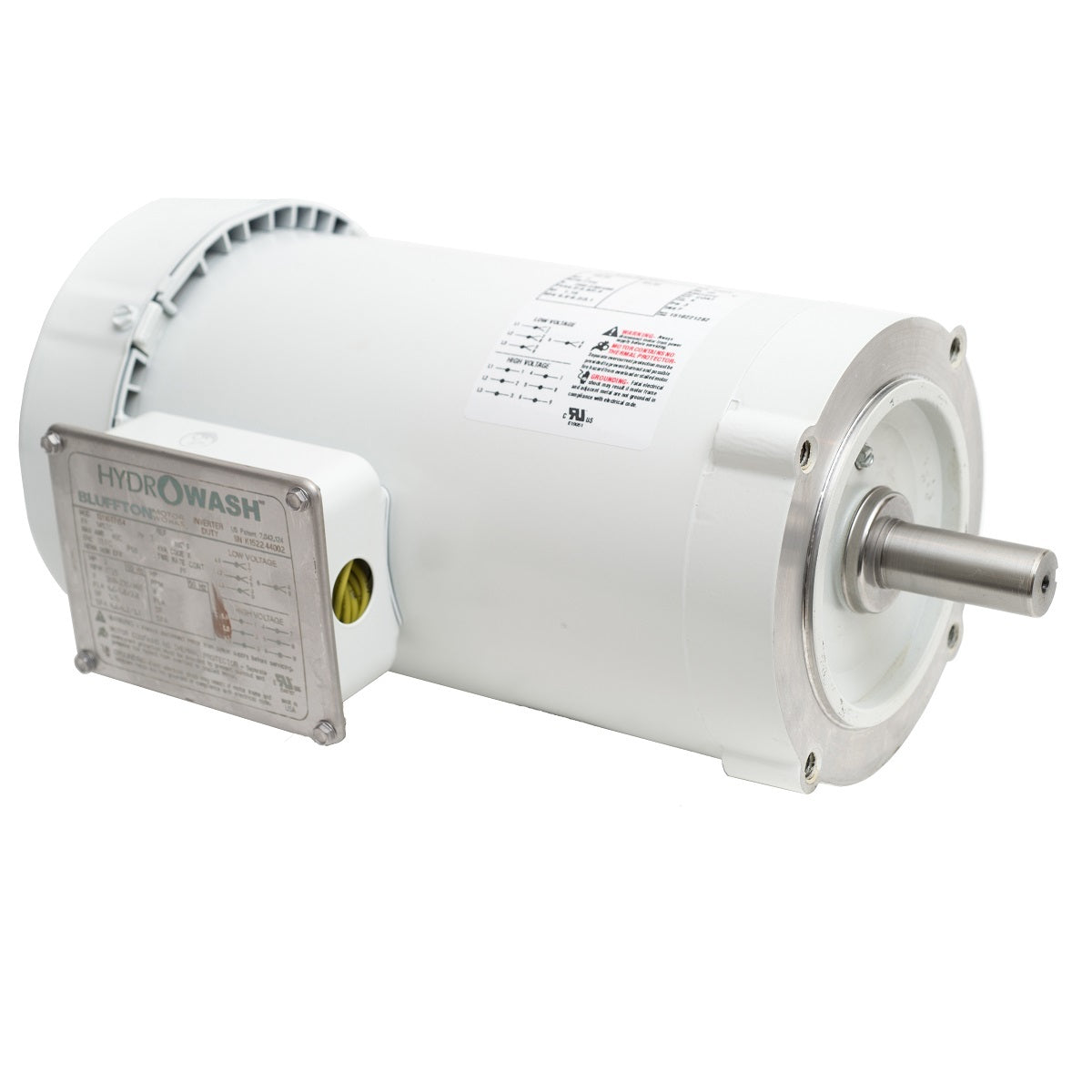

WEG Weg Electric .5018NT3EHW56CZFL, 1/2 Hp, 1800 Rpm, 56CZ Frame,…
