WEG 45012ET3H586/7-W22 — Motor
Weg Electric 45012ET3H586/7-W22, 450 Hp, 586/7T Frame, 1200 RPM, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.
Overview
45012ET3H586/7-W22, 450 Hp, 586/7T Frame, 1200 RPM, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency. Engineering Data Standard NEMA MG-1 Frequency 60 Hz Voltage 575 V Number of poles 6 Degree of Protection IP55 Synchronous speed 1200 rpm Output rating 450 HP Mounting Foot-mounted Flange Without Mounting F-1 Terminal box¹ Left position Enclosure IC411 - TEFC Frame 586/7T Output 450 HP (330 kW) Number of Poles 6 Frequency 60 Hz Rated speed 1190 rpm Slip 0.83 % Rated voltage 575 V Rated current 426 A L. R. Amperes 2596 A LRC 6.1x(Code G) No load current 168 A Rated torque 1990 ft.lb Locked rotor torque 210 % Breakdown torque 210 % Locked rotor time 45s (cold) 25s (hot) Moment of inertia (J) 368 sq.ft.lb Insulation Class F Service factor 1.15 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP55 Enclosure IC411 - TEFC Mounting F-1 Rotation¹ Both (CW and CCW) Noise level² 77.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 4628.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 45012ET3H586/7-W22 |
| KKM catalog reference | WEG-45012ET3H586/7-W22 |
| Product category | Motor |
| Published specifications | 2 attributes listed |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 45012ET3H586/7-W22 cost?
45012ET3H586/7-W22 is listed at CA$81,566.16 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 45012ET3H586/7-W22?
45012ET3H586/7-W22 is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 45012ET3H586/7-W22 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 45012ET3H586/7-W22 — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 45012ET3H586/7-W22?
Key specifications include Tag: WEG Electric; Weight: 4628.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 45012ET3H586/7-W22 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
WEG Weg Electric 45012EP3GKD580Z-W22, 450 Hp, 1200 Rpm, 586/7TZ Frame,…
WEG Weg Electric 45018ET3GKD580Z-W22, 450 Hp, 1800 Rpm, 586/7TZ Frame,…
WEG Weg Electric 40036WT3X5010-W60MV1, 400 Hp, 5010/11 Frame, 3600 RPM,…

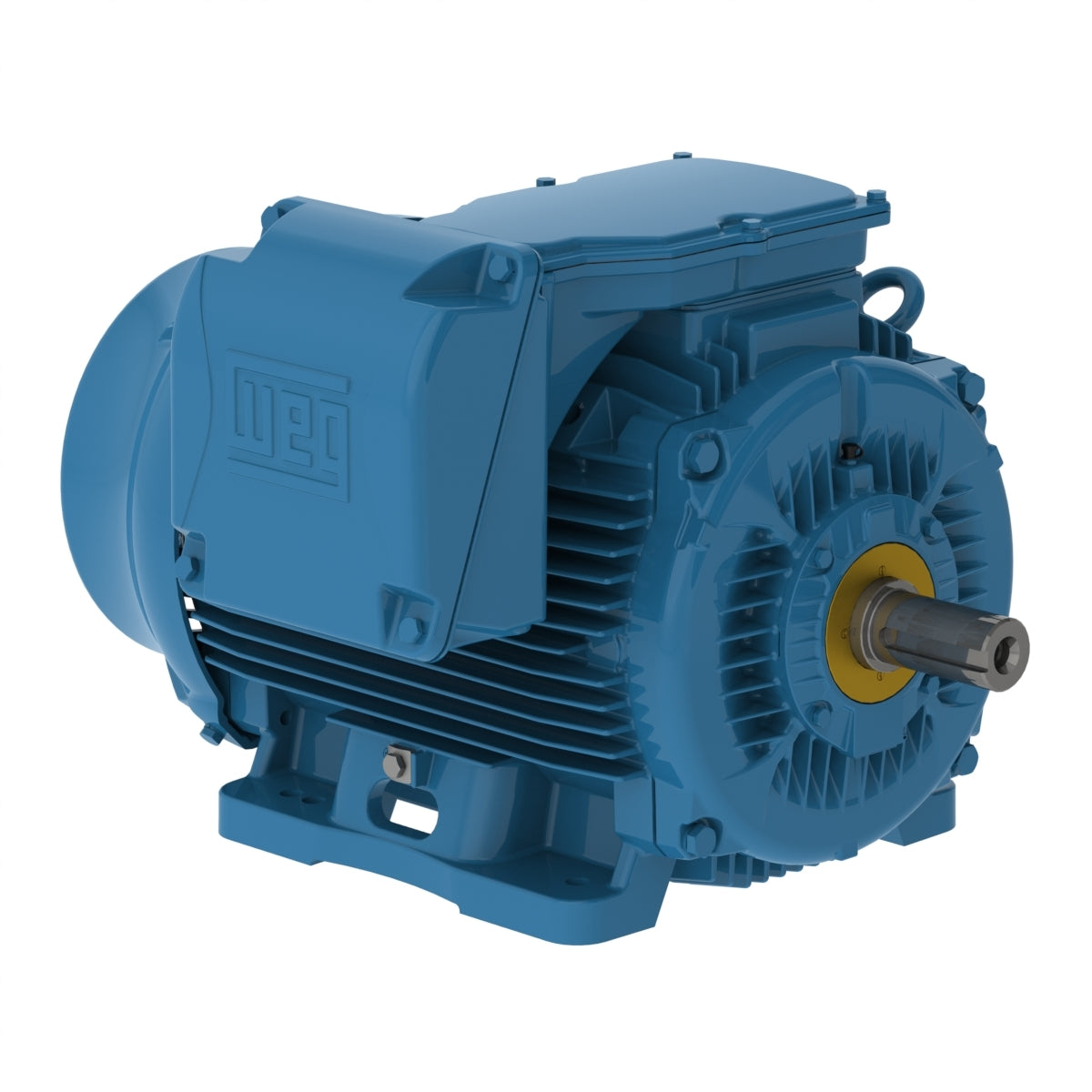

WEG Weg Electric 45018ET3GKD586/7-W22, 450 Hp, 586/7T Frame, 1800 RPM,…
