WEG 35012ET3H449T-W22 — Motor
Weg Electric 35012ET3H449T-W22, 350 Hp, L447/9T Frame, 1200 RPM, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.
Overview
35012ET3H449T-W22, 350 Hp, L447/9T Frame, 1200 RPM, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency. Engineering Data With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications. Product features Standard NEMA MG-1 Frequency 60 Hz Voltage 575 V Number of poles 6 Degree of Protection IP55 Synchronous speed 1200 rpm Output rating 350 HP Mounting Foot-mounted Flange Without Mounting F-1 Terminal box¹ Left position Enclosure IC411 - TEFC Frame L447/9T Output 350 HP (260 kW) Number of Poles 6 Frequency 60 Hz Rated speed 1190 rpm Slip 0.83 % Rated voltage 575 V Rated current 332 A L. R. Amperes 2291 A LRC 6.9x(Code H) No load current 128 A Rated torque 1540 ft.lb Locked rotor torque 250 % Breakdown torque 270 % Locked rotor time 41s (cold) 23s (hot) Moment of inertia (J) 278 sq.ft.lb Design A Insulation Class F Service factor 1.15 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP55 Enclosure IC411 - TEFC Mounting F-1 Rotation¹ Both (CW and CCW) Noise level² 71.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 3593.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 35012ET3H449T-W22 |
| KKM catalog reference | WEG-35012ET3H449T-W22 |
| Product category | Motor |
| Published specifications | 2 attributes listed |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 35012ET3H449T-W22 cost?
35012ET3H449T-W22 is listed at CA$62,412.51 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 35012ET3H449T-W22?
35012ET3H449T-W22 is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 35012ET3H449T-W22 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 35012ET3H449T-W22 — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 35012ET3H449T-W22?
Key specifications include Tag: WEG Electric; Weight: 3593.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 35012ET3H449T-W22 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
WEG Weg Electric 35012ET3GKD586/7-W22, 350 Hp, 1200 Rpm, 586/7TZ Frame,…
WEG Weg Electric 35012ET3X5009-W50MV, 350 Hp, 1200 Rpm, 5009/10 Frame,…

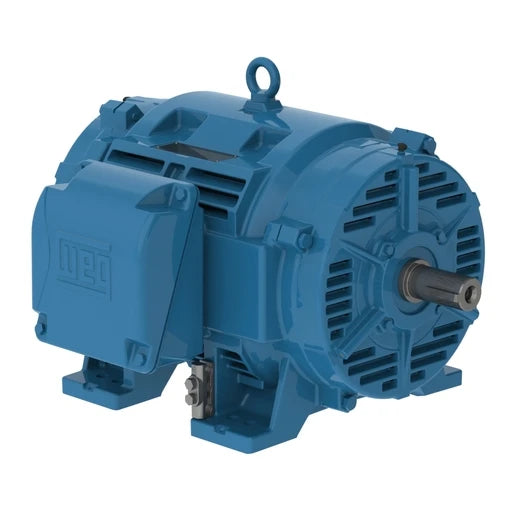

WEG Weg Electric 30036OT3H445TS-RFW40, 300 Hp, 3600 Rpm, 444/5TS Frame,…
