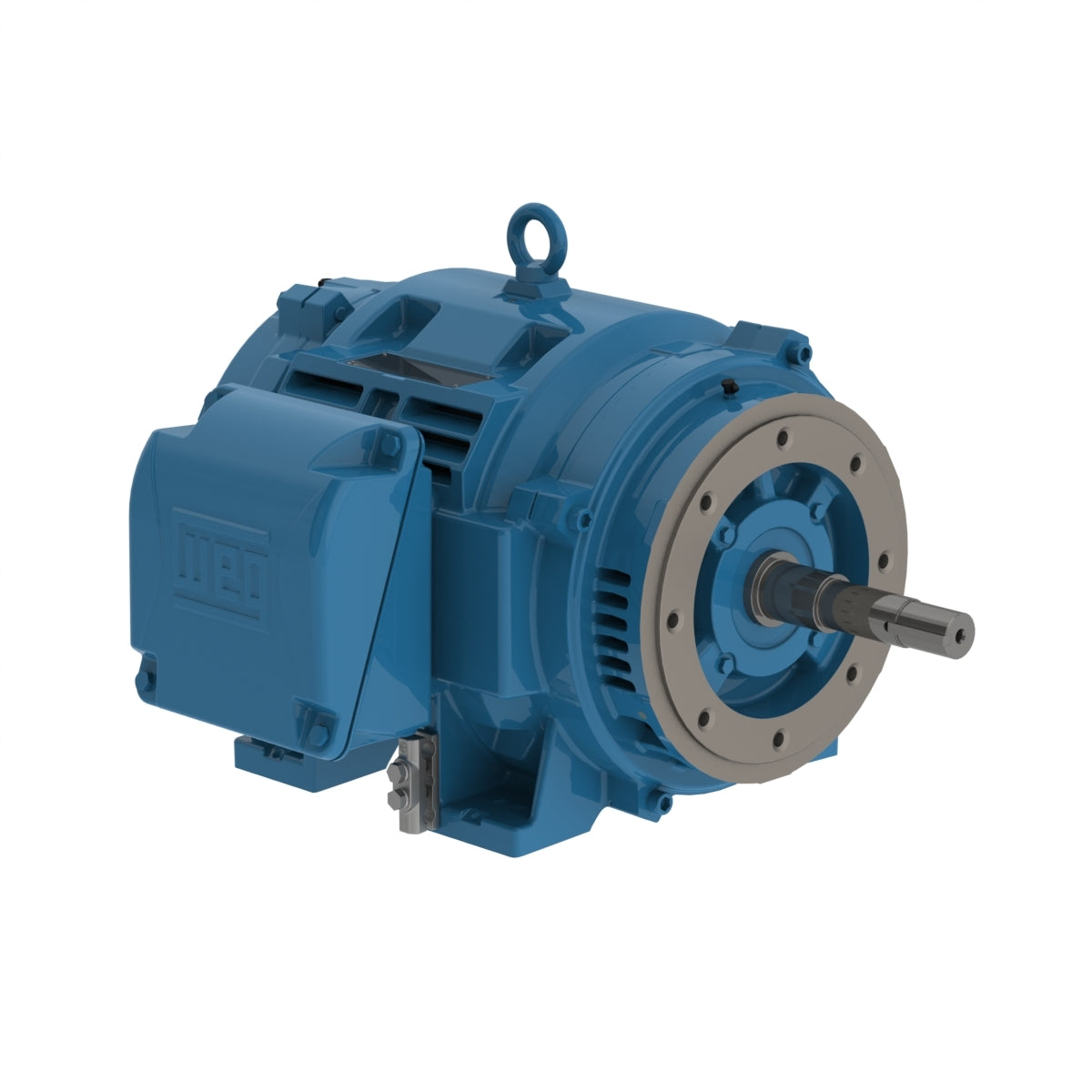

WEG 25036OT3G445TSC-RFW4 — Motor
Weg Electric 25036OT3G445TSC-RFW4, 250 Hp, 3600 Rpm, 444/5TSC Frame, 460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency.
Overview
25036OT3G445TSC-RFW4, 250 Hp, 3600 Rpm, 444/5TSC Frame, 460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency. Engineering Data W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements. Product features Standard NEMA MG-1 Frequency 60//50 Hz Voltage 460//380 V Number of poles 2 Degree of Protection IP23 Synchronous speed 3600 rpm Output rating 250 HP Mounting Foot-mounted Flange C Mounting F-1 Terminal box¹ Left position Enclosure IC01 - ODP Frame 444/5TSC Output 250 HP (185 kW) Number of Poles 2 Frequency 60 Hz Rated speed 3570 rpm Slip 0.83 % Rated voltage 460 V Rated current 278 A L. R. Amperes 1863 A LRC 6.7x(Code G) No load current 72.0 A Rated torque 368 ft.lb Locked rotor torque 150 % Breakdown torque 229 % Locked rotor time 28s (cold) 16s (hot) Moment of inertia (J) 27.1 sq.ft.lb Design B Insulation Class F Service factor 1.15 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP23 Enclosure IC01 - ODP Mounting F-1 Rotation¹ Both (CW and CCW) Noise level² 85.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 1488.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 25036OT3G445TSC-RFW4 |
| KKM catalog reference | WEG-25036OT3G445TSC-RFW4 |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 4 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 25036OT3G445TSC-RFW4 cost?
25036OT3G445TSC-RFW4 is listed at CA$28,167.06 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 25036OT3G445TSC-RFW4?
25036OT3G445TSC-RFW4 is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 25036OT3G445TSC-RFW4 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 25036OT3G445TSC-RFW4 — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 25036OT3G445TSC-RFW4?
Key specifications include Tag: WEG Electric; Weight: 1488.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 25036OT3G445TSC-RFW4 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 25036OT3G445TS-RFVFD — Weg Electric 25036OT3G445TS-RFVFD, 250 Hp, 3600 Rpm, 444/5TS Frame, 460//380 Vac, ODP,…
- 25036OT3G445TS-RFW40 — Weg Electric 25036OT3G445TS-RFW40, 250 Hp, 3600 Rpm, 444/5TS Frame, 460//380 Vac, ODP,…
- 25036OT3G445TS-W40 — WEG 25036OT3G445TS-W40 250HP Three Phase General Purpose Cast Iron Motor
- 25036OT3G445TSC-W40 — WEG 25036OT3G445TSC-W40 250HP Three Phase General Purpose Cast Iron Motor
Related Products

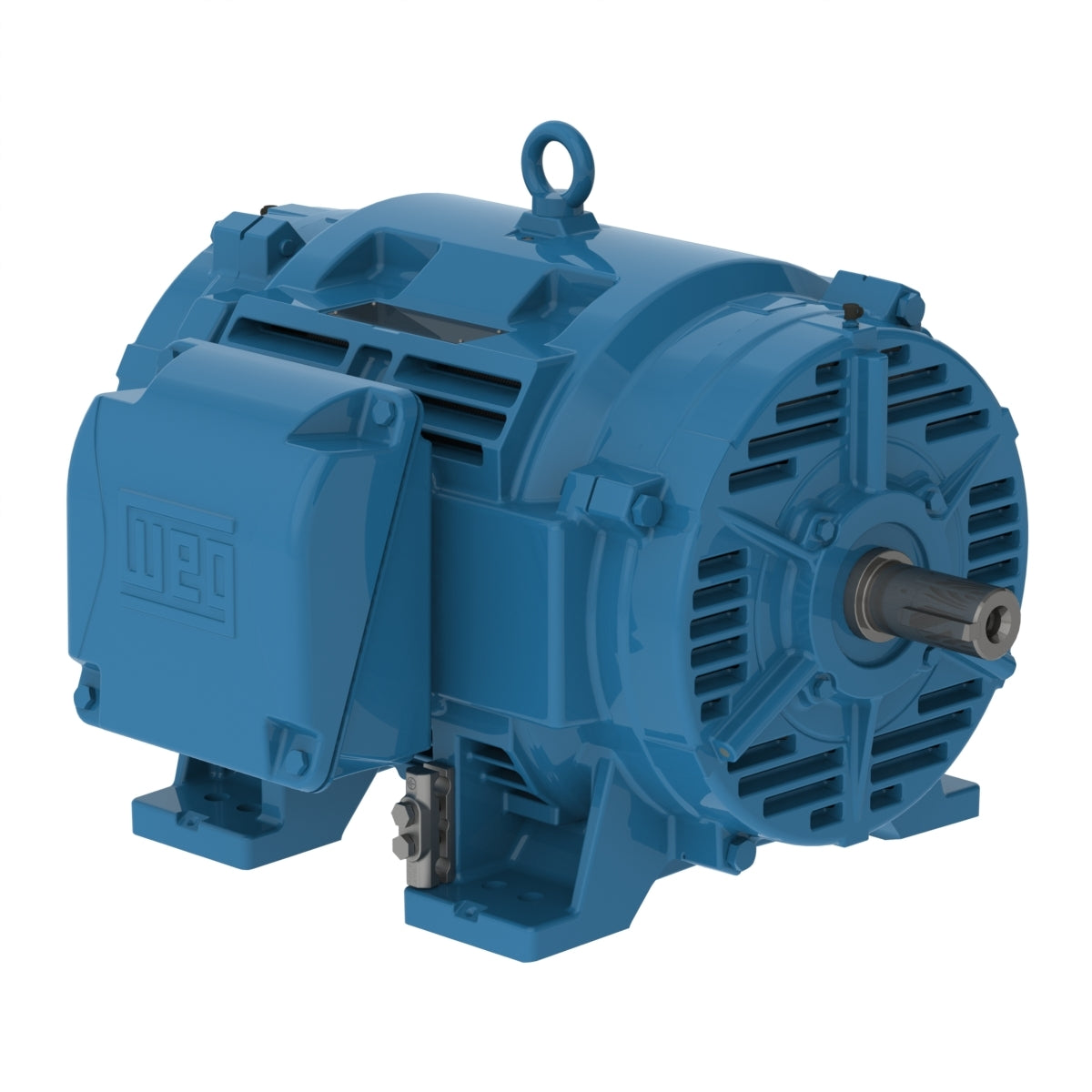

WEG Weg Electric 25036OT3G445TS-RFW40, 250 Hp, 3600 Rpm, 444/5TS Frame,…
