WEG 20036OP3JFP444TS-W40 — Motor
Weg Electric 20036OP3JFP444TS-W40, 200 Hp, 444/5TS Frame, 3600 RPM, 380 Vac, ODP, 3 PH, Foot-mounted, W40 High Efficiency.
Overview
20036OP3JFP444TS-W40, 200 Hp, 444/5TS Frame, 3600 RPM, 380 Vac, ODP, 3 PH, Foot-mounted, W40 High Efficiency. Engineering Data W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. Product features Standard NEMA MG-1 Frequency 60 Hz Voltage 380 V Number of poles 2 Degree of Protection IP23 Synchronous speed 3600 rpm Output rating 200 HP Mounting Foot-mounted Flange Without Mounting F-1 Terminal box¹ Left position Enclosure IC01 - ODP Frame 444/5TS Output 200 HP (150 kW) Number of Poles 2 Frequency 60 Hz Rated speed 3560 rpm Slip 1.11 % Rated voltage 380 V Rated current 274 A L. R. Amperes 1778 A LRC 6.5x(Code G) No load current 70.5 A Rated torque 295 ft.lb Locked rotor torque 140 % Breakdown torque 210 % Locked rotor time 48s (cold) 27s (hot) Moment of inertia (J) 21.8 sq.ft.lb Design B Insulation Class F Service factor 1.15 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP23 Enclosure IC01 - ODP Mounting F-1 Rotation¹ Both (CW and CCW)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 1268.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 20036OP3JFP444TS-W40 |
| KKM catalog reference | WEG-20036OP3JFP444TS-W40 |
| Product category | Motor |
| Published specifications | 2 attributes listed |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 20036OP3JFP444TS-W40 cost?
20036OP3JFP444TS-W40 is listed at CA$16,747.98 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 20036OP3JFP444TS-W40?
20036OP3JFP444TS-W40 is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 20036OP3JFP444TS-W40 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 20036OP3JFP444TS-W40 — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 20036OP3JFP444TS-W40?
Key specifications include Tag: WEG Electric; Weight: 1268.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 20036OP3JFP444TS-W40 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
WEG Weg Electric 20036OP3HFP444TS-W40, 200 Hp, 444/5TS Frame, 3600 RPM,…
WEG Weg Electric 20036OT3G444TS-RFVFD, 200 Hp, 3600 Rpm, 444/5TS Frame,…
WEG Weg Electric 20036ET3XL449-W22MV, 200 Hp, L447/9TS Frame, 3600 RPM,…
WEG Weg Electric 20036OT3G444TS-RFW40, 200 Hp, 3600 Rpm, 444/5TS Frame,…

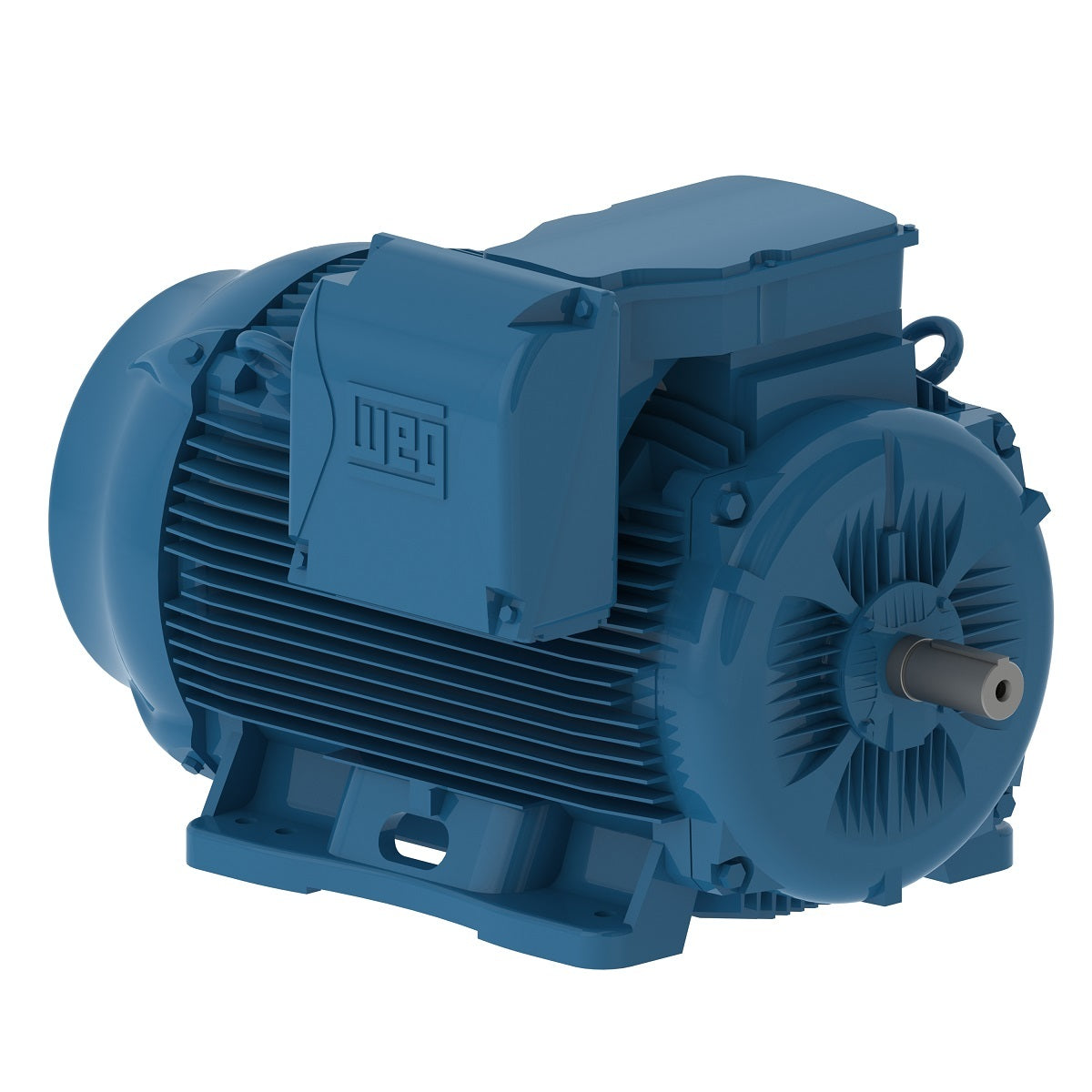

WEG Weg Electric 20036ET3H447TS-W22, 200 Hp, 445/7TS Frame, 3600 RPM,…
