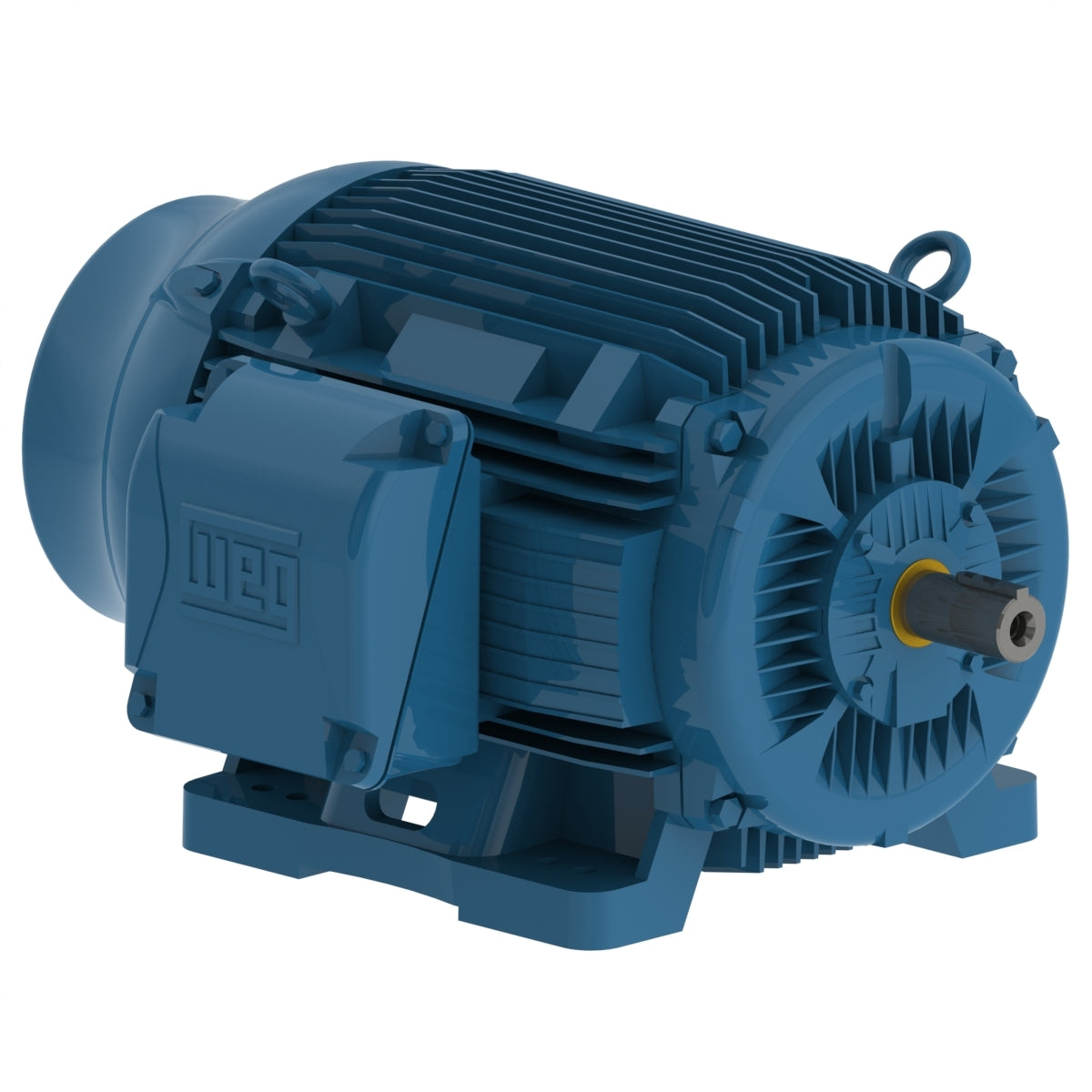

WEG 12536ET3H444TS-W22G — Motor
Weg Electric 12536ET3H444TS-W22G, 125 Hp, 444/5TS Frame, 3600 RPM, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.
Overview
12536ET3H444TS-W22G, 125 Hp, 444/5TS Frame, 3600 RPM, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency. Engineering Data With cast iron frame, flexible mounting, solid feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications. Product features Standard NEMA MG-1 Frequency 60 Hz Voltage 575 V Number of poles 2 Degree of Protection IP55 Synchronous speed 3600 rpm Output rating 125 HP Mounting Foot-mounted Flange Without Mounting F-1 Terminal box¹ Left position Enclosure IC411 - TEFC Frame 444/5TS Output 125 HP Number of Poles 2 Frequency 60 Hz Rated speed 3570 rpm Slip 0.83 % Rated voltage 575 V Rated current 107 A L. R. Amperes 708 A LRC 6.6x(Code G) No load current 27.2 A Rated torque 184 ft.lb Locked rotor torque 200 % Breakdown torque 250 % Locked rotor time 52s (cold) 29s (hot) Moment of inertia (J) 33.5 sq.ft.lb Design B Insulation Class F Service factor 1.15 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP55 Enclosure IC411 - TEFC Mounting F-1 Rotation¹ Both (CW and CCW) Noise level² 81.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 1599.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 12536ET3H444TS-W22G |
| KKM catalog reference | WEG-12536ET3H444TS-W22G |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 1 other part number in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 12536ET3H444TS-W22G cost?
12536ET3H444TS-W22G is listed at CA$22,143.71 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 12536ET3H444TS-W22G?
12536ET3H444TS-W22G is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 12536ET3H444TS-W22G discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 12536ET3H444TS-W22G — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 12536ET3H444TS-W22G?
Key specifications include Tag: WEG Electric; Weight: 1599.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 12536ET3H444TS-W22G ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 12536ET3H444TS-W22 — Weg 12536ET3H444TS-W22 125HP 3600RPM NEMA Premium efficiency three-phase TEFC motor with 575V…
Related Products

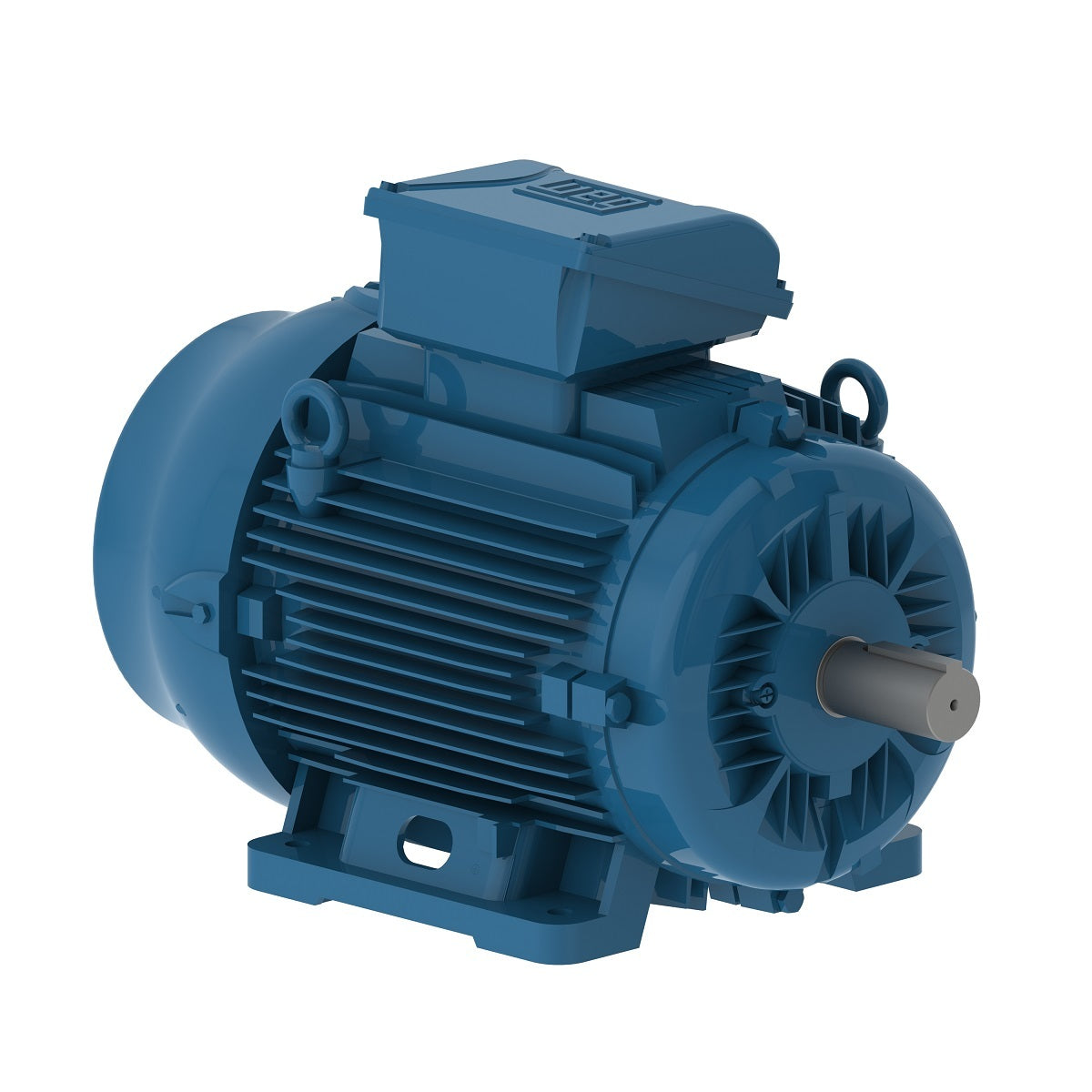

WEG Weg Electric 12536ET3E444TSF3-W22, 125 Hp, 444/5TS Frame, 3600 RPM,…
