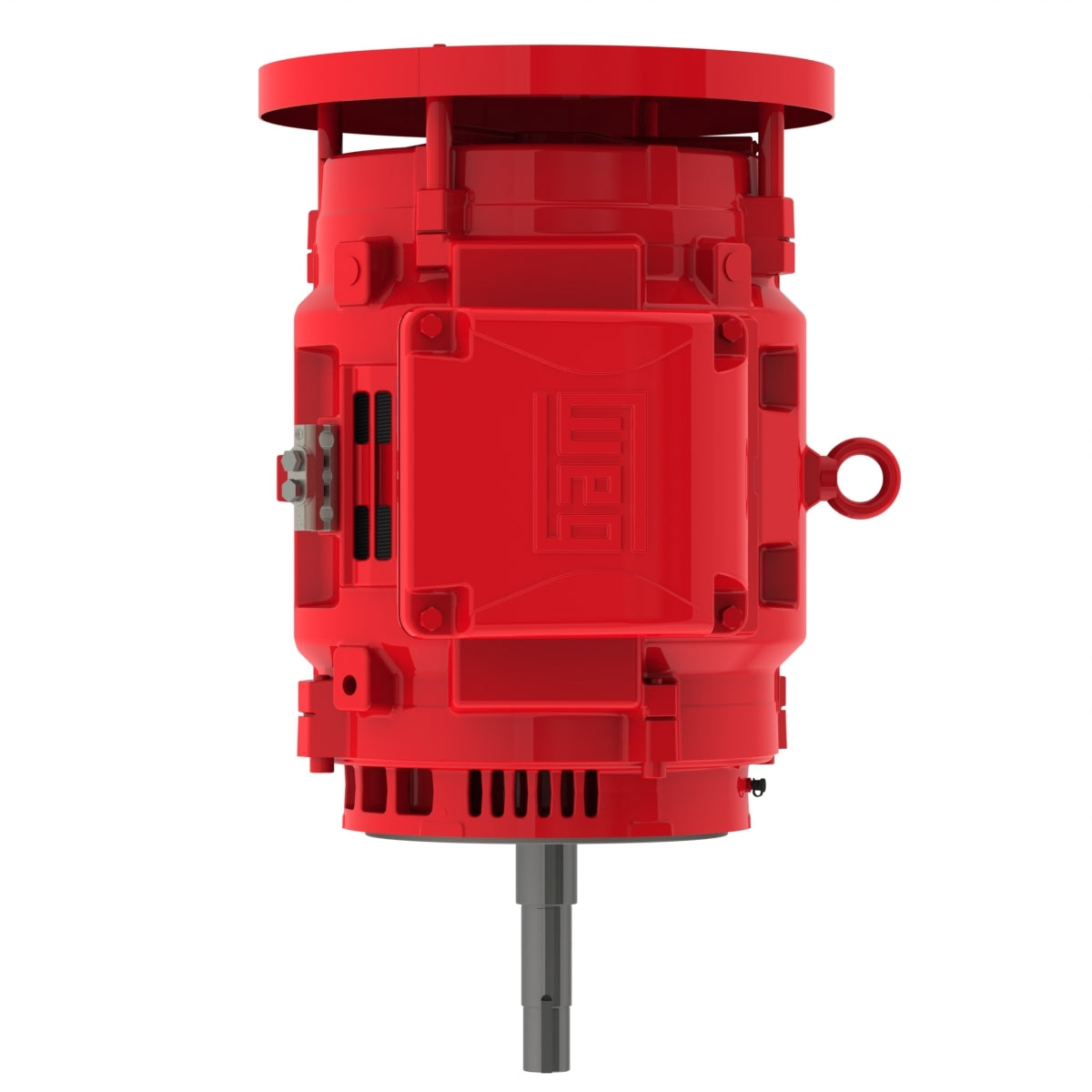

WEG 07518OP3VFP365JPV-W4 — Motor
Weg Electric 07518OP3VFP365JPV-W4, 75 Hp, 364/5JP Frame, 1800 RPM, 200/400 Vac, ODP, 3 PH, Footless, W40 JP Pump High Efficiency.
Overview
07518OP3VFP365JPV-W4, 75 Hp, 364/5JP Frame, 1800 RPM, 200/400 Vac, ODP, 3 PH, Footless, W40 JP Pump High Efficiency. Engineering Data Standard NEMA MG-1 Frequency 60 Hz Voltage 200/400 V Number of poles 4 Degree of Protection IP23 Synchronous speed 1800 rpm Output rating 75 HP Mounting Footless Flange C Mounting W-6 Terminal box¹ Left position Enclosure IC01 - ODP Frame 364/5JP Output 75 HP (55 kW) Number of Poles 4 Frequency 60 Hz Rated speed 1775 rpm Slip 1.39 % Rated voltage 200/400 V Rated current 196/98.1 A L. R. Amperes 1236/618 A LRC 6.3x(Code G) No load current 57.5/28.8 A Rated torque 222 ft.lb Locked rotor torque 180 % Breakdown torque 229 % Locked rotor time 34s (cold) 19s (hot) Moment of inertia (J) 15.2 sq.ft.lb Design B Insulation Class F Service factor 1.15 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP23 Enclosure IC01 - ODP Mounting W-6 Rotation¹ Both (CW and CCW)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 754.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 07518OP3VFP365JPV-W4 |
| KKM catalog reference | WEG-07518OP3VFP365JPV-W4 |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 1 other part number in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 07518OP3VFP365JPV-W4 cost?
07518OP3VFP365JPV-W4 is listed at CA$9,128.71 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 07518OP3VFP365JPV-W4?
07518OP3VFP365JPV-W4 is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 07518OP3VFP365JPV-W4 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 07518OP3VFP365JPV-W4 — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 07518OP3VFP365JPV-W4?
Key specifications include Tag: WEG Electric; Weight: 754.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 07518OP3VFP365JPV-W4 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:

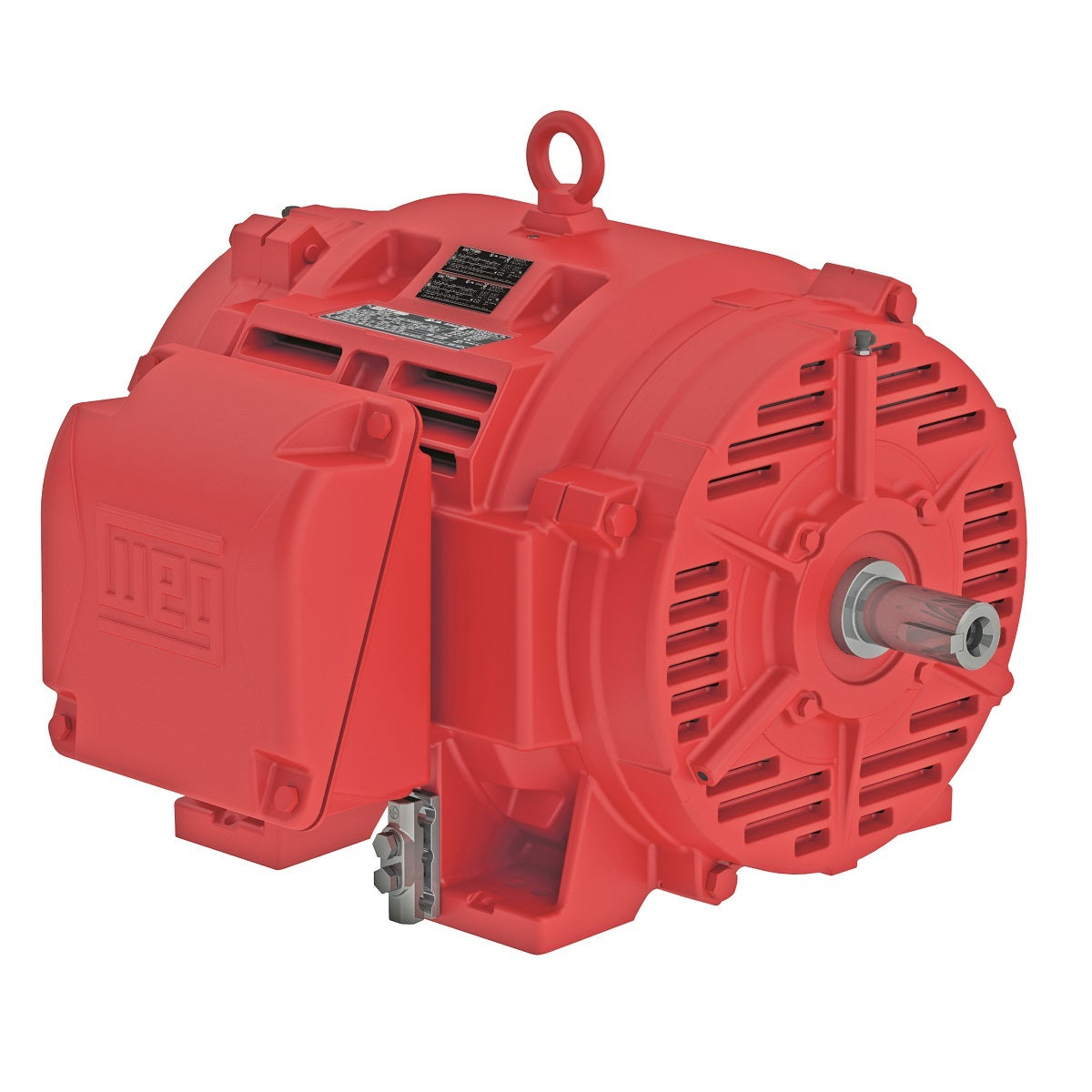

- 07518OP3VFP365TS-W40 — Weg Electric 07518OP3VFP365TS-W40, 75 Hp, 364/5TS Frame, 1800 RPM, 200/400 Vac, ODP,…
Related Products
WEG Weg Electric 07518OP3HFP365TS-W40, 75 Hp, 364/5TS Frame, 1800 RPM,…
WEG Weg Electric 07518OP3VFP365TS-W40, 75 Hp, 364/5TS Frame, 1800 RPM,…
WEG Weg Electric 07518OP3EFP365TS-W40, 75 Hp, 364/5TS Frame, 1800 RPM,…

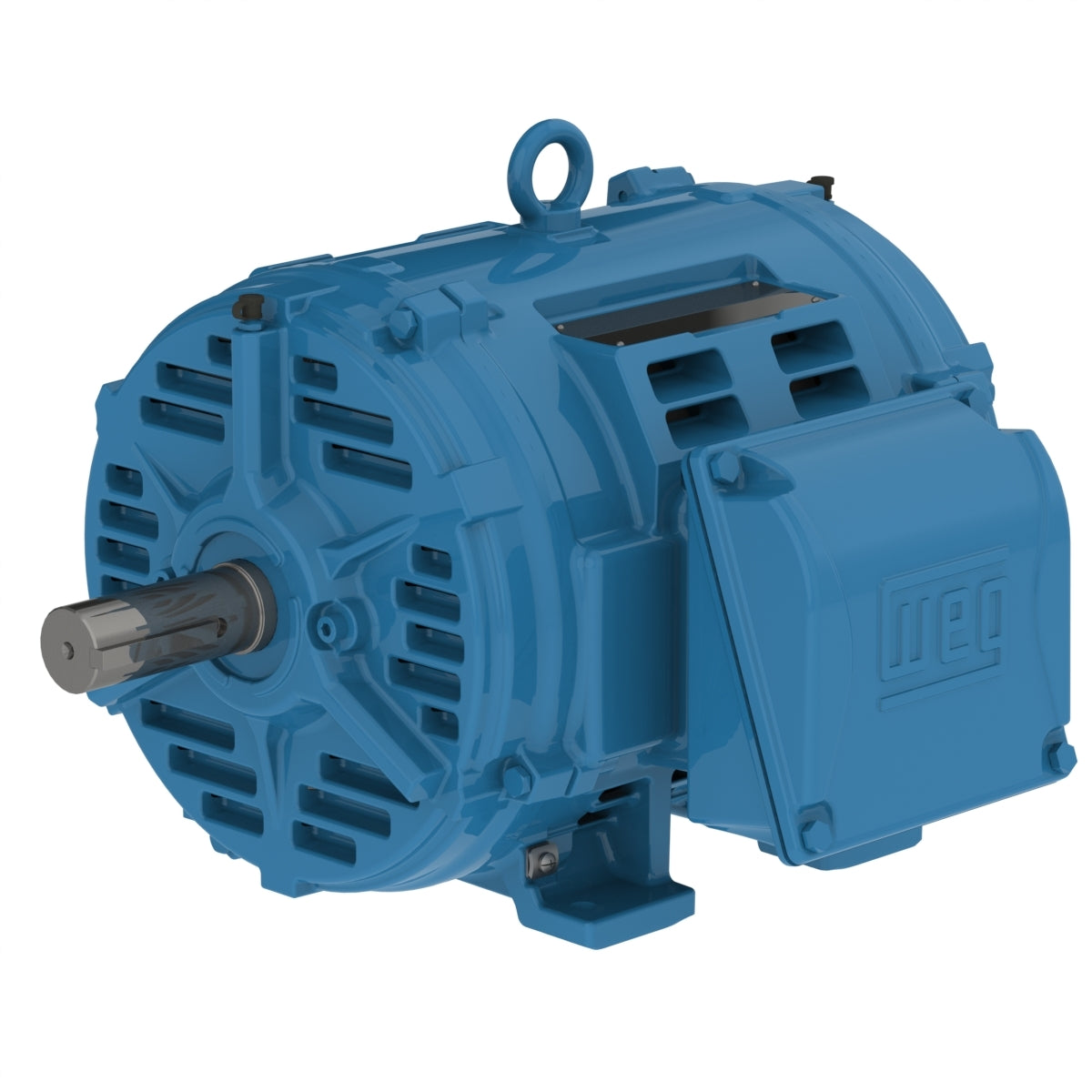

WEG Weg Electric 07518OT3E365TF2-W40, 75 Hp, 1800 Rpm, 364/5T Frame,…
