WEG 07518ET3H365JP-W22 — Motor
Weg Electric 07518ET3H365JP-W22, 75 Hp, 1800 Rpm, 364/5JP Frame, 575 Vac, TEFC, 3 PH, Foot-mounted, Close Coupled Pump JP NEMA Premium Efficiency
Overview
07518ET3H365JP-W22, 75 Hp, 1800 Rpm, 364/5JP Frame, 575 Vac, TEFC, 3 PH, Foot-mounted, Close Coupled Pump JP NEMA Premium Efficiency Engineering Data Standard NEMA MG-1 Frequency 60 Hz Voltage 575 V Number of poles 4 Degree of Protection IP55 Synchronous speed 1800 rpm Output rating 75 HP Mounting Foot-mounted Flange C Mounting F-1 Terminal box¹ Left position Enclosure IC411 - TEFC Frame 364/5JP Output 75 HP (55 kW) Number of Poles 4 Frequency 60 Hz Rated speed 1780 rpm Slip 1.11 % Rated voltage 575 V Rated current 69.8 A L. R. Amperes 446 A LRC 6.4x(Code G) No load current 26.4 A Rated torque 221 ft.lb Locked rotor torque 240 % Breakdown torque 260 % Locked rotor time 25s (cold) 14s (hot) Moment of inertia (J) 23.3 sq.ft.lb Design B Insulation Class F Service factor 1.25 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP55 Enclosure IC411 - TEFC Mounting F-1 Rotation¹ Both (CW and CCW) Noise level² 67.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 918.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 07518ET3H365JP-W22 |
| KKM catalog reference | WEG-07518ET3H365JP-W22 |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 5 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 07518ET3H365JP-W22 cost?
07518ET3H365JP-W22 is listed at CA$13,410.71 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 07518ET3H365JP-W22?
07518ET3H365JP-W22 is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 07518ET3H365JP-W22 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 07518ET3H365JP-W22 — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 07518ET3H365JP-W22?
Key specifications include Tag: WEG Electric; Weight: 918.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 07518ET3H365JP-W22 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 07518ET3H365JM-W22 — Weg 07518ET3H365JM-W22 NEMA Premium TEFC three-phase motor, 75 HP, 1800 RPM, 365JM…
- 07518ET3H365T-W22 — Weg 07518ET3H365T-W22
- 07518ET3H365T-W22G — Weg 07518ET3H365T-W22G 75HP 1800RPM NEMA Premium TEFC three-phase motor, 575V 60Hz, 365T…
- 07518ET3H365TC-W22 — Weg 07518ET3H365TC-W22 75HP, 1800RPM, 365TC frame, TEFC three-phase NEMA Premium (IE3) efficiency…
- 07518ET3H365TSCF2-W2 — Weg Electric 07518ET3H365TSCF2-W2, 75 Hp, 1800 Rpm, 364/5TSC Frame, 575 Vac, TEFC,…
Related Products
WEG Weg Electric, 07518EG3Y280S/M-W22, 100 HP, 280S/M FR, 3Ph, 460//380-415…

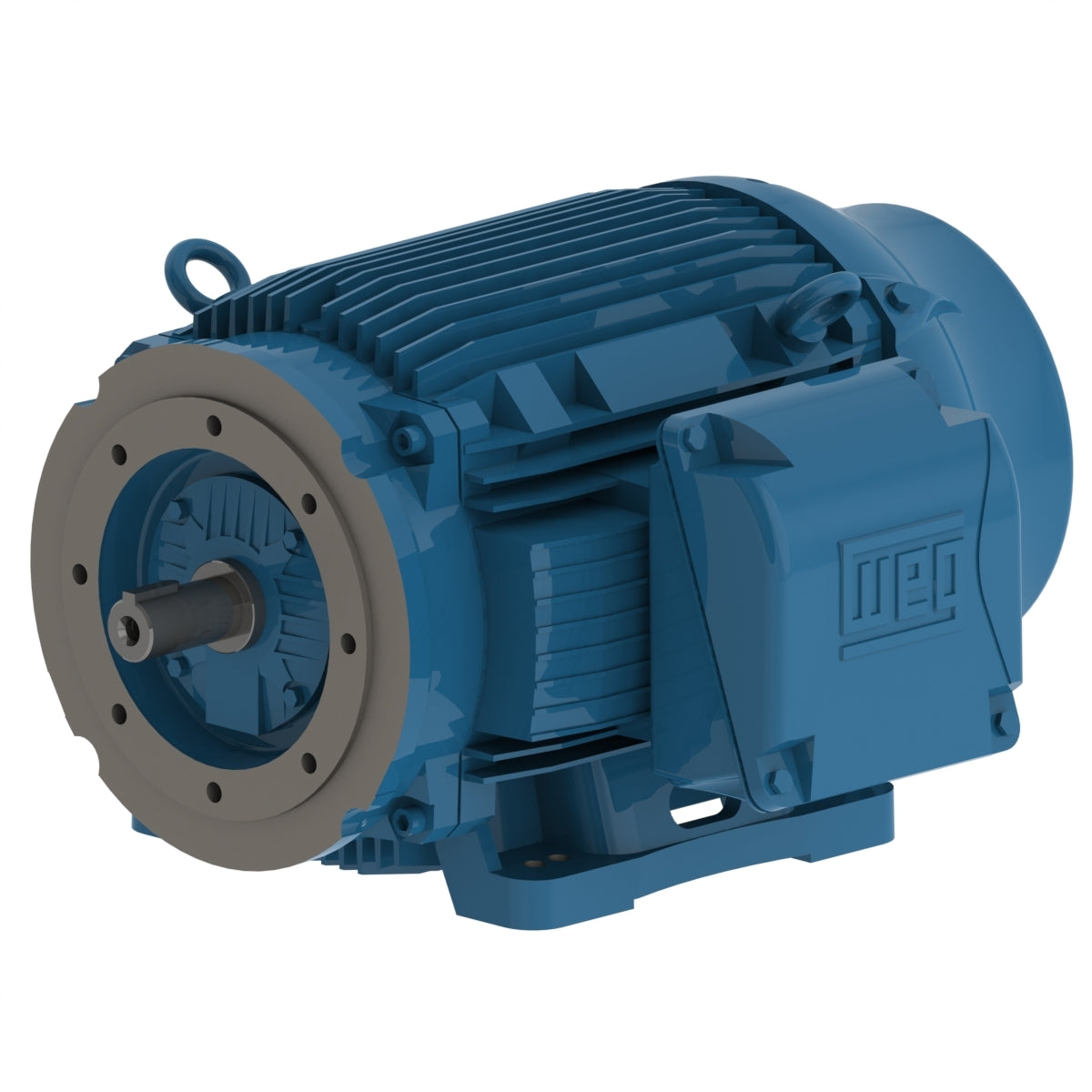

WEG Weg Electric 07518ET3H365TSCF2-W2, 75 Hp, 1800 Rpm, 364/5TSC Frame,…
WEG Weg Electric 07512ET3HRB405T-W22, 75 Hp, 1200 Rpm, 404/5T Frame,…

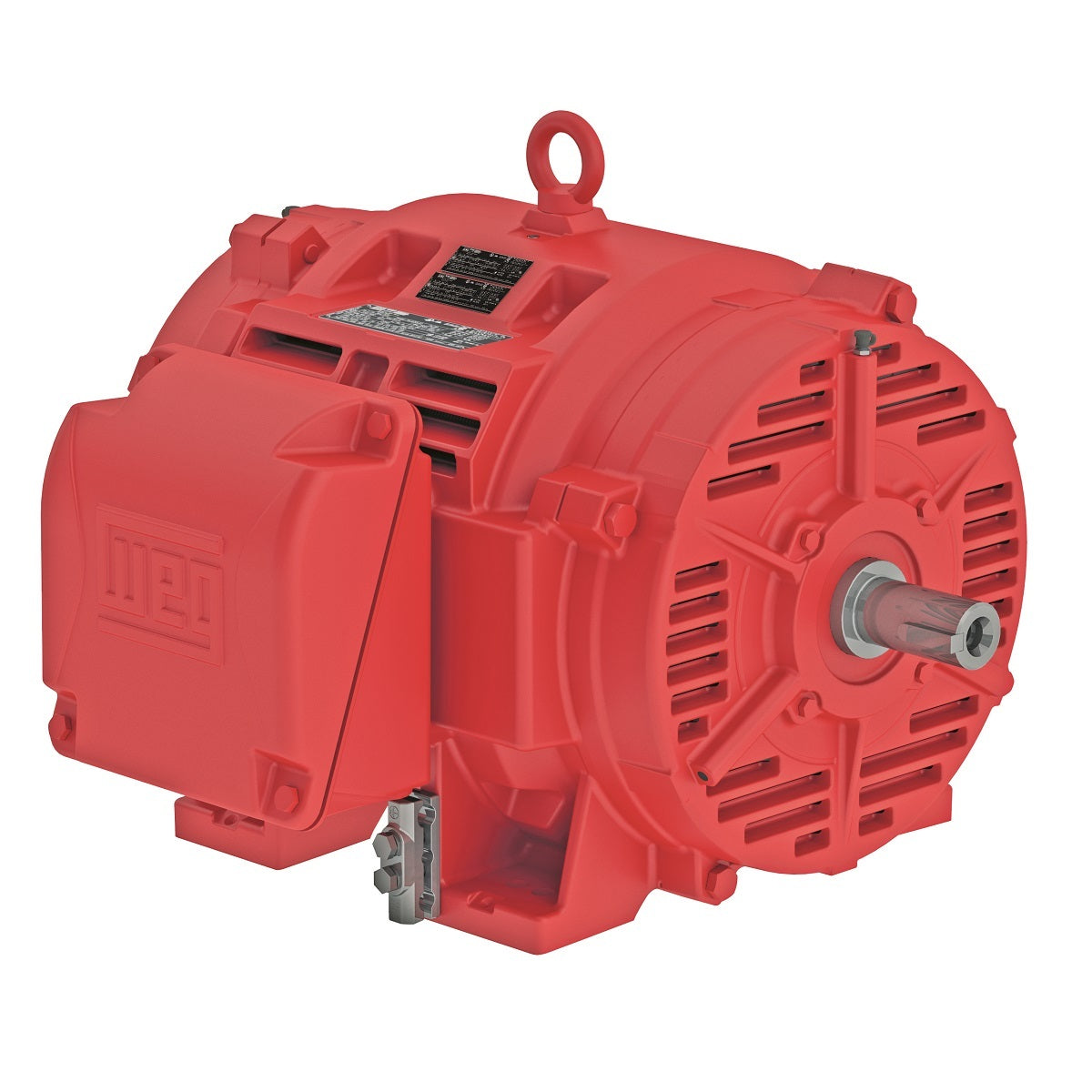

WEG Weg Electric 07518OP3EFP365TS-W40, 75 Hp, 364/5TS Frame, 1800 RPM,…
