WEG 06036ET3H364TS-W22G — Motor
Weg Electric 06036ET3H364TS-W22G, 60 Hp, 3600 Rpm, 364/5TS Frame, 575 Vac, TEFC, 3 PH, Foot-mounted W22 NEMA Premium Efficiency.
Overview
06036ET3H364TS-W22G, 60 Hp, 3600 Rpm, 364/5TS Frame, 575 Vac, TEFC, 3 PH, Foot-mounted W22 NEMA Premium Efficiency. Engineering Data With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications. Product features Standard NEMA MG-1 Frequency 60 Hz Voltage 575 V Number of poles 2 Degree of Protection IP55 Synchronous speed 3600 rpm Output rating 60 HP Mounting Foot-mounted Flange Without Mounting F-1 Terminal box¹ Left position Enclosure IC411 - TEFC Frame 364/5TS Output 60 HP (45 kW) Number of Poles 2 Frequency 60 Hz Rated speed 3560 rpm Slip 1.11 % Rated voltage 575 V Rated current 53.6 A L. R. Amperes 354 A LRC 6.6x(Code G) No load current 12.0 A Rated torque 88.5 ft.lb Locked rotor torque 200 % Breakdown torque 260 % Locked rotor time 25s (cold) 14s (hot) Moment of inertia (J) 10.6 sq.ft.lb Design B Insulation Class F Service factor 1.25 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP55 Enclosure IC411 - TEFC Mounting F-1 Rotation¹ Both (CW and CCW) Noise level² 79.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 851.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 06036ET3H364TS-W22G |
| KKM catalog reference | WEG-06036ET3H364TS-W22G |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 4 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 06036ET3H364TS-W22G cost?
06036ET3H364TS-W22G is listed at CA$10,995.86 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 06036ET3H364TS-W22G?
06036ET3H364TS-W22G is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 06036ET3H364TS-W22G discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 06036ET3H364TS-W22G — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 06036ET3H364TS-W22G?
Key specifications include Tag: WEG Electric; Weight: 851.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 06036ET3H364TS-W22G ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 06036ET3H364JM-W22 — Weg Electric 06036ET3H364JM-W22, 60 Hp, 3600 Rpm, 364/5JM Frame, 575 Vac, TEFC,…

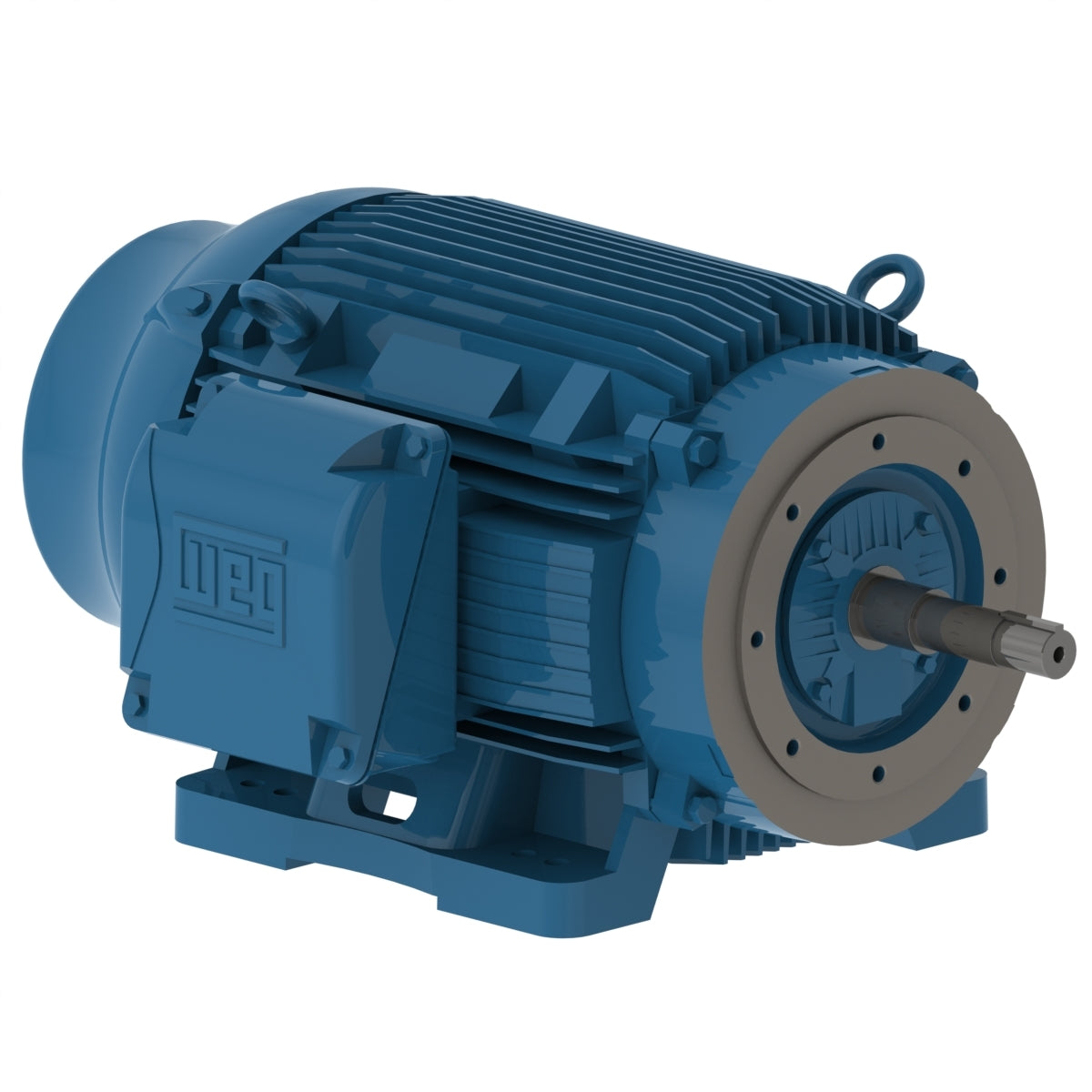

- 06036ET3H364JP-W22 — Weg Electric 06036ET3H364JP-W22, 60 Hp, 3600 Rpm, 364/5JP Frame, 575 Vac, TEFC,…
- 06036ET3H364TS-W22 — Weg 06036ET3H364TS-W22 60HP 3600RPM NEMA Premium TEFC three-phase motor with 364TS cast…
- 06036ET3H364TSC-W22 — Weg 06036ET3H364TSC-W22 60HP 3600RPM NEMA Premium TEFC three-phase motor, 575V, 364TSC cast…
Related Products
WEG Weg Electric 06036ET3H364JP-W22, 60 Hp, 3600 Rpm, 364/5JP Frame,…
WEG Weg Electric 06036OP3EFP326JMV-W4, 60 Hp, 3600 Rpm, 324/6JM Frame,…
WEG Weg Electric 06036ET3H364JM-W22, 60 Hp, 3600 Rpm, 364/5JM Frame,…

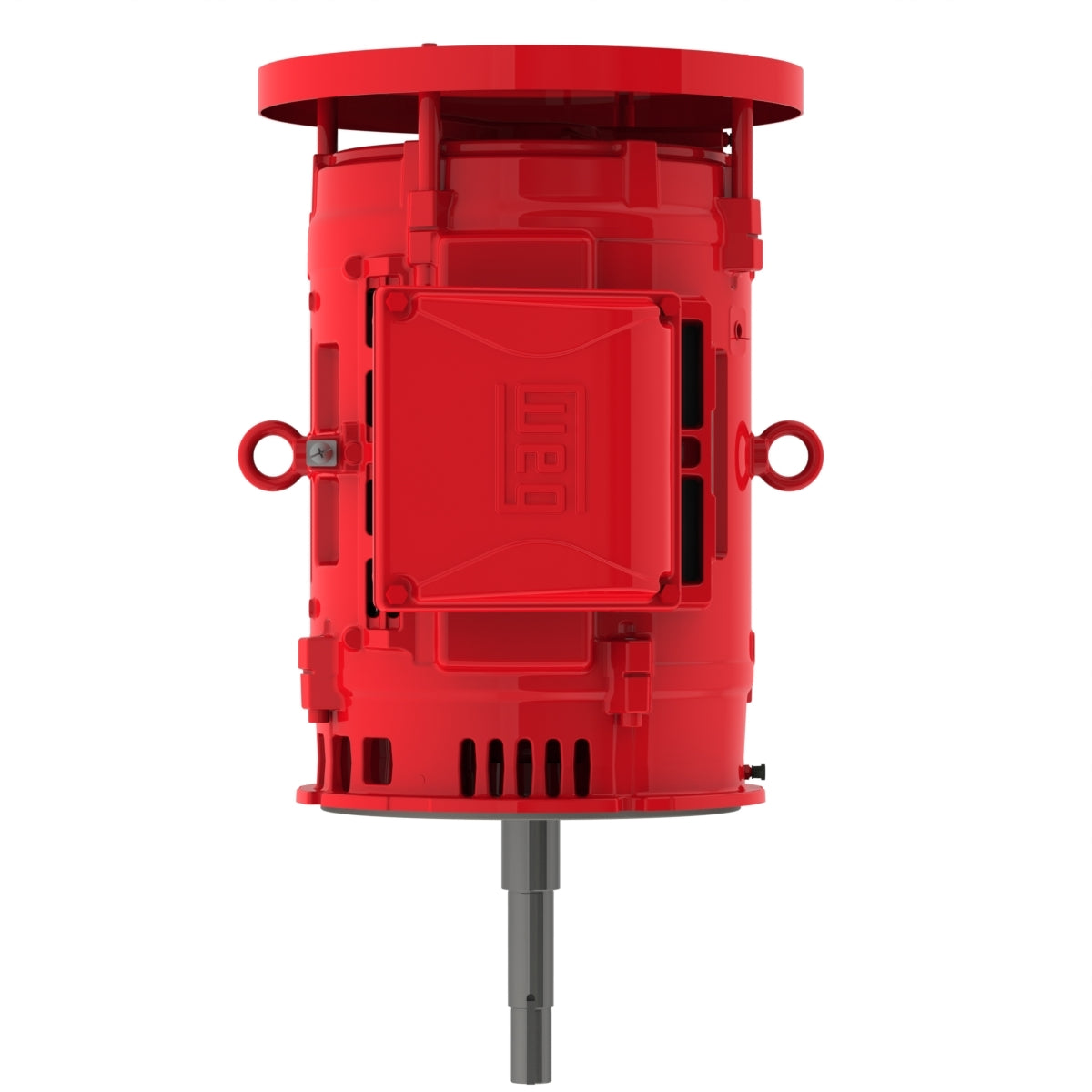

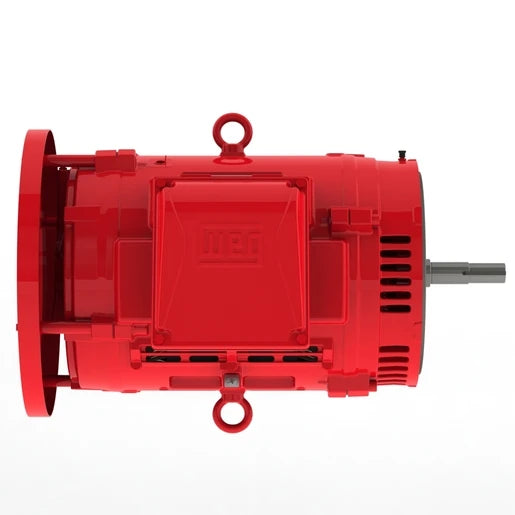

WEG Weg Electric, 06036OP3EFP326JPV-W4, 60 Hp, 3600 Rpm, 324/6JP Frame,…
