WEG 06018OT3E364TSCF2-W4 — Motor
Weg Electric 06018OT3E364TSCF2-W4, 60 Hp, 364/5TSC Frame, 1800 RPM, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency.
Overview
06018OT3E364TSCF2-W4, 60 Hp, 364/5TSC Frame, 1800 RPM, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency. Engineering Data W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements. Product features Standard NEMA MG-1 Frequency 60//50 Hz Voltage 230/460//380 V Number of poles 4 Degree of Protection IP23 Synchronous speed 1800 rpm Output rating 60 HP Mounting Foot-mounted Flange C Mounting F-2 Terminal box¹ Right position Enclosure IC01 - ODP Frame 364/5TSC Output 60 HP (45 kW) Number of Poles 4 Frequency 60 Hz Rated speed 1780 rpm Slip 1.11 % Rated voltage 230/460 V Rated current 140/69.9 A L. R. Amperes 909/454 A LRC 6.5x(Code G) No load current 49.4/24.7 A Rated torque 177 ft.lb Locked rotor torque 200 % Breakdown torque 240 % Locked rotor time 34s (cold) 19s (hot) Moment of inertia (J) 15.6 sq.ft.lb Design B Insulation Class F Service factor 1.25 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP23 Enclosure IC01 - ODP Mounting F-2 Rotation¹ Both (CW and CCW) Noise level² 69.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 768.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 06018OT3E364TSCF2-W4 |
| KKM catalog reference | WEG-06018OT3E364TSCF2-W4 |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 8 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 06018OT3E364TSCF2-W4 cost?
06018OT3E364TSCF2-W4 is listed at CA$6,337.82 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 06018OT3E364TSCF2-W4?
06018OT3E364TSCF2-W4 is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 06018OT3E364TSCF2-W4 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 06018OT3E364TSCF2-W4 — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 06018OT3E364TSCF2-W4?
Key specifications include Tag: WEG Electric; Weight: 768.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 06018OT3E364TSCF2-W4 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 06018OT3E364JM-W40 — WEG 06018OT3E364JM-W40 60HP Three Phase JM Pump Motor
- 06018OT3E364JP-W40 — WEG 06018OT3E364JP-W40 60HP Three Phase JP Pump Motor
- 06018OT3E364JPV-W40 — WEG 06018OT3E364JPV-W40 60HP Three Phase JP Pump Motor
- 06018OT3E364T-W40 — WEG 06018OT3E364T-W40 60HP Three Phase General Purpose Cast Iron Motor
- 06018OT3E364T-W40G — WEG 06018OT3E364T-W40G 60HP Three Phase AEGIS Shaft Grounding Ring Cast Iron Motor
- 06018OT3E364TC-W40 — WEG 06018OT3E364TC-W40 60HP Three Phase General Purpose Cast Iron Motor
- 06018OT3E364TC-W40G — WEG 06018OT3E364TC-W40G 60HP Three Phase AEGIS Shaft Grounding Ring Cast Iron Motor
- 06018OT3E364TS-W40 — WEG 06018OT3E364TS-W40 60HP Three Phase General Purpose Cast Iron Motor
Related Products
WEG Weg Electric 06018OP3VFP364JPV-W4, 60 Hp, 364/5JP Frame, 1800 RPM,…

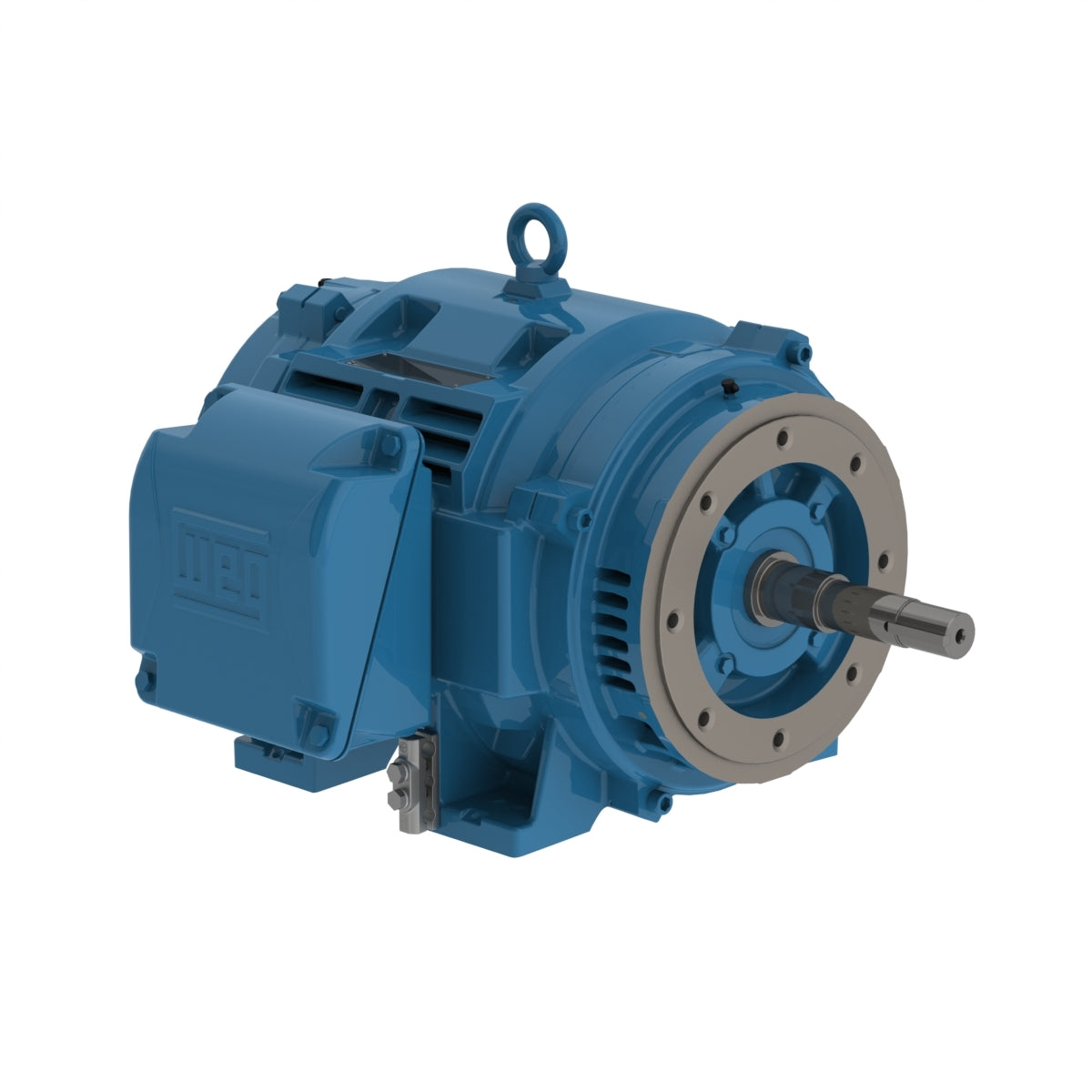

WEG Weg Electric 06018OT3H364JP-W40, 75 Hp, 1800 Rpm, 364/5JP Frame,…
