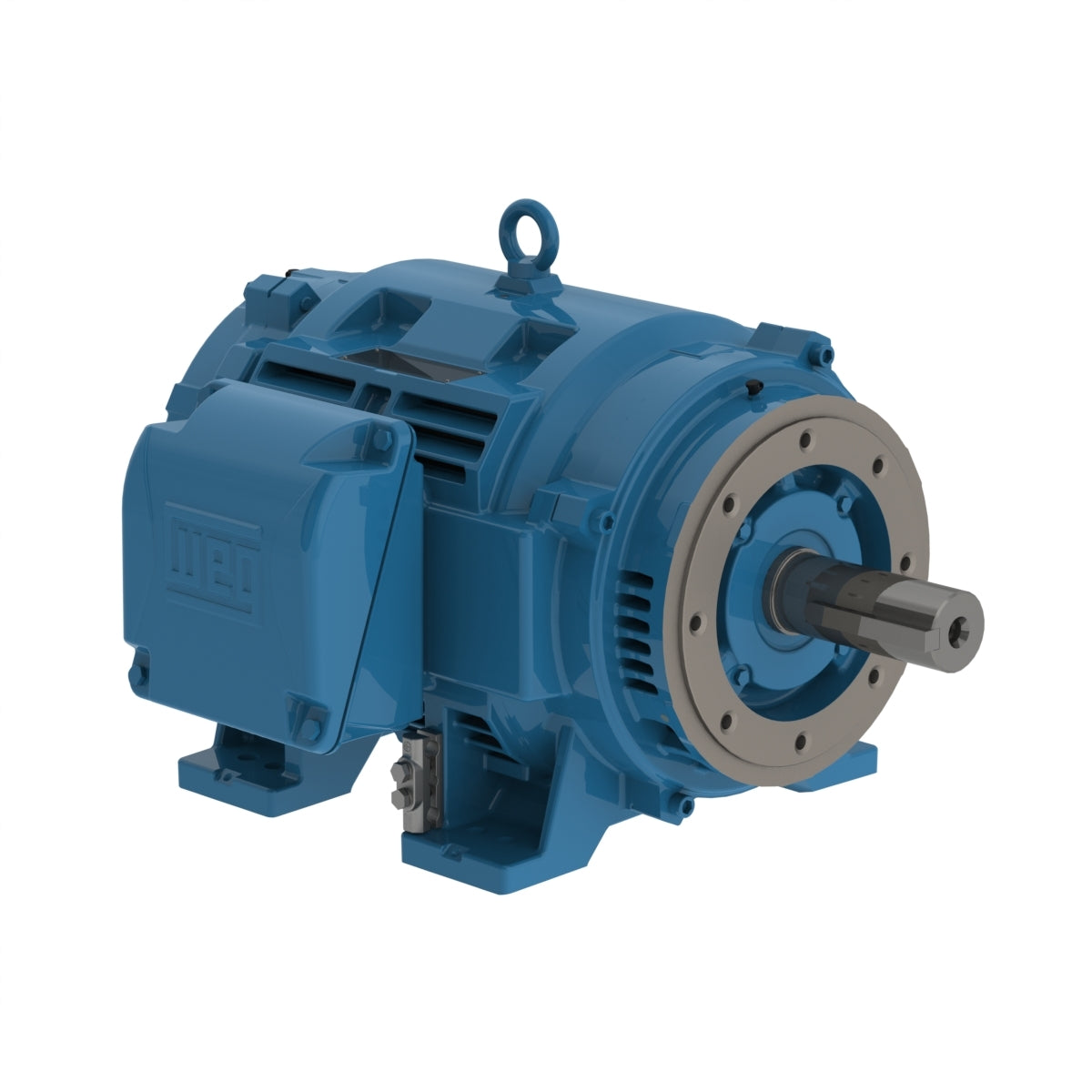

WEG 05036OT3G324JP — Motor
Weg Electric 05036OT3G324JP, 50 Hp, 3600 Rpm, 324JP Frame, 460//380 Vac, ODP, 3 PH, Foot-mounted, JP Pump Motor NEMA Premium Efficiency.
Overview
05036OT3G324JP, 50 Hp, 3600 Rpm, 324JP Frame, 460//380 Vac, ODP, 3 PH, Foot-mounted, JP Pump Motor NEMA Premium Efficiency. Engineering Data The W40 motor is a general purpose line designed for environments where dirt and moisture are minimal. The W40 cast iron frame is designed to provide maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness and durability. Product features Standard NEMA MG-1 Frequency 60//50 Hz Voltage 460//380 V Number of poles 2 Degree of Protection IP23 Synchronous speed 3600 rpm Output rating 50 HP Mounting Foot-mounted Flange C Mounting F-1 Terminal box¹ Left position Enclosure IC01 - ODP Frame 324JP Output 50 HP (37 kW) Number of Poles 2 Frequency 60 Hz Rated speed 3560 rpm Slip 1.11 % Rated voltage 460 V Rated current 59.4 A L. R. Amperes 374 A LRC 6.3x(Code G) No load current 22.5 A Rated torque 73.8 ft.lb Locked rotor torque 200 % Breakdown torque 220 % Locked rotor time 25s (cold) 14s (hot) Moment of inertia (J) 3.02 sq.ft.lb Design B Insulation Class F Service factor 1.25 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP23 Enclosure IC01 - ODP Mounting F-1 Rotation¹ Both (CW and CCW) Noise level² 75.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 432.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 05036OT3G324JP |
| KKM catalog reference | WEG-05036OT3G324JP |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 2 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 05036OT3G324JP cost?
05036OT3G324JP is listed at CA$6,782.54 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 05036OT3G324JP?
05036OT3G324JP is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 05036OT3G324JP discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 05036OT3G324JP — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 05036OT3G324JP?
Key specifications include Tag: WEG Electric; Weight: 432.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 05036OT3G324JP ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 05036OT3G324JM-W40 — WEG 05036OT3G324JM-W40 50HP Three Phase JM Pump Motor
- 05036OT3G324JP-W40 — WEG 05036OT3G324JP-W40 50HP Three Phase JP Pump Motor
Related Products

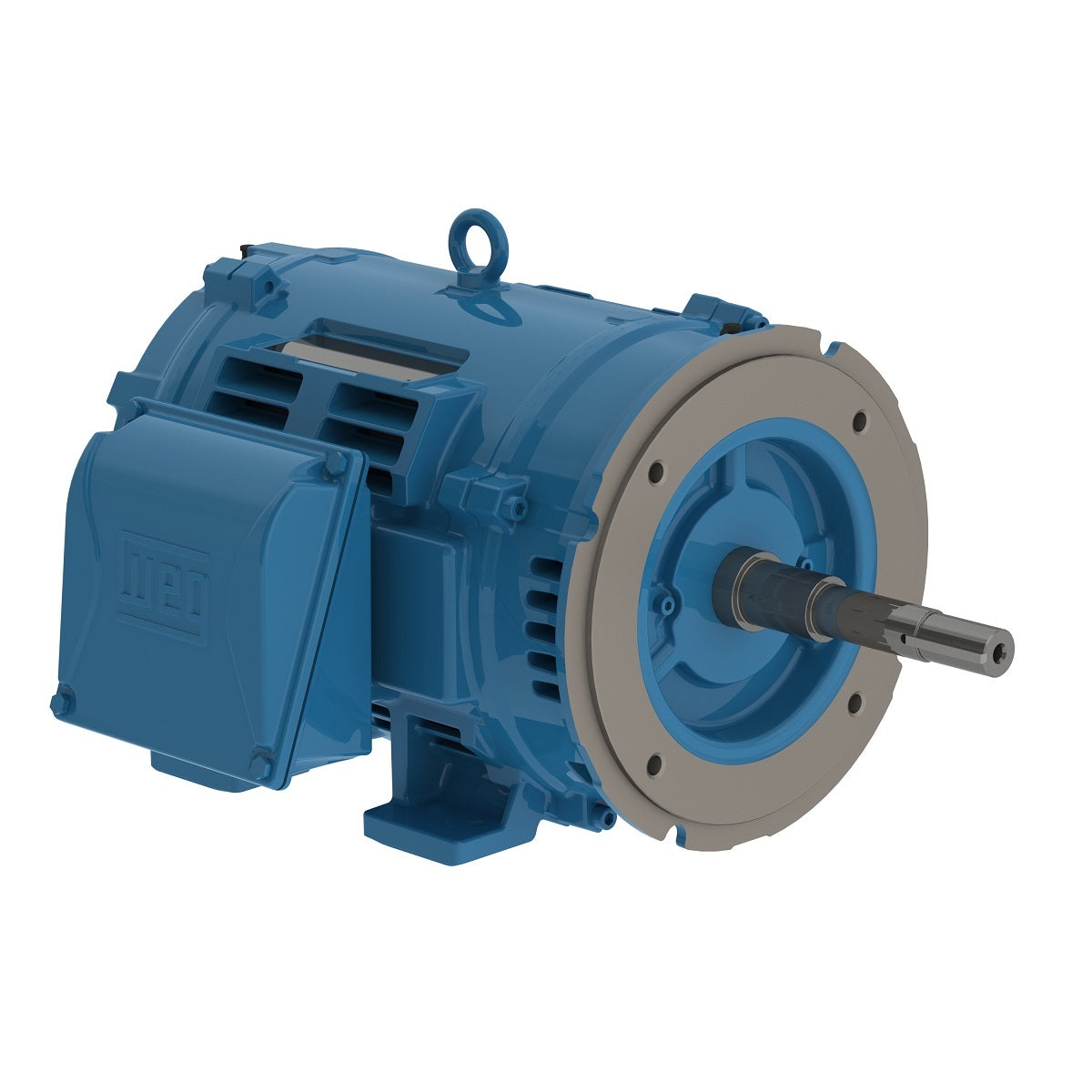

WEG Weg Electric 05036OT3E324JP, 50 Hp, 324JP Frame, 3600 RPM,…
