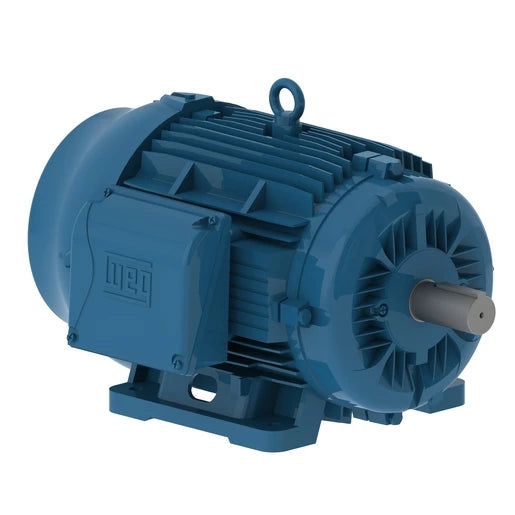

WEG 05036ET3V326TS-W22 — Motor
Weg Electric 05036ET3V326TS-W22, 50 Hp, 3600 Rpm, 324/6TS Frame, 200-208/400 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 17612222
Overview
Weg Electric 05036ET3V326TS-W22, 50 Hp, 3600 Rpm, 324/6TS Frame, 200-208/400 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 17612222 SPECIFICATIONS Frame 324/6TS Output 50 HP (37 kW) Number of Poles 2 Frequency 60 Hz Rated speed 3560 rpm Slip 1.11 % Rated voltage 200-208/400 V Rated current 132-124/66.0 A L. R. Amperes 832-782/416 A LRC 6.3x(Code G) No load current 36.6-27.4/18.3 A Rated torque 73.8 ft.lb Locked rotor torque 240 % Breakdown torque 240 % Locked rotor time 36s (cold) 20s (hot) Moment of inertia (J) 5.75 sq.ft.lb Design B Insulation Class F Service factor 1.25 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP55 Enclosure IC411 - TEFC Mounting F-1 Rotation¹ Both (CW and CCW) Noise level² 76.0 dB(A) Approx. weight³ 511 lb
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 511.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 05036ET3V326TS-W22 |
| KKM catalog reference | WEG-05036ET3V326TS-W22 |
| Product category | Motor |
| Published specifications | 2 attributes listed |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 05036ET3V326TS-W22 cost?
05036ET3V326TS-W22 is listed at CA$6,965.44 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 05036ET3V326TS-W22?
05036ET3V326TS-W22 is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 05036ET3V326TS-W22 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 05036ET3V326TS-W22 — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 05036ET3V326TS-W22?
Key specifications include Tag: WEG Electric; Weight: 511.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 05036ET3V326TS-W22 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
