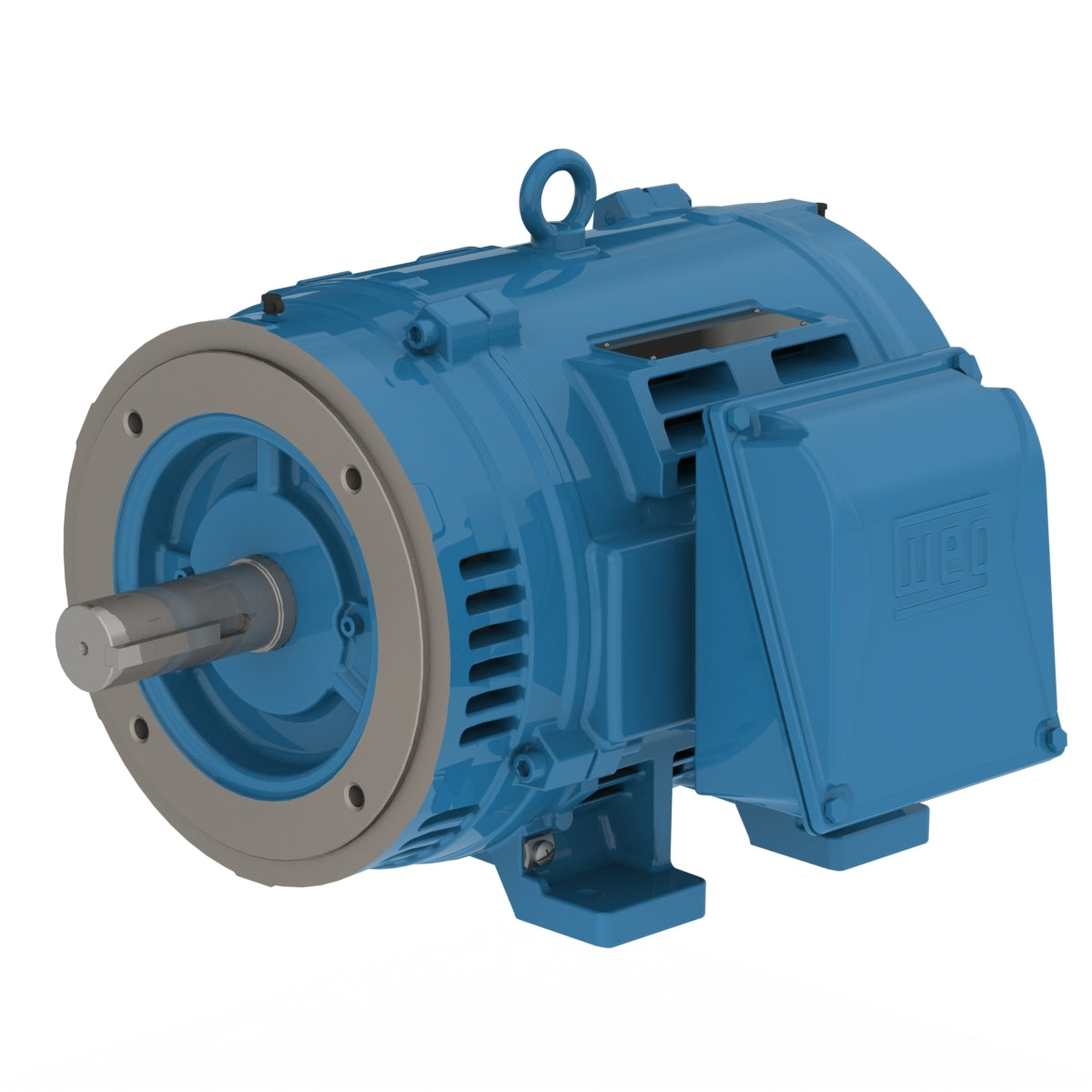

WEG 05018OT3P326TSCF2-W4 — Motor
Weg Electric 05018OT3P326TSCF2-W4, 50 Hp, 1800 Rpm, 324/6TSC Frame, 200 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency.
Overview
05018OT3P326TSCF2-W4, 50 Hp, 1800 Rpm, 324/6TSC Frame, 200 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency. Engineering Data W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements. Product features Standard NEMA MG-1 Frequency 60 Hz Voltage 200 V Number of poles 4 Degree of Protection IP23 Synchronous speed 1800 rpm Output rating 50 HP Mounting Foot-mounted Flange C Mounting F-2 Terminal box¹ Right position Enclosure IC01 - ODP Frame 324/6TSC Output 50 HP (37 kW) Number of Poles 4 Frequency 60 Hz Rated speed 1775 rpm Slip 1.39 % Rated voltage 200 V Rated current 135 A L. R. Amperes 848 A LRC 6.3x(Code G) No load current 53.4 A Rated torque 148 ft.lb Locked rotor torque 240 % Breakdown torque 240 % Locked rotor time 19s (cold) 11s (hot) Moment of inertia (J) 7.08 sq.ft.lb Design B Insulation Class F Service factor 1.25 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP23 Enclosure IC01 - ODP Mounting F-2 Rotation¹ Both (CW and CCW) Noise level² 66.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 524.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 05018OT3P326TSCF2-W4 |
| KKM catalog reference | WEG-05018OT3P326TSCF2-W4 |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 1 other part number in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 05018OT3P326TSCF2-W4 cost?
05018OT3P326TSCF2-W4 is listed at CA$5,121.88 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 05018OT3P326TSCF2-W4?
05018OT3P326TSCF2-W4 is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 05018OT3P326TSCF2-W4 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 05018OT3P326TSCF2-W4 — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 05018OT3P326TSCF2-W4?
Key specifications include Tag: WEG Electric; Weight: 524.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 05018OT3P326TSCF2-W4 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 05018OT3P326T-W40 — WEG 05018OT3P326T-W40 50HP Three Phase General Purpose Cast Iron Motor
Related Products
WEG Weg Electric 05018OT3H326TS-W40, 50 Hp, 324/6TS Frame, 1800 RPM,…
WEG Weg Electric 05018OT3V326T-W40, 50 Hp, 1800 Rpm, 324/6T Frame,…

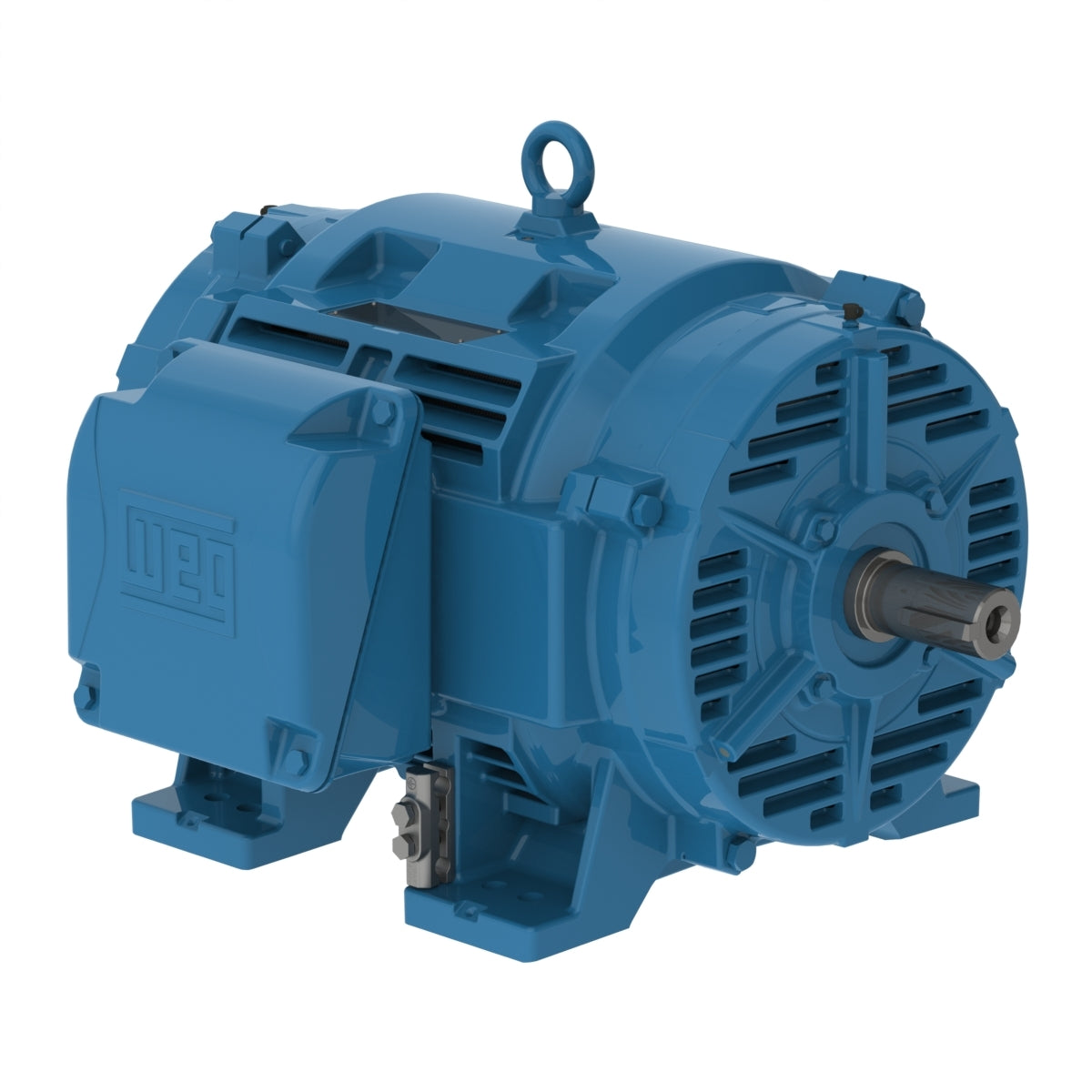

WEG Weg Electric 05018OT3H326T-W40G, 50 Hp, 324/6T Frame, 1800 RPM,…

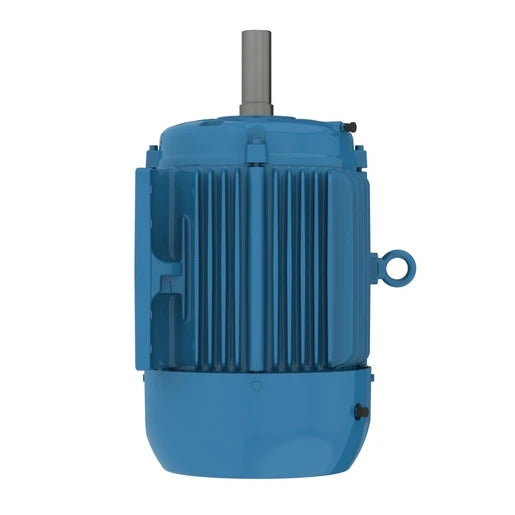

WEG Weg Electric 05018ST3QAP326T-W22, 50 Hp, 1800 Rpm, 324/6T Frame,…

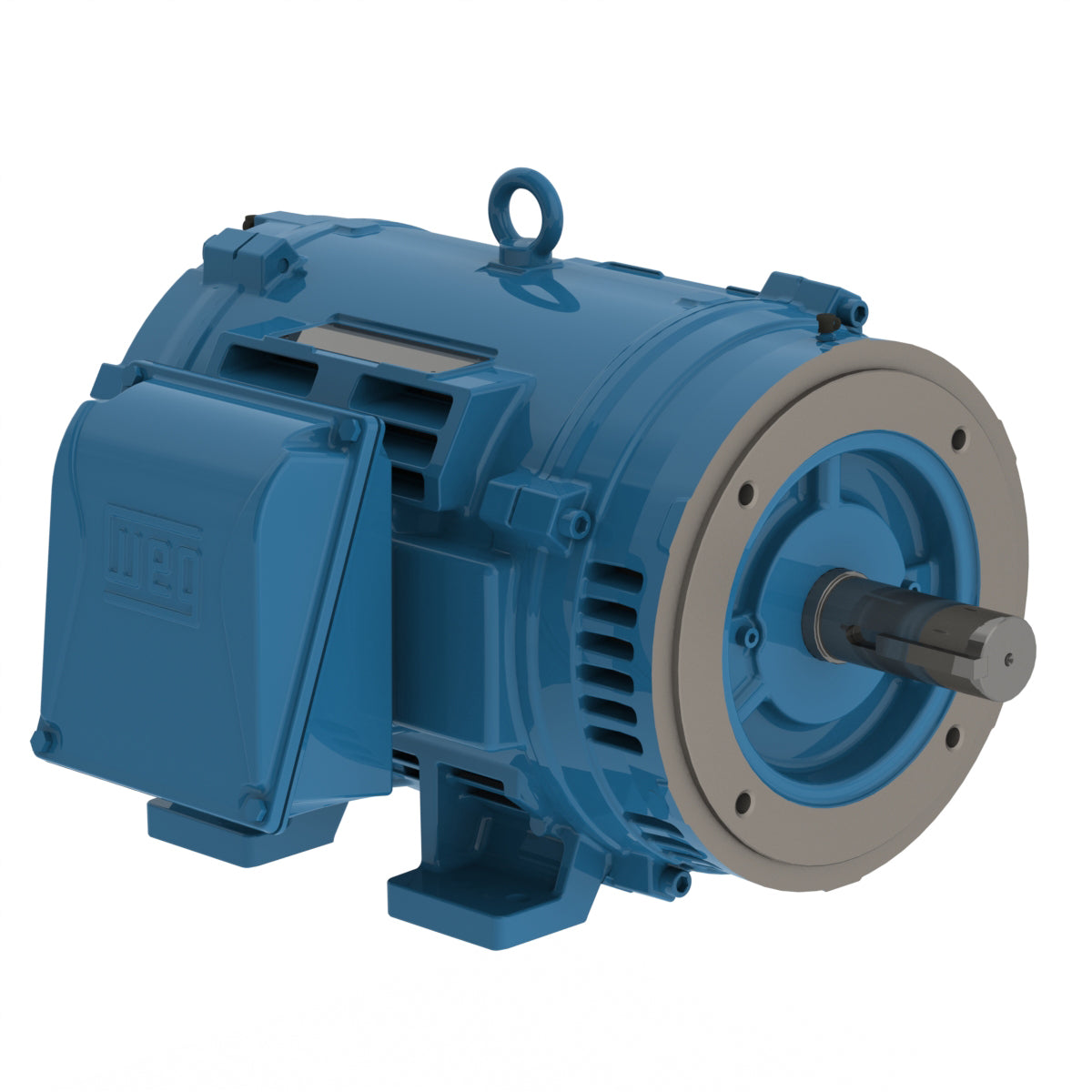

WEG Weg Electric 05018OT3H326JP-W40, 50 Hp, 1800 Rpm, 324/6JP Frame,…
