WEG 04018OT3E324JMV — Motor
Weg Electric 04018OT3E324JMV, 40 Hp, 1800 Rpm, 324JM Frame, 230/460 Vac, ODP, 3 PH, Footless, Closed Coupled Pump NEMA Premium Efficiency.
Overview
04018OT3E324JMV, 40 Hp, 1800 Rpm, 324JM Frame, 230/460 Vac, ODP, 3 PH, Footless, Closed Coupled Pump NEMA Premium Efficiency. Engineering Data W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements. Product features Standard NEMA MG-1 Frequency 60 Hz Voltage 230/460 V Number of poles 4 Degree of Protection IP23 Synchronous speed 1800 rpm Output rating 40 HP Mounting Footless Flange C Mounting W-6 Terminal box¹ Left position Enclosure IC01 - ODP Frame 324JM Output 40 HP (30 kW) Number of Poles 4 Frequency 60 Hz Rated speed 1775 rpm Slip 1.39 % Rated voltage 230/460 V Rated current 96.4/48.2 A L. R. Amperes 598/299 A LRC 6.2x(Code G) No load current 37.0/18.5 A Rated torque 118 ft.lb Locked rotor torque 220 % Breakdown torque 229 % Locked rotor time 50s (cold) 28s (hot) Moment of inertia (J) 6.05 sq.ft.lb Design B Insulation Class F Service factor 1.15 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP23 Enclosure IC01 - ODP Mounting W-6 Rotation¹ Both (CW and CCW) Noise level² 64.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 485.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 04018OT3E324JMV |
| KKM catalog reference | WEG-04018OT3E324JMV |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 14 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 04018OT3E324JMV cost?
04018OT3E324JMV is listed at CA$6,523.42 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 04018OT3E324JMV?
04018OT3E324JMV is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 04018OT3E324JMV discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 04018OT3E324JMV — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 04018OT3E324JMV?
Key specifications include Tag: WEG Electric; Weight: 485.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 04018OT3E324JMV ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 04018OT3E324JM-W40 — WEG 04018OT3E324JM-W40 40HP Three Phase JM Pump Motor
- 04018OT3E324JMV-W40 — WEG 04018OT3E324JMV-W40 40HP Three Phase JM Pump Motor
- 04018OT3E324JP — Weg Electric 04018OT3E324JP, 40 Hp, 1800 Rpm, 324JP Frame, 230/460//380 Vac, ODP,…
- 04018OT3E324JP-W40 — WEG 04018OT3E324JP-W40 40HP Three Phase JP Pump Motor
- 04018OT3E324JPV-W40 — WEG 04018OT3E324JPV-W40 40HP Three Phase JP Pump Motor
- 04018OT3E324T — Weg Electric 04018OT3E324T, 40 Hp, 1800 Rpm, 324T Frame, 230/460//380 Vac, ODP,…
- 04018OT3E324T-W40 — WEG 04018OT3E324T-W40 40HP Three Phase General Purpose Cast Iron Motor
- 04018OT3E324T-W40G — WEG 04018OT3E324T-W40G 40HP Three Phase AEGIS Shaft Grounding Ring Cast Iron Motor
- 04018OT3E324TC-W40 — WEG 04018OT3E324TC-W40 40HP Three Phase General Purpose Cast Iron Motor
- 04018OT3E324TC-W40G — WEG 04018OT3E324TC-W40G 40HP Three Phase AEGIS Shaft Grounding Ring Cast Iron Motor
- 04018OT3E324TCF2 — Weg Electric 04018OT3E324TCF2, 40 Hp, 1800 Rpm, 324TC Frame, 230/460//380 Vac, ODP,…

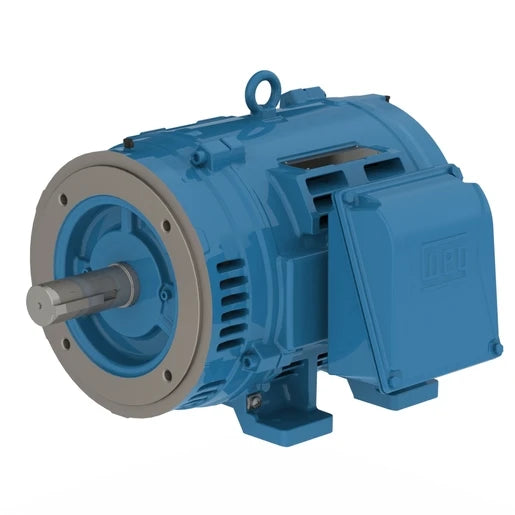

- 04018OT3E324TCF2-W40 — Weg Electric 04018OT3E324TCF2-W40, 40 Hp, 324TC Frame, 1800 RPM, 230/460//380 Vac, ODP,…
- 04018OT3E324TS-W40 — WEG 04018OT3E324TS-W40 40HP Three Phase General Purpose Cast Iron Motor
- 04018OT3E324TSCF2-W4 — Weg Electric 04018OT3E324TSCF2-W4, 40 Hp, 324TSC Frame, 1800 RPM, 230/460//380 Vac, ODP,…
Related Products
WEG Weg Electric 04018OP3VFP324TS-W40, 40 Hp, 1800 Rpm, 324TS Frame,…
WEG Weg Electric 04018OT3E324JP, 40 Hp, 1800 Rpm, 324JP Frame,…

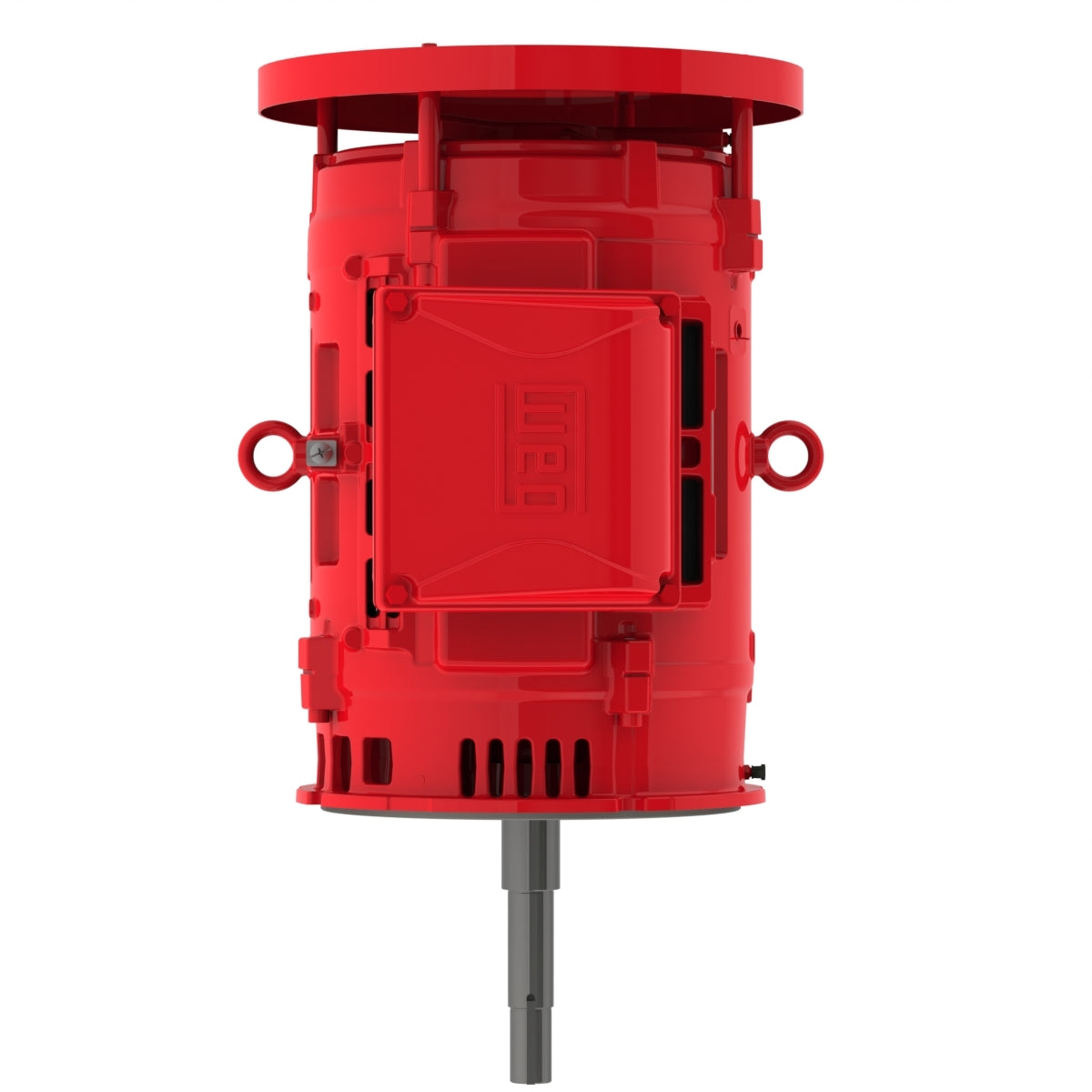

WEG Weg Electric 04018OP3VFP324JPV-W4, 40 Hp, 1800 Rpm, 324/6JP Frame,…

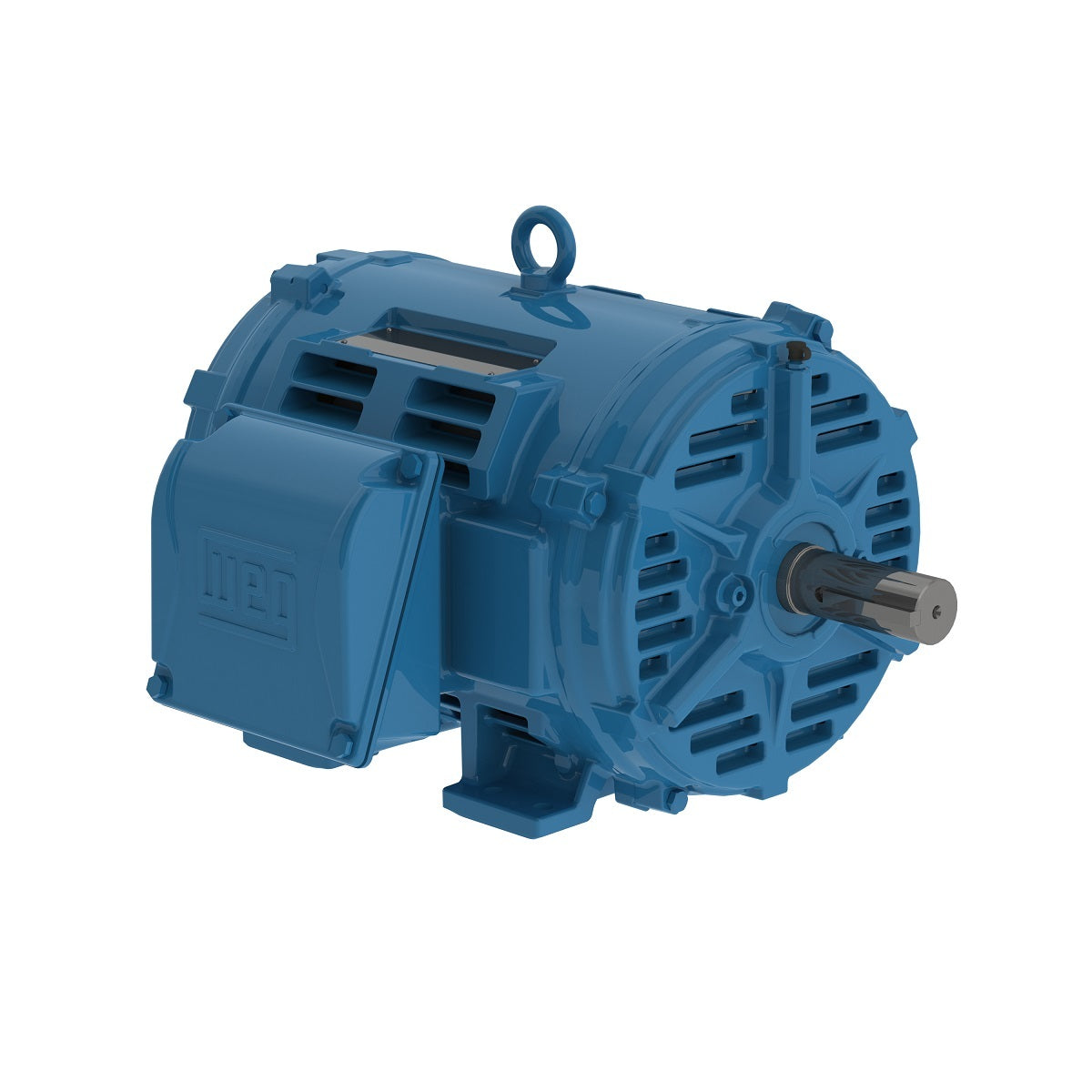

WEG Weg Electric 04018OT3E324T, 40 Hp, 1800 Rpm, 324T Frame,…

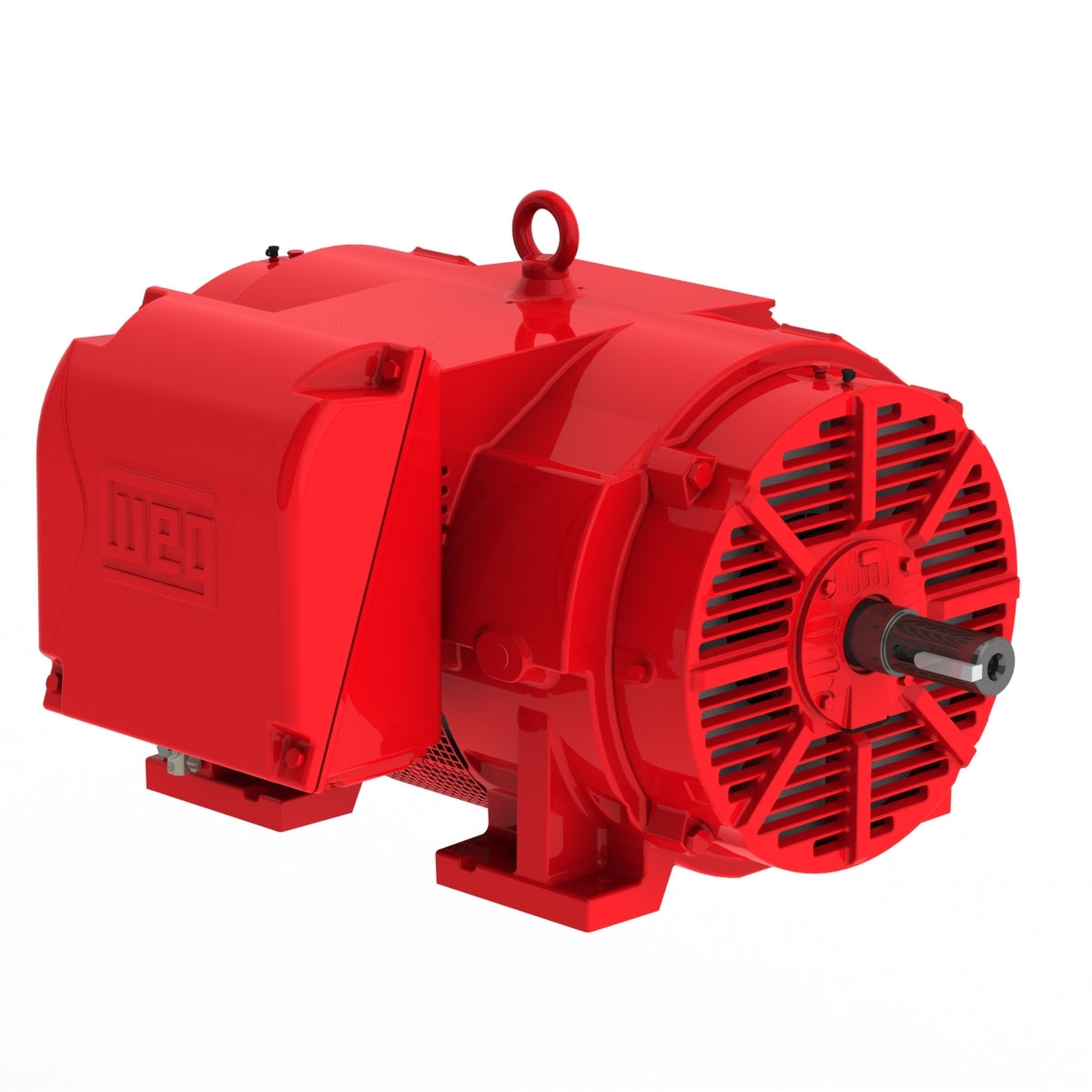

WEG Weg Electric 04018OP3HFP324TS-W40, 40 Hp, 1800 Rpm, 324TS Frame,…
