WEG 04018ET3EPM324/6Y-W2 — Motor
Weg Electric 04018ET3EPM324/6Y-W2, 40 Hp, 1800 Rpm, 326YZ Frame, 208-230/460 Vac, TEAO, 3 PH, Pad mounted, NEMA Premium Efficiency.
Overview
04018ET3EPM324/6Y-W2, 40 Hp, 1800 Rpm, 326YZ Frame, 208-230/460 Vac, TEAO, 3 PH, Pad mounted, NEMA Premium Efficiency. Engineering Data Specially designed for manufacturers of axial fans, the W22 Fan and Exhaust motors are compact and an excellent choice for the following applications: fans and exhausters, tunnels, subways, air conditioning systems, underground coal mines, shopping malls, supermarkets and other applications. Product features Standard NEMA MG-1 Frequency 60 Hz Voltage 208-230/460 V Number of poles 4 Degree of Protection IP55 Synchronous speed 1800 rpm Output rating 40 HP Mounting Pad mounted Flange Without Mounting F-1 Terminal box¹ Left position Enclosure IC410 - TEAO Frame 326YZ Output 40 HP (30 kW) Number of Poles 4 Frequency 60 Hz Rated speed 1775 rpm Slip 1.39 % Rated voltage 208-230/460 V Rated current 104-94.2/47.1 A L. R. Amperes 634-575/287 A LRC 6.1x(Code G) No load current 0.000-32.0/16.0 A Rated torque 118 ft.lb Locked rotor torque 220 % Breakdown torque 240 % Locked rotor time 36s (cold) 20s (hot) Design B Insulation Class F Service factor 1.25 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP55 Enclosure IC410 - TEAO Mounting F-1 Rotation¹ Both (CW and CCW) Noise level² 66.0 dB(A)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 553.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 04018ET3EPM324/6Y-W2 |
| KKM catalog reference | WEG-04018ET3EPM324/6Y-W2 |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 1 other part number in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 04018ET3EPM324/6Y-W2 cost?
04018ET3EPM324/6Y-W2 is listed at CA$6,077.07 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 04018ET3EPM324/6Y-W2?
04018ET3EPM324/6Y-W2 is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 04018ET3EPM324/6Y-W2 discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 04018ET3EPM324/6Y-W2 — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 04018ET3EPM324/6Y-W2?
Key specifications include Tag: WEG Electric; Weight: 553.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 04018ET3EPM324/6Y-W2 ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 04018ET3EPM324/6Y — Weg 04018ET3EPM324/6Y 40HP 1800RPM three-phase TEFC motor with 324Y NEMA frame and…
Related Products
WEG Weg Electric 04018ET3E324TC-W22G, 40 Hp, 1800 Rpm, 324/6TC Frame,…
WEG Weg Electric 04018ET3H324T-W22G, 40 Hp, 1800 Rpm, 324/6T Frame,…

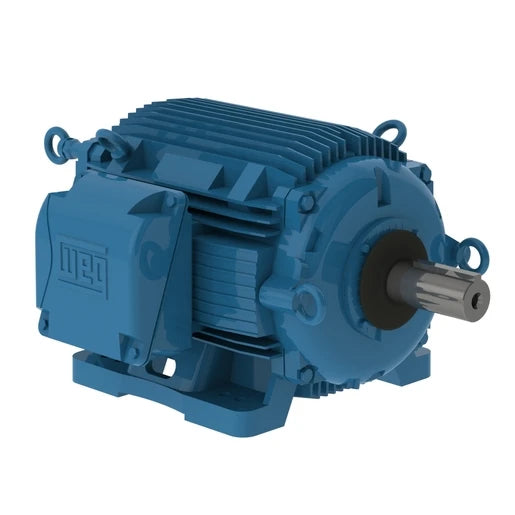

WEG Weg Electric 04018AT3ECT324T-W22G, 40 Hp, 324T Frame, 1800 RPM,…
