WEG 02536OT3E256JM — Motor
Weg Electric 02536OT3E256JM, 25 Hp, 3600 Rpm, 254/6JM Frame, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 JM Pump NEMA Premium Efficiency.
Overview
02536OT3E256JM, 25 Hp, 3600 Rpm, 254/6JM Frame, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 JM Pump NEMA Premium Efficiency. Engineering Data The W40 motor is a general purpose line designed for environments where dirt and moisture are minimal. The W40 cast iron frame is designed to provide maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness and durability. Product features Standard NEMA MG-1 Frequency 60//50 Hz Voltage 230/460//380 V Number of poles 2 Degree of Protection IP23 Synchronous speed 3600 rpm Output rating 25 HP Mounting Foot-mounted Flange C Mounting F-1 Terminal box¹ Left position Enclosure IC01 - ODP Frame 254/6JM Output 25 HP (18.5 kW) Number of Poles 2 Frequency 60 Hz Rated speed 3535 rpm Slip 1.81 % Rated voltage 230/460 V Rated current 57.6/28.8 A L. R. Amperes 374/187 A LRC 6.5x(Code G) No load current 17.0/8.50 A Rated torque 37.1 ft.lb Locked rotor torque 200 % Breakdown torque 280 % Locked rotor time 19s (cold) 11s (hot) Moment of inertia (J) 1.13 sq.ft.lb Design B Insulation Class F Service factor 1.25 Temperature rise 80 K Duty Cycle Cont.(S1) Starting Method Direct On Line Ambient temperature -20°C to +40°C Altitude 1000 m.a.s.l. Degree of Protection IP23 Enclosure IC01 - ODP Mounting F-1 Rotation¹ Both (CW and CCW)
Specifications
| Tag | WEG Electric |
|---|---|
| Weight | 243.0 lb |
Product details
| Manufacturer | WEG |
|---|---|
| Manufacturer part number | 02536OT3E256JM |
| KKM catalog reference | WEG-02536OT3E256JM |
| Product category | Motor |
| Published specifications | 2 attributes listed |
| Related part numbers | 14 other part numbers in this family |
Request a quote for this part
Email [email protected] or call (825) 454-5367 for pricing and availability.
Frequently Asked Questions
How much does 02536OT3E256JM cost?
02536OT3E256JM is listed at CA$3,824.84 (CAD) and can be ordered directly from this page with Add to Cart. That figure is a reference price and can change: your card is authorized at checkout and charged only once our order desk confirms the part, stock, and final price, and we email you first if anything has moved. Larger quantities or custom terms — email [email protected] for a volume quote.
Who manufactures the 02536OT3E256JM?
02536OT3E256JM is a WEG part. KKM Solutions sources WEG components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
Is 02536OT3E256JM discontinued, and can I still get one?
KKM Solutions does not publish a manufacturer lifecycle status for 02536OT3E256JM — check WEG's own product page for whether it is current, superseded, or end-of-life. It does not change what we can do: we source current-production, superseded and long-obsolete parts the same way, and where a part is genuinely unavailable we identify a form-fit-function equivalent. Send the part number through the quote form on this page, or use our obsolete part lookup at https://kkmsolutions.com/tools/obsolete-part-lookup/.
What are the key specifications of 02536OT3E256JM?
Key specifications include Tag: WEG Electric; Weight: 243.0 lb. The full specification table on this page lists every published attribute for this part.
How quickly can 02536OT3E256JM ship?
In-stock items are dispatched the same business day for orders placed by 11 AM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Variants & Related Part Numbers
Other WEG part numbers in this family:
- 02536OT3E256JM-S — WEG 02536OT3E256JM-S
- 02536OT3E256JM-SG — WEG 02536OT3E256JM-SG
- 02536OT3E256JM-W40 — WEG 02536OT3E256JM-W40
- 02536OT3E256JMV-S — WEG 02536OT3E256JMV-S
- 02536OT3E256JP-S — WEG 02536OT3E256JP-S
- 02536OT3E256JP-SG — WEG 02536OT3E256JP-SG
- 02536OT3E256JP-W40 — WEG 02536OT3E256JP-W40
- 02536OT3E256JPV-S — WEG 02536OT3E256JPV-S
- 02536OT3E256T-S — WEG 02536OT3E256T-S
- 02536OT3E256T-SG — WEG 02536OT3E256T-SG
- 02536OT3E256T-W40 — WEG 02536OT3E256T-W40
- 02536OT3E256TC-S — WEG 02536OT3E256TC-S
- 02536OT3E256TC-W40 — WEG 02536OT3E256TC-W40

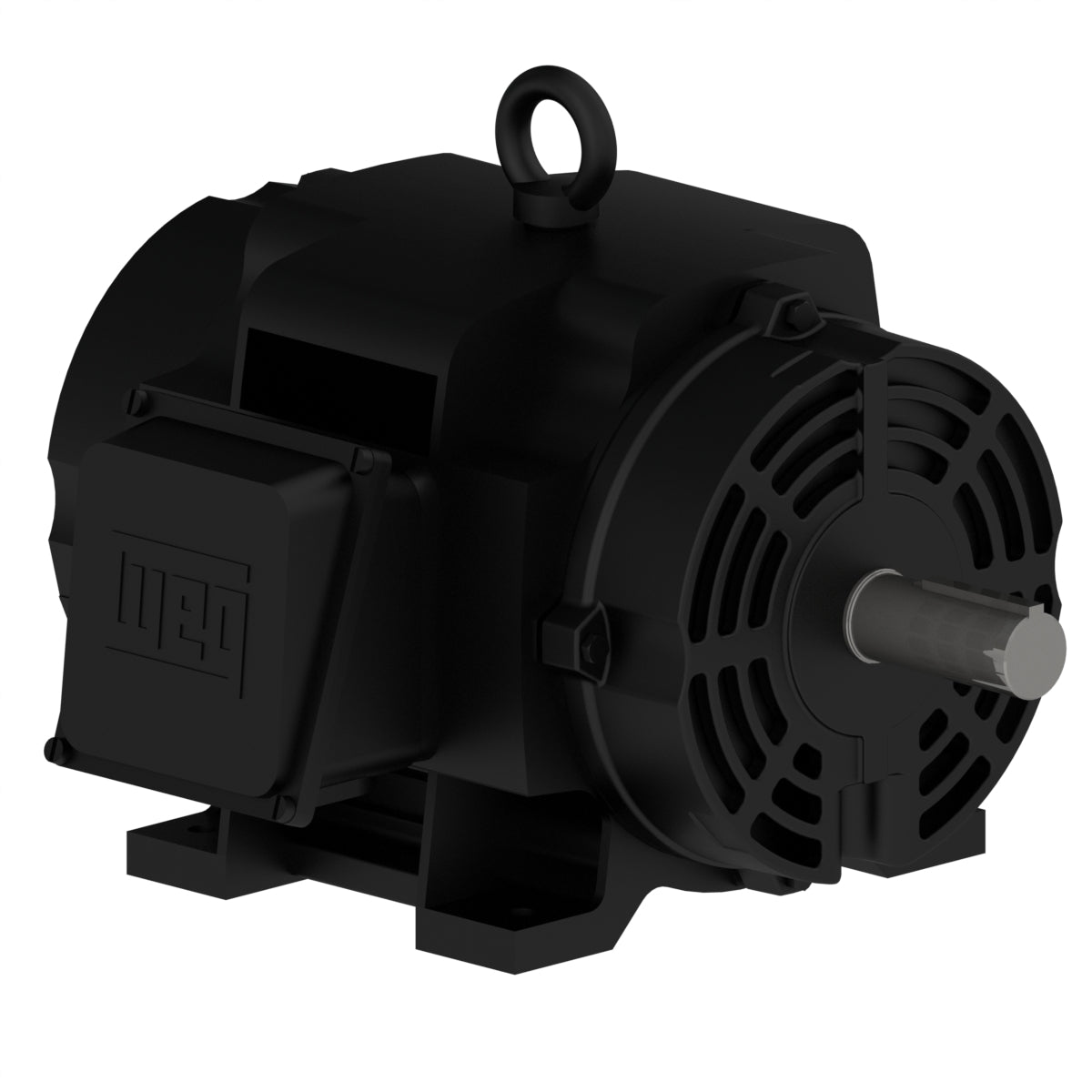

- 02536OT3ECD256TF2 — Weg Electric 02536OT3ECD256TF2, 20 Hp, 3600 Rpm, 2546T Frame, 230/460 Vac, ODP,…
Related Products

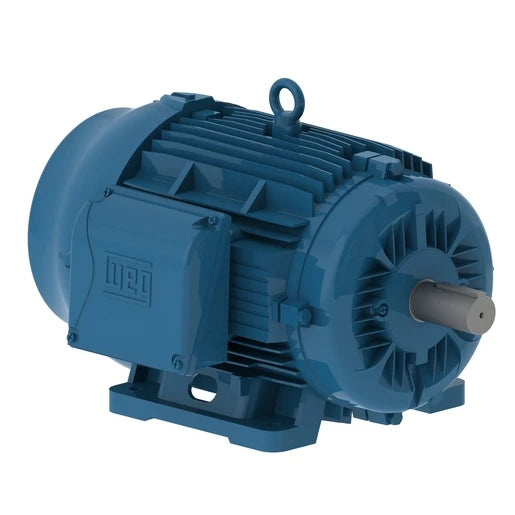

WEG Weg Electric 02536ET3V284TS-W22, 25 Hp, 3600 Rpm, 284/6TS Frame,…
WEG Weg Electric 02536OT3ECD256T, 20 Hp, 3600 Rpm, 254/6T Frame,…
WEG Weg Electric, 02536ET3Q284LP-W21, 25 Hp, 3600 Rpm, 256LP Frame,…
WEG Weg Electric 02536OT3ECD256TF2, 20 Hp, 3600 Rpm, 2546T Frame,…

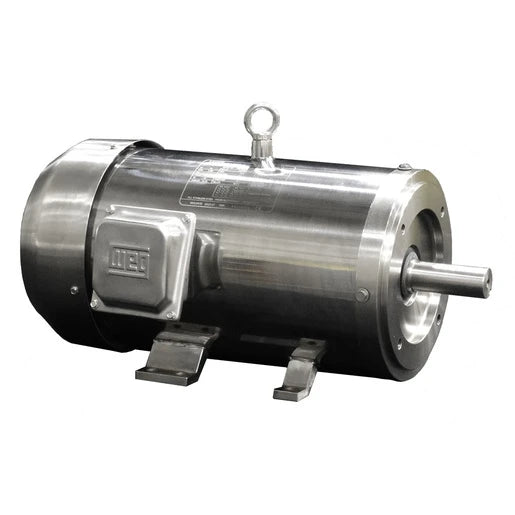

WEG Weg Electric, 02536ET3ESS284TC, 25 HP, 284TSC FR, 3Ph, 230/460…
